Grove - GPS Module [Discontinued]

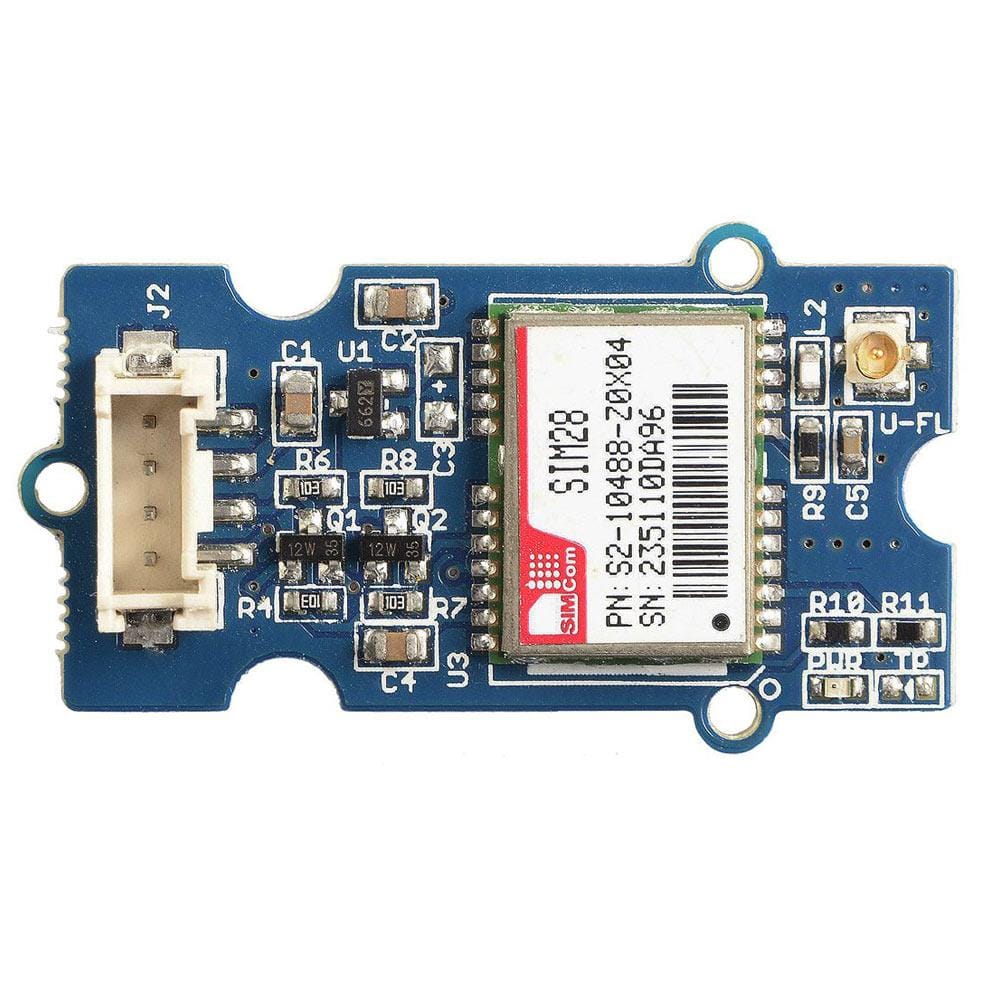

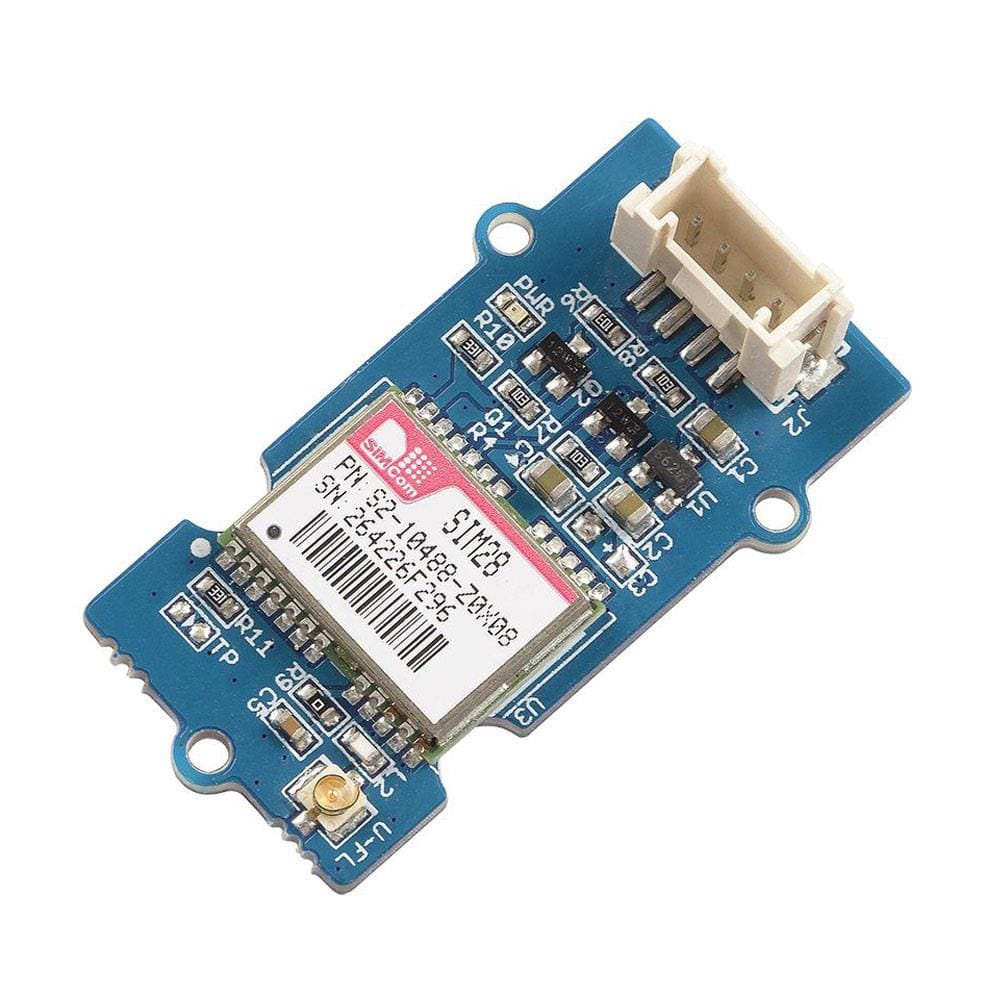

The Grove - GPS module is a cost-efficient and field-programmable gadget armed with a SIM28 module and serial communication configuration, providing a precise, sensitive, low-power GPS module for position recognition anywhere in the world.

If you put your Raspberry Pi or Arduino in the wild, can you track its location? If you had this GPS module you could!

The module features a 22 tracking / 66 acquisition channels GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services.

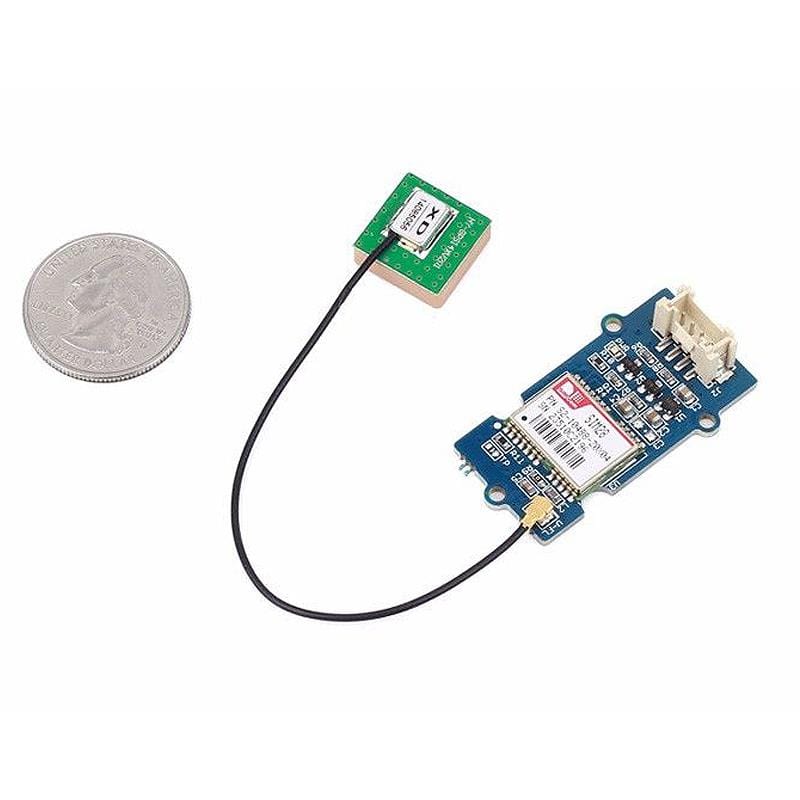

The module comes complete with an antenna and a Grove cable.

Features

• Supports NMEA and U-Blox 6 protocols
• Low power consumption
• Baud rates configurable

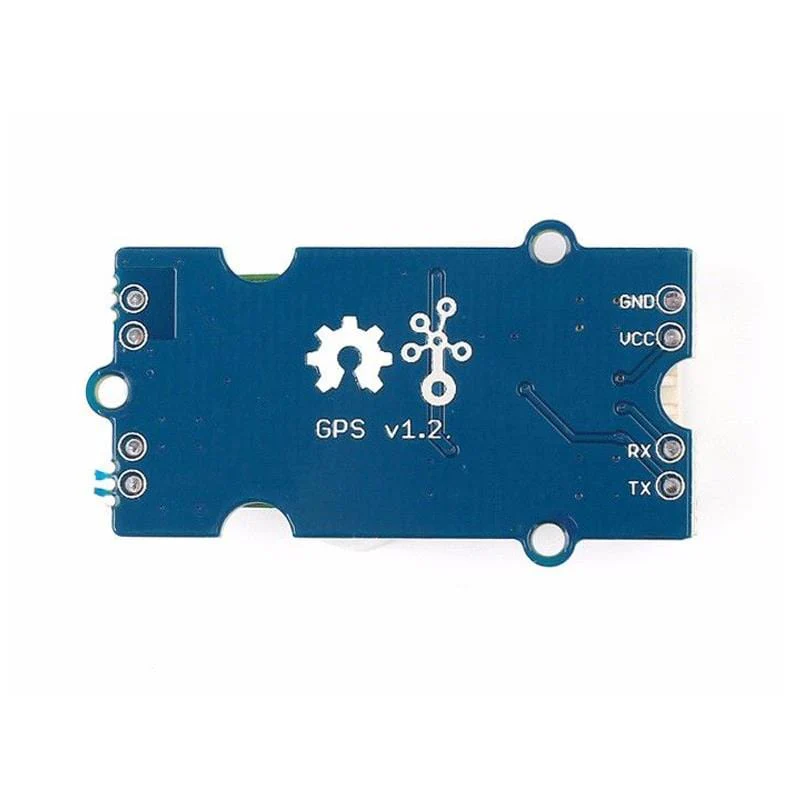

• Grove UART interface
• Compatible with Arduino and Raspberry Pi
• Input Voltage: 3.3/5V
• BaudRate: 9600 - 115200
• Default BaudRate: 9600
• Dimensions 40mm x20mm x13mm
• Weight: 17g
• Product number: Seeed 113020003

Specifications

Specs	Grove – GPS Module

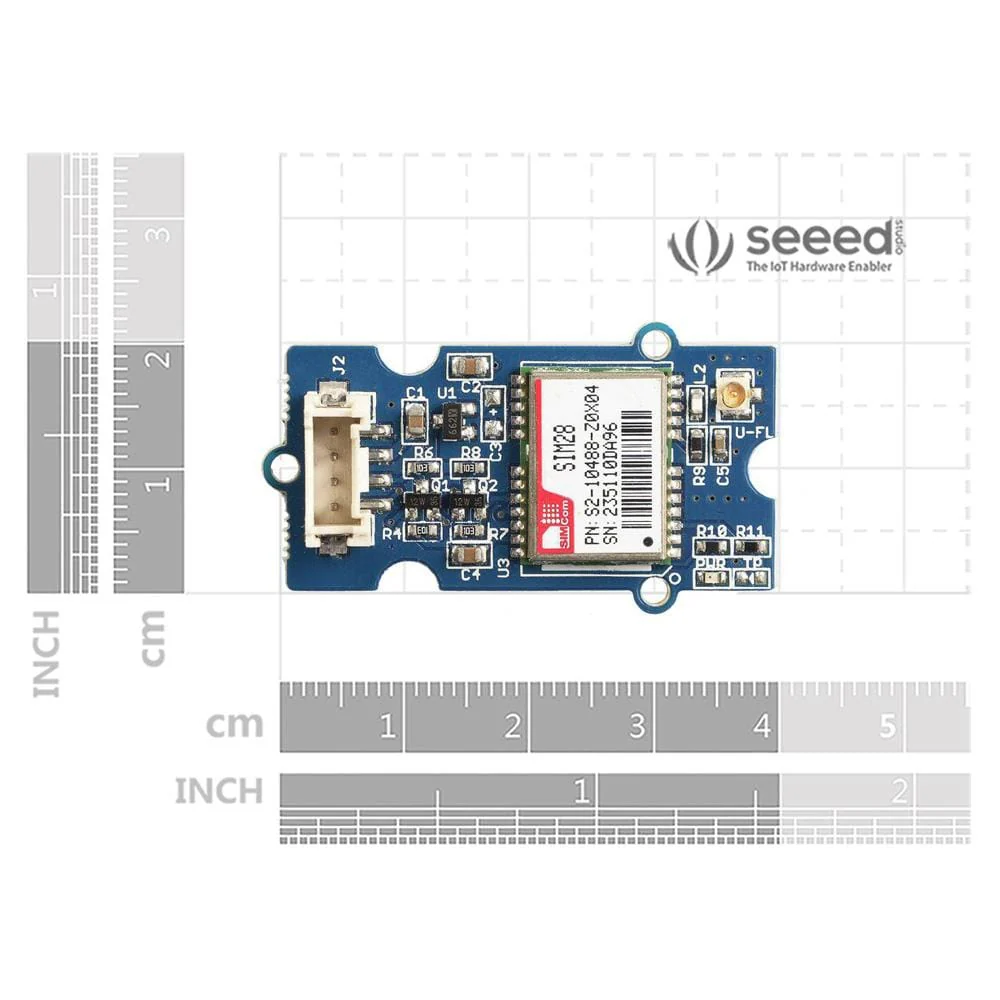

Size	40mm x 20mm x 13mm
Update Rate	1Hz, max 10Hz
Baud Rate	9,600 – 115,200
Navigation Sensitivity	-160dBm
Power Requirements	3.3/5V
Number of Channels	22 tracking, 66 channels
Time to first start	Cold start: 13s
	Warm start: 1-2s
	Hot start: <1s
Antennas	Antenna included
Accuracy	2.5m GPS Horizontal Position Accuracy

Resources

• Product Wiki

Package Contents

• 1x Grove GPS
• 1x Grove cable
• 1x Antenna
