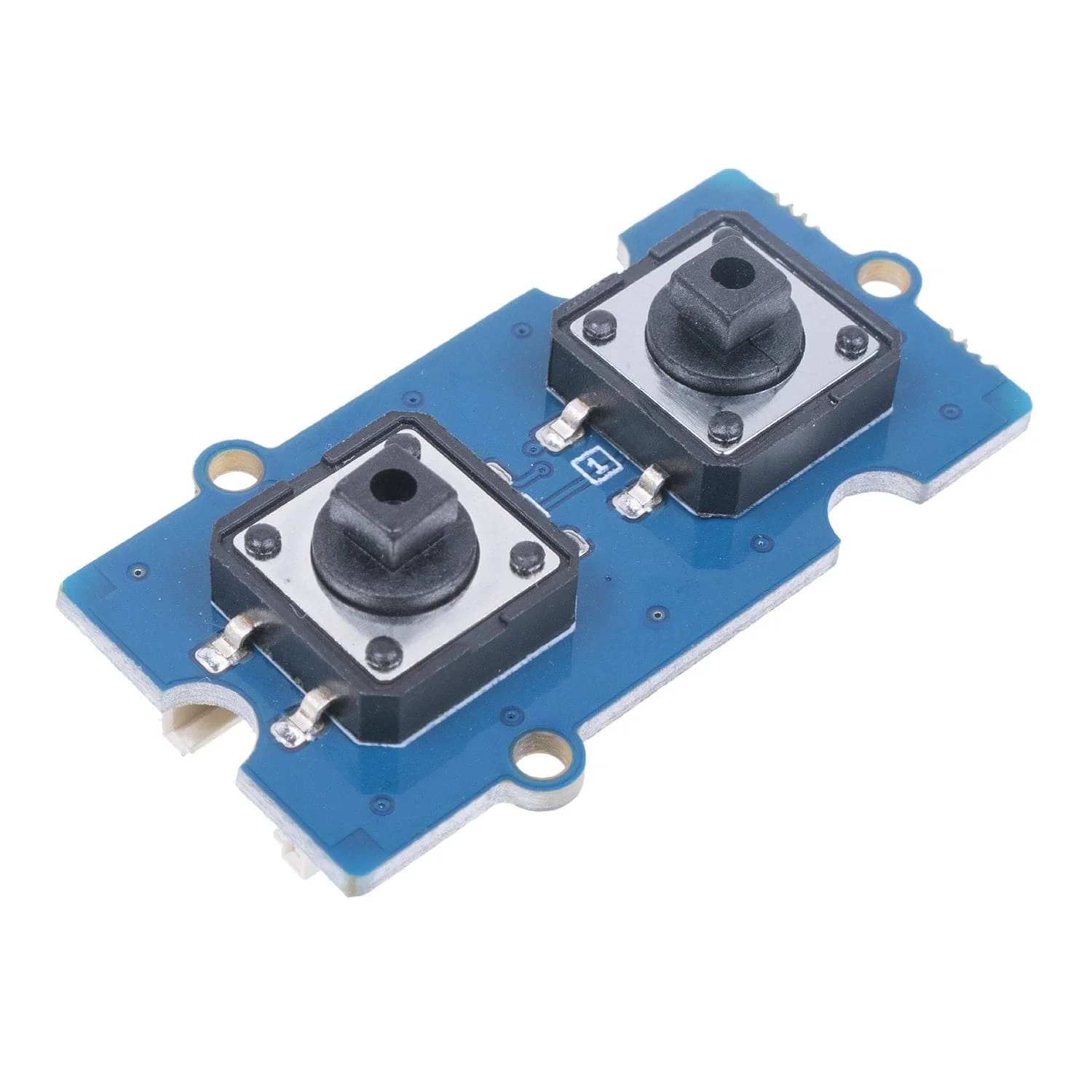

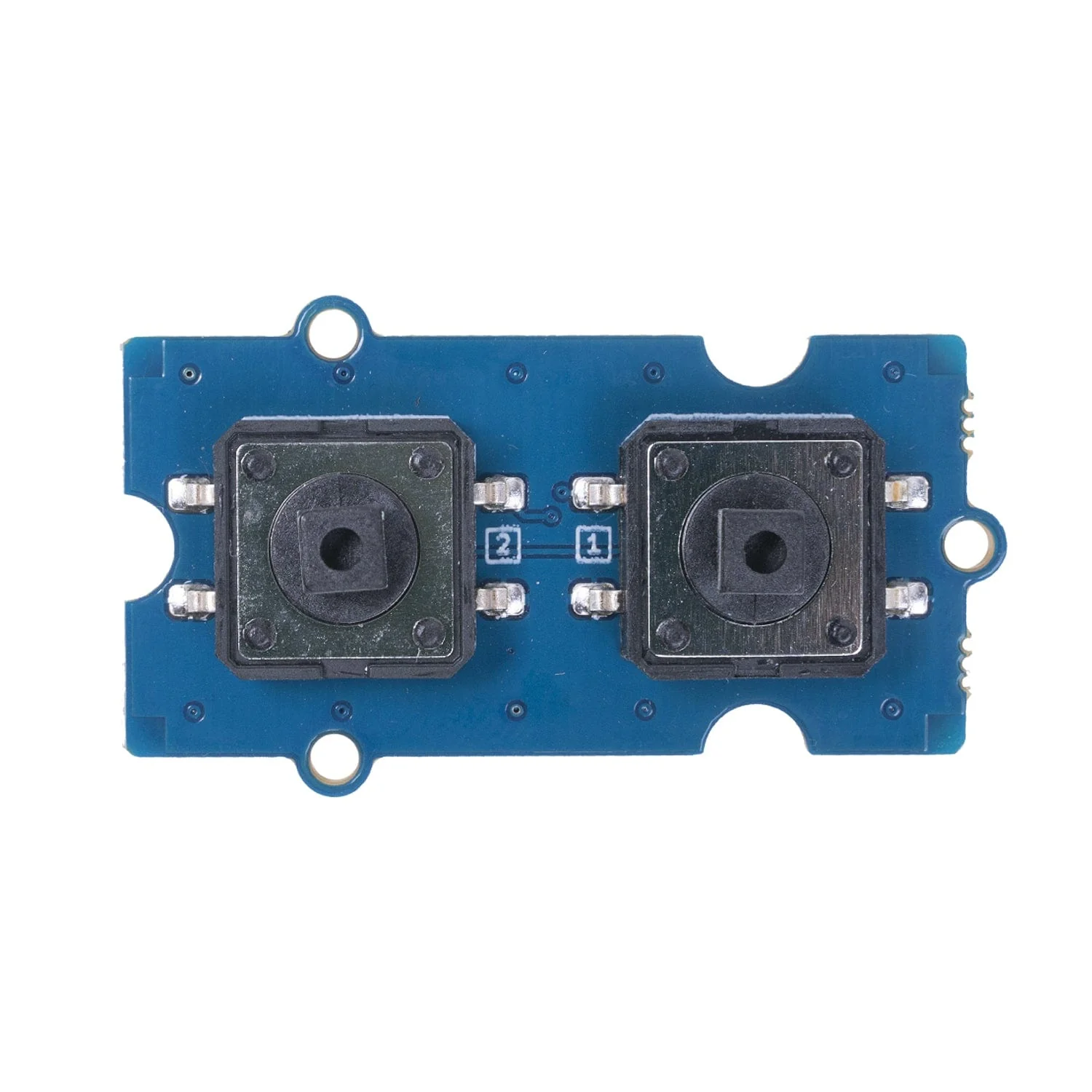

Grove - Dual Button

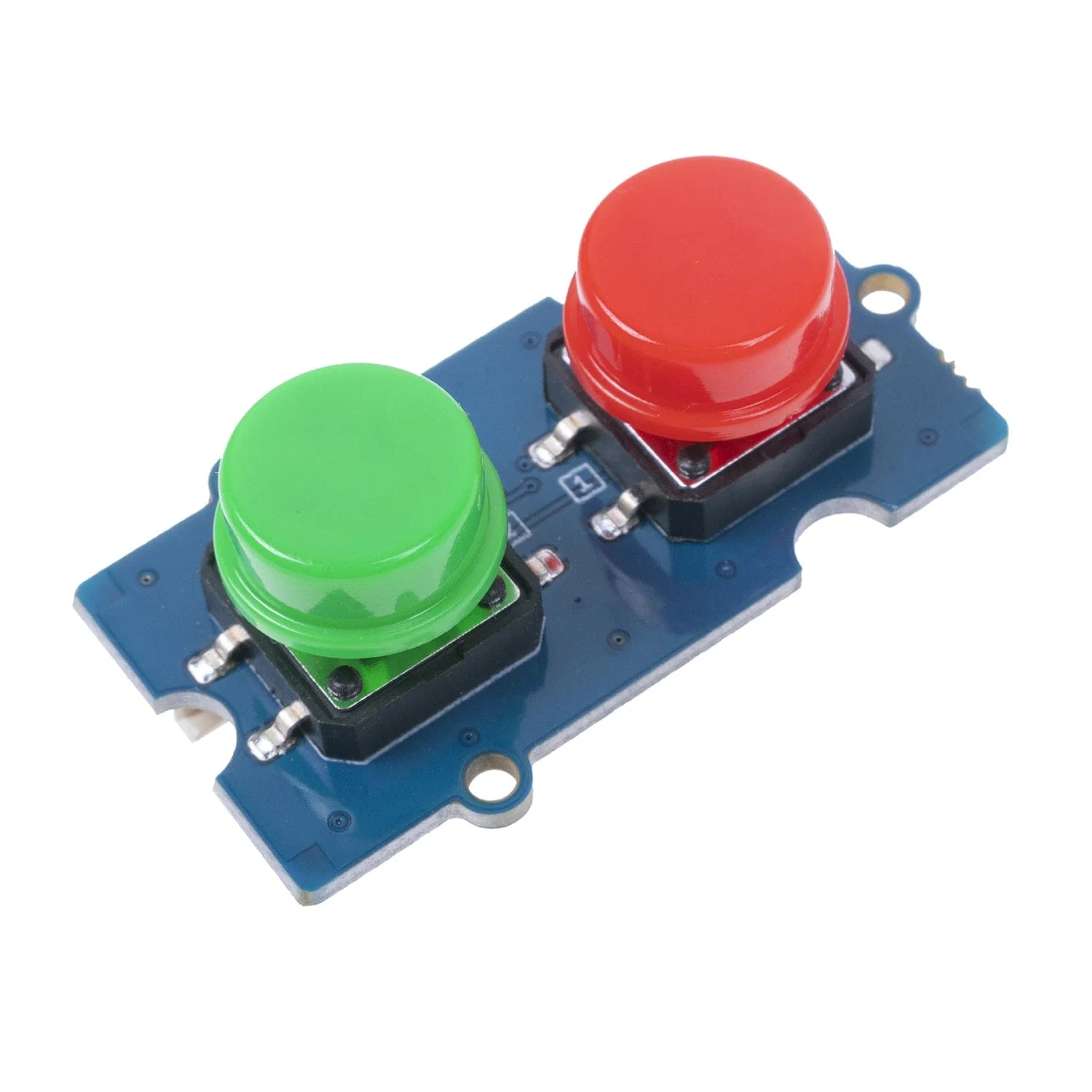

The Grove Dual Button includes 2 buttons, that enable you to control two signal channels with one Grove module. With 4 different colour keycaps provided, you can freely adjust the colour combination as needed.

The button is driven by the GPIO Digital Pins. When the button is pressed, the Pins can reach a LOW signal from the button; on the other hand, when it is in the loosened state, Pins will always gain a HIGH signal until it is pressed.

Features

• Compact size: Modular design and less wire connection with two buttons in one grove module
• Different colour keycaps provided: Freely adjust the colour combination as needed.
• Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
• Product number: Seeed 111020103

Specifications

Voltage range	3V–5V
Interface	Grove

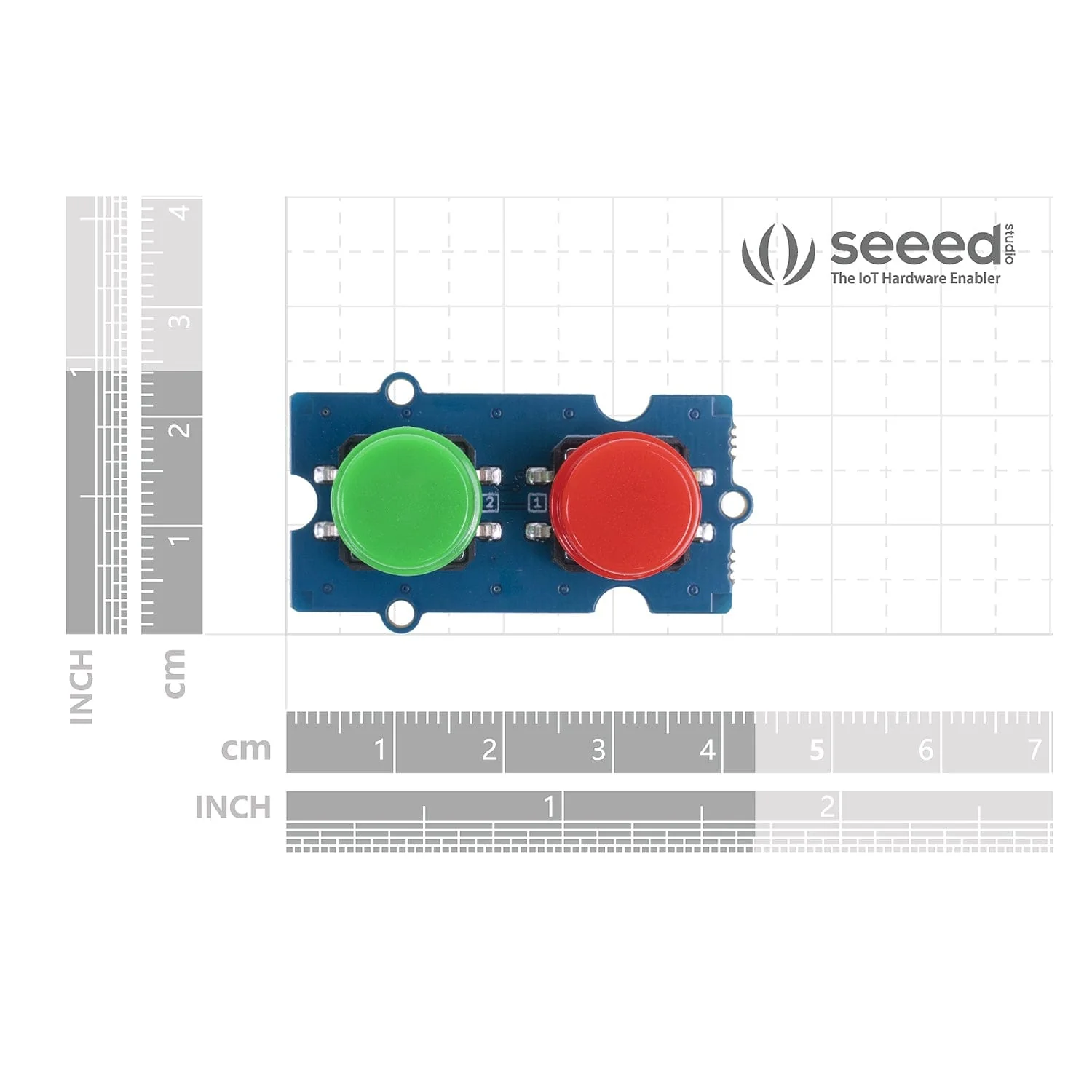

Dimensions	20mm * 40mm
Battery	Exclude

Resources

• Product Wiki
• Hardware eagle files
• Hardware schematic

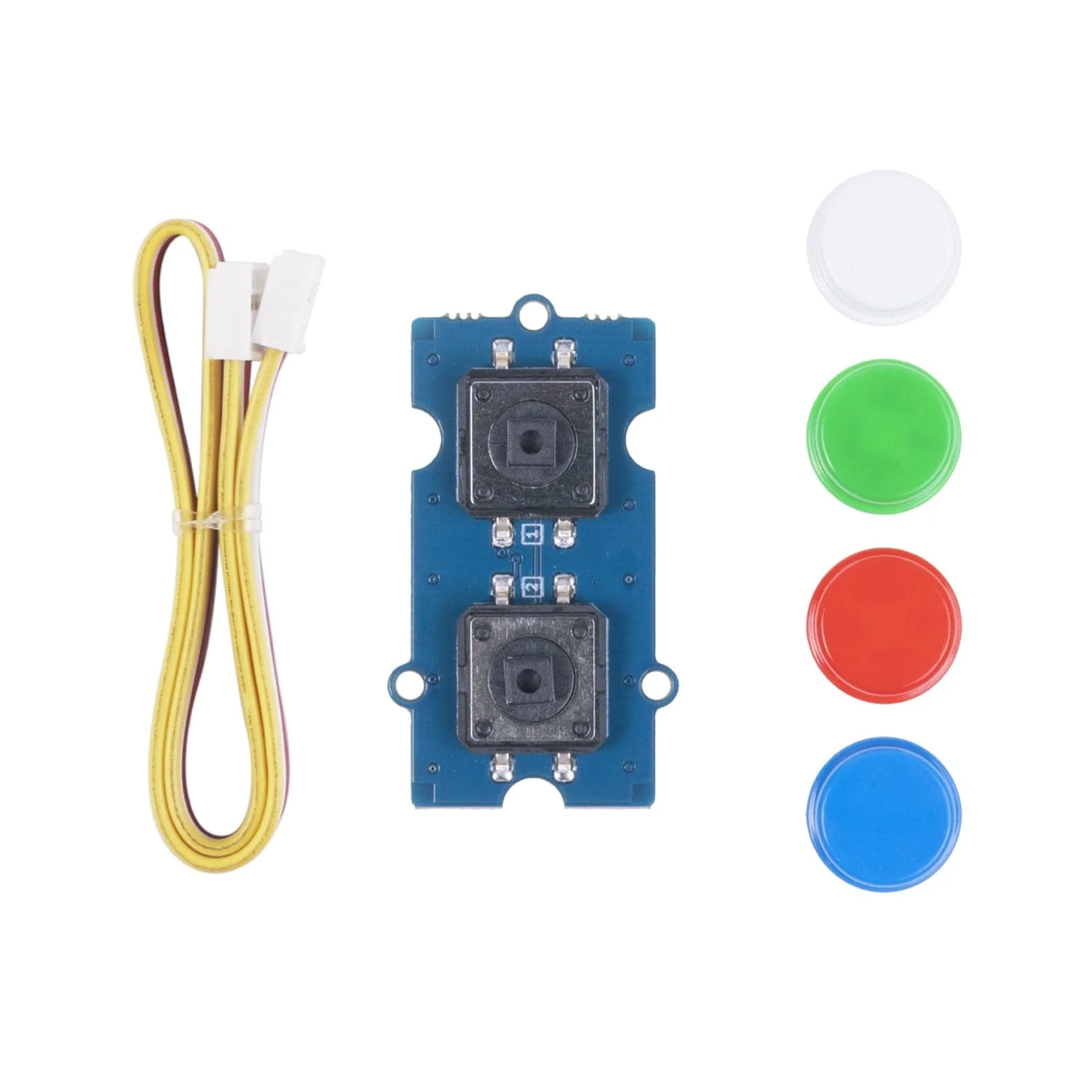

Package Contents

• 1x Grove - Dual Button
• 4x Keycaps
• 1x Grove Cable
