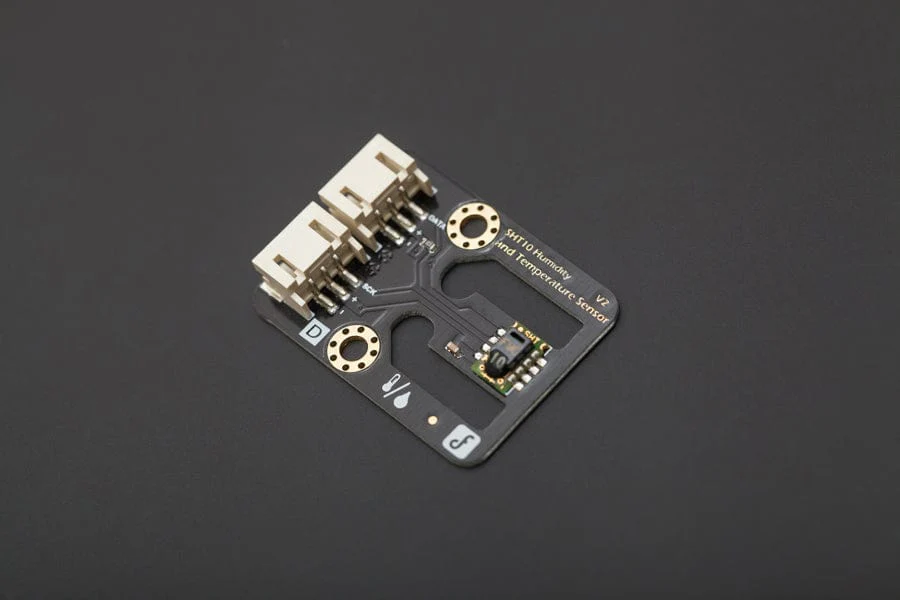

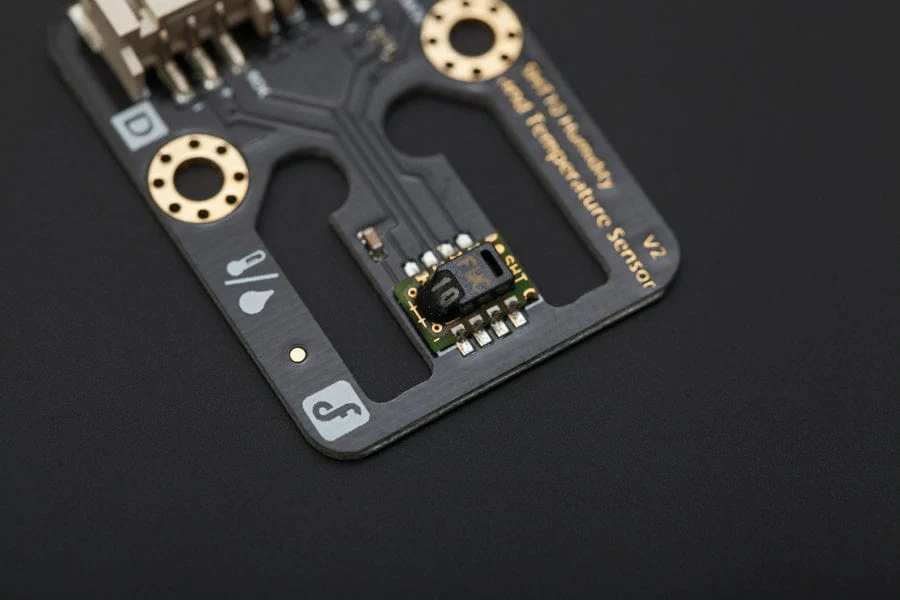

Gravity: SHT1x Temperature & Humidity Sensor [Discontinued]
This sensor uses SHT1x sensor. SHT1x is individually calibrated in a precision humidity chamber. The calibration coefficients are programmed into an OTP memory on the chip. These coefficients are used to internally calibrate the signals from the sensors. The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. The tiny size and low power consumption makes SHT1x the ultimate choice for even the most demanding applications.
|
CMOSens technology makes it of advantages such as low power consumption, fast response, strong anti-jamming capacity etc. Application: Medical equipment HVAC Meteorology Humidity regulator Dehumidifier Tests and measurements Automobile Automatically control |
This sensor includes a resistive element and a sense of wet NTC temperature measuring devices. It has excellent quality, fast response, anti-interference ability and high cost performance advantages. Its signal transmission distance up to 20 meters. These features make it a variety of applications and even the most demanding applications. Application: |
It contains a resistive element and a sense of wet NTC temperature module. Compared to DHT11, it has smaller humidity deviation, faster response, stronger anti-interference ability and higher cost performance Application: Medical equipment HVAC Meteorology Humidity regulator Dehumidifier Tests and measurements |
Specification
- Chip: SHT10
- Interface :Digital
- Humidity Ranger:0-100%RH
- Tempereature ranger: -40~128.8℃
- Humidity accuracy:±4.5%RH
- Temperature accuracy:±0.5℃（25℃）
- Size: 32x27mm (1.26 x 1.1 in)
- Weight:5 gram
- Voltage:3.3V~5V
Documents
- Wiki (SHT1x Humidity and Temperature Sensor)
- Data sheet
- Arduino Library Compatible with Arduino IDE 1.0 or later
- Schemetic

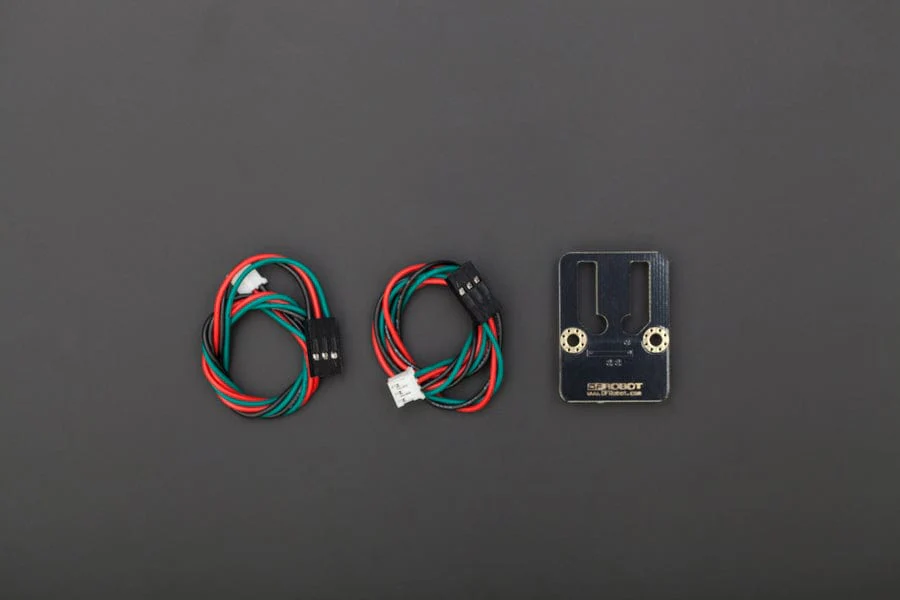

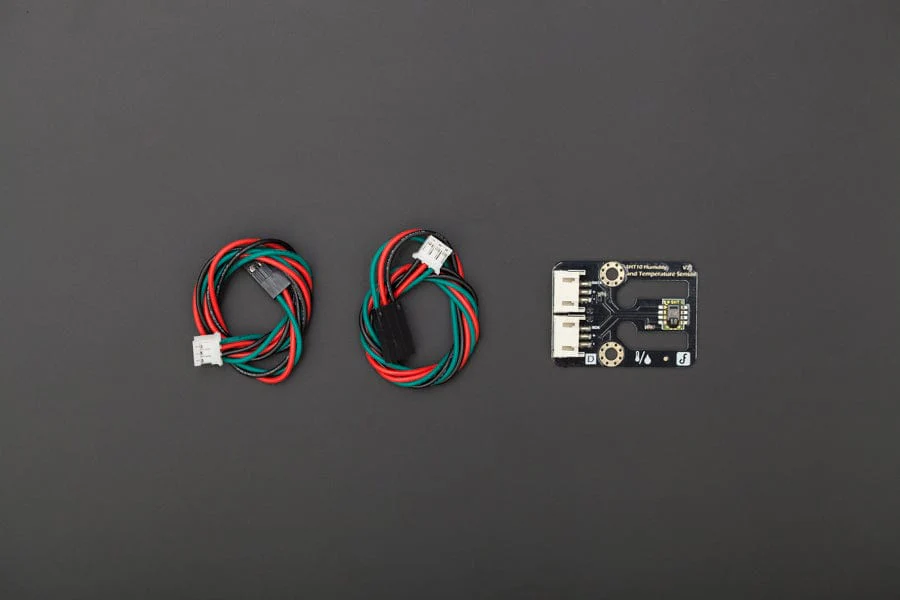

Shipping List
- Gravity: SHT1x Temperature and Humidity Sensor x1
- Digital Cable x2
Improvement List
- Wide voltage range from 3.3V to 5V
- Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
- Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
- Icons to simplely illustrate sensor function
- High quality connector
- Immersion gold surface
