Gravity: Digital Piranha LED Module - Green [Discontinued]

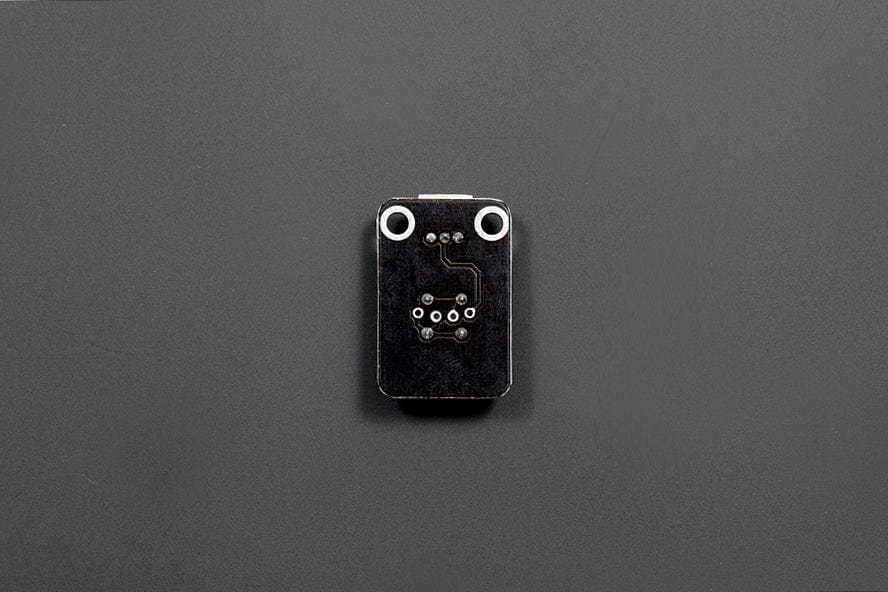

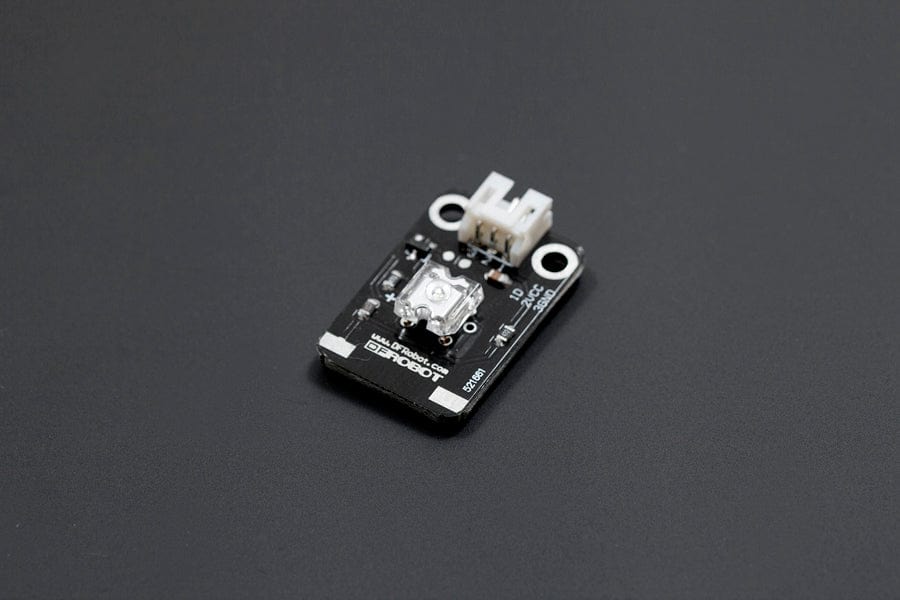

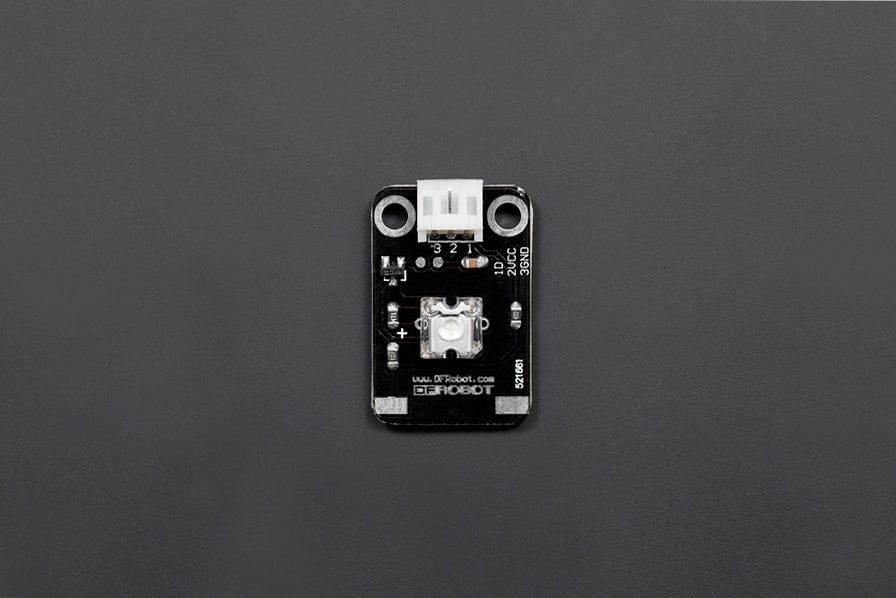

This is a Piranha LED light module. A digital pin (LOW on, HIGH off) is used to control it. The brightness of LED can be controller via PWM output.
Applications
- DIY Projects
- Toys
- Games
- Audio indicator
Specification
- Voltage: 3.3~5v
- Light color: Green
- High luminous output
- Luminous Intensity： 2500-3300mcd
- Wavelength: 520-530nm
- Compatible with IO Expansion shield
- Viewing angle: 80-110°
- Size: 30x20mm(1.18"x0.79")
- Weight: 5g
- Pin Definition
- Digital control pin (PWM)
- Power Supply
- GND
Documents
- Product wiki page
Shipping List

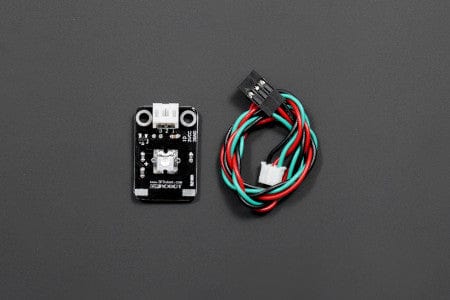

- Digital piranha LED light module-Green x1
- Digital Cable (SKU:FIT0011) x1
$1.02
Original: $3.40
-70%Gravity: Digital Piranha LED Module - Green [Discontinued]—
$3.40
$1.02
Description
This is a Piranha LED light module. A digital pin (LOW on, HIGH off) is used to control it. The brightness of LED can be controller via PWM output.
Applications
- DIY Projects
- Toys
- Games
- Audio indicator
Specification
- Voltage: 3.3~5v
- Light color: Green
- High luminous output
- Luminous Intensity： 2500-3300mcd
- Wavelength: 520-530nm
- Compatible with IO Expansion shield
- Viewing angle: 80-110°
- Size: 30x20mm(1.18"x0.79")
- Weight: 5g
- Pin Definition
- Digital control pin (PWM)
- Power Supply
- GND
Documents
- Product wiki page
Shipping List
- Digital piranha LED light module-Green x1
- Digital Cable (SKU:FIT0011) x1
