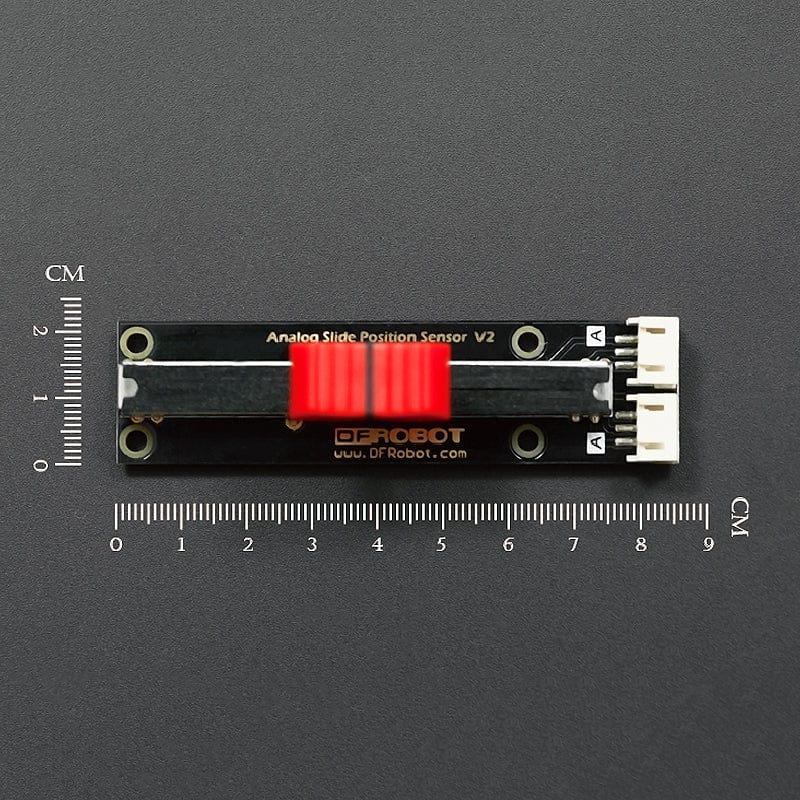

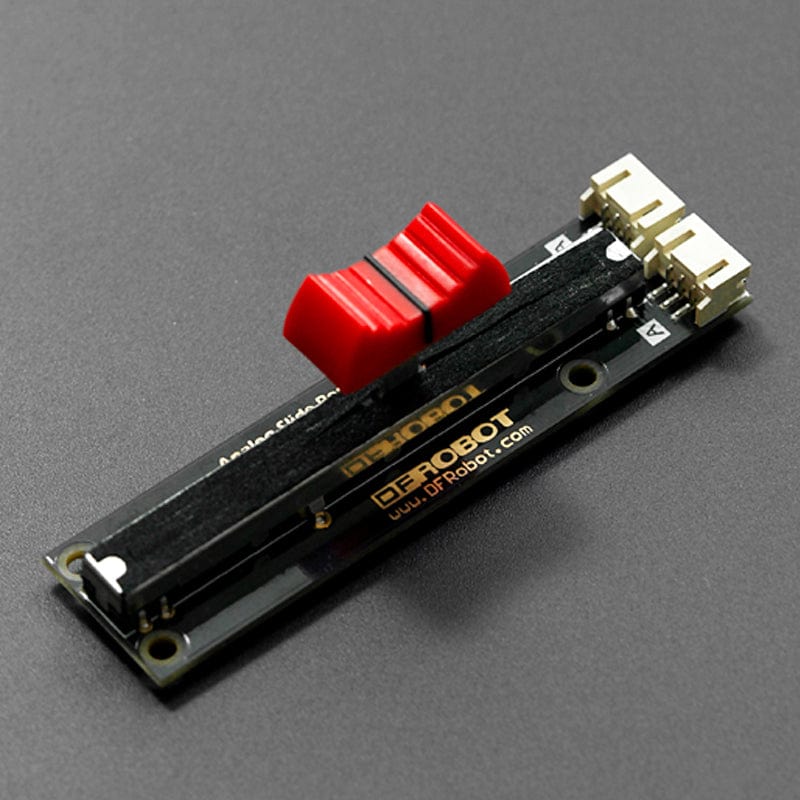

Gravity: Analog Slide Position (Potentiometer) Sensor For Arduino
This Slide Position Sensor is based on a straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered a linear potentiometer.
The sensor includes two analogue outputs to allow the user to average the values and minimize random sensor fluctuations.
To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play.
A slide potentiometer is commonly seen in music mixers.
Connection Example - DFRduino UNO
Specifications
-
Voltage: +5V
- Interface Type: Analog
- 5.4kΩ resistance value
- High quality connectors
Resources
- Product Wiki
- Schematics
Package Contents
- 1x Analog Slide Position (Potentiometer)
- 1x Analog Sensor Cable
Original: $4.77
-70%$4.77
$1.43
Description
This Slide Position Sensor is based on a straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered a linear potentiometer.
The sensor includes two analogue outputs to allow the user to average the values and minimize random sensor fluctuations.
To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play.
A slide potentiometer is commonly seen in music mixers.
Connection Example - DFRduino UNO
Specifications
-
Voltage: +5V
- Interface Type: Analog
- 5.4kΩ resistance value
- High quality connectors
Resources
- Product Wiki
- Schematics
Package Contents
- 1x Analog Slide Position (Potentiometer)
- 1x Analog Sensor Cable
