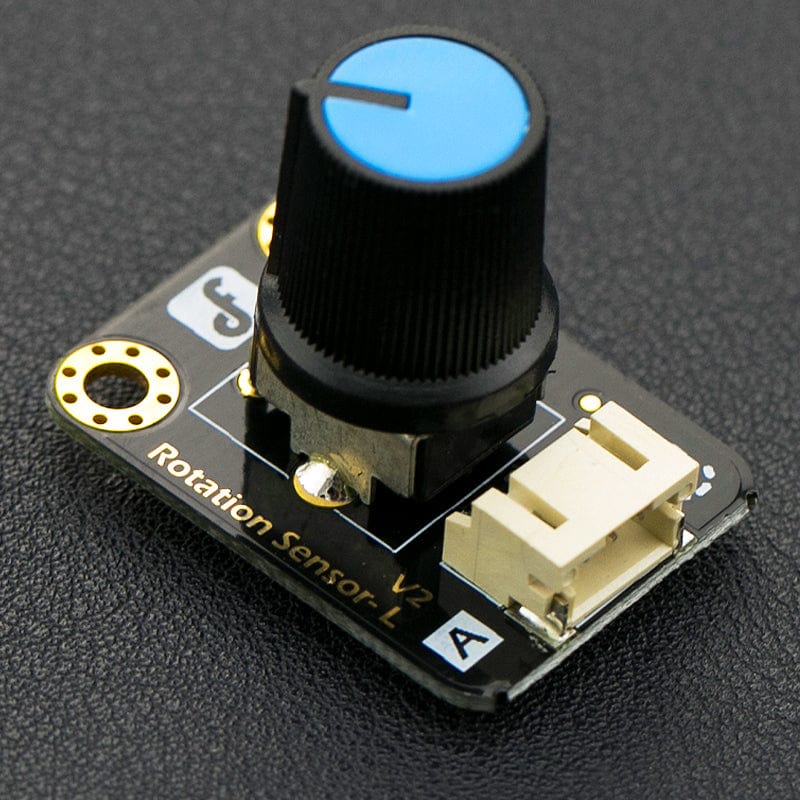

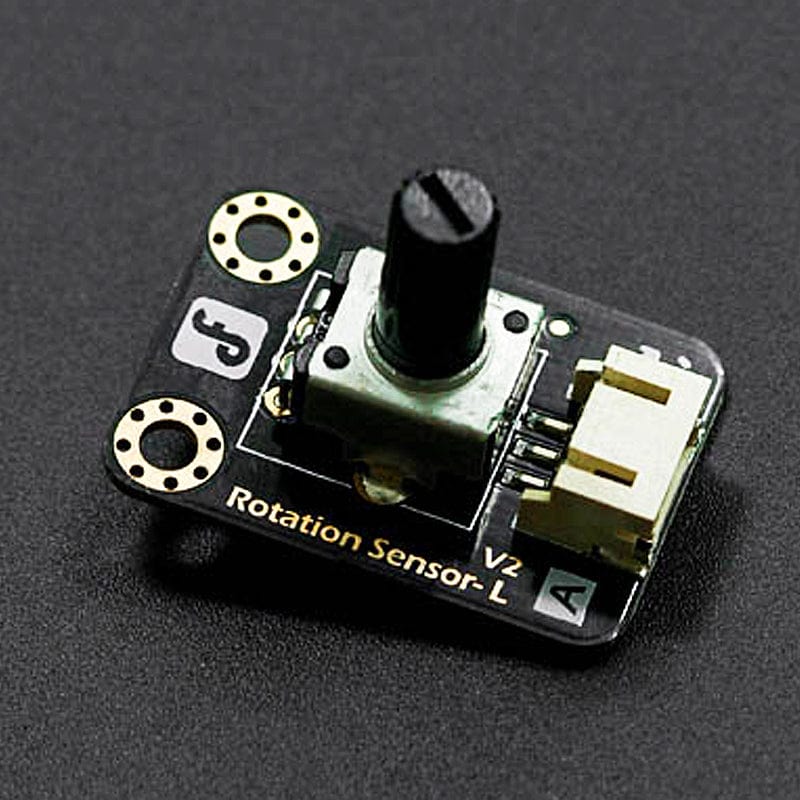

Gravity: Analog Rotation Potentiometer Sensor

This is a rotation potentiometer able to rotate up to 300-degrees. With the Arduino IO expansion board, in combination, it can be very easy to achieve position-dependent interaction with the rotating effect or produce MIDI instrument. So with this sensor, you can learn how rotary potentiometer works and what analog signal is. You can have much fun with this basic input device.

Gravity Interface is adapted to allow plug&play. The IO Sensor Expansion Shield is the best match for this sound senor connecting to your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule, and curie.

Note: DFRduino and Expansion Shield are NOT included

Features

• Wide voltage range from 3.3V to 5V
• Standard assembling structure (Times-of-5mm Center distance between two 3mm mounting holes)
• Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)

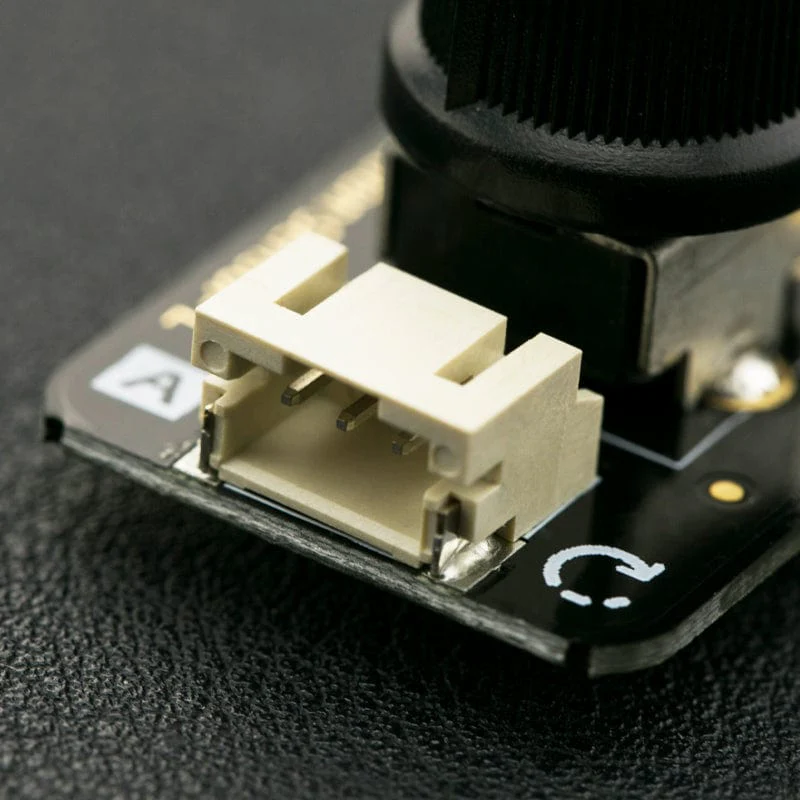

• High-quality connector
• Immersion gold surface

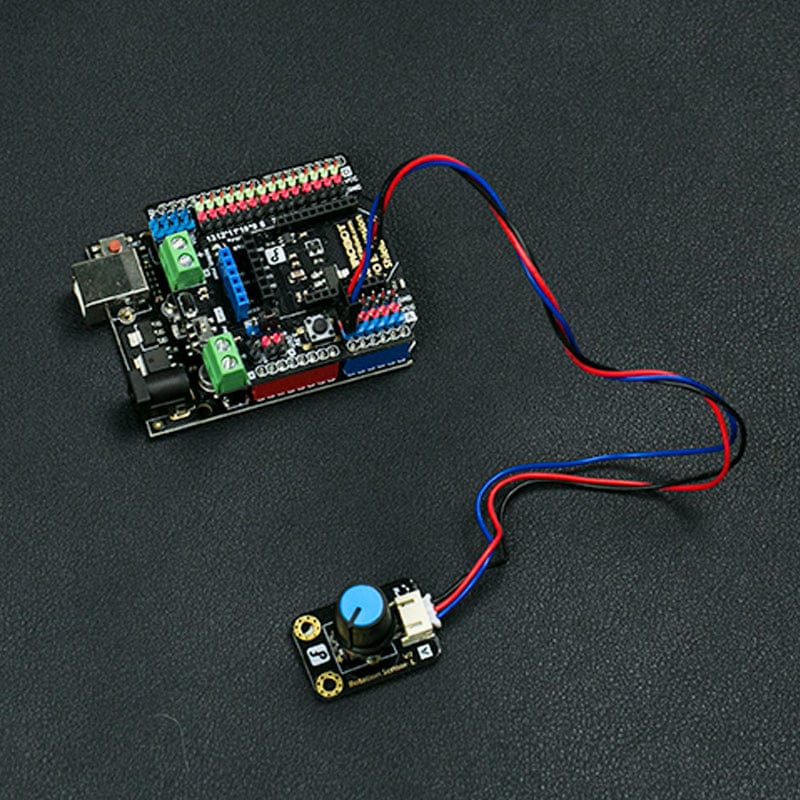

Connection Example - DFRduino UNO

• Supply Voltage: 3.3V to 5V

• Interface type: Analog
• 300 degree rotation sensor

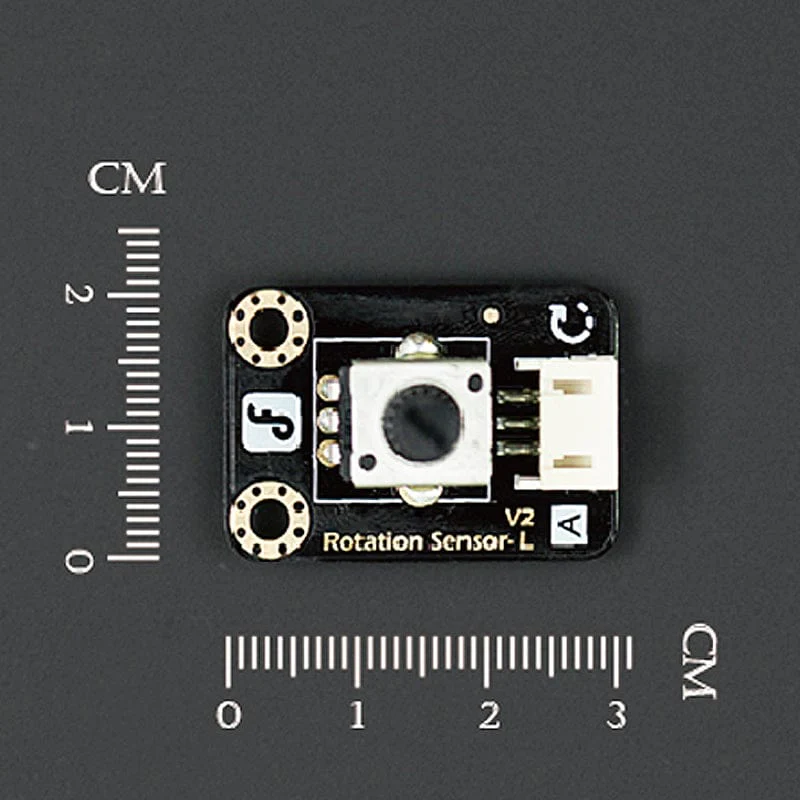

• Size: 22 x 31mm

• Product Wiki
• Schematics

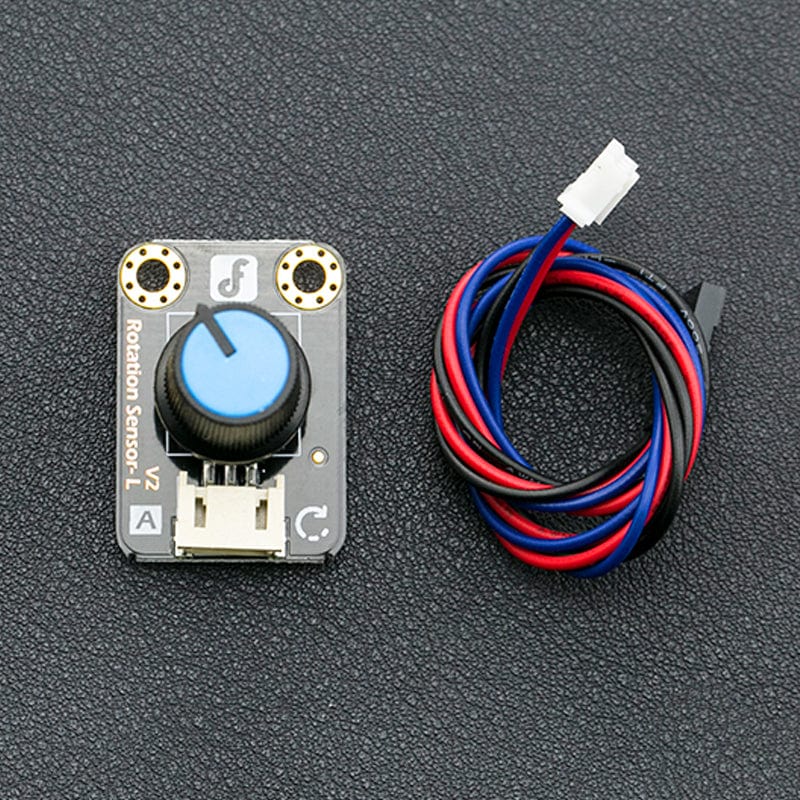

• 1x Analog Rotation Potentiometer Sensor V1
• 1x Analog Sensor Cable
