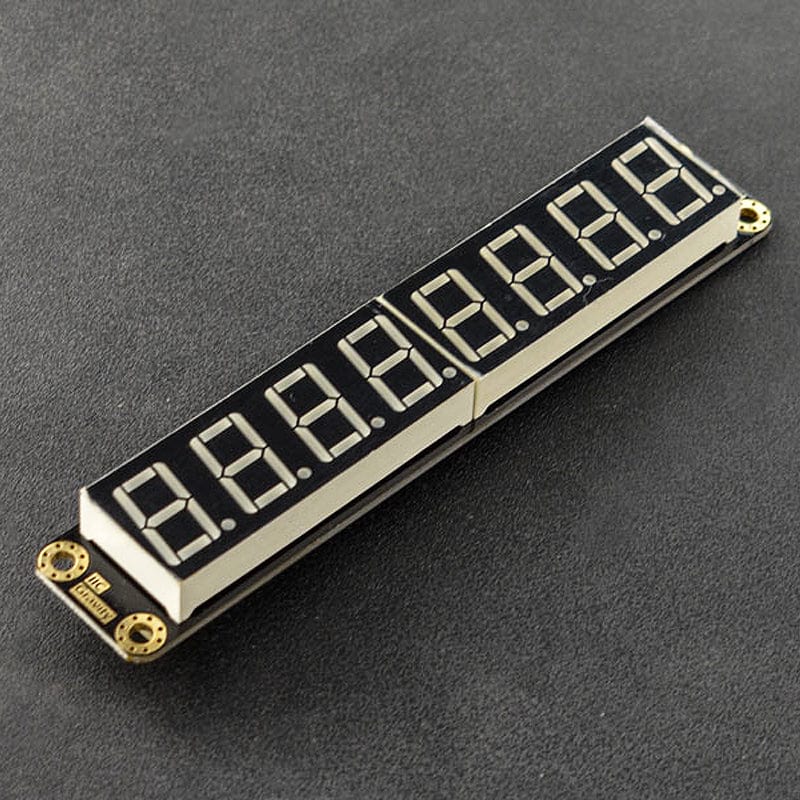

Gravity: 8-Digital LED Segment Display Module
Quickly and easily add an 8-digit LED segment display to your project with these DFRobot Gravity compatible modules, available with either red or green LED segments (select above before adding to cart).
The modules have the usual Gravity-style IIC port alongside handy mounting holes for your project. Each module has 16-level brightness adjustment and 4 slave addresses (via solderable jumpers) to avoid address conflicts with multiple modules.
Each module comes complete with a Gravity 4-pin connector cable.
Features
- Display Mode: 8 segment x 8 digit

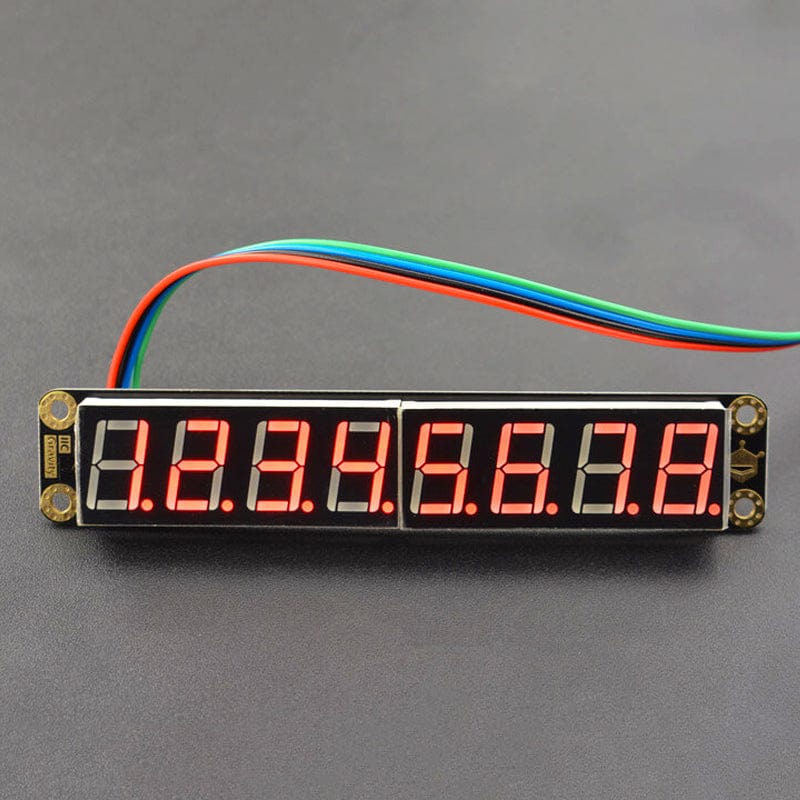

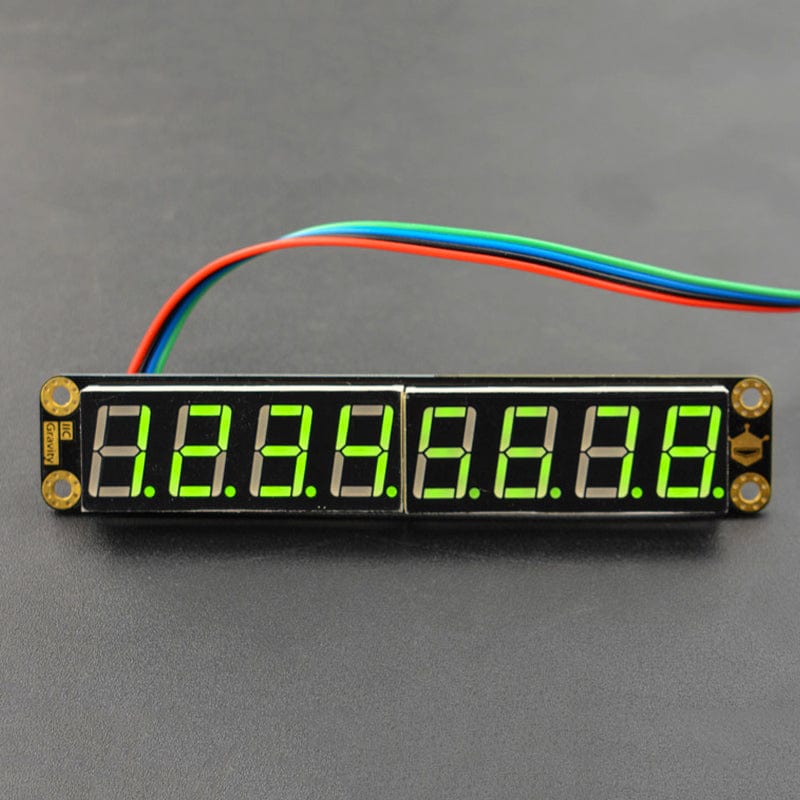

- Available in two colours - Red or Green LEDs
- Supports 16-level brightness adjustment
- I2C communication
- Mounting holes

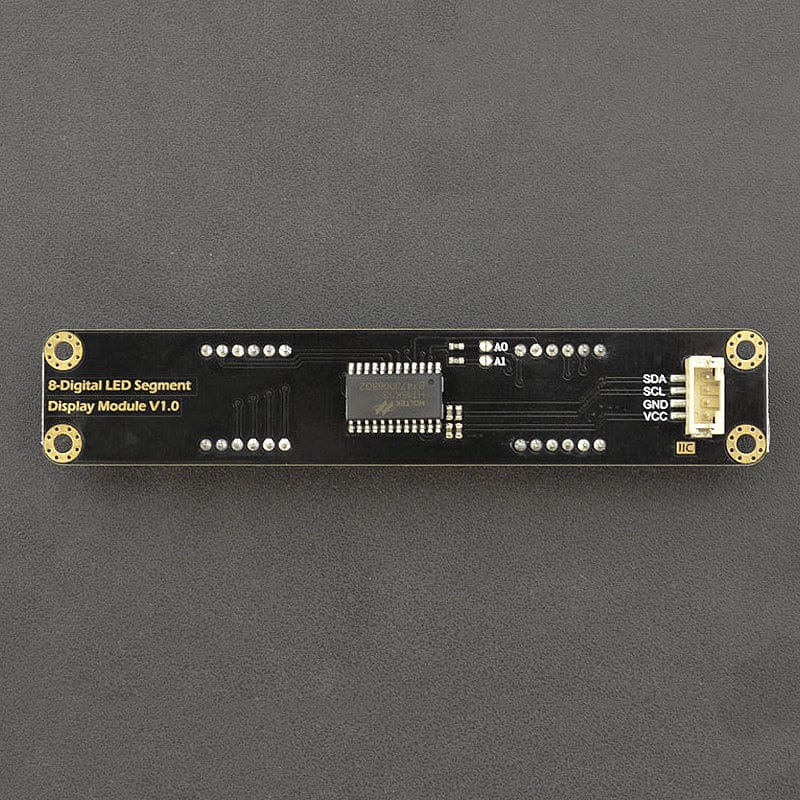

- Slave address jumpers
Specifications
- Operating Voltage: DC 5V
- Operating Current: <130mA
- Operating Temperature: -40ºC ~ +85ºC
- Storage Temperature: -55ºC ~ +125ºC

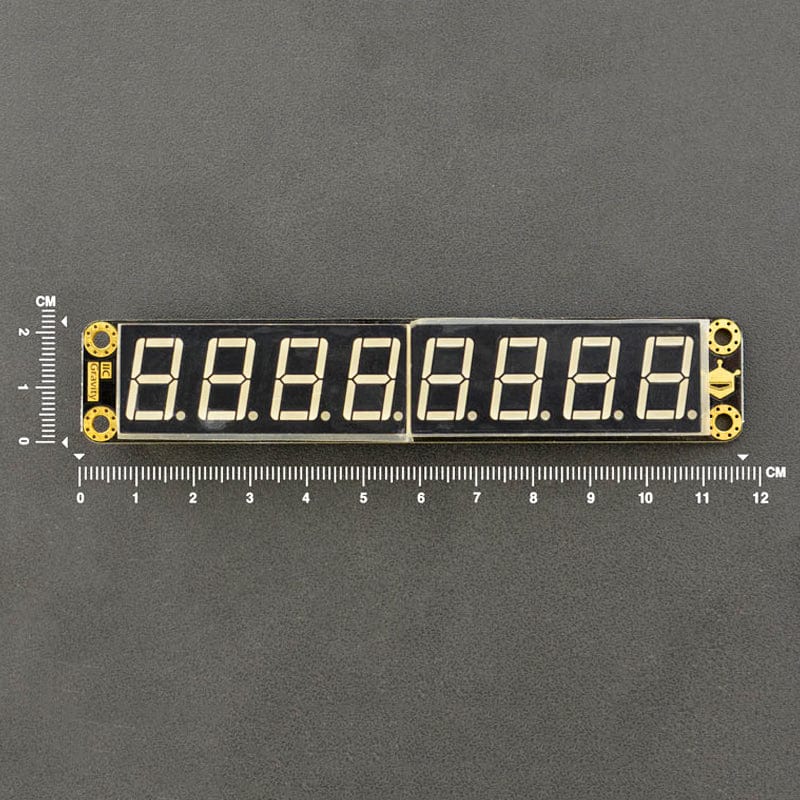

- Digital Tube Size: 10.1cm x 1.9cm
- PCB Size: 11.7cm x 2.2cm
Resources
- Product Wiki

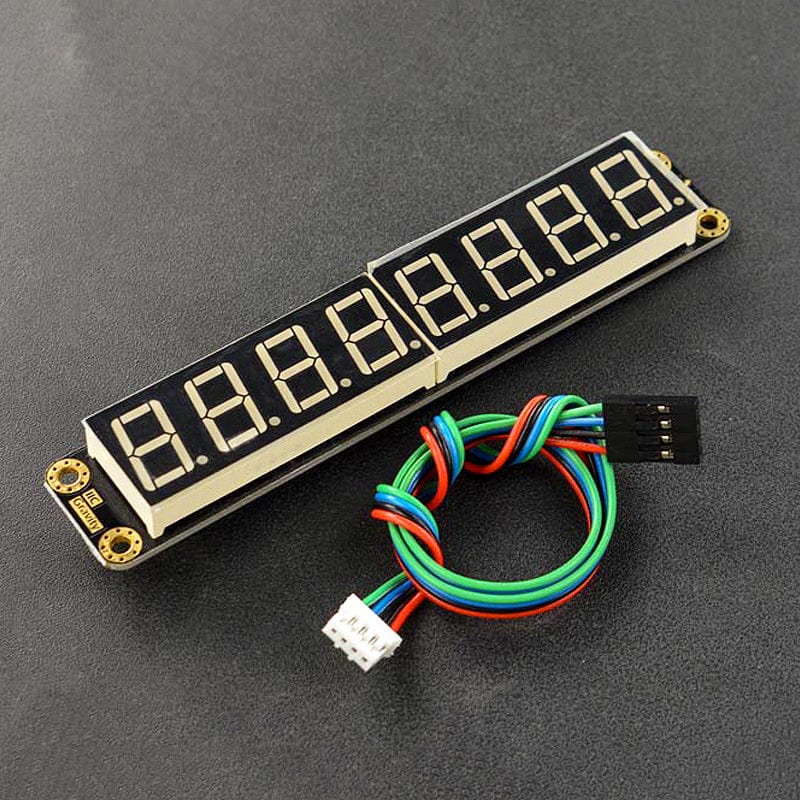

Package Contents
- 1x 8-Digital LED Segment Display Module
- 1x Gravity 4-pin I2C Connector
