GNSS L1+L5 Dual-Frequency Active Antenna

This SMA-J dual-frequency antenna supports dual-frequency GNSS on L1 and L5 bands and is compatible with multiple positioning systems including Beidou (BD), GPS, Galileo, QZSS, and IRNSS. It is ideal for improving the accuracy of navigation and tracking systems, and it offers a magnetic base for easy mounting and a high gain for improved signal reliability.

Note: Raspberry Pi board and GPS HAT are NOT included

Specifications

Frequency Range	BDS B1I/B1C/B2a
	GPS L1/L1C/L5C
	GALILEO E1/E5a
	QZSS L5
	IRNSS S-L5
LNA Gain	28±2dB
Gain	2dBi
VSWR	≤2.0
Output Impedance	50Ω
Working Current	≤20mA
Working Voltage	DC 3.0~18.0V
Axial Ratio	≤3.0dB
Noise Figure	≤2dB
Phase Center Error	±2mm
Polarisation	Right-Hand Circular Polarisation
Connector	SMA-J

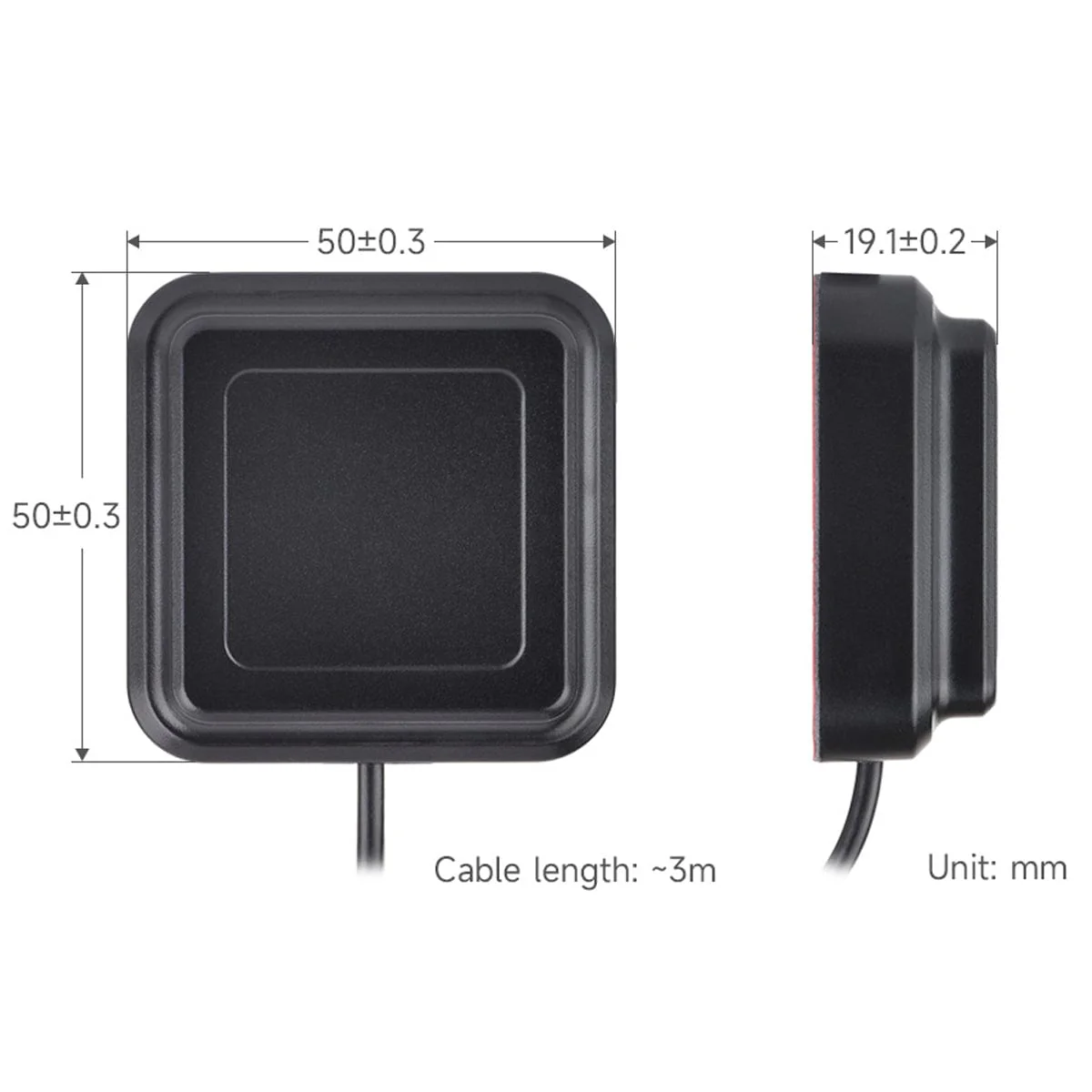

Antenna Size	50.0 x 50.0 x 19.1mm
Cable	RG174
Cable Length	3m
Working Temperature	-40~85˚C
Storage Temperature	-55~85˚C
Mounting	Magnetic base/Double-sided tape

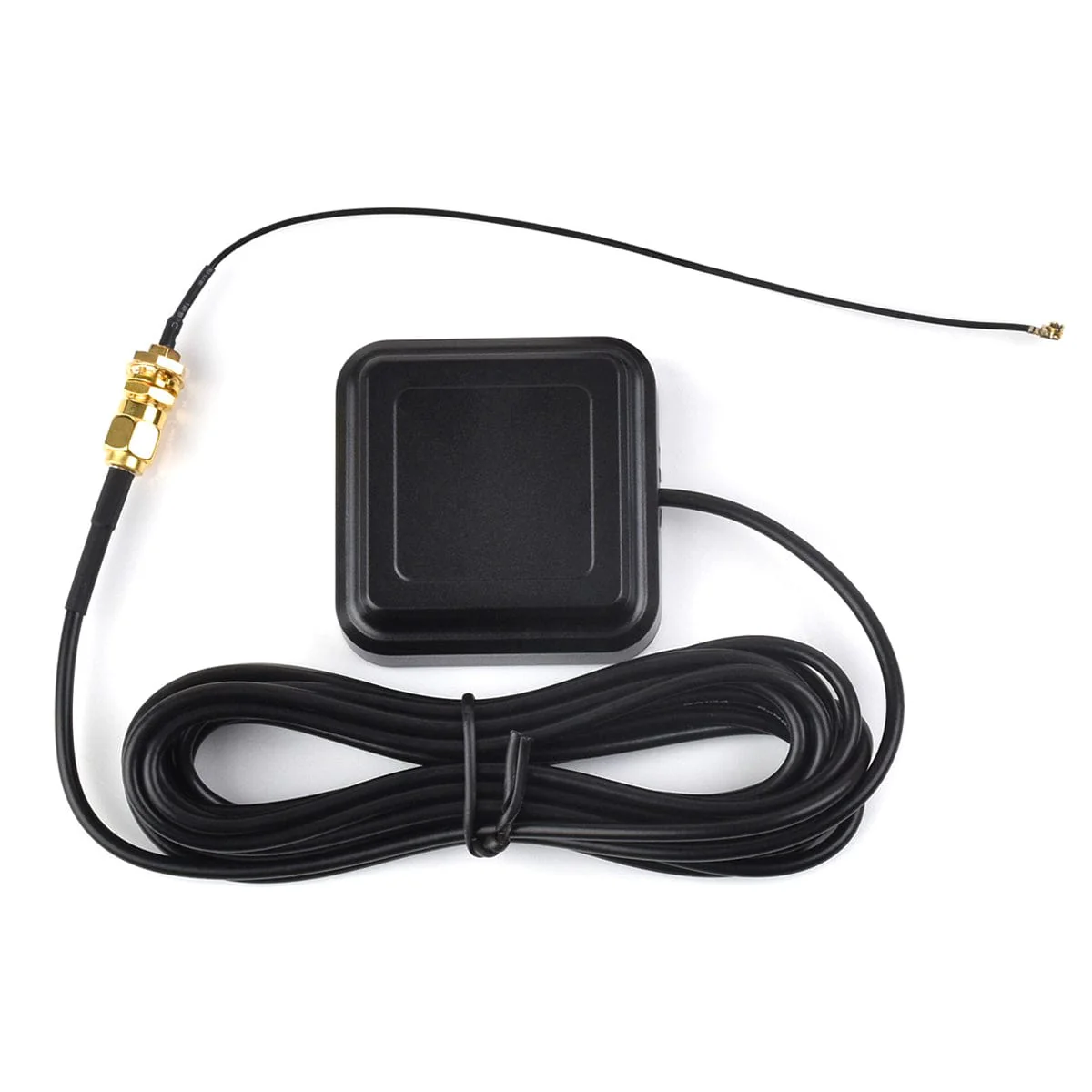

Connection Example - Raspberry Pi & GPS HAT

Package Contents

• 1x GPS External Antenna
