FireBeetle 2 ESP32 C6 IoT Development Board

The FireBeetle 2 ESP32-C6 IoT is built around the powerful ESP32-C6 chip, it features a 160MHz RISC-V 32-bit processor and supports multiple communication protocols such as Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3, providing seamless integration into diverse IoT networks. The board offers various power supply options, including Type-C, 5V DC, and solar charging for lithium batteries, managed by a solar power manager for optimised energy use. This flexibility allows for well-run energy management and a range of deployment choices. The inclusion of Wi-Fi 6 provides lower latency and reduced power consumption, while solar charging capabilities allow for deployment in areas without power lines. Additionally, the board features battery level detection, providing real-time monitoring of the device's battery status.

Features

• Equipped with the ESP32-C6 chip, it supports communication protocols including Wi-Fi, BLE, Zigbee, and Thread.
• Supports Wi-Fi 6 protocol for lower latency and lower power consumption.
• Solar charging enables deployment without the need for power lines.
• Battery level detection allows monitoring of device battery information.
• Ultra-low power consumption with deep sleep at 16uA.
• Onboard GDI interface for easy connection to screens.

What's on Board

• Type-C: Type-C USB port
• IO15/D13: Onboard LED pin
• Charge: Charging indicator
  • Off: not plugged in the power supply or fully charged
  • On: charging
  • Blinking: battery not connected
• RST: Reset button
• IO9/D9/BOOT: GPIO9 / Boot button
• HM6245: 3.3V Low power LDO
• BAT: Lithium-ion battery or lithium polymer battery interface
• IO0: Battery voltage detection pin
• CN3165: Solar management chip
• GDI: GDI display interface
• ESP32-C6: ESP32-C6FH4 chip

Specifications

Basic Parameters

• Operating Voltage: 3.3V
• Type-C Input Voltage: 5V DC
• VCC Input Voltage: 5V DC or 4.5-6V Solar Panel
• Max Charging Current: 0.5A
• Sleep current: 16uA (in deep sleep mode, powered by battery)
• Operating Temperature: -10~60℃

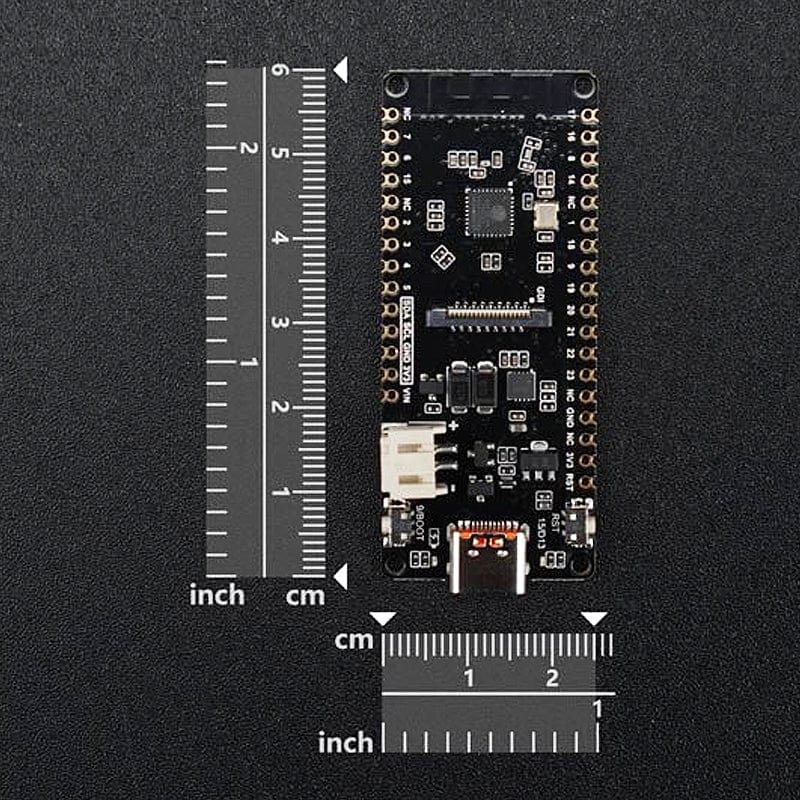

• Dimension: 25.4 x 60mm

Hardware Information

• Processor: RISC-V single-core processor
• Main Frequency: 160 MHz
• SRAM: 512KB
• ROM: 320KB
• Flash: 4MB
• RTC SRAM: 16KB
• USB: USB 2.0 CDC

Wifi

• WIFI Protocol: IEEE 802.11b/g/n
• IEEE 802.11ax (20 MHz-only non-AP mode)
• Bandwidth: Support 20 MHz and 40 MHz at 2.4 GHz band
• WIFI Mode: Station, SoftAP, SoftAP+Station combined mode
• WIFI Frequency: 2.4GHz
• Frame Aggregation: TX/RX A-MPDU, TX/RX A-MSDU

Bluetooth

• Bluetooth Protocol: Bluetooth 5, Bluetooth mesh
• Bluetooth Frequency: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

IEEE 802.15.4

• Compatible with IEEE 802.15.4-2015 protocol
• Frequency band: 2.4GHz
• Data rate: 250Kbps
• Supports Thread 1.3 and Zigbee 3.0

Ports

• Digital I/O x19
• LED PWM 6 Channel
• 1x SPI
• 3x UART (1x LP UART)
• 2x I2C (LP I2C x1)
• 1x I2S
• 5x IR Transceiver: transmit channel, 5x receive channel
• 1x 12-bit SAR ADC, 7-Channel
• 3x DMA Controller: transmit channel, 3x receive channel

Connection Example - 3.7V Li-Po Battery & Solar Panel

Resources

• Product Wiki
• ESP32-C6 Chip Datasheet
• Schematics
• Dimension
• CN3165 Chip Datasheet
• HM6245 Chip Datasheet
• FireBeetle2 Shell stl file

Pinout

• Power: Power pin
  • VIN: 5V DC or 4.5-6V Solar Panel
  • 3V3: 3.3V stable output
• GND: Common ground pin
• GPIO: ESP32 default GPIO number
• Arduino: FirebBeetle 2 ESP32-C6 GPIO mapping in Arduino
• ADC: ESP32 default analog-to-digital conversion pin
• I2C: I2C interface
  • FirebBeetle 2 ESP32-C6 I2C mapping in Arduino
  • LP_SDA/SCL: Low power I2C pin
• UART: UART interface
  • LP_TX/RX: Low-power UART pin
• SPI: FirebBeetle 2 ESP32-C6 SPI mapping in Arduino
• SDIO: ESP32 default SDIO pin
• JTAG: Debug interface

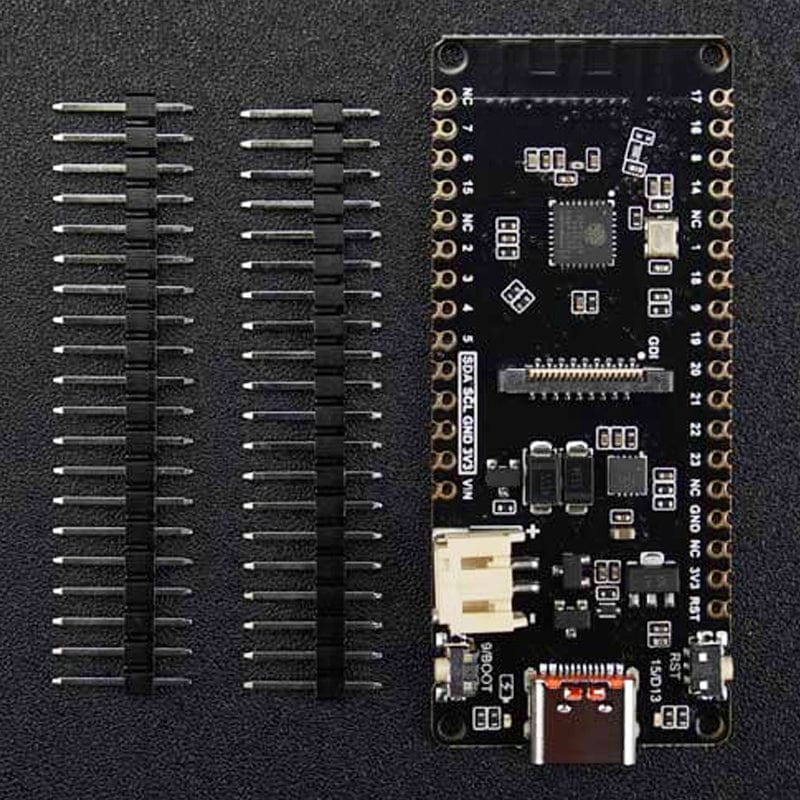

Package Contents

• 1x FireBeetle 2 Board ESP32 C6 Microcontroller
• 2x 20-pin 2.54mm Pin Header
