Fake HAT

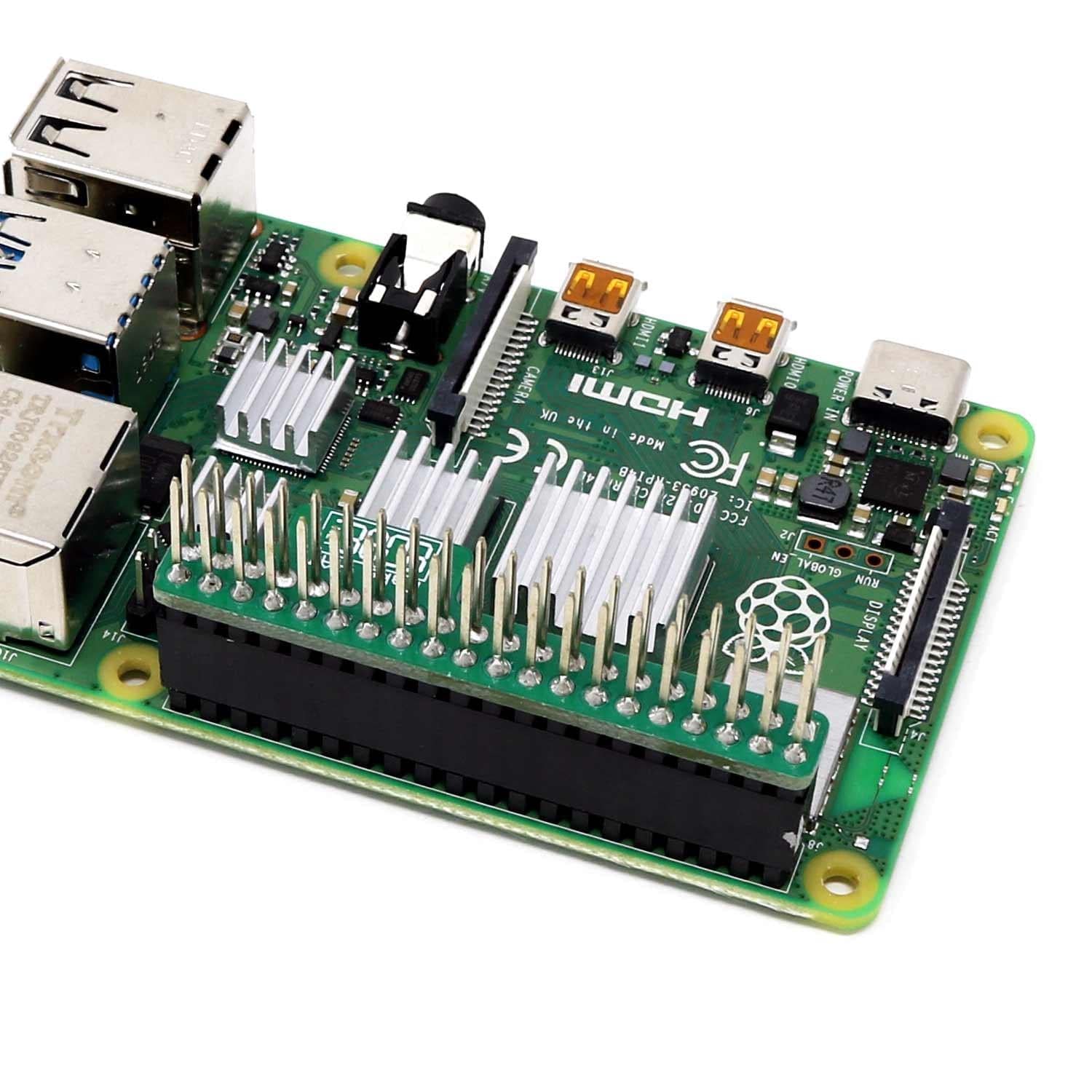

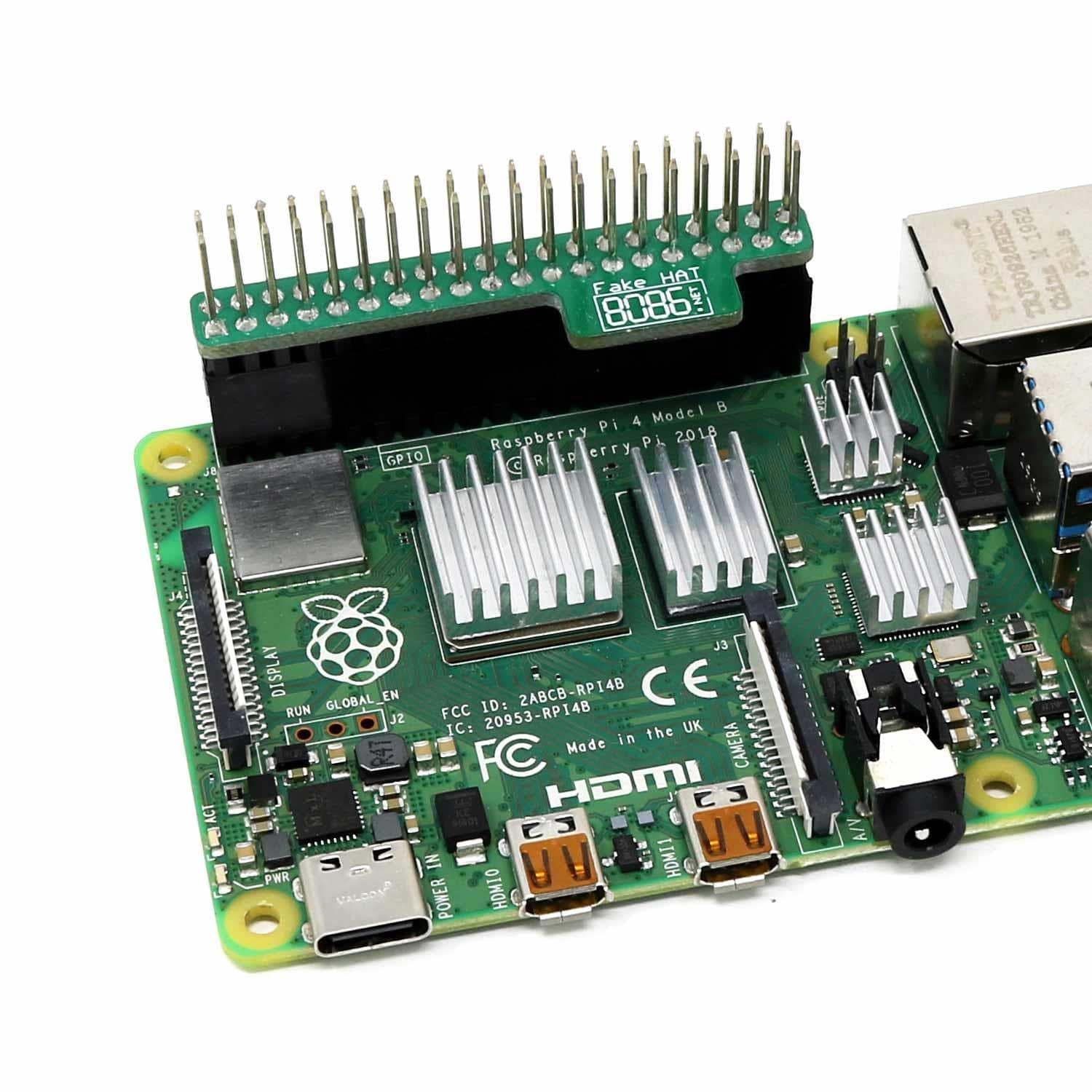

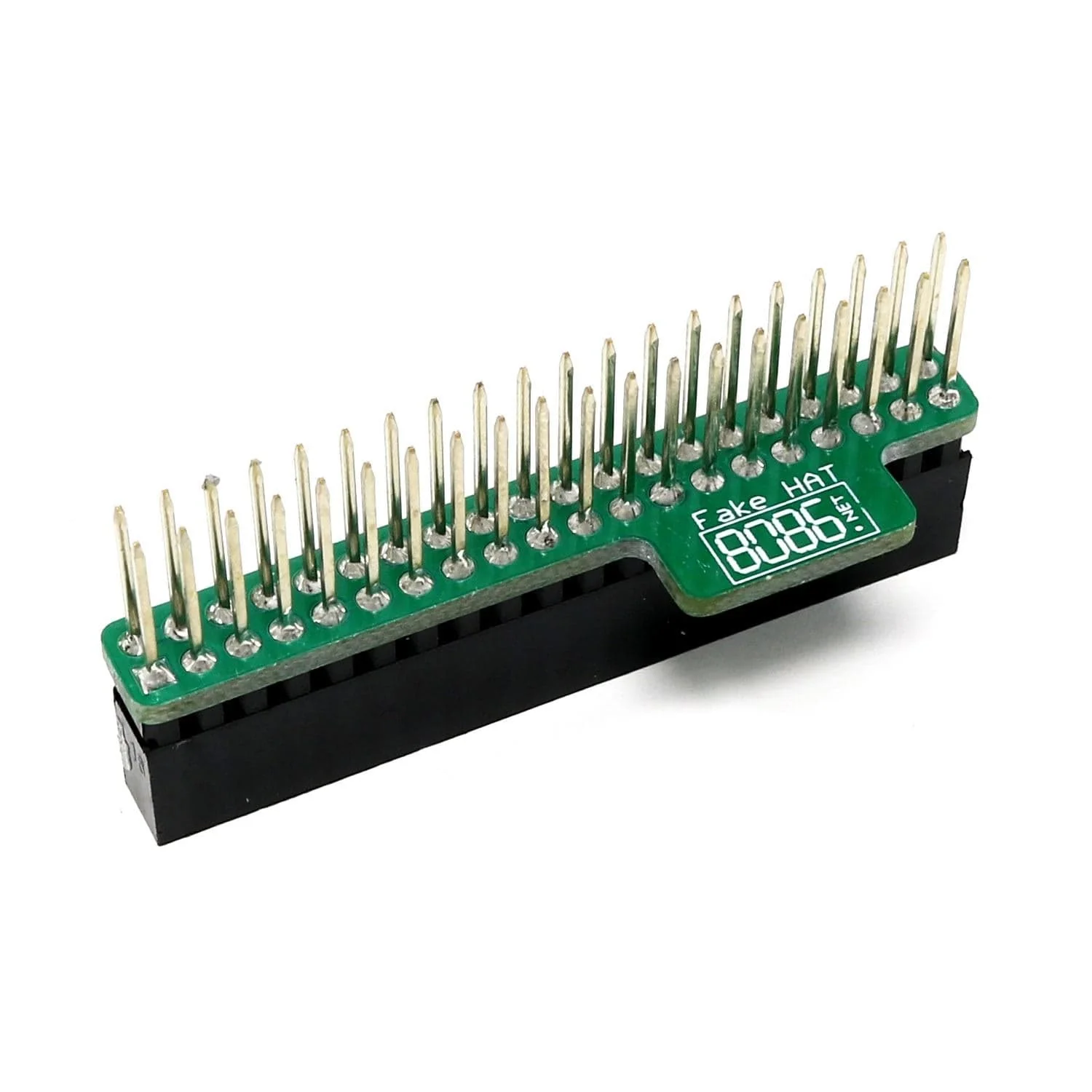

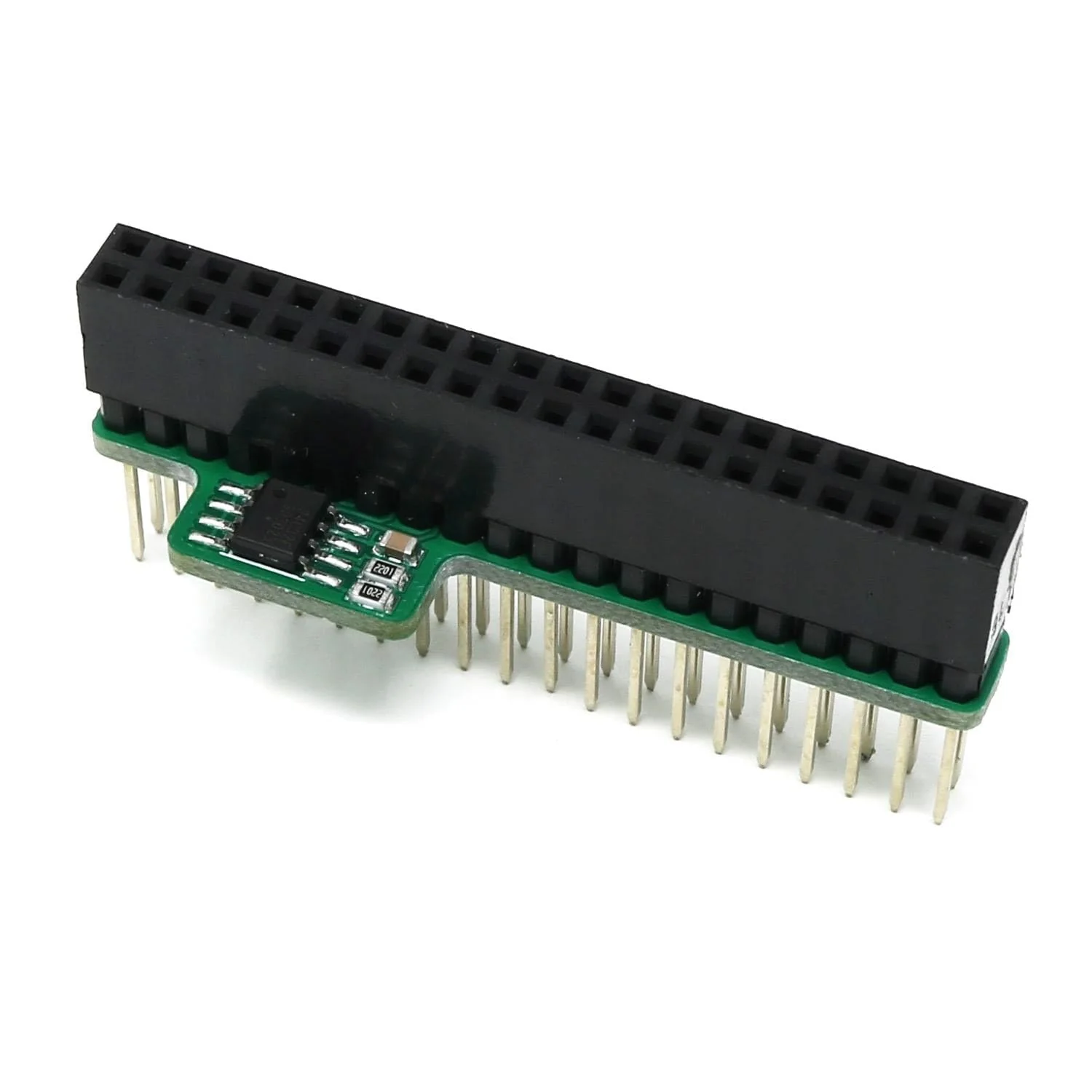

The "Fake HAT" is a 2x20 way female connector with long pins soldered to a board with a Raspberry Pi HAT compliant CAT24C32 (32kbit EEPROM) on I2C address 0x50.

It's designed to be used for quick testing of GPIO configuration (direction/mode/etc.), kernel overlays and storing configuration files without having the real hardware connected to the Raspberry Pi!

• Emulate a Raspberry Pi HAT to test software!
• Develop EEPROM contents for a compliant Raspberry Pi HAT!
• Setup GPIO pins, overlays etc for breadboard projects!

The EEPROM connects to the Raspberry Pi GPIO ID_SD (physical pin 27) and ID_SC (physical pin 28) and GND/3v3.

For guidance on using the Fake HAT, 8086 advise checking this forum thread.

Please Note:

• PCB colour may vary
• Raspberry Pi and heatsinks not included
• This board is named "Fake HAT" due to it not being compliant with the Raspberry Pi HAT specifications (primarily due to its physical dimensions)
• It must not be used when another device is connected to the ID_CD/ID_SC pins
