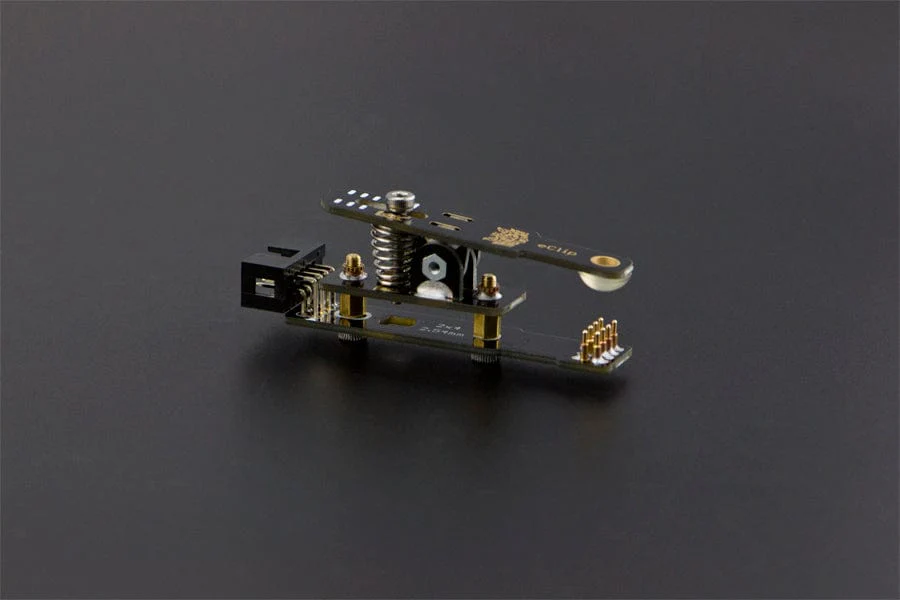

eClip - Programming Fixture
eClip is an innovative programming/testing tool specially designed for Makers. It solves the problem of prototyping wearable projects with ICSP and FTDI interfaces in limited spaces.

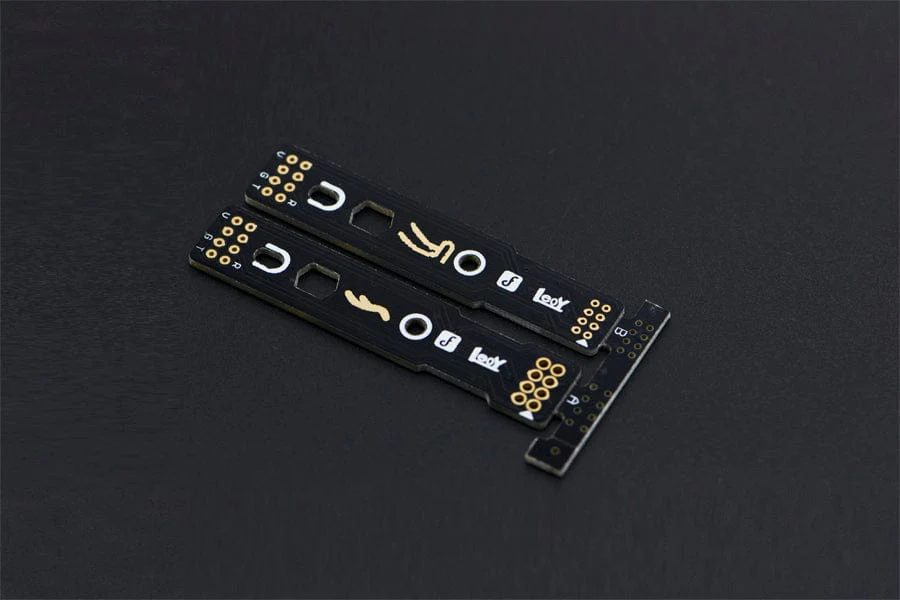

It provides 2x4 pogo-pins function-board, which makes it much easier to design and use ICSP/FTDI based on Arduino/AVR. Whatsmore, this tool supports extension so you can design your own dedicated function-board to meet your specific requirements.

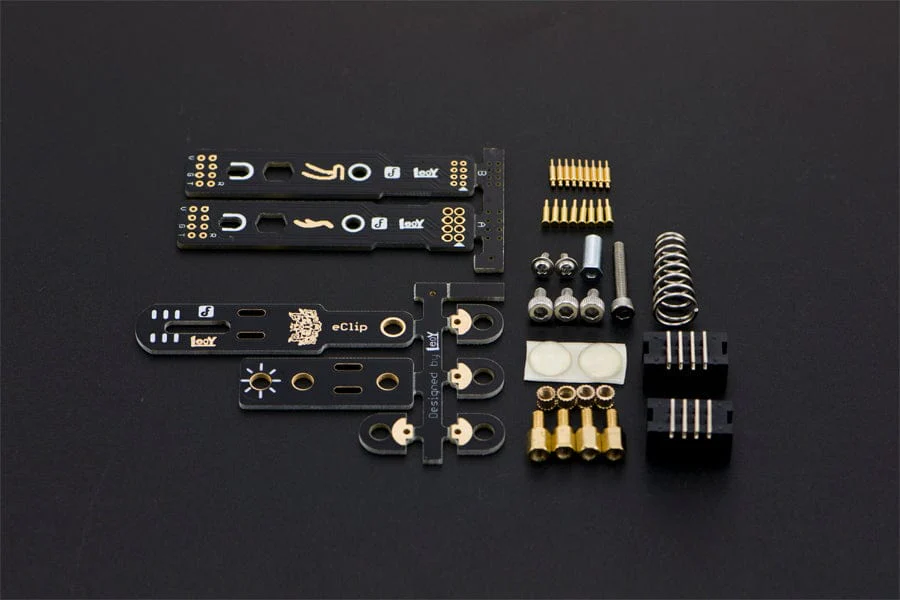

The eClip comes in DIY kit, you can enjoy soldering and assembling. Designer: LeoYan.

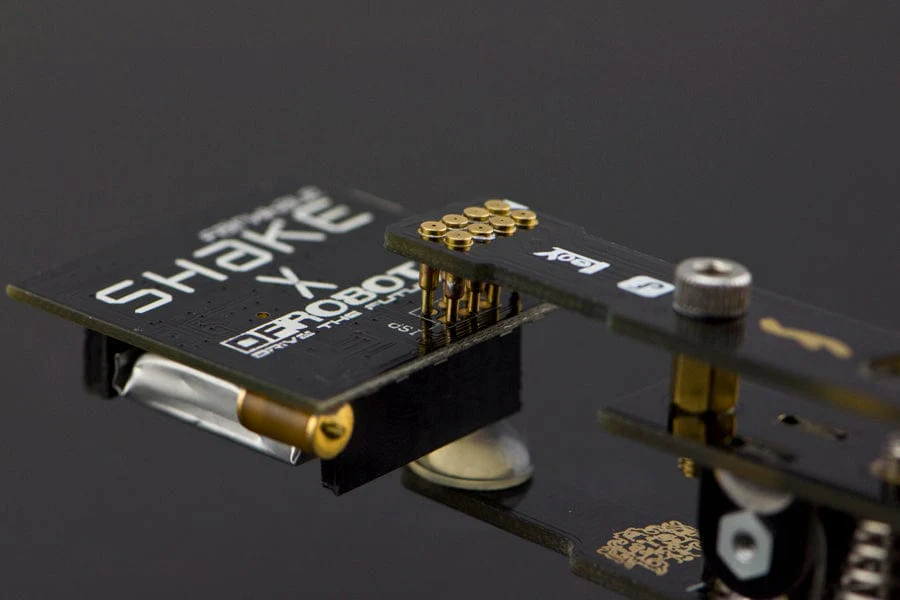

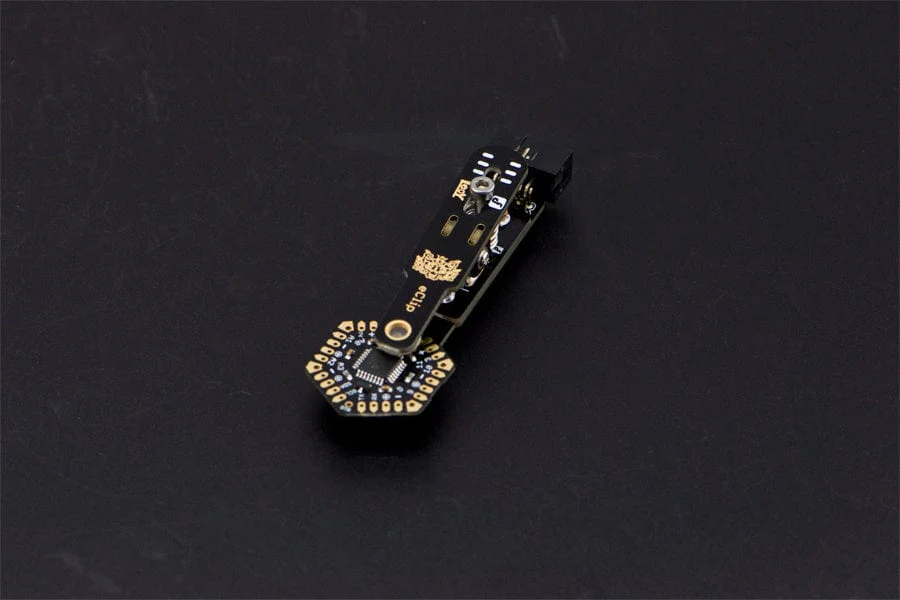

Compatible with Beetle (The Smallest Arduino), Beetle BLE(The smallest Arduino bluetooth 4.0), μHex (Low Power Controller), "Shake" 8*8 LED Matrix
It provides 2x4 pogo-pins function-board, which makes it much easier to design and use ICSP/FTDI based on Arduino/AVR. Whatsmore, this tool supports extension so you can design your own dedicated function-board to meet your specific requirements.
The eClip comes in DIY kit, you can enjoy soldering and assembling. Designer: LeoYan.
Compatible with Beetle (The Smallest Arduino), Beetle BLE(The smallest Arduino bluetooth 4.0), μHex (Low Power Controller), "Shake" 8*8 LED Matrix
Specification
- Dimensions: 72 * 29 * 18 (L*W*H)mm (2.83*1.14*0.71")
- Weight: 32g
Documents
- Product Handbook
- Function Board Design Template (eagle file)
- Function Board Design Template (dxf file)
Shipping List
- eClip Programming fixture x1
$11.71
