Dual-Mode Bluetooth Module for Raspberry Pi Pico [Discontinued]

This is a dual-mode Bluetooth 5.1 expansion module designed for the Raspberry Pi Pico. It is controlled via UART AT commands, with Serial Port Profile (SPP) and Bluetooth Low Energy (BLE) support.

Designed to allow the communication between your Pico and a mobile phone*, this module comes pre-soldered and ready to fit to your Pico (with male headers soldered). UART pin selection is available via solder bridge if required.

* Currently only communication with mobile phones is officially supported. Compatibility with other Bluetooth devices has not been tested - your mileage may vary!

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Standard Raspberry Pi Pico header
• Bluetooth 5.1
• Serial port Profile (SPP) support
• Bluetooth low Energy (BLE) support
• Controlled via UART AT commands
• Online development resources and manual

Specifications

Bluetooth Module	Dual-mode Bluetooth to UART module
Transmission Distance	30m (open air)
Communication	UART
Antenna	Onboard PCB antenna
Transmission Cache	1K bytes UART cache
	Recommended to transmit less than 512 bytes per transmission for SPP
UART Baudrate	13 different baud rate configurations, 115200 bps by default
Input Voltage	5V / 3.3V
Operating Current	Startup transient current: about 25mA for about 300ms
	Stable status current: about 6mA, non-low power mode
	Low power mode current: refer to the user manual
Operating Temperature	-40℃ ~ 80℃
Operating Humidity	5% ~ 95%
Dimensions	56.5mm x 21mm

What's Onboard

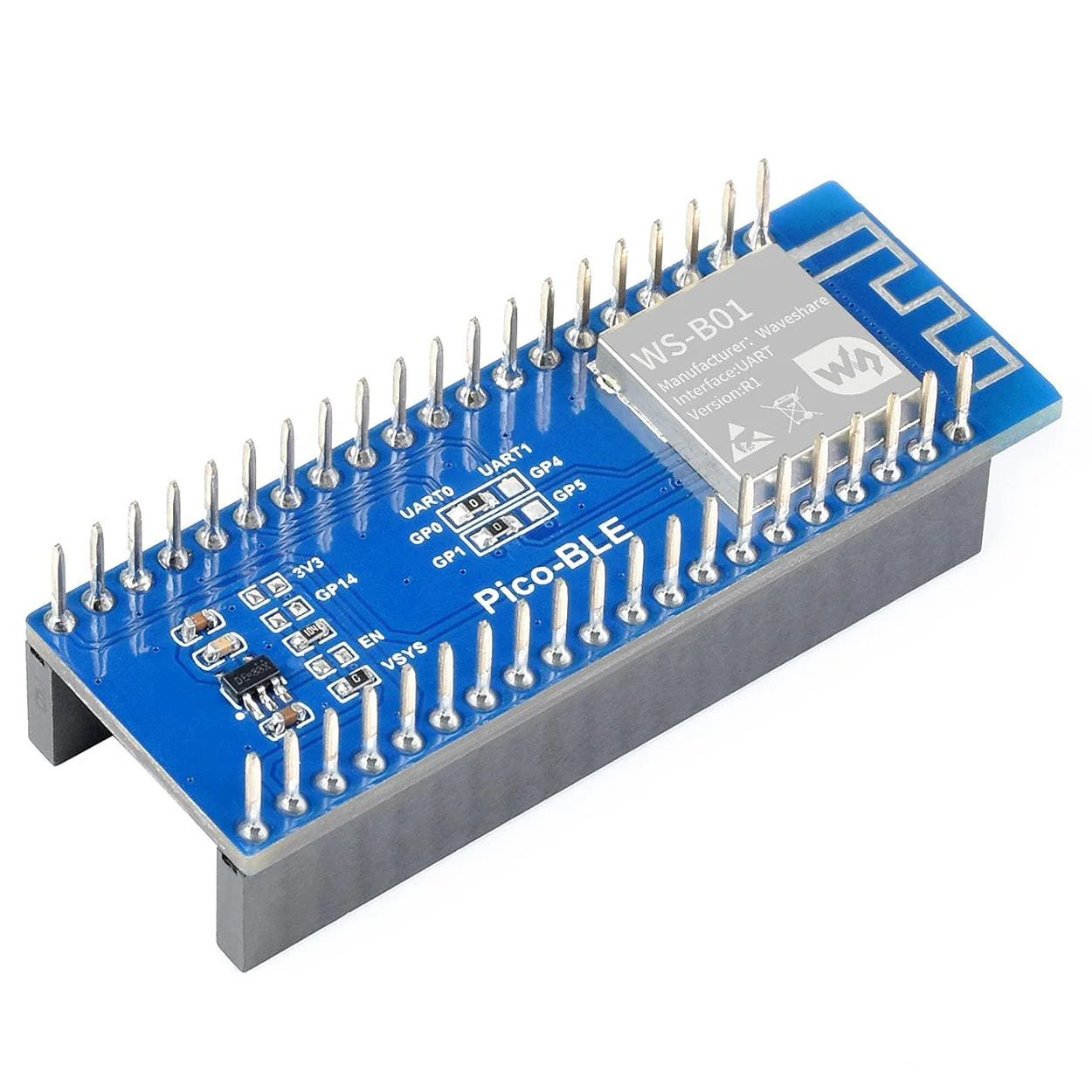

1) Bluetooth module
2) RT9193-33
 - 3.3V regulator
3) Raspberry Pi Pico header
4) UART input pins selection

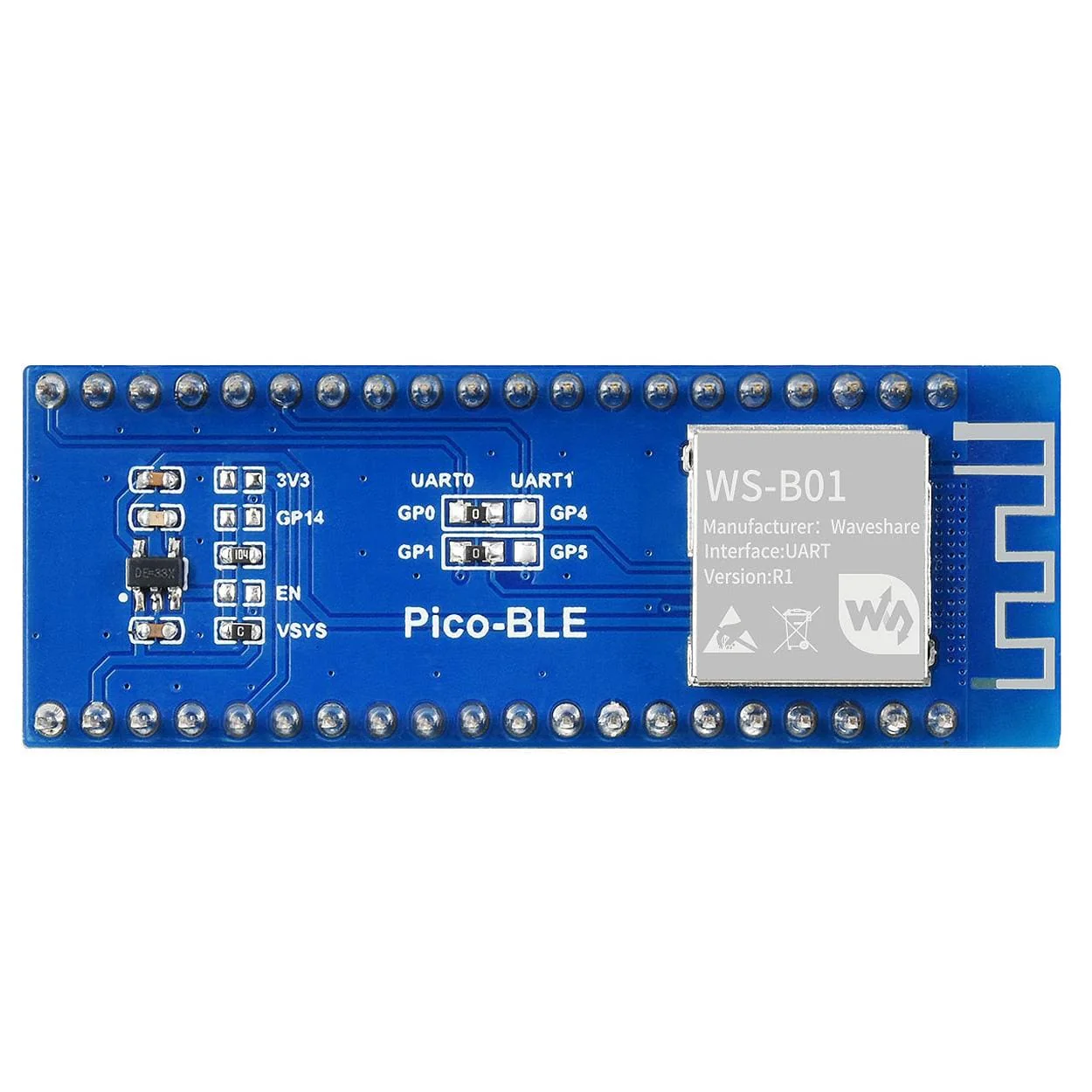

5) Onboard Bluetooth antenna

Package Contents

• 1x Dual-mode Bluetooth Module for Raspberry Pi Pico

Raspberry Pi Pico not included

Resources

• Product Wiki and user manual

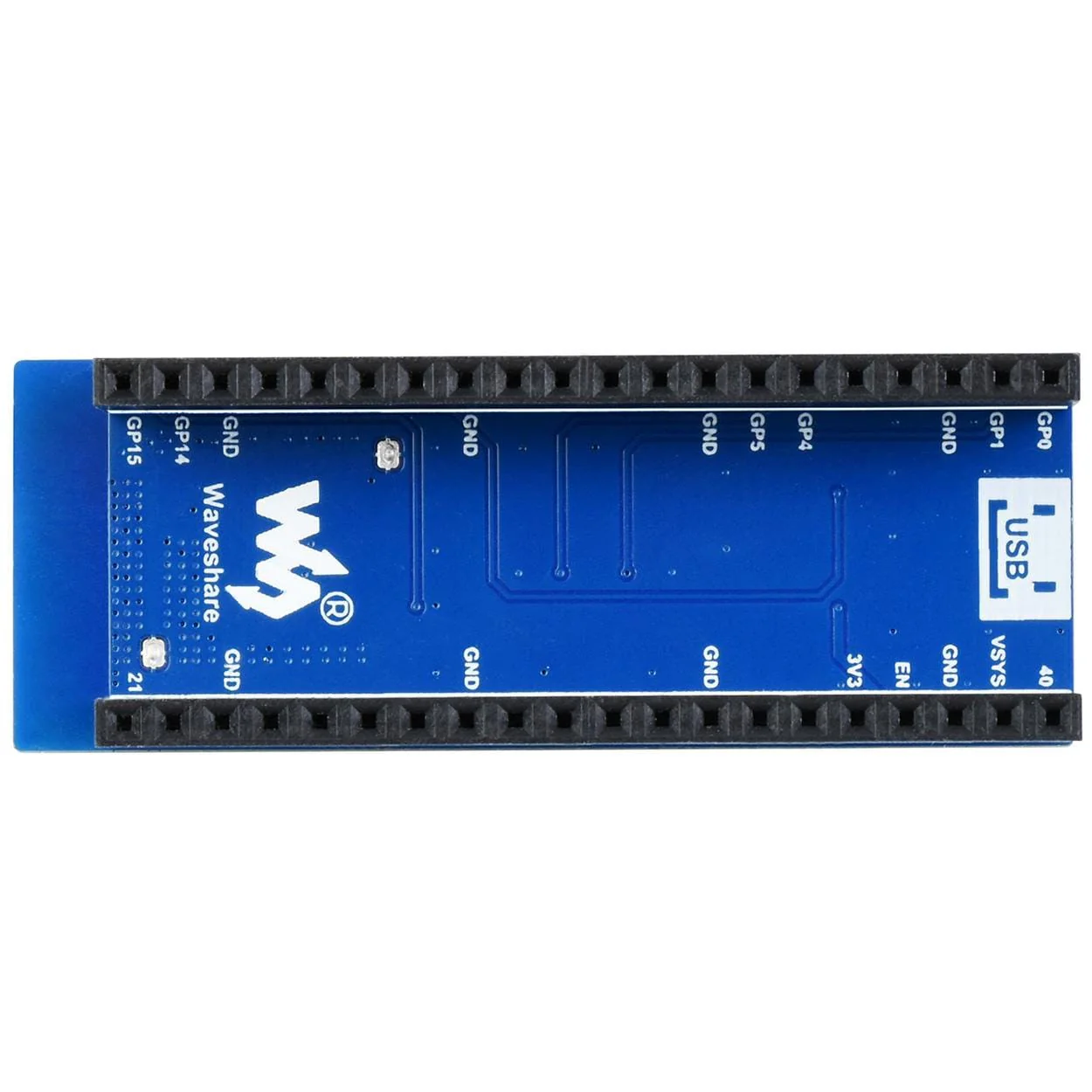

Pinout
