DPDT ON-ON Latching Toggle Switch

DPDT ON-ON Latching Toggle Switch

This is a Latching DPDT ON-ON toggle switch with 6 pins, rated to AC 5A/250V.

The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 12mm hole and has enough length to mount it to a panel/enclosure around 7mm thick (when using the included nuts/washers).

The switch comes with a washer and nut to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

  • Toggle switch
  • DPDT (double pole, double throw)
  • Latching action
  • ON-ON switch
  • Rated to AC 5A/250V
  • 6 contacts/pins
  • Body colour: Red
  • Washer and nut included
  • Model number: KN32
  • Thread hole size: 12mm
  • Maximum mounting panel thickness: 7mm

Resources

  • Datasheet coming soon
$1.02

Original: $3.40

-70%
DPDT ON-ON Latching Toggle Switch—

$3.40

$1.02

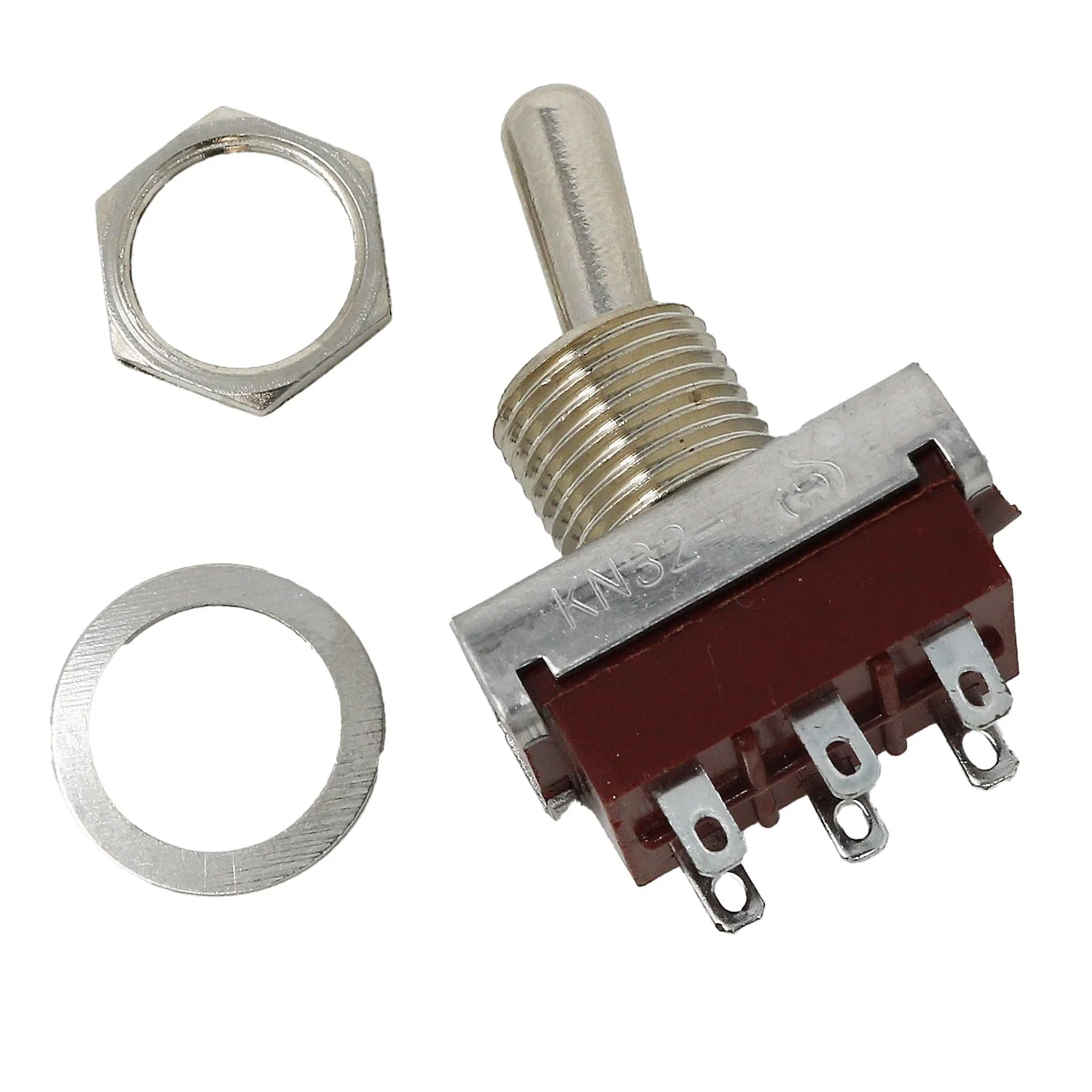

Product image 1

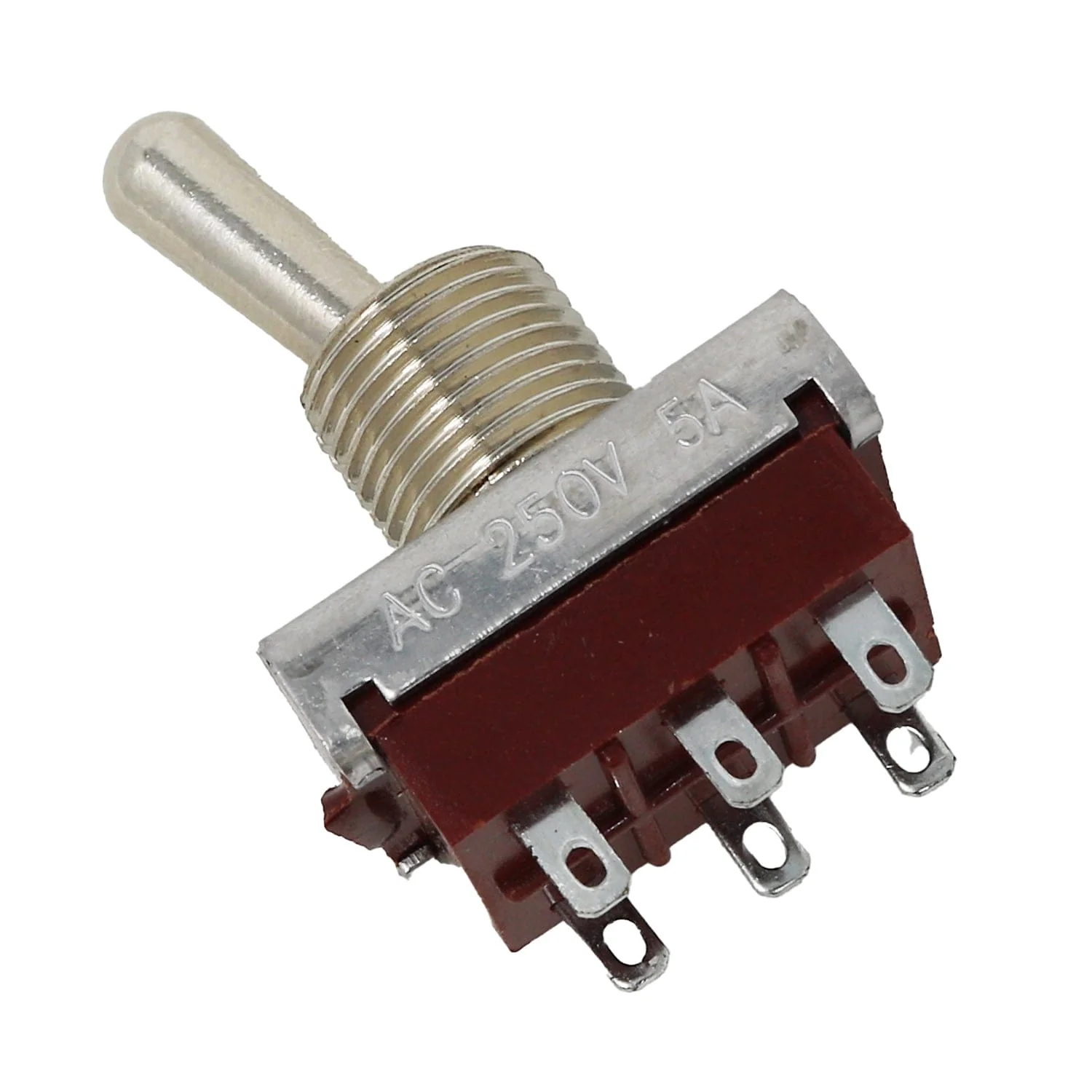

Product image 2

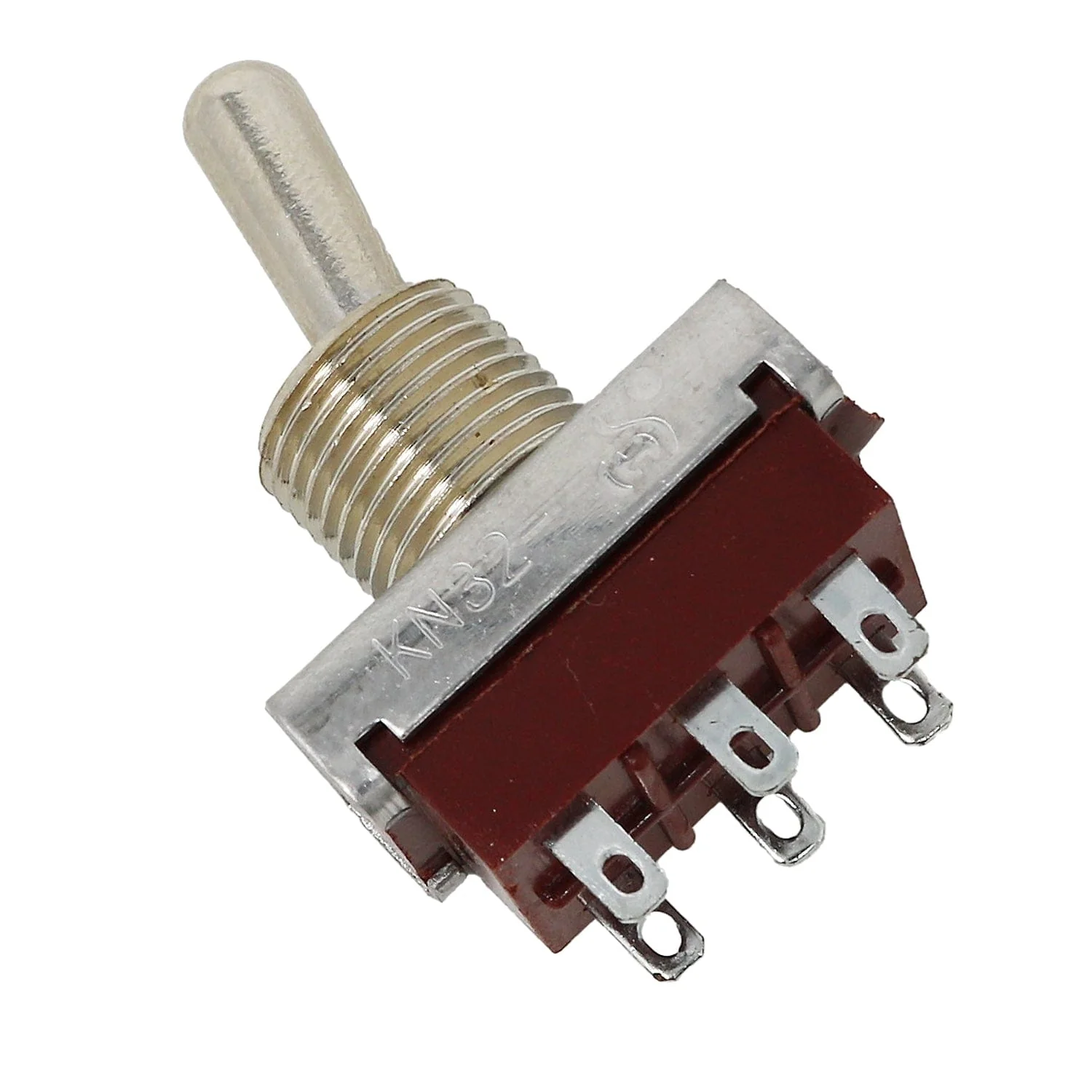

Product image 3

Description

This is a Latching DPDT ON-ON toggle switch with 6 pins, rated to AC 5A/250V.

The switch has 6 pins allowing double pole, double throw use. The thread shaft requires a 12mm hole and has enough length to mount it to a panel/enclosure around 7mm thick (when using the included nuts/washers).

The switch comes with a washer and nut to mount to your panel/enclosure.

Do not use these switches with mains voltages!

Features

  • Toggle switch
  • DPDT (double pole, double throw)
  • Latching action
  • ON-ON switch
  • Rated to AC 5A/250V
  • 6 contacts/pins
  • Body colour: Red
  • Washer and nut included
  • Model number: KN32
  • Thread hole size: 12mm
  • Maximum mounting panel thickness: 7mm

Resources

  • Datasheet coming soon
