Diffused RGB (tri-color) LED (Common Anode)

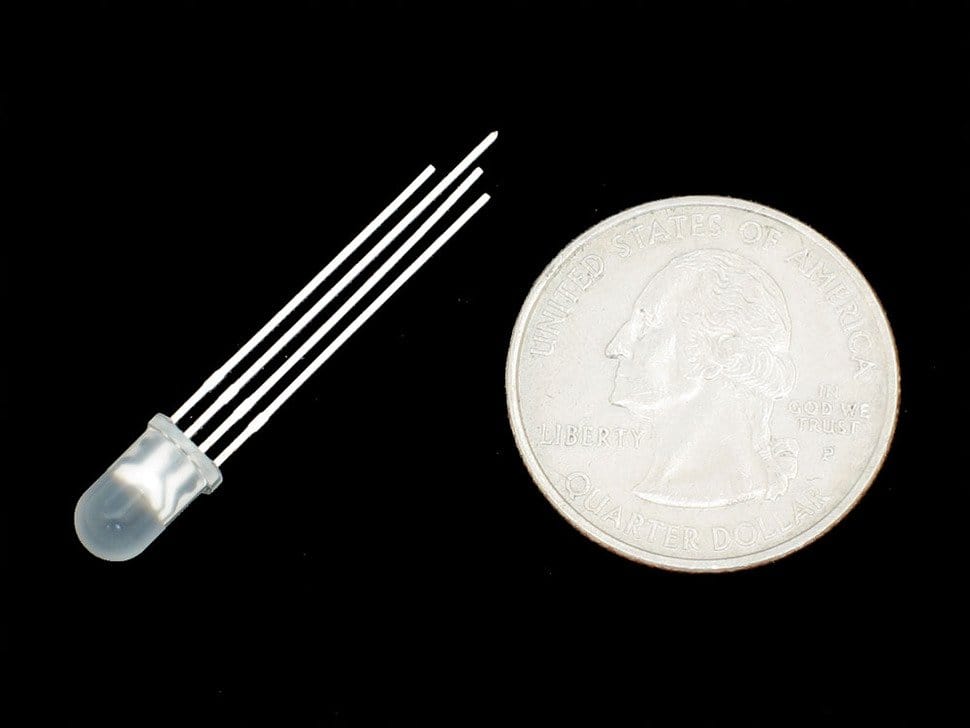

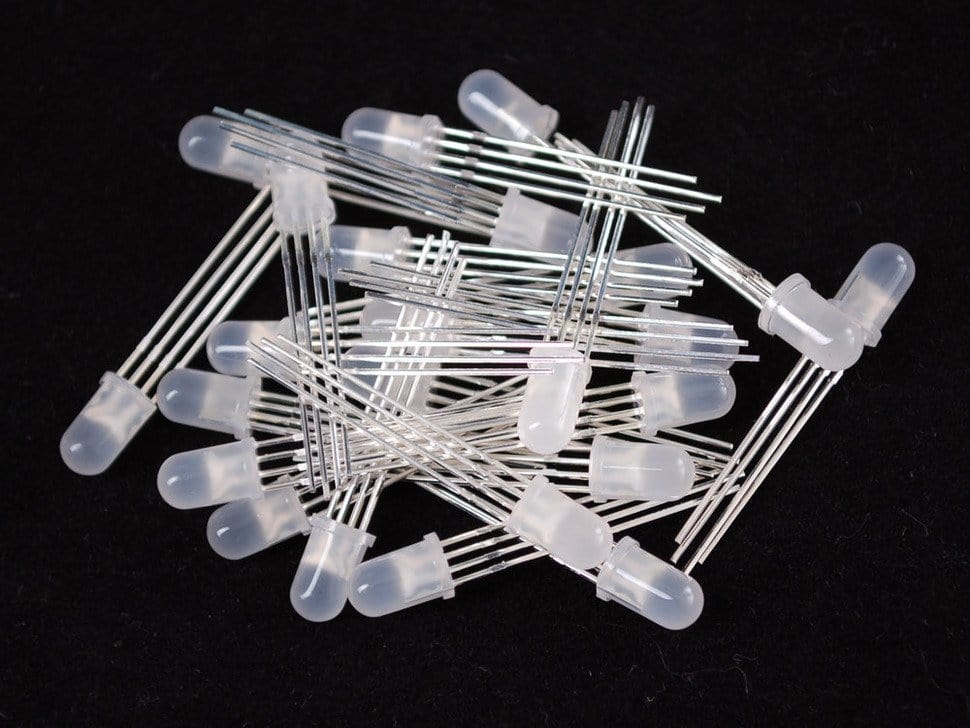

Diffused 5mm tri-colour LED with separate red, green and blue LED chips inside! Nice indicator, and fun to colour-swirl. 60-degree viewing angle. We like diffused RGB LEDs because they colour mix inside instead of appearing as 3 distinct LEDs.
These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor. We carry and use CA more than CC because multi-LED driver chips (such as the TLC5940/TLC5941) are often designed exclusively for CA and can't be used with Common-Cathode.
Specifications
- Wavelength
- Red: 630nm
- Green: 525nm
- Blue: 430nm
- Forward Voltage (at 20mA)
- Red: 2.1-2.5V
- Green: 3.8-4.5V
- Blue: 3.8-4.5V
- Typical brightness
- Red: 500mcd
- Green: 600mcd
- Blue: 300 mcd
- Diameter: 5mm
If you need some help using LEDs, please read our "Introduction to using LEDs" tutorial for any electronics project.
Original: $2.31
-70%$2.31
$0.69
Description
Diffused 5mm tri-colour LED with separate red, green and blue LED chips inside! Nice indicator, and fun to colour-swirl. 60-degree viewing angle. We like diffused RGB LEDs because they colour mix inside instead of appearing as 3 distinct LEDs.
These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor. We carry and use CA more than CC because multi-LED driver chips (such as the TLC5940/TLC5941) are often designed exclusively for CA and can't be used with Common-Cathode.
Specifications
- Wavelength
- Red: 630nm
- Green: 525nm
- Blue: 430nm
- Forward Voltage (at 20mA)
- Red: 2.1-2.5V
- Green: 3.8-4.5V
- Blue: 3.8-4.5V
- Typical brightness
- Red: 500mcd
- Green: 600mcd
- Blue: 300 mcd
- Diameter: 5mm
If you need some help using LEDs, please read our "Introduction to using LEDs" tutorial for any electronics project.
