DHT22 Temperature & Humidity Sensor

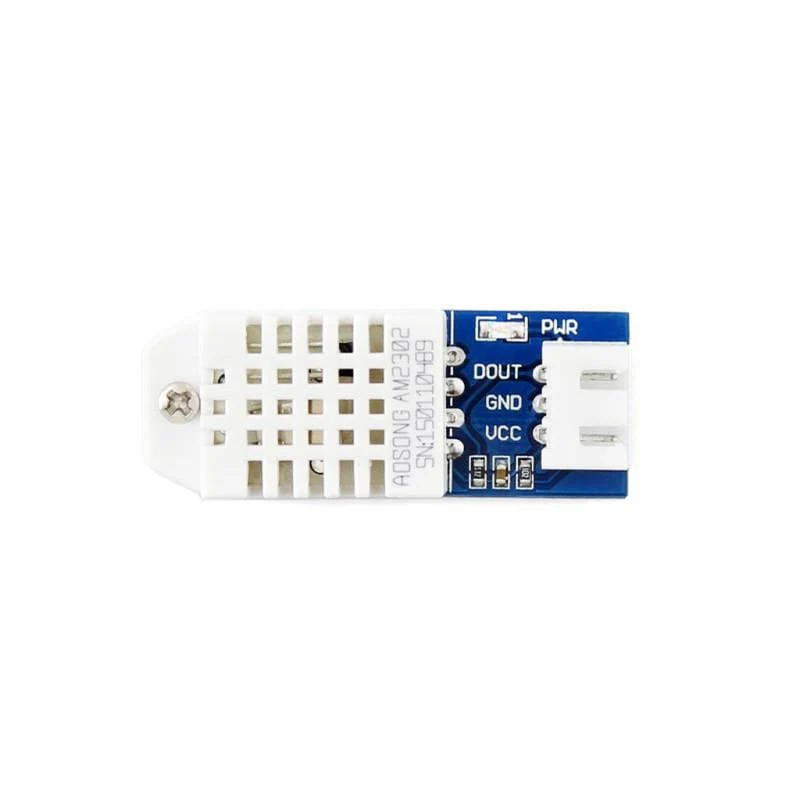

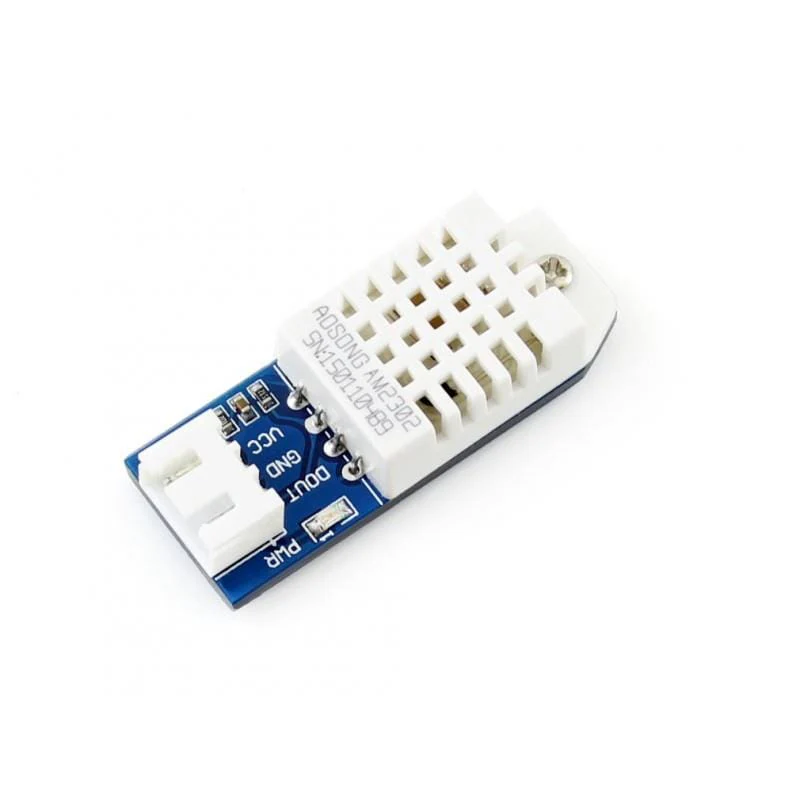

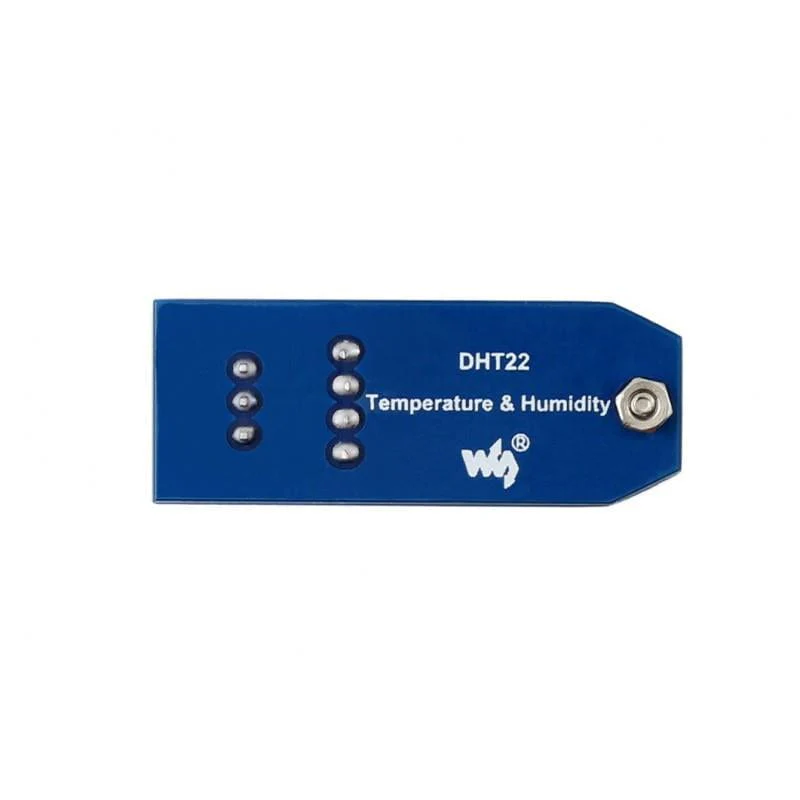

This is a calibrated digital temperature and humidity module with an onboard DHT22 (AM2302) sensor, which features higher accuracy and a wider measuring range than a DHT11.

This sensor can be used for detecting ambient temperature and humidity through the standard single-wire interface.

Comes with an XH2.54 3-pin cable.

Resources

• Product Wiki

How to Use

In the case of working with an MCU:

• VCC ↔ 3.3V ~ 5.5V
• GND ↔ GND
• DOUT ↔ MCU IO (GPIO) input pin

Package Contents

• 1x DHT22 Module
• 1x XH2.54 3-pin wire

Specifications

• Temperature
  • Resolution : 0.1°C
  • Accuracy : ±0.5℃
  • Measuring range: -40°C ~ 80°C
• Humidity
  • Resolution : 0.1%RH
  • Accuracy : ±2%RH (25°C)
  • Measuring range : 0%RH ~ 99.9%RH
• Operating voltage : 3.3V ~ 5.5 V
• Recommended storage condition
  • Temperature: 10°C ~40°C
  • Humidity: 60%RH or below
• Dimensions: 39.92mm x 15.4mm
