DeskPi Lite for Raspberry Pi 5

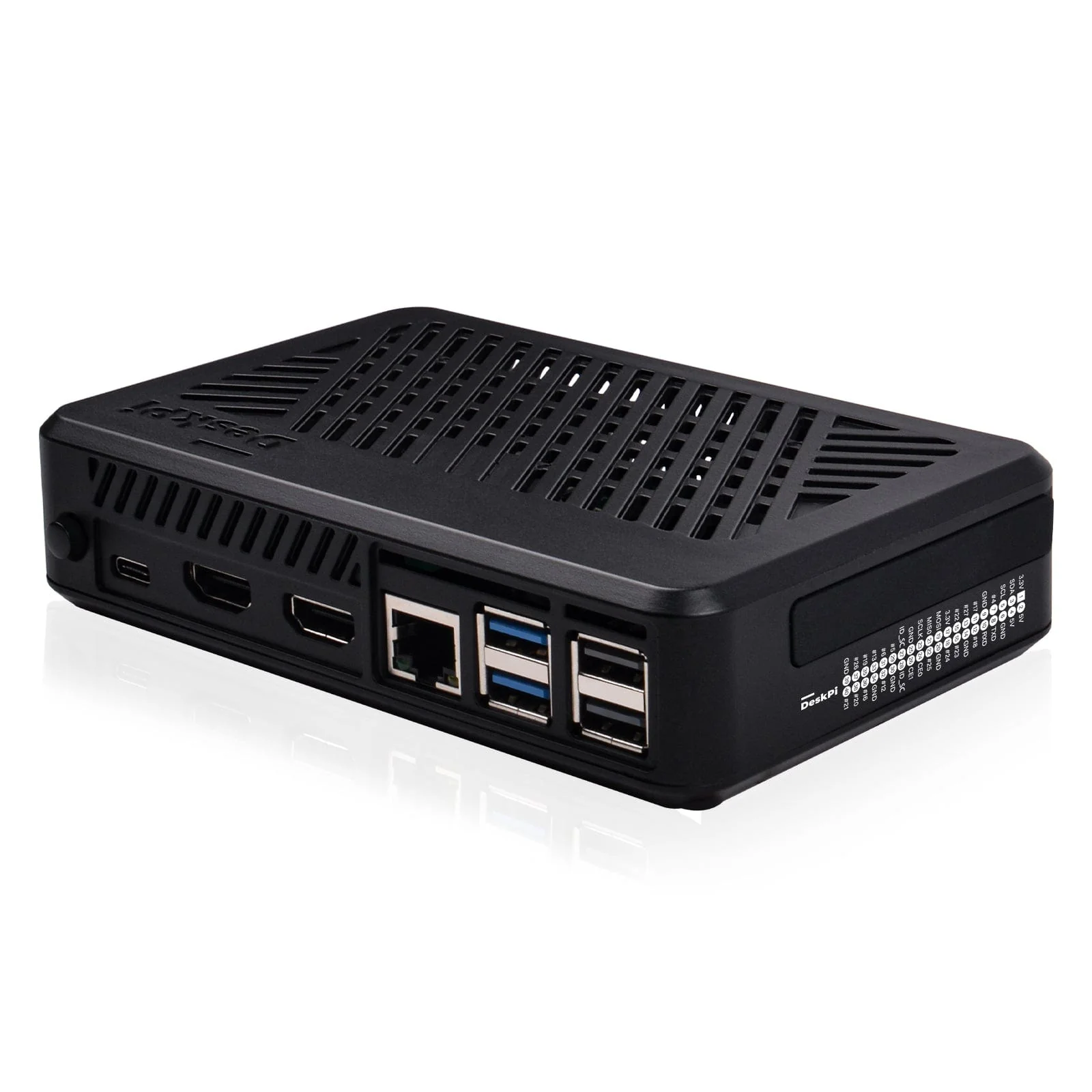

The DeskPi Lite for Raspberry Pi 5 is a custom ABS enclosure for Pi 5, offering M.2 NVMe support, rear dual full-size HDMI, front Micro SD access and excellent cooling with the included Armour Lite V5 active cooler!

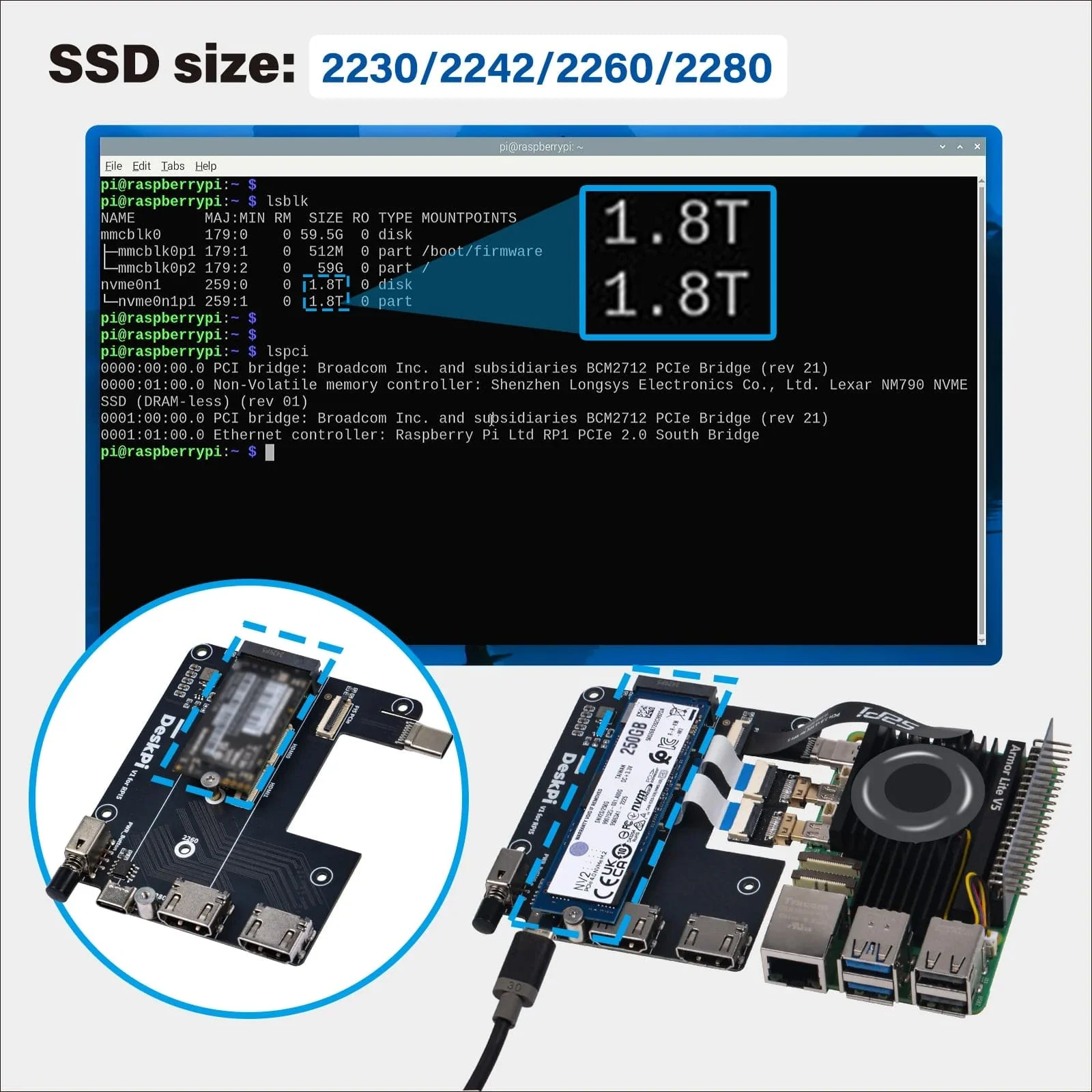

The internal 'daughter board' re-routes ports to the rear of the case, giving you sensible cable management for a clean desk setup - including dual full-size HDMI! It supports M.2 modules and (NVMe) SSDs in 2230, 2242, 2260, and 2280 sizes. It’s also compatible with the Hailo-8L module from the official Raspberry Pi AI kit (just the modules, not the full HAT).

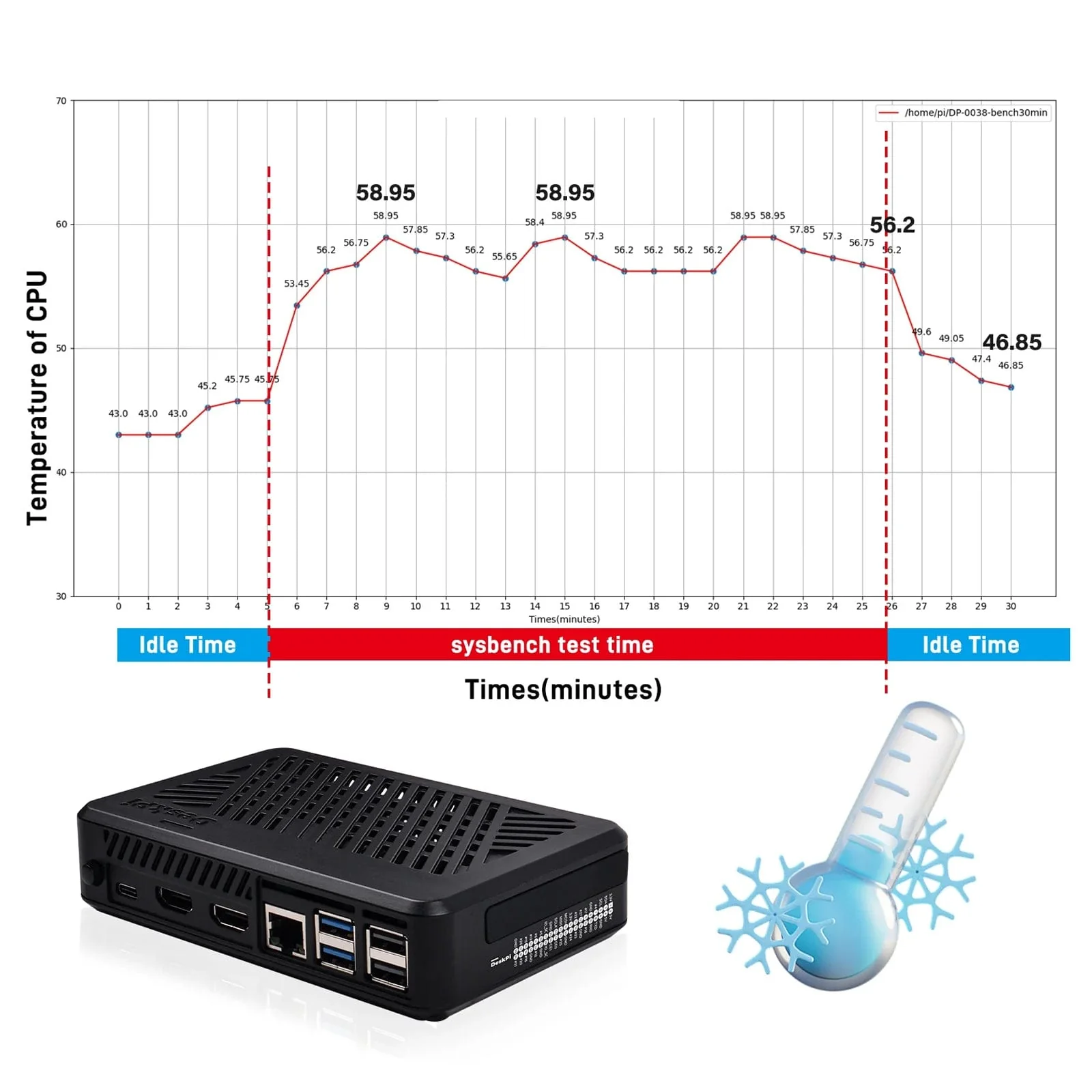

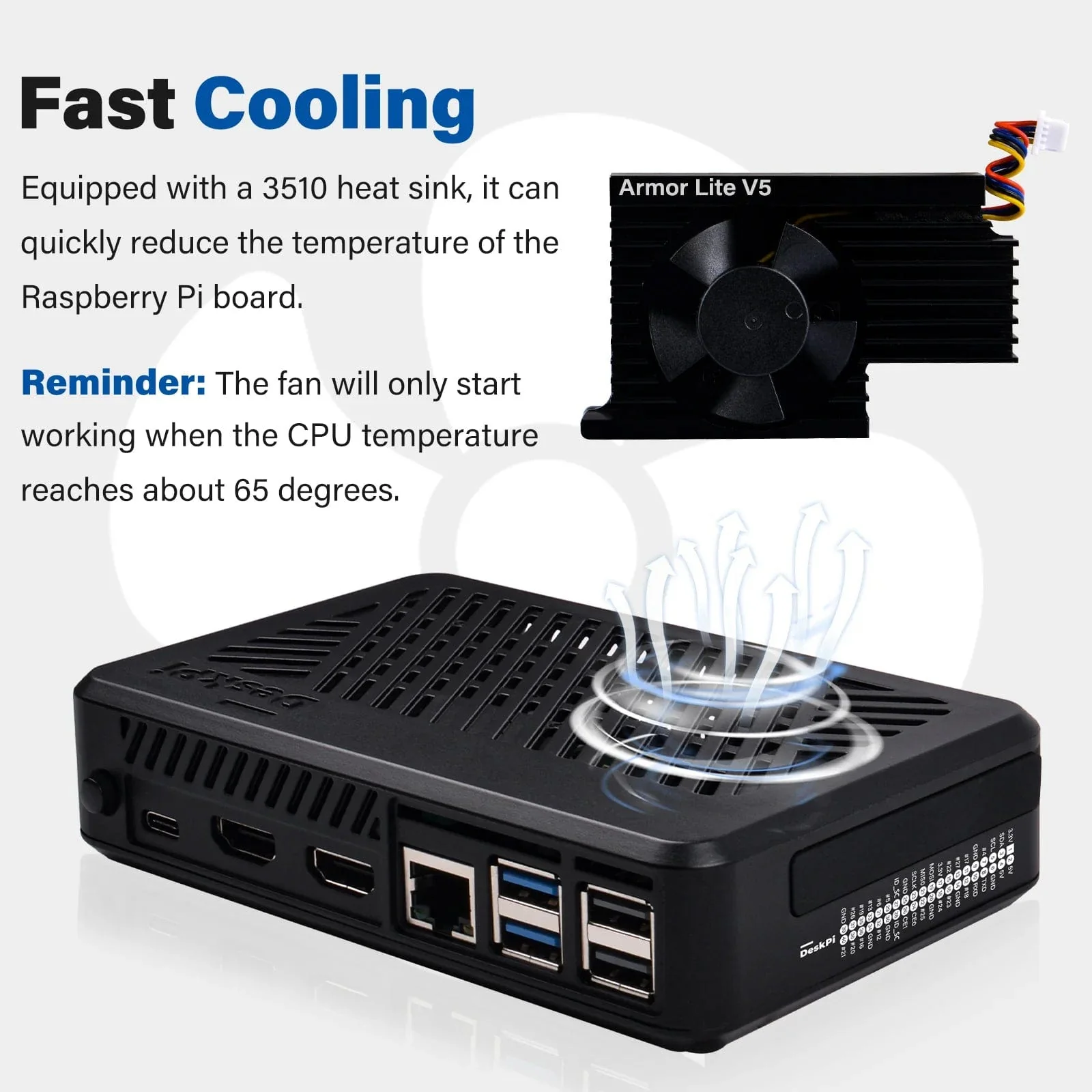

The case includes an Armour Lite V5 active cooler with auto-throttling for effective cooling.  A power switch on the rear allows easy power management along with a power/reset switch at the front. A front LED showing the current power and disk status (red/green). There's even access to the GPIO pins on the side of the case, concealed by a dust cover.

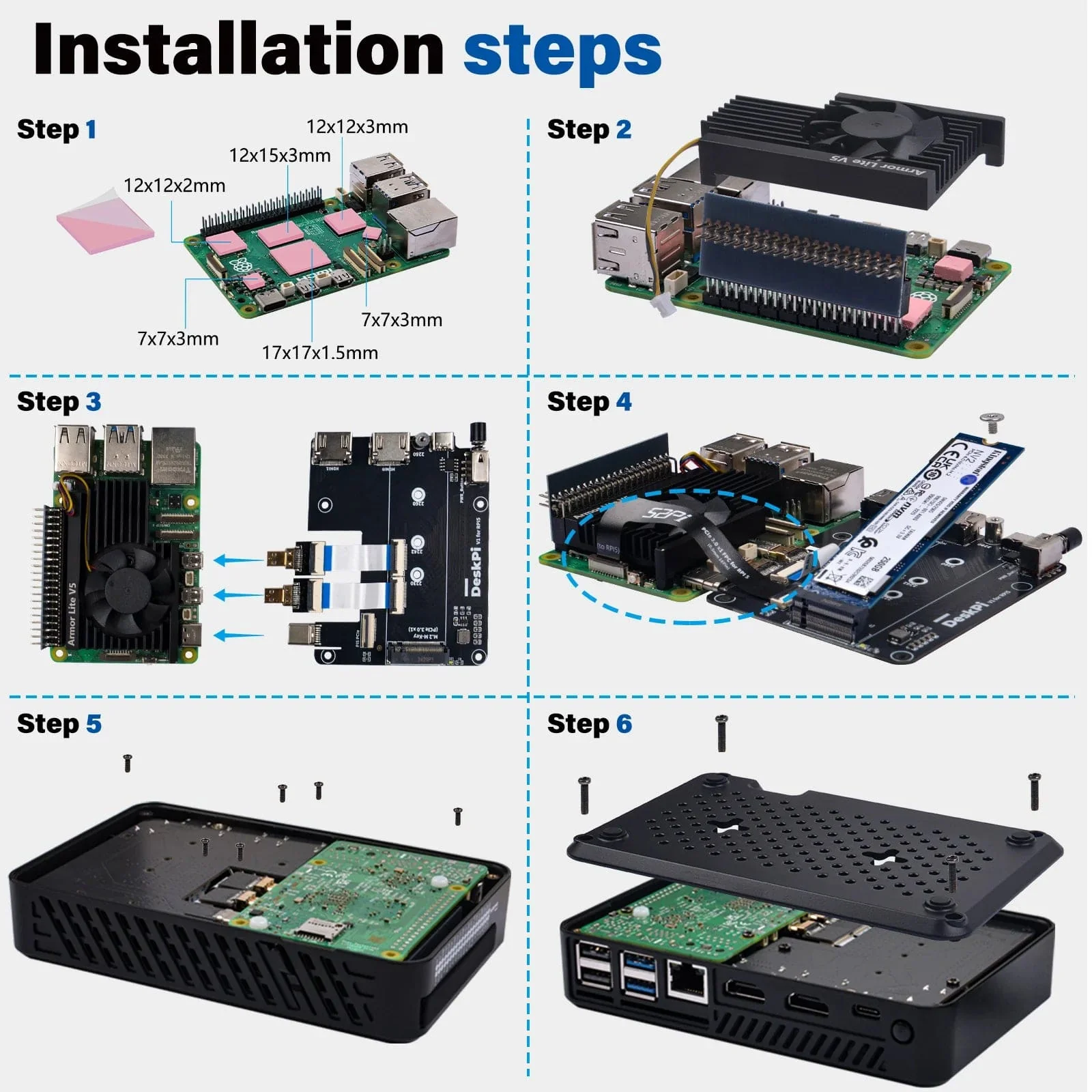

Important! Please be extra-careful removing the daughter board during assembly/disassembly. The power button needs to be carefully removed to avoid damage.

Raspberry Pi, power supply, SD and M.2 device not included.

Features

• Custom ABS enclosure for the Raspberry Pi 5
• Supports M.2 devices and NVMe SSDs (2230, 2242, 2260, 2280)
  • Compatible with the Hailo-8L module (not the full HAT)
• Includes Armour Lite V5 active cooler with auto-throttling

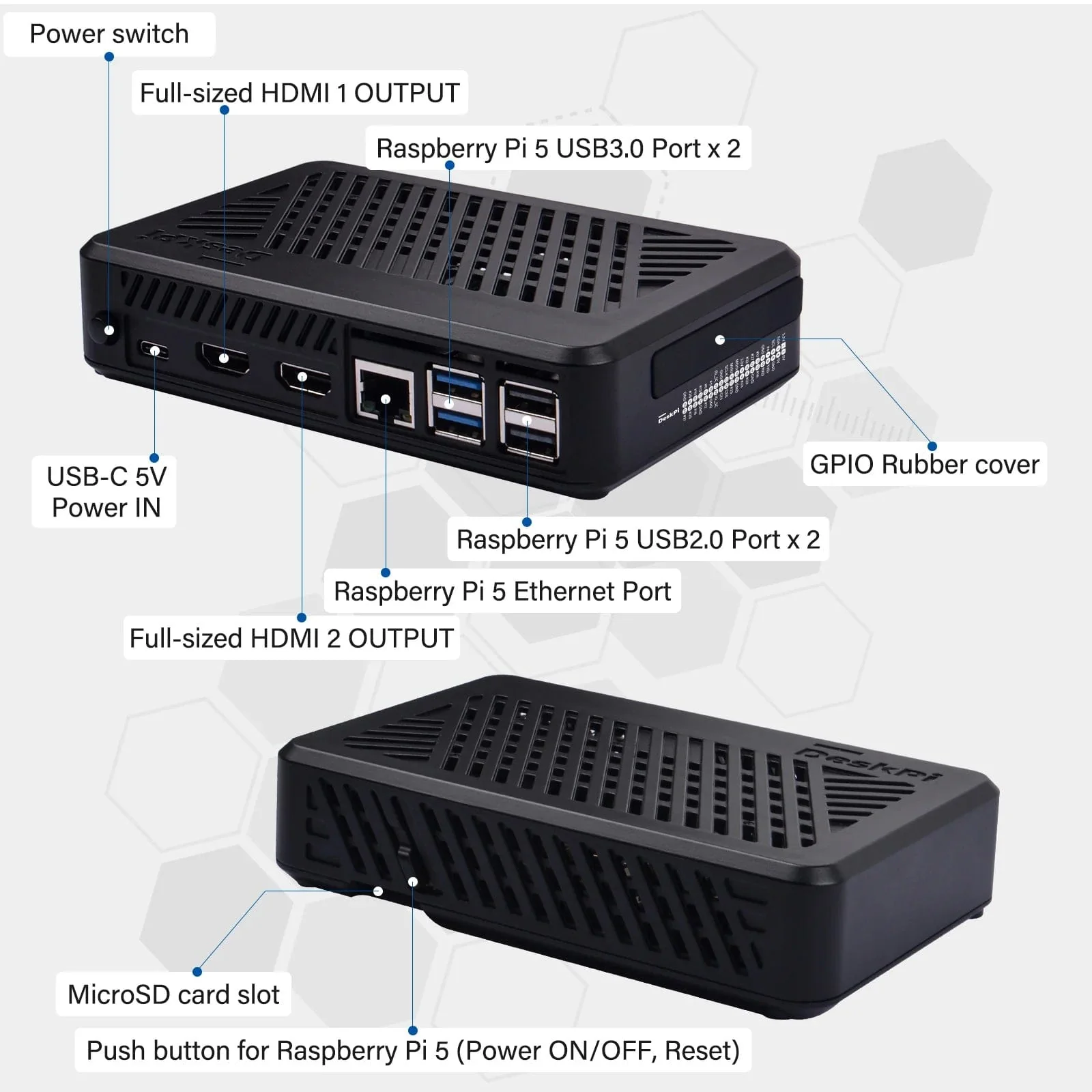

• Re-routed USB-C and HDMI ports for better cable management
  • Rear-exit dual full-size HDMI ports
• Front Micro SD card slot access

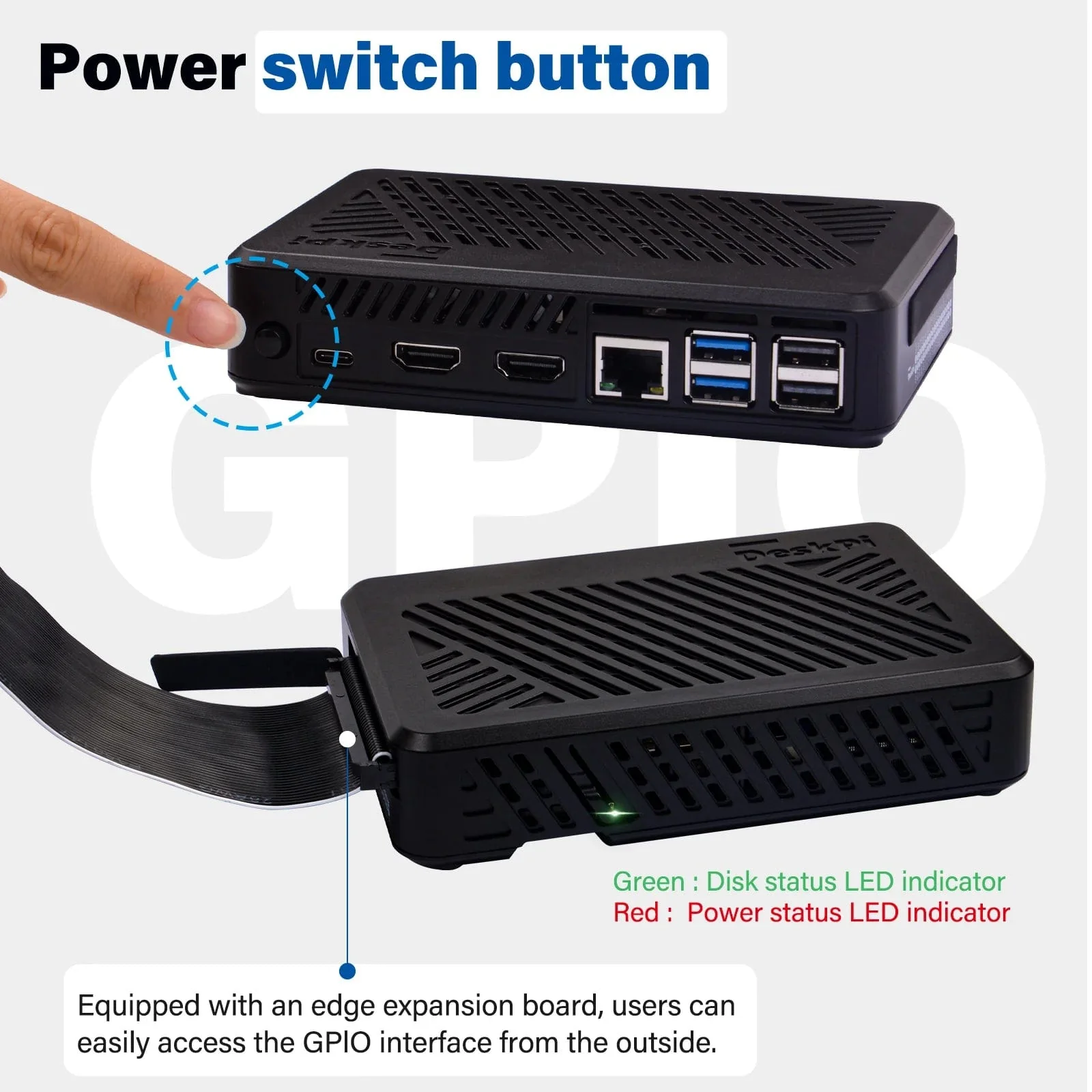

• Rear power switch with front-facing power/disk status LED
• Front power/reset button
• Side GPIO access with protective dust cover
• Non-slip rubber feet
• Wall mounting 'cross' points on underside

Resources

• Product Wiki

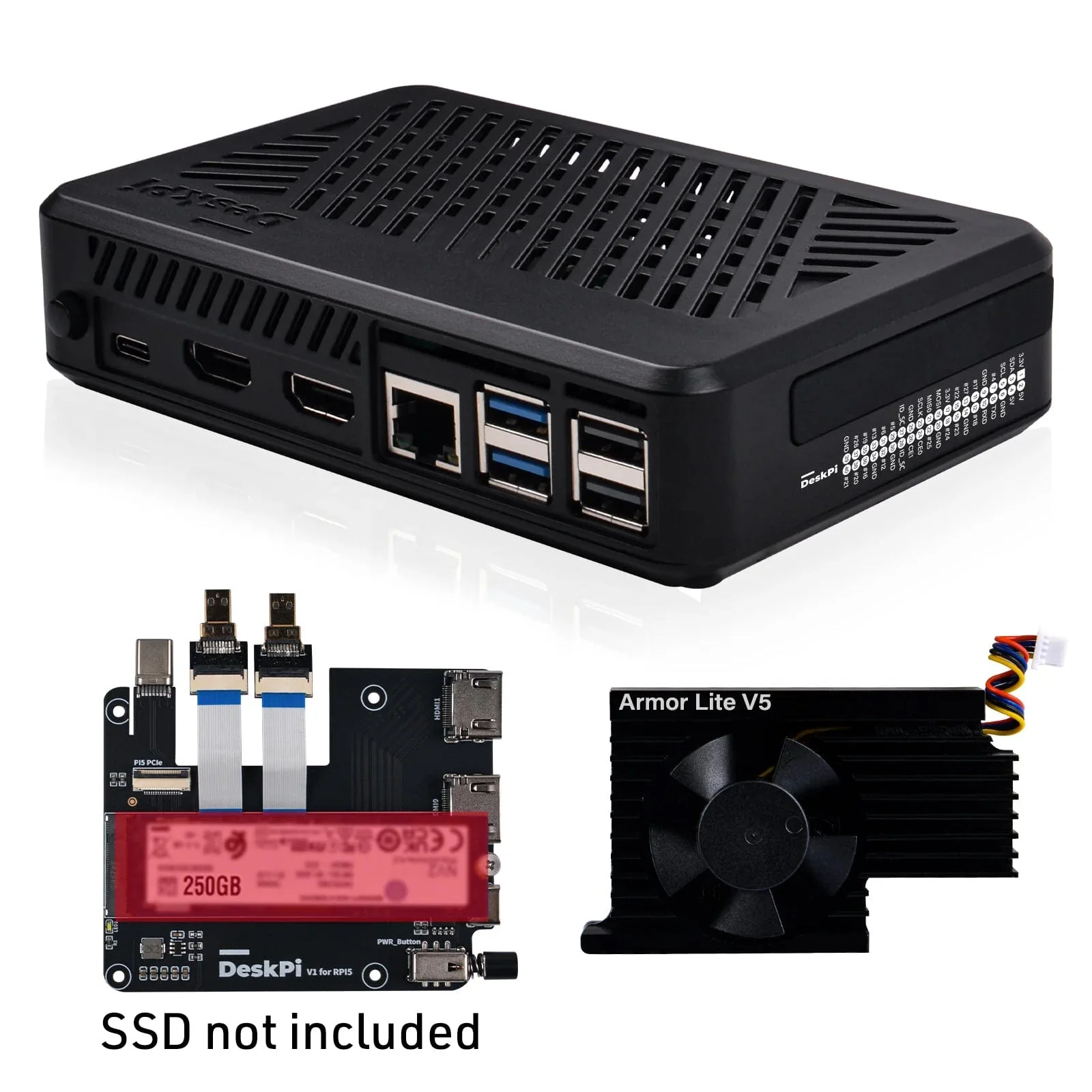

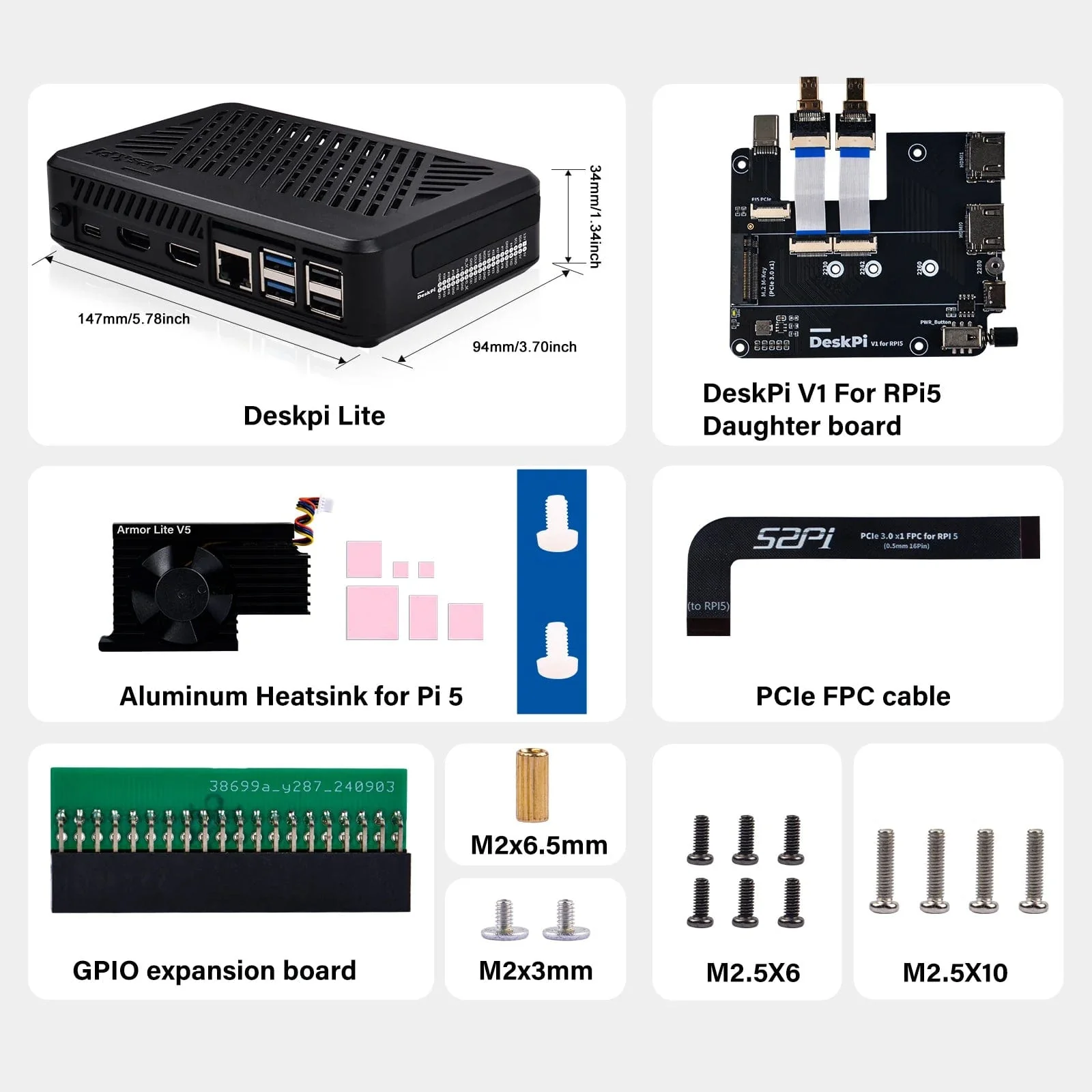

Package Contents

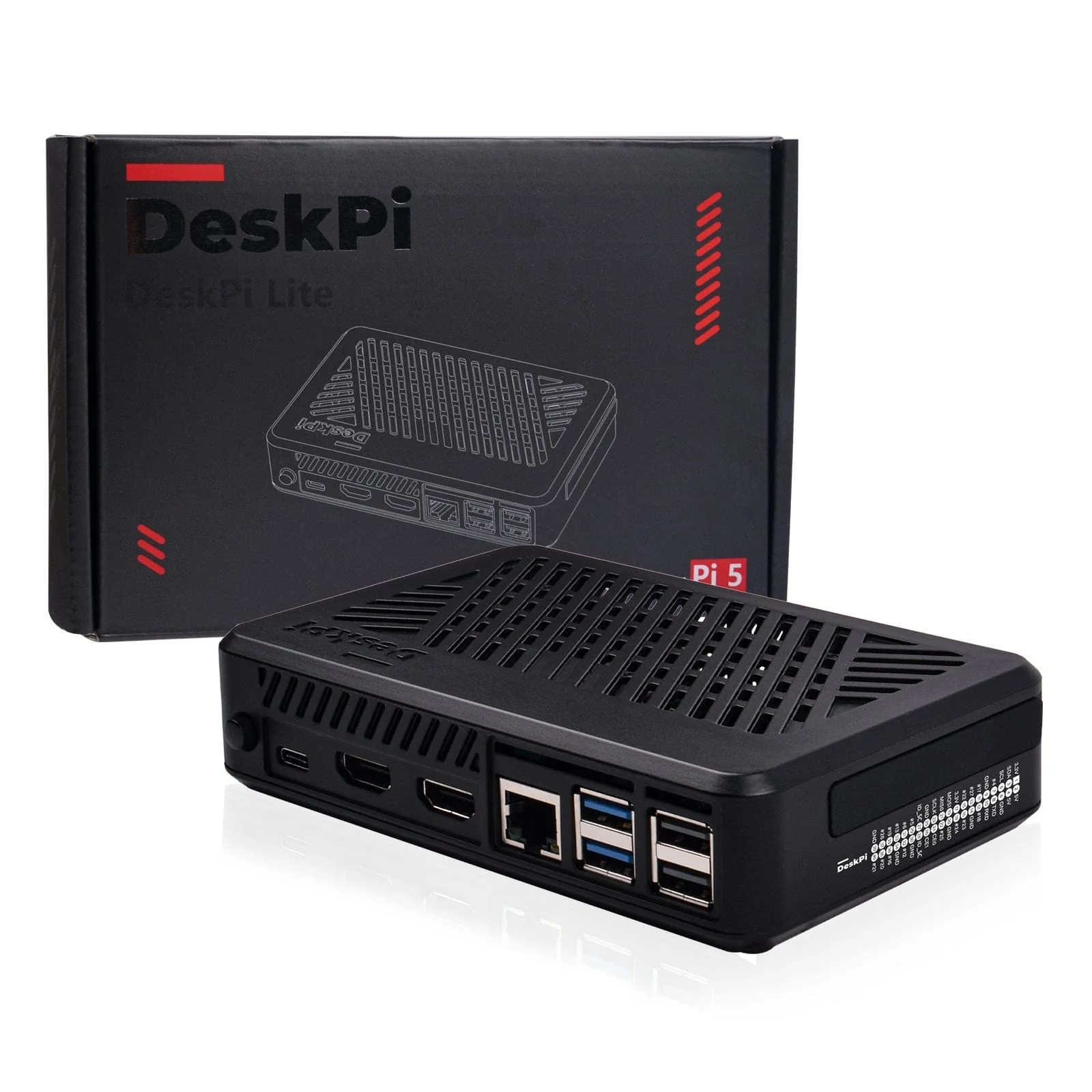

• 1x DeskPi Lite Case
• 1x Armour Lite V5 Fan
• 1x Daughter Board
• 1x PCIe FPC Cable
• 1x GPIO Expansion Board
• M2x3mm, M2.5x6, M2.5x10 Screws

Raspberry Pi, power supply, SD and M.2 device not included.
