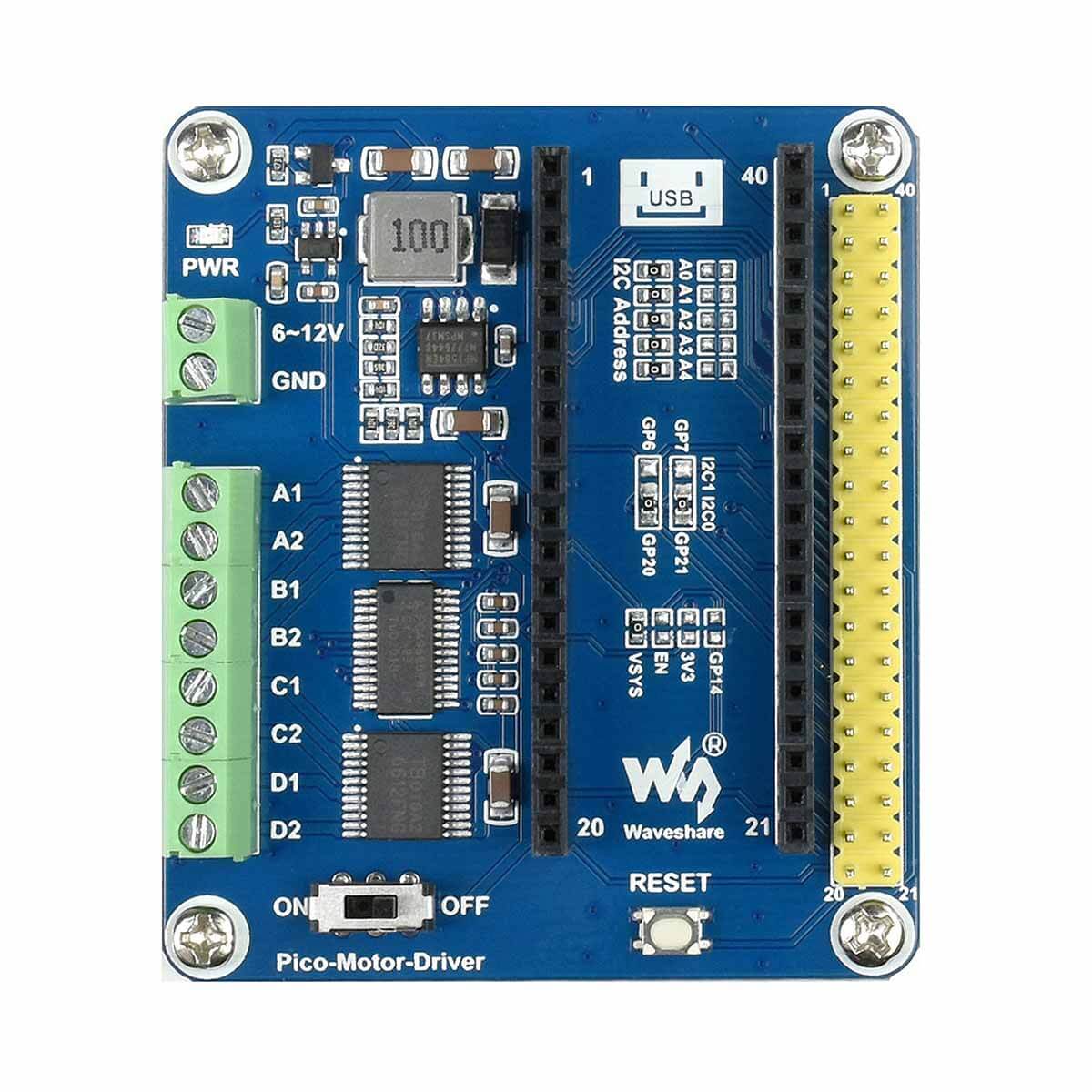

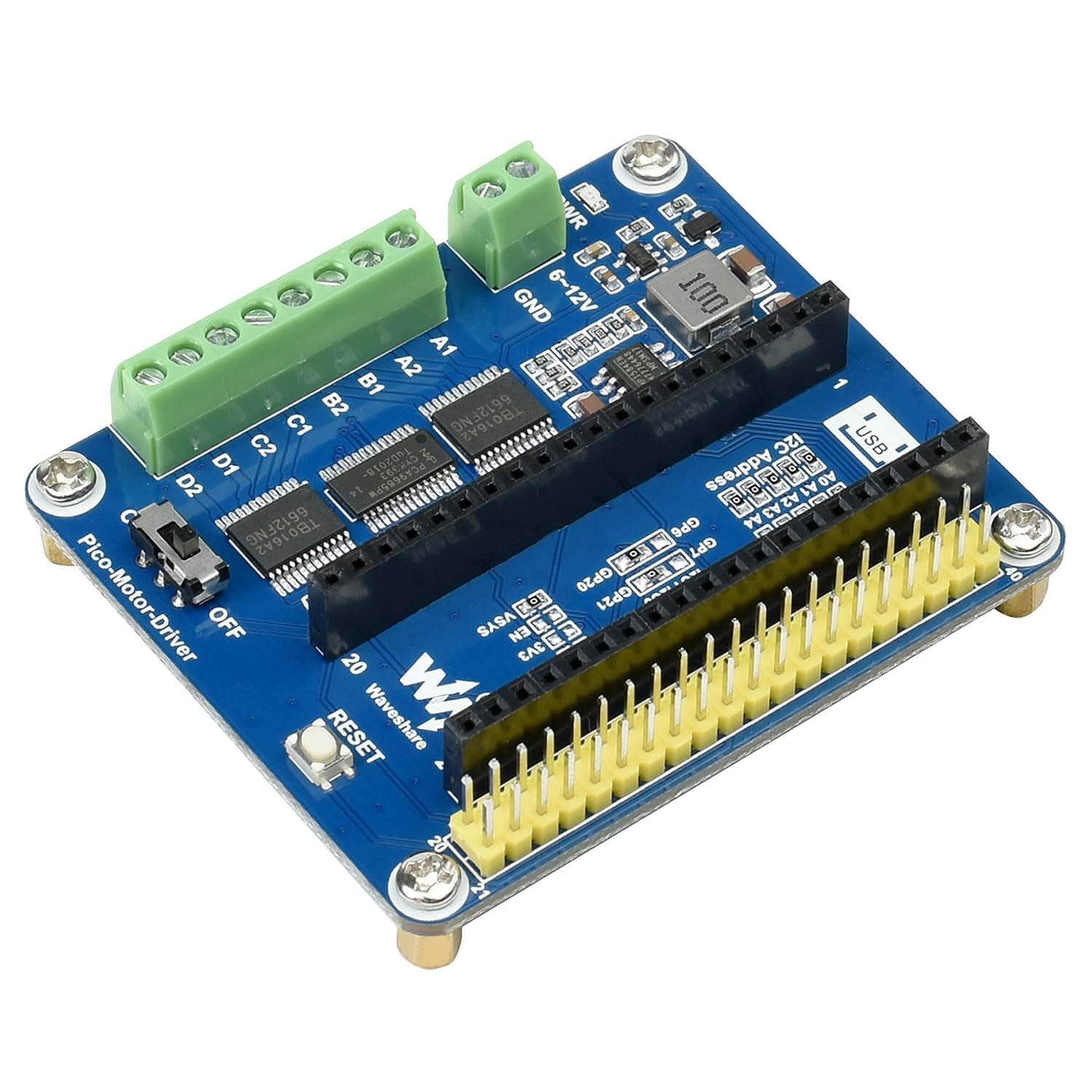

DC Motor Driver Module for Raspberry Pi Pico

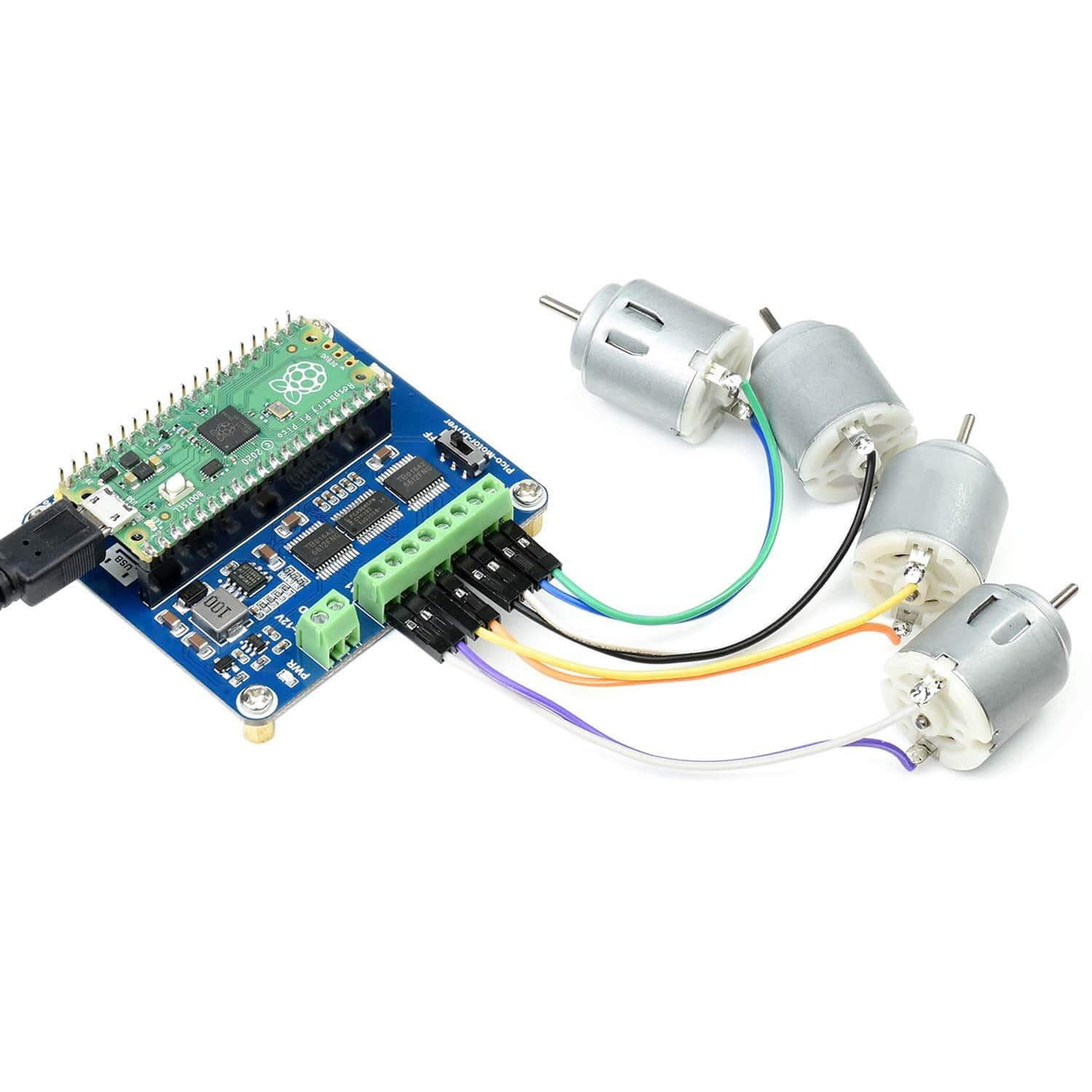

This DC motor driver has been designed specifically for the Raspberry Pi Pico and can PWM control up to 4 DC motors at a constant current of 1.2A (3.2A peak).

Power input between 6-12V can be applied, which conveniently powers the Raspberry Pi Pico thanks to the onboard 5V regulator. An on/off switch and power indicator LED add to this convenience, alongside a breakout section for unused GPIO pins.

Online development resources are available, which include wiring guidance and additional information.

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos).

Features

• Compatible with the Raspberry Pi Pico
• I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers

• Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
• Onboard TB6612FNG dual H-bridge motor driver
• Integrates 5V regulator, up to 3A output current, can be powered from a battery through the VIN terminal
• Breaks out unused pins of the Pico for easy extension

Specifications

• Operating voltage: 6~12V (VIN terminals)
• Logic level: 3.3V
• PWM driver: PCA9685
• Motor driver: TB6612FNG
• Control interface: I2C

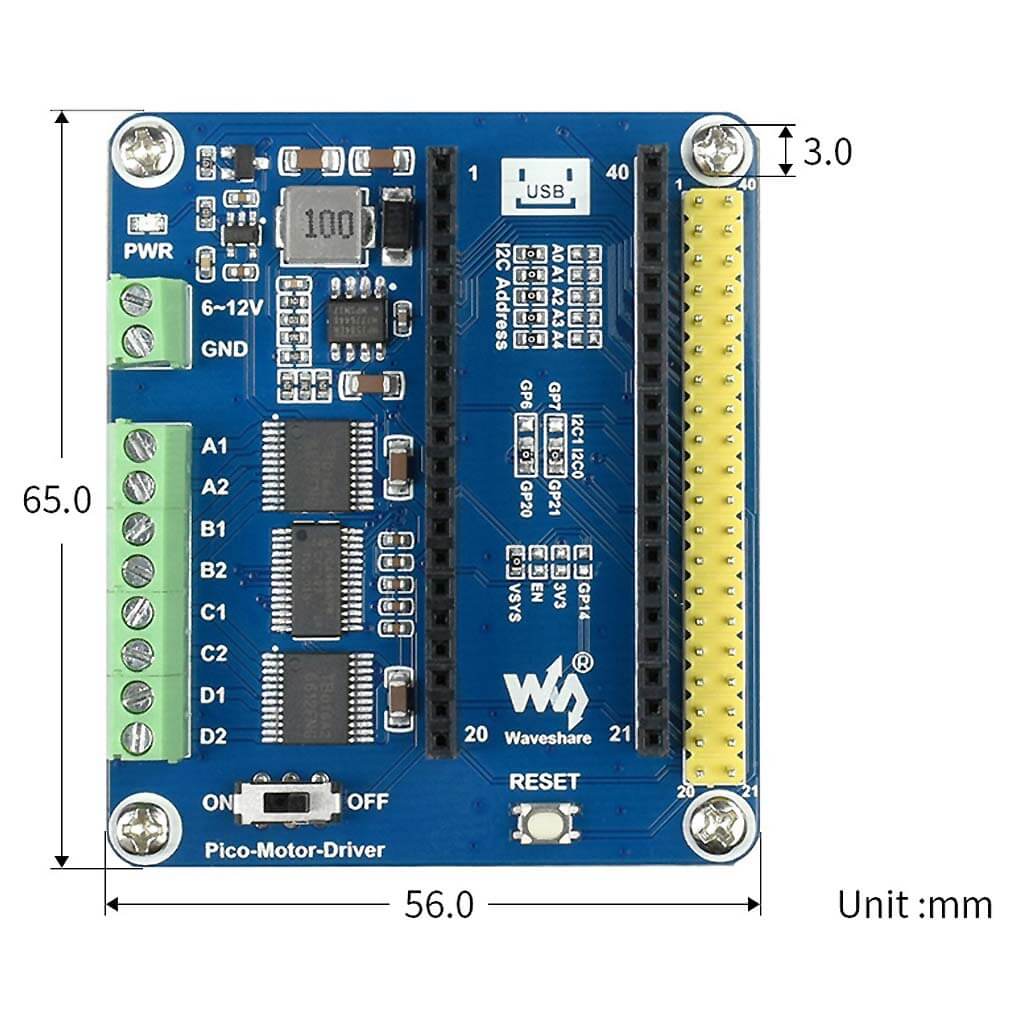

• Dimensions: 65 x 56mm

Package Contents

• 1x Pico Motor Driver

Raspberry Pi Pico and motors not included

Resources

• Product Wiki & Manual

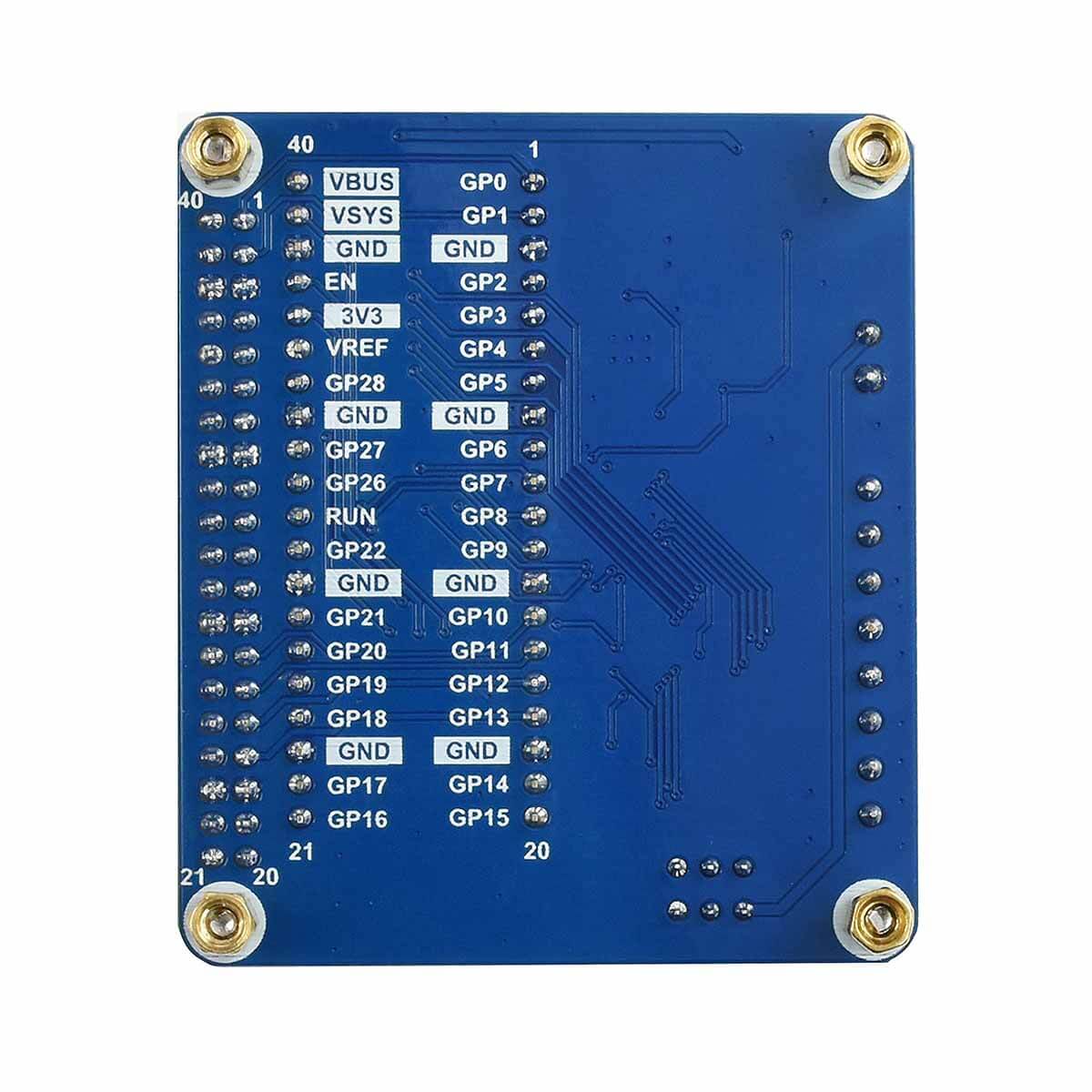

Pinout
