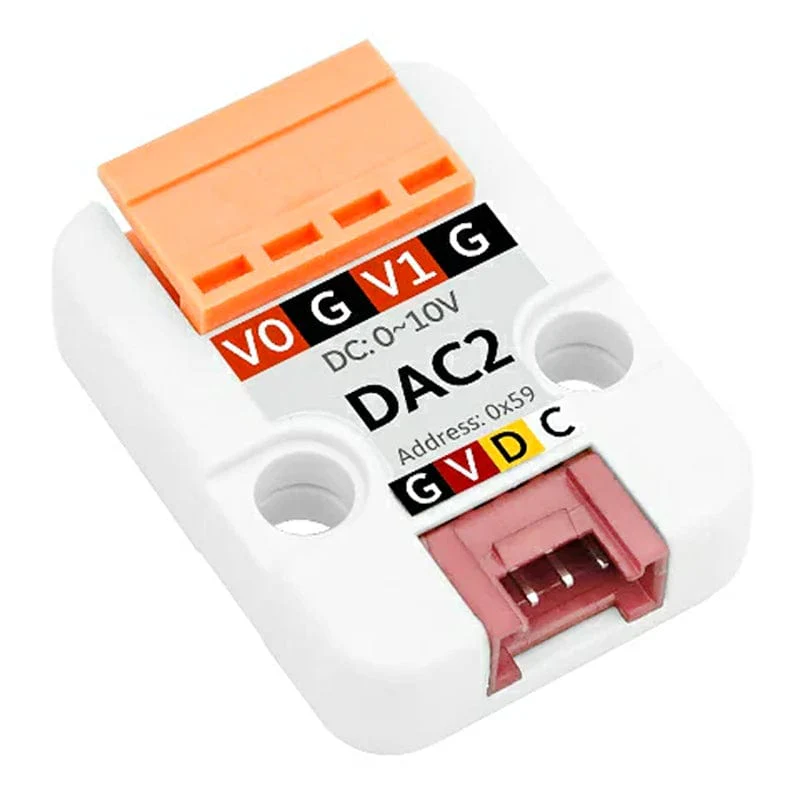

DAC 2 I2C Unit (GP8413)

The DAC2 Unit is a digital-to-analogue conversion module that operates over an I2C interface, using the GP8413 solution to produce high precision and accuracy. This chip can linearly convert a 15-bit digital input into two independent analogue voltages ranging from 0-5V or 0-10V, with an output voltage error of only 0.2% and linearity up to 0.01%.

It includes a 3-bit hardware address, enabling the connection and simultaneous operation of up to eight devices, enhancing its scalability. Additionally, it features output short-circuit protection; it automatically transitions into protection mode when a short circuit occurs between the output pins and ground, preventing damage by halting the output.

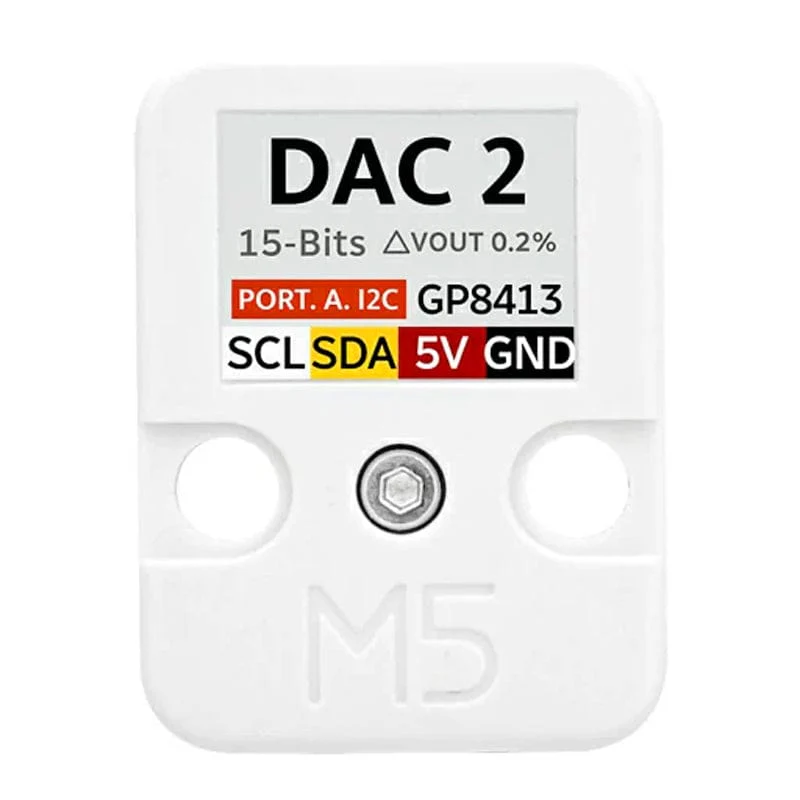

Features

• I2C communication (default address 0x59)
• Supports multiple parallel connections
• Short-circuit protection
• High precision, small error

Specifications

DAC Chip	GP8413
Resolution Ratio	15Bit
I2C Serial Communication	0x59 (default)
Maximum Output Voltage	10V
Output Voltage Error	<0.2%
Output Voltage Linearity error	0.0001
Operating Temperature	0-40°C

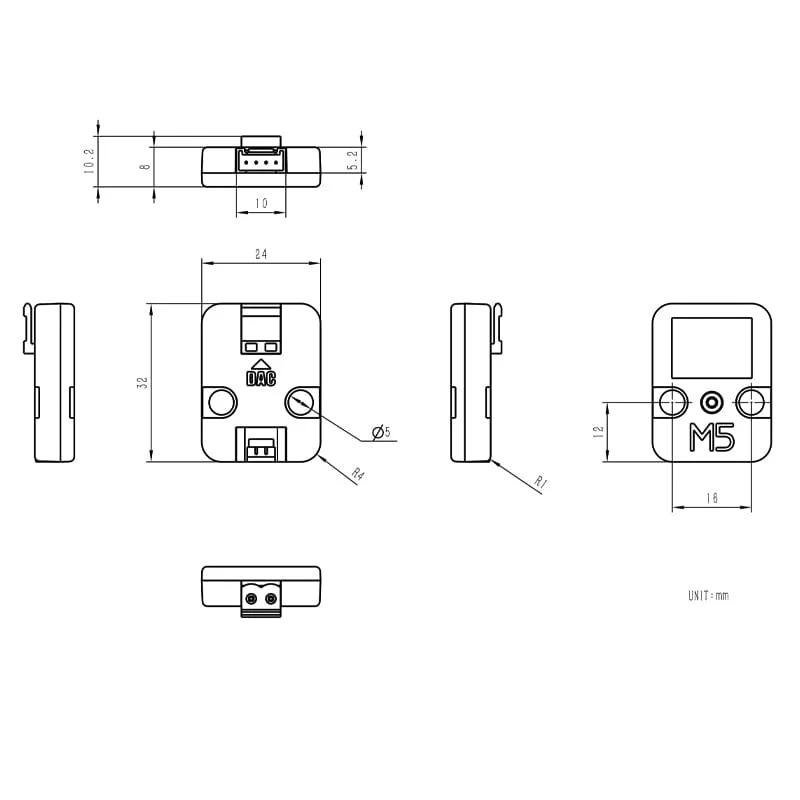

Product Size	32 x 24 x 10.2mm
Package Size	136 x 92 x 13.7mm
Product Weight	5g
Package Weight	13.3g

Resources

• Product Wiki
• GP8413 Datasheet

Package Contents

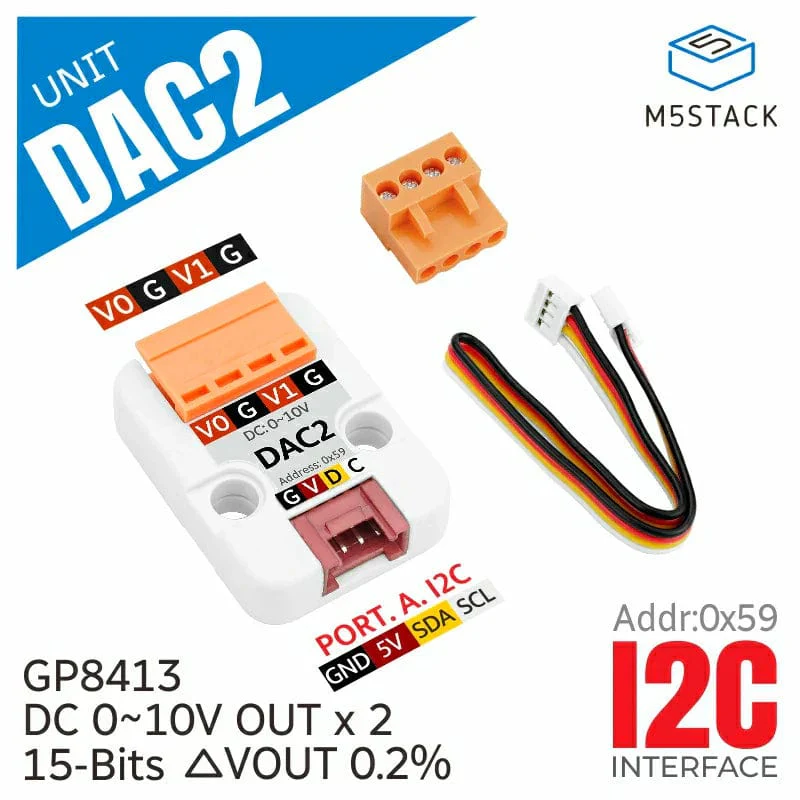

• 1x DAC2 Unit
