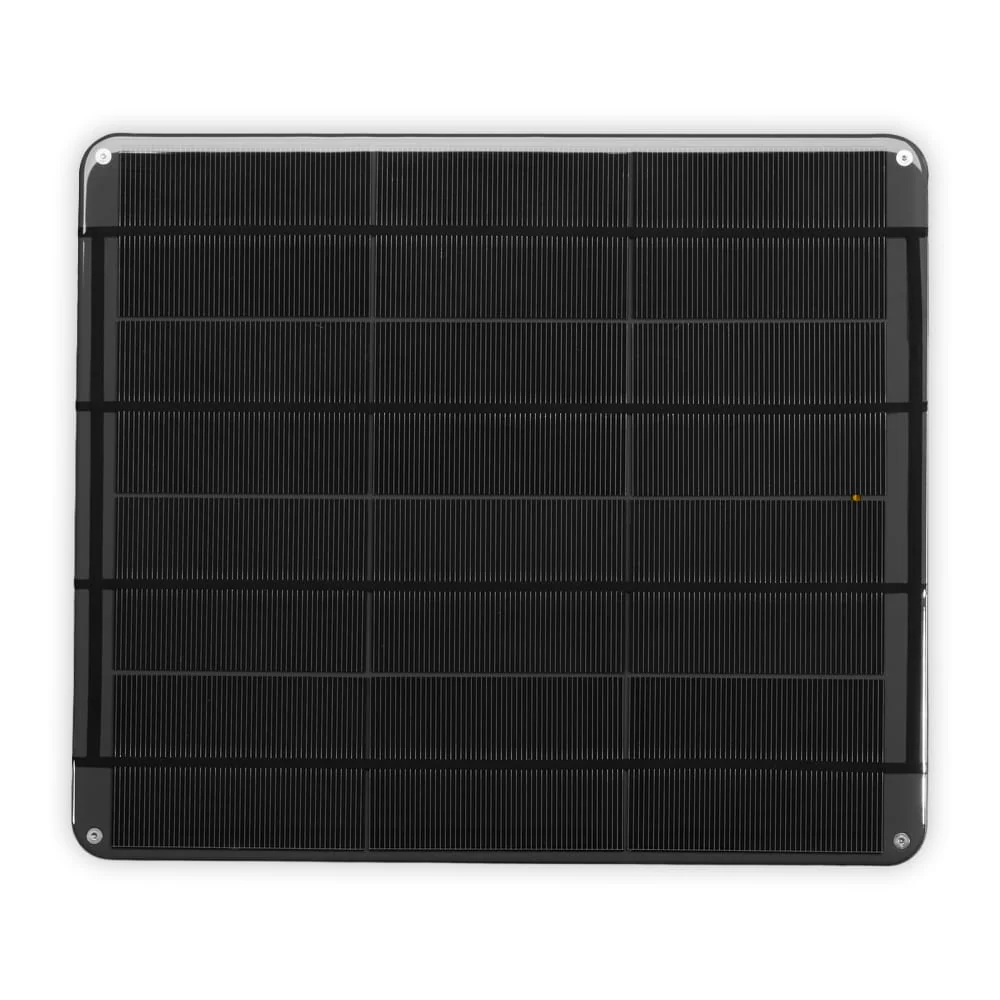

Voltaic 6V 9W Solar Panel
These 6V 9W panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.
Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels we have been carrying. The substrate is an aluminium / plastic composite, specifically designed to be strong and lightweight.
They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!
Please note - these panels may have dents or light scratches in the epoxy from shipping/storage, it does not affect the functionality of the panel. We cannot guarantee they will be perfectly smooth.
Specifications
- Monocrystalline cells - 19% efficient
- Open Circuit Voltage: 7.0V
- Peak Voltage: 6.0V
- Peak Current: 1500mA
- Peak Power: 9.0 Watt
- 254mm x 223.5mm
- Thickness (without screws): 5mm
- Thickness (with screws): 10mm
- Wire Length: 282mm
- Weight: 309g
- Technical drawing
Construction
- Urethane coating
- 3mm Aluminium/Plastic composite substrate
Mounting and Cables
- Four screws on back corners of panel allow multiple mounting options
- Output cable is 22cm long and has 3.5x1.1mm plug
Original: $98.73
-70%$98.73
$29.62
Description
These 6V 9W panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. They are waterproof, scratch resistant, and UV resistant.
Using a high efficiency monocrystalline cell and outputting 6V at ~1.5A via 3.5mm x 1.1mm DC jack connector, they are a nice upgrade to the 2W or 3W panels we have been carrying. The substrate is an aluminium / plastic composite, specifically designed to be strong and lightweight.
They're very high quality and suggested for projects that will be exposed to the outdoors. These come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!
Please note - these panels may have dents or light scratches in the epoxy from shipping/storage, it does not affect the functionality of the panel. We cannot guarantee they will be perfectly smooth.
Specifications
- Monocrystalline cells - 19% efficient
- Open Circuit Voltage: 7.0V
- Peak Voltage: 6.0V
- Peak Current: 1500mA
- Peak Power: 9.0 Watt
- 254mm x 223.5mm
- Thickness (without screws): 5mm
- Thickness (with screws): 10mm
- Wire Length: 282mm
- Weight: 309g
- Technical drawing
Construction
- Urethane coating
- 3mm Aluminium/Plastic composite substrate
Mounting and Cables
- Four screws on back corners of panel allow multiple mounting options
- Output cable is 22cm long and has 3.5x1.1mm plug
