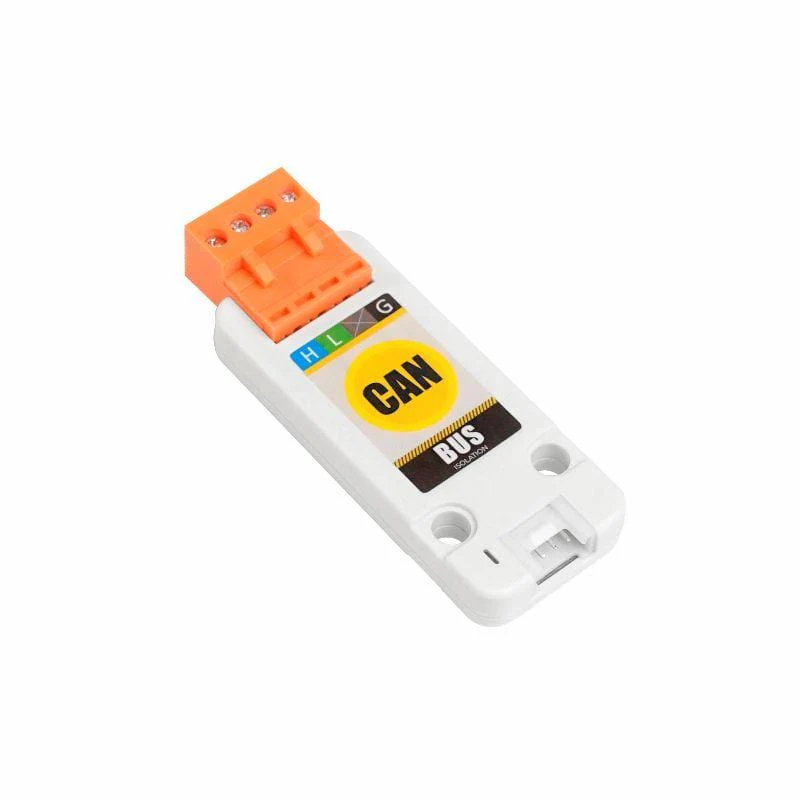

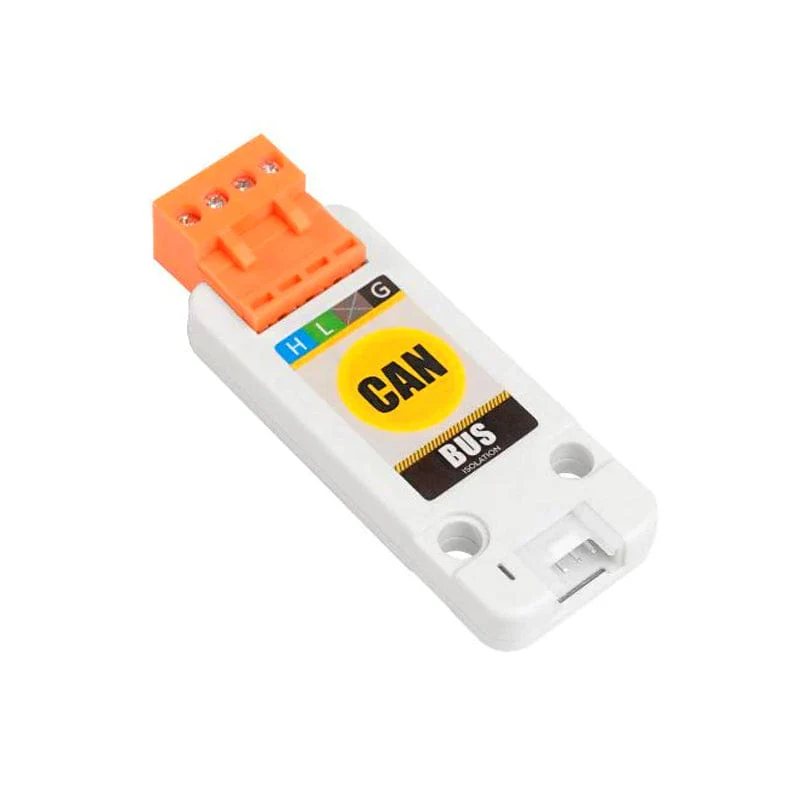

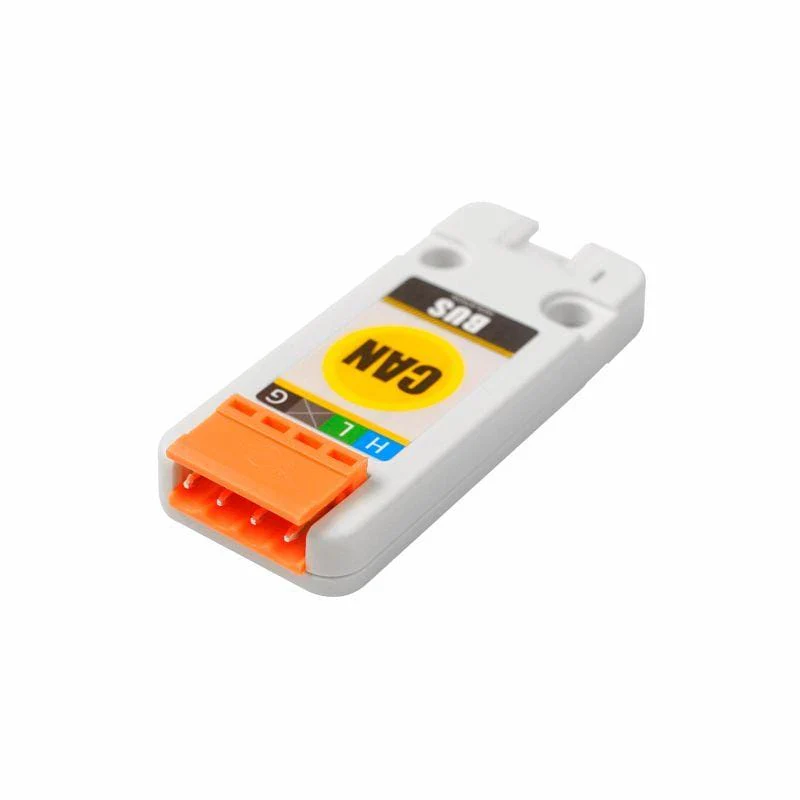

M5Stack CANBus Unit(CA-IS3050G)
The CAN Unit is an isolated controller area network (CAN) transceiver unit, which can be used to build a complex CAN communication network. The built-in DC-DC isolated power chip can isolate noise, interference, and prevent damage to sensitive circuits.

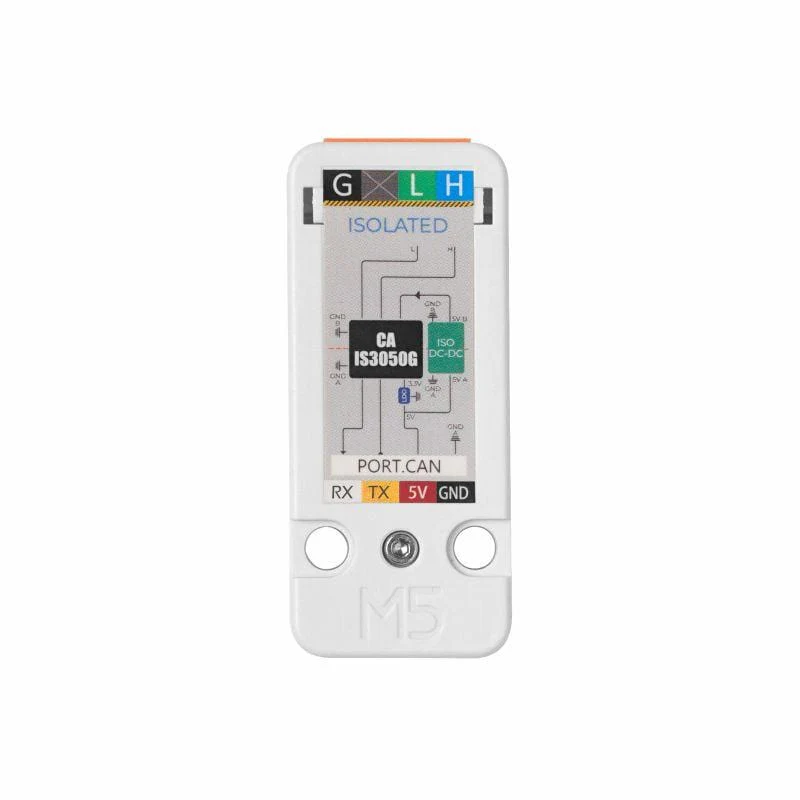

The model of the isolated CAN transceiver is ca-is3050g, which can provide differential reception and differential transmission capabilities. The bus can support up to 110 nodes, and the signal transmission rate can reach 1Mbps. It has current limiting, over-voltage, grounding loss protection (– 40 V to 40 V) and thermal shutdown functions, which can prevent output short-circuit and meets the technical specifications of ISO11898-2 standard.
CAN is an ISO international standard serial communication protocol. CAN belongs to the field bus category. It is a serial communication network which can support distributed control or real-time control.
The distributed control system based on CAN bus adopts multi master competitive bus structure, which has the characteristics of multi master station operation, decentralised arbitration and broadcast communication.
It has some obvious advantages in the following aspects: High speed and low failure rate data communication between nodes in the network. When multiple nodes initiate communication at the same time, the one with low priority will avoid the one with high priority, which will not cause congestion to the communication line. The communication distance can reach 10km (the rate is lower than 5Kbps) and the rate can reach 1Mbps (communication distance is less than 40m).
Features
- Power light
- Built-in isolated DC-DC
- Signal rate up to 1Mbps
- Protection function: signal isolation, current limiting, over-voltage protection and thermal shutdown
- 2x LEGO compatible hole
- HY2.0 4P Interface
Package Contents

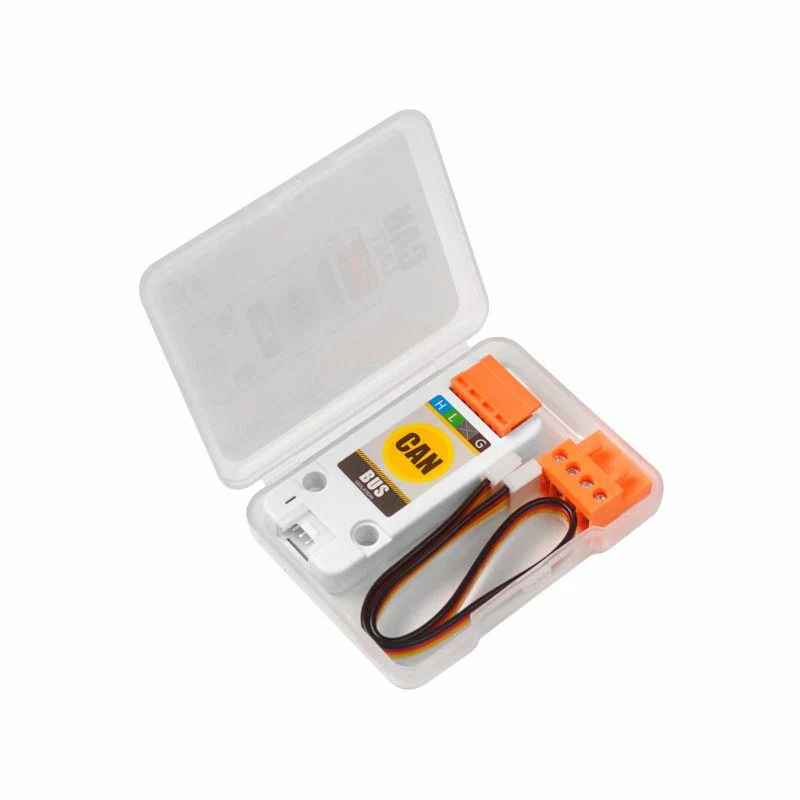

- 1x CAN Unit
- 1x HY2.0 Cable (5CM)
Specifications

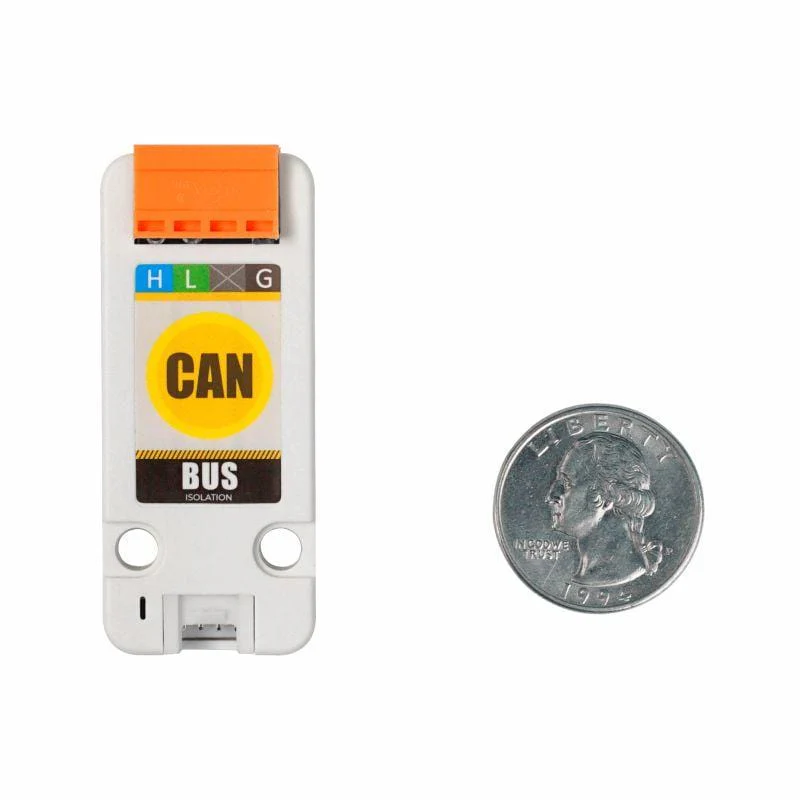

| Resources | Parameter |
|---|---|
| Rated withstand voltage | 1000V |
| Maximum rate | 1Mbps |
| Number of theoretical nodes | 110 |
| Low loop delay | -150ns |
| Common mode voltage | -12V ~ 12V |
| Protection Function | Current limiting, over voltage, main dynamic time-out function and signal isolation |
| Net Weight | 12g |
| Gross Weight | 25g |
| Product Size | 65 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
| Case Material | Plastic ( PC ) |
