M5Stack ATOM Speaker Kit (NS4168) [Discontinued]
The ATOM Speaker is an audio player that adapts to the ATOM master control, with a built-in I2S digital audio interface power amplifier chip NS4168. an automatic sampling rate detection, adaptive functions, and can effectively prevent audio signal distortion. an integrated TF Card card slot is convenient for saving and reading audio files. With a 3.5mm headphone jack and external speaker interface, users can play audio through external headphones or speakers.
Note: With the ATOM Speaker there is some IO conflict with the ATOM Matrix's built-in hardware, so the ATOM Speaker is only applicable to the ATOM LITE.
Features
- Power amplifier chip NS4168
- I2S serial digital audio input interface
- Support a wide range of sampling rates: 8kHz~96kHz
- Automatic sampling rate detection, adaptive function
- TFCard slot
- Headphone jack
- Speaker interface

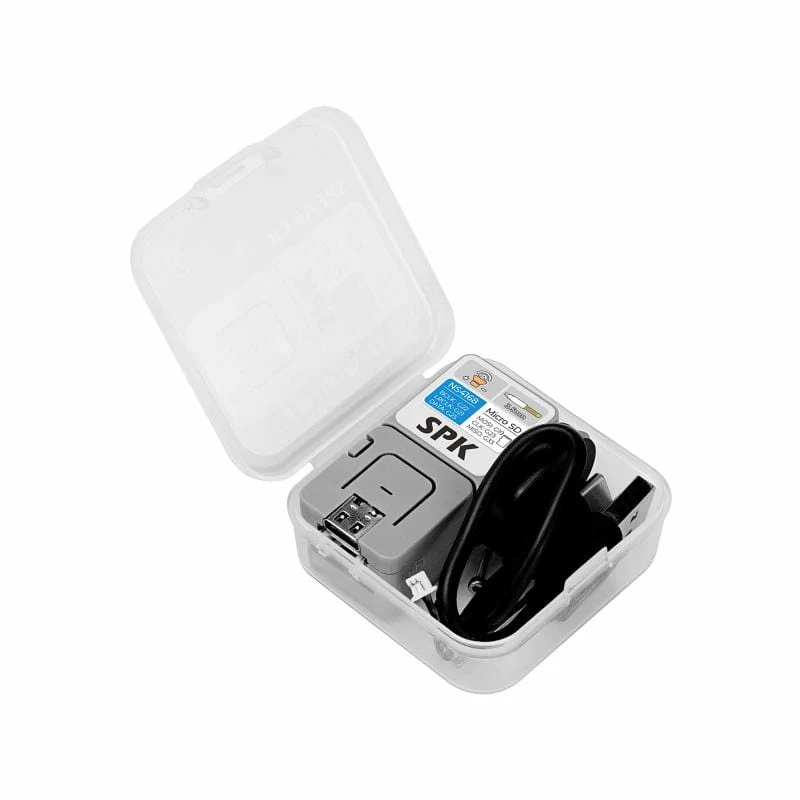

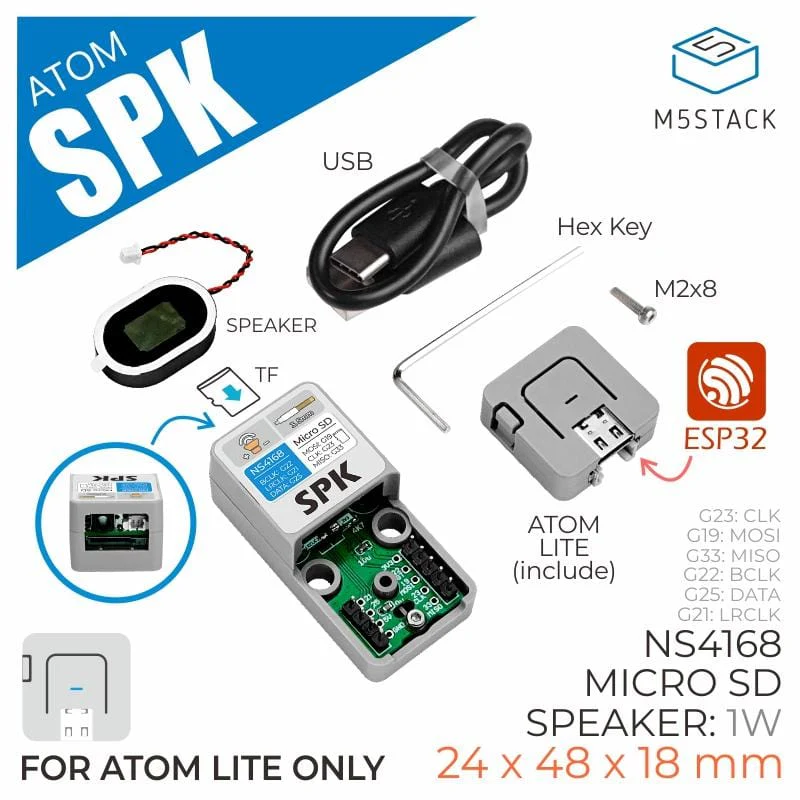

Package Contents
- 1x ATOM Lite
- 1x ATOM SPK
- 1x 1W Speaker
- 1x M2 HEX KEY
- 1x M2*8 cup head machine screw
- 1x TYPE-C USB Cable (20cm)
Specifications
| Specifications | Parameters |
|---|---|
| Power amplifier chip | NS4168 |
| Amplifier output power | 1W(VDD=3.3V) |
| Headphone jack | 3.5mm |
| Speaker interface | 1.25mm-2P |
| Speaker power | 1W |
| Net weight | 18.6g |
| Gross weight | 37g |
| Product size | 24*48*18mm |
| Package size | 54*54*20mm |
