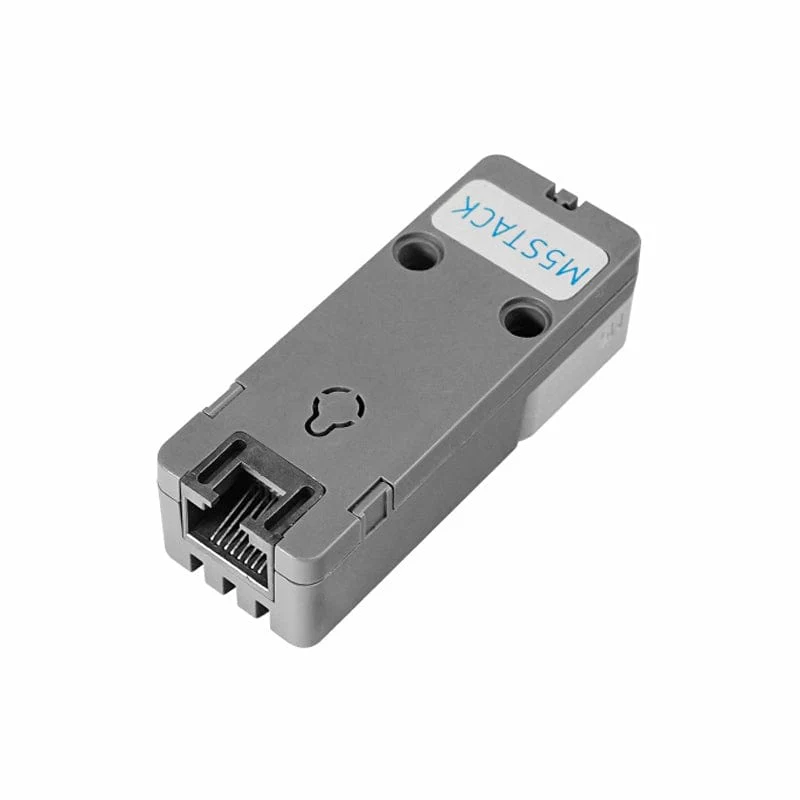

ATOM PoE Kit with W5500 (HY601742E) [Discontinued]

The ATOM PoE is an Ethernet accessory for the M5 Atom series, which supports PoE (Active Ethernet) technology. The built-in PoE module can directly supply power to the device through a PoE hub/switch without a separate power supply, effectively reducing the cost of your setup. It has a built-in W5500 Ethernet controller, integrated TCP/IP protocol stack, with 8 independent hardware sockets, 10/100M ethernet data link layer (MAC) and physical layer (PHY) to provide a more convenient internet connection solution for your embedded systems.

Features

• Supports PoE IEEE802.3 AF
• Wired Ethernet Access
• 8 independent hardware sockets
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
• Integrated 10BaseT / 100Base-T Ethernet PHY

Specifications

Resources	Parameter
Ethernet Chip	W5500
Supported Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
PoE Power Supply	Idle pin power supply (10M/100M Ethernet), J4&J5 (VC-), J7&J8 (VC+)
PoE Spec	IEEE802.3 AF
Net Weight	22g
Gross Weight	44g
Product Dimension	24 x 48 x 18mm
Packaging Dimension	54 x 54 x 20mm

Resources

• Product Wiki
• Datasheet

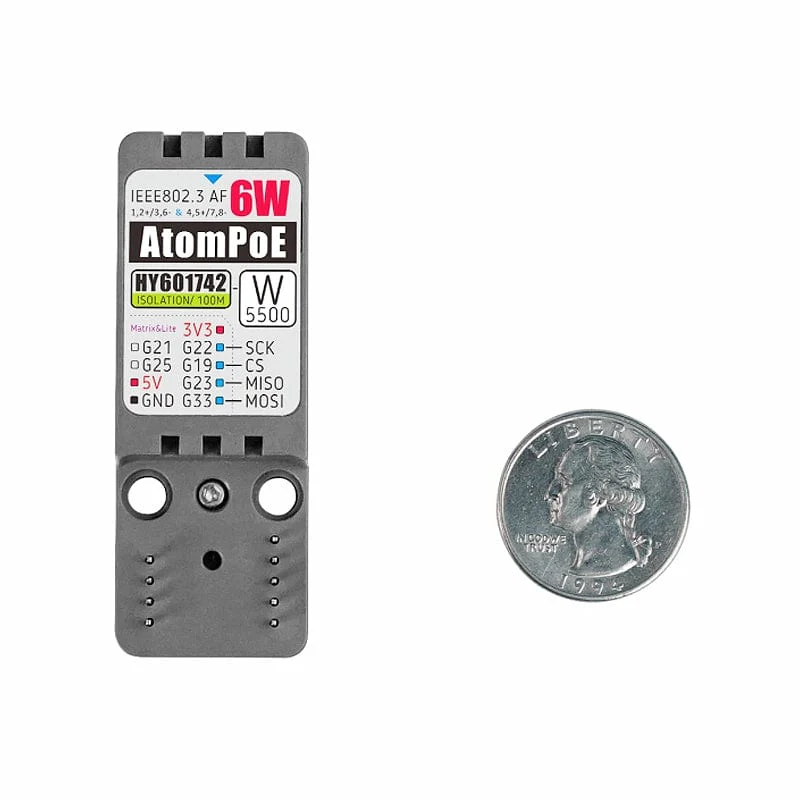

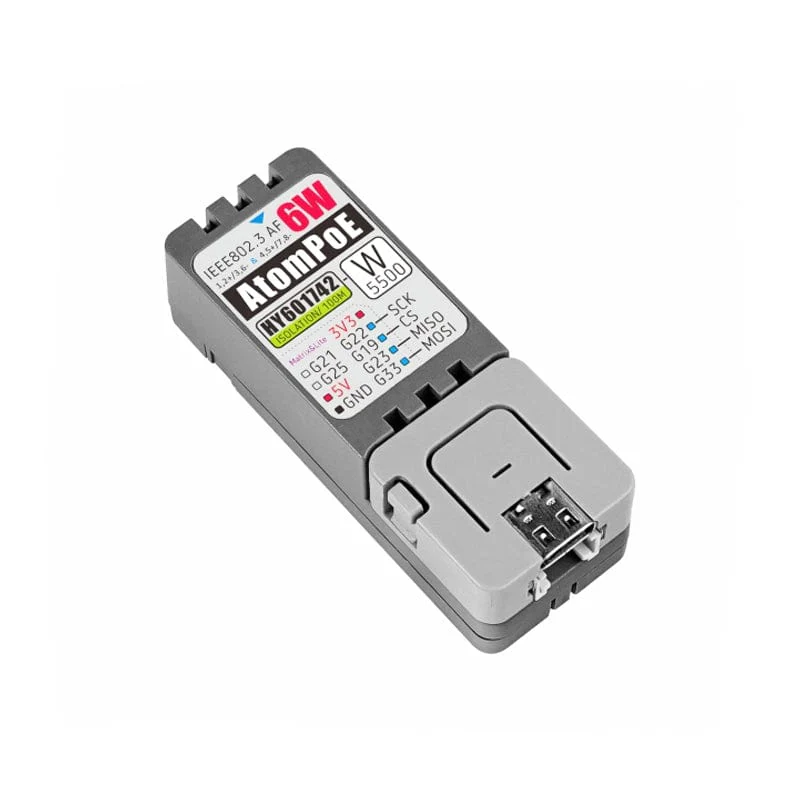

Pinout

ATOM	GPIO22	GPIO19	GPIO23	GPIO33
ATOM PoE	CLK	CS	MISO	MOSI

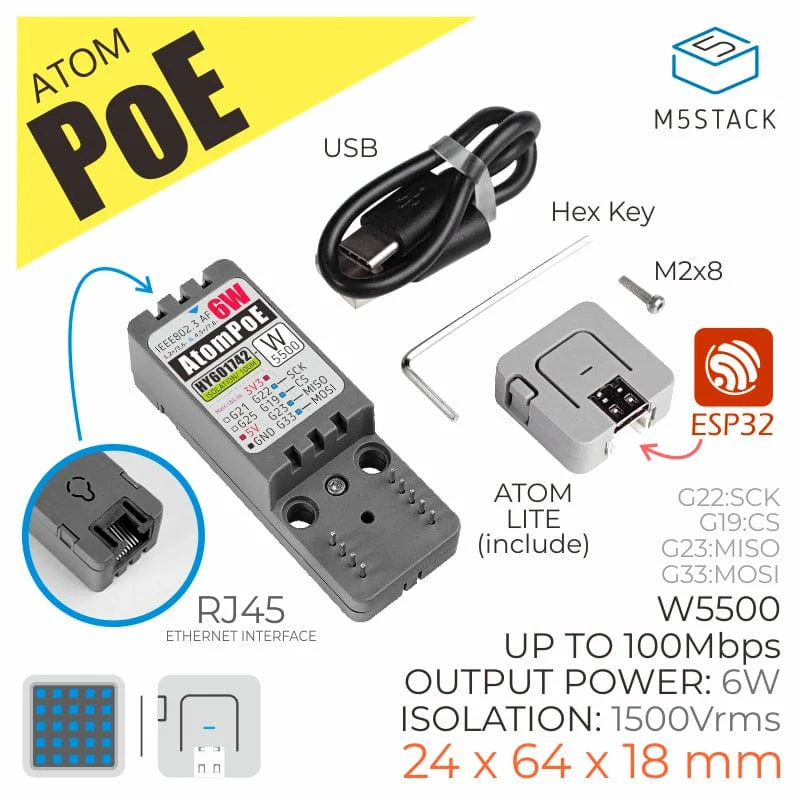

Package Contents

• 1x ATOM PoE
• 1x ATOM LITE
• 1x TYPE-C USB Cable (20cm)
