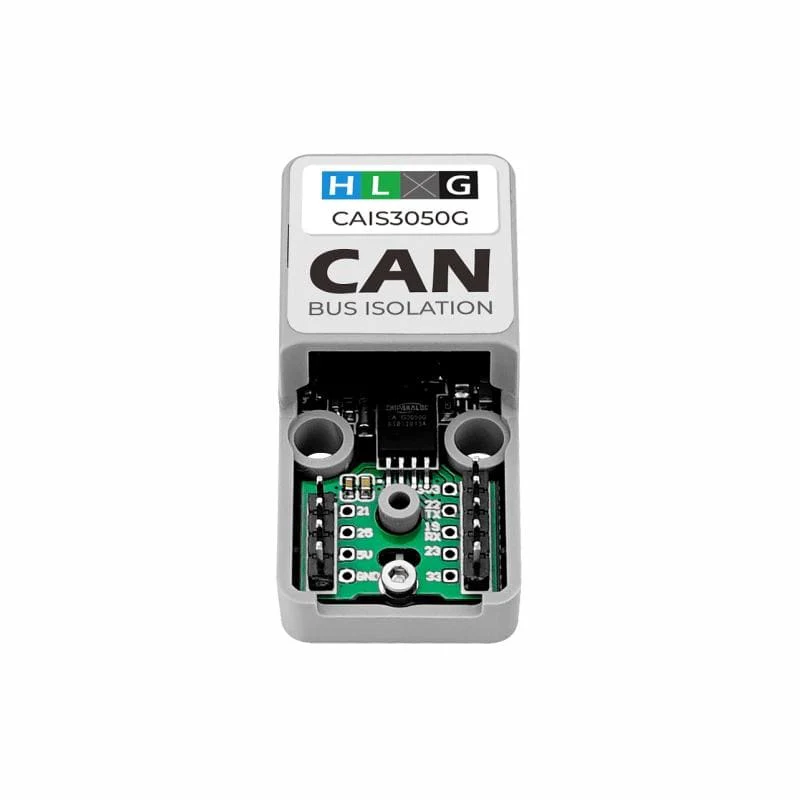

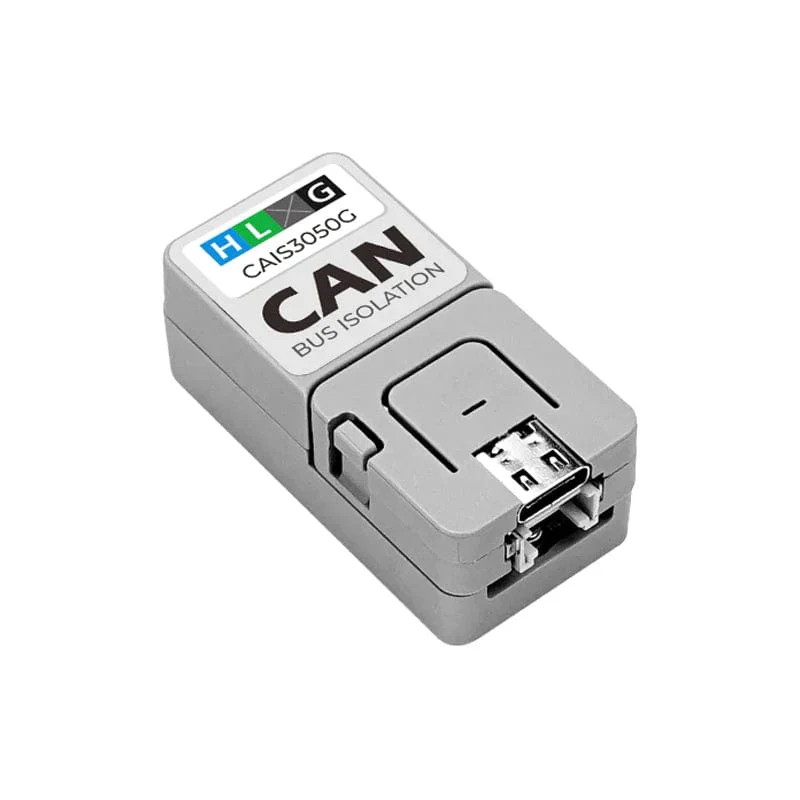

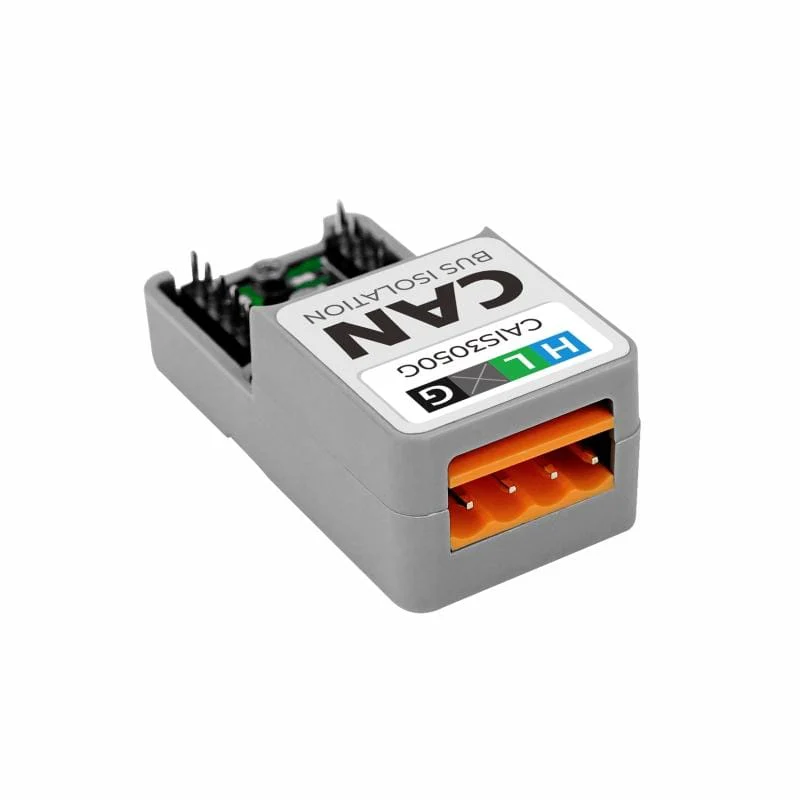

M5Stack ATOM CANBus Kit (CA-IS3050G) [Discontinued]

The ATOM CAN is a CAN bus communication unit that uses the CA-IS3050G transceiver solution (the built-in DC-DC isolation power chip can effectively isolate interference and prevent damage to sensitive circuits). The communication bus can support up to 110 nodes, the signal transmission rate can reach 1Mbps, and it has a variety of electrical line protection functions.

Features

• Adapt to ATOM Matrix/ATOM Lite
• CAN bus multi-point communication
• Built-in isolated DC-DC
• Signal rate up to 1Mbps
• The common mode voltage range is –12V to 12V
• Protective function:
  • Signal isolation
  • Limiting
  • Overvoltage protection
  • Thermal shutdown
  • Ground loss protection (-40V～40V)

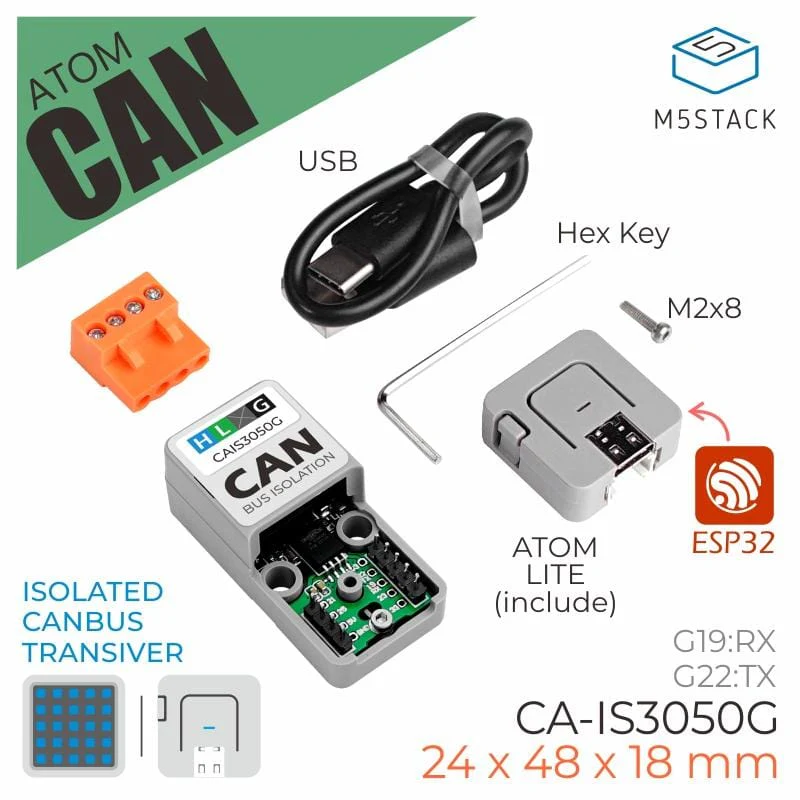

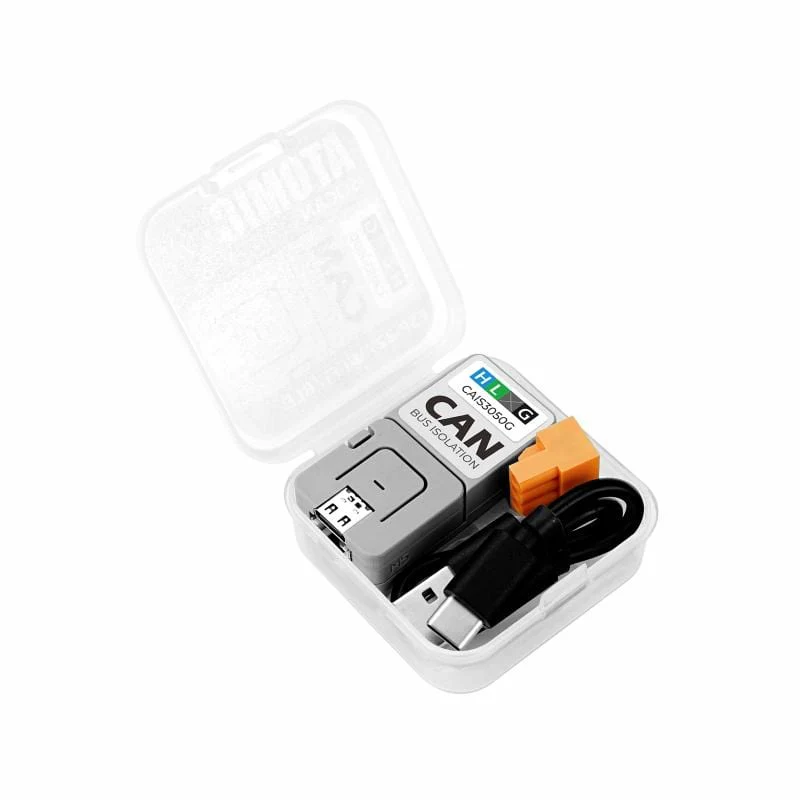

Package Contents

• 1x ATOMIC CAN
• 1x 3.96-4P terminal
• 1x 120Ω terminal resistor

Specifications

Resources	Parameter
External port	VH-3.96-4P
CAN transceiver model	CA-IS3050G
Maximum rate	1Mbps
Number of supported nodes	110
Low loop delay	-150ns
Common mode voltage	-12V ~ 12V
Protection function	Current limit, overvoltage, main dynamic timeout, thermal shutdown
Working temperature	–55°C-125°C
Net weight	14g
Gross weight	33g

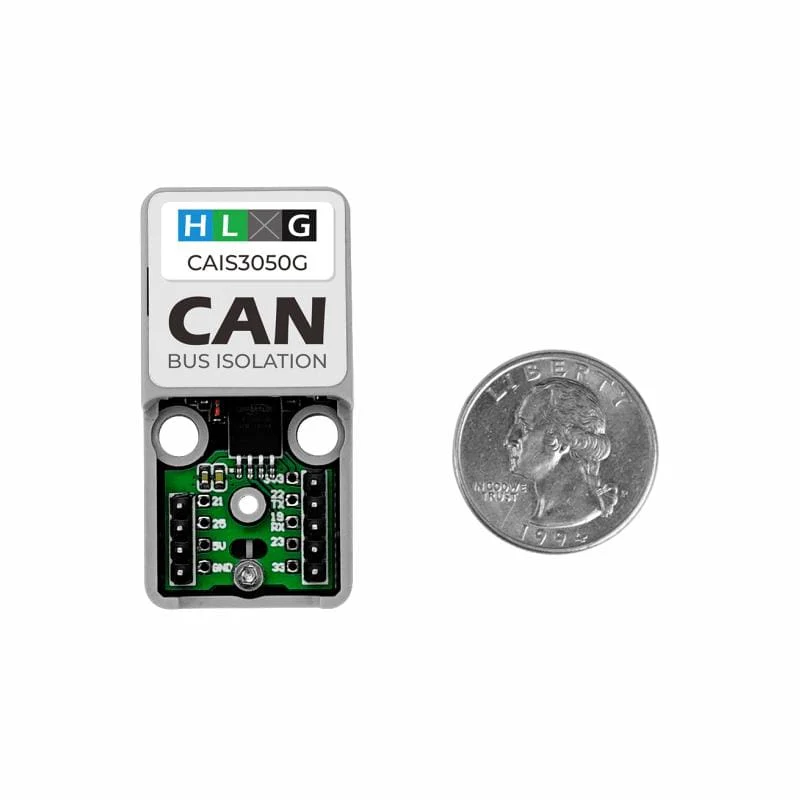

Product size	24 x 48 x 18mm
Package size	54 x 54 x 20mm
Shell material	Plastic (PC )
