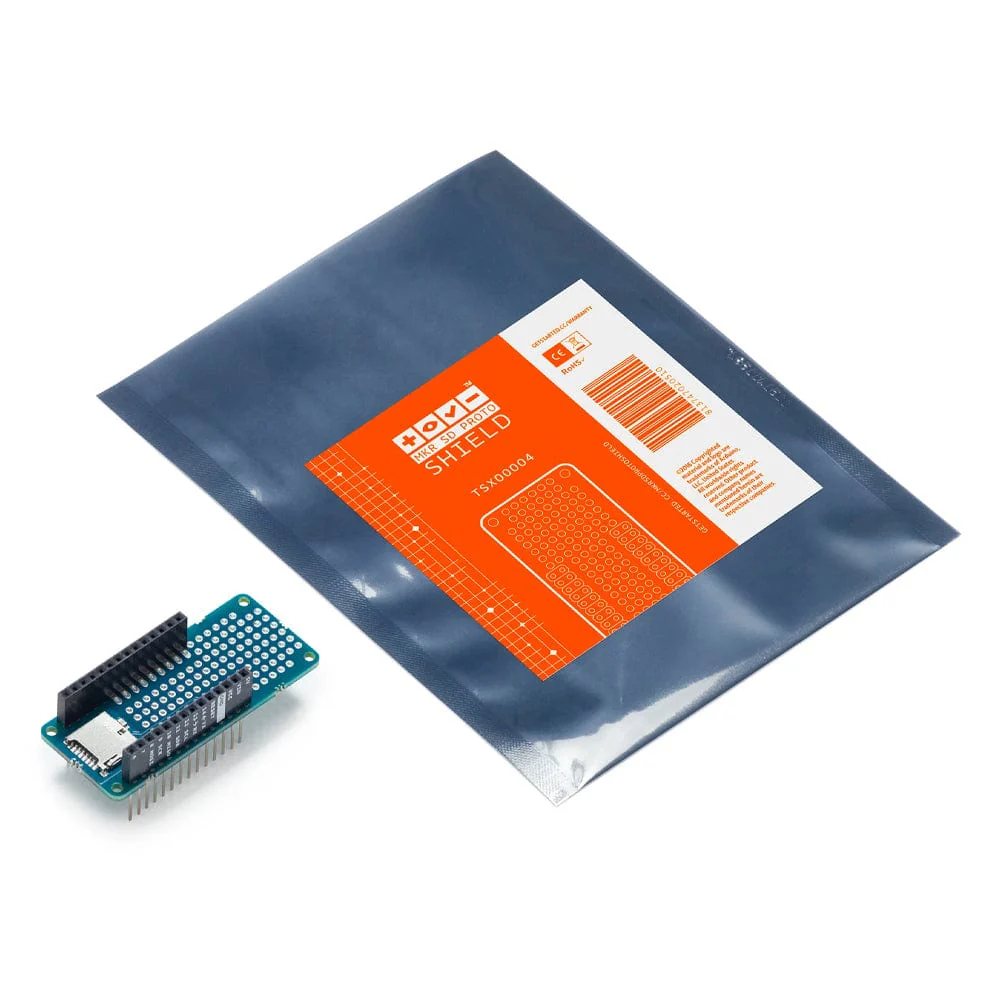

Arduino MKR SD Proto Shield

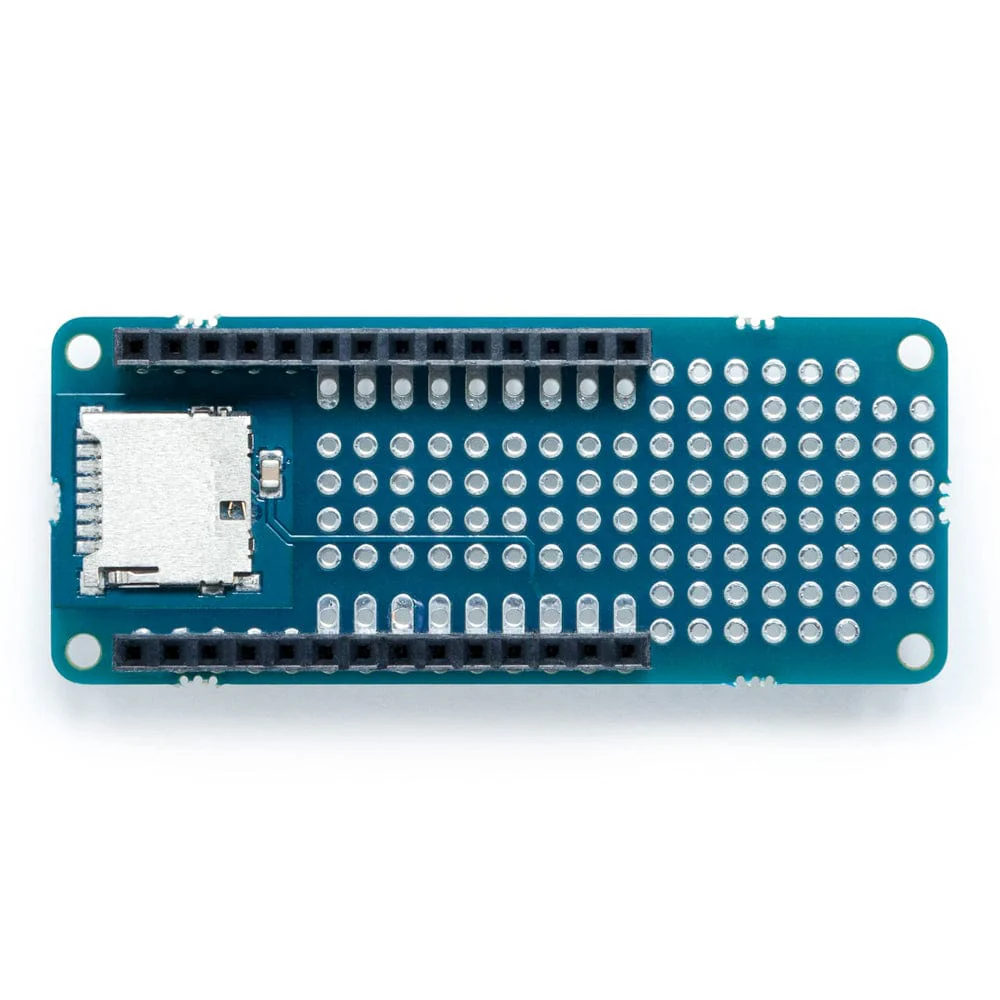

Add an SD slot and prototyping area in a single shield. The Arduino MKR SD Proto Shield allows you to easily connect a MicroSD card to your MKR form factor board.

Use it to enhance the IoT features of your MKR1000, as well as store data coming from the web or sensors read by your board! There's also a small prototyping area for soldering components.

Specifications

Digital I/O Pins	21
PWM Digital I/O Pins	Depending on the board
Analog Input Pins	7
Analog Output Pins	Depending on the board
DC Current per I/O Pin	Depending on the board
DC Current for 3.3V Pin	Depending on the board
DC Current for 5V Pin	Depending on the board
Lenght	61.5 mm
Width	25 mm
Weight	13 gr.

Resources

• Getting Started
• Documents
• Schematics
• Eagle Files
