Arducam Pivariety 21MP IMX230 Colour Camera Module for Raspberry Pi [Discontinued]
Arducam Pivariety is a camera solution for the Raspberry Pi which takes advantage of the Raspberry Pi hardware Image Signal Processor (ISP) functions. Using Arducam Pivariety camera modules, users can experience better performance and a wider variety of camera and lens options.
For a long time, Raspberry Pi users have been limited to closed-source officially supported camera drivers. Now Arducam has made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction and more!

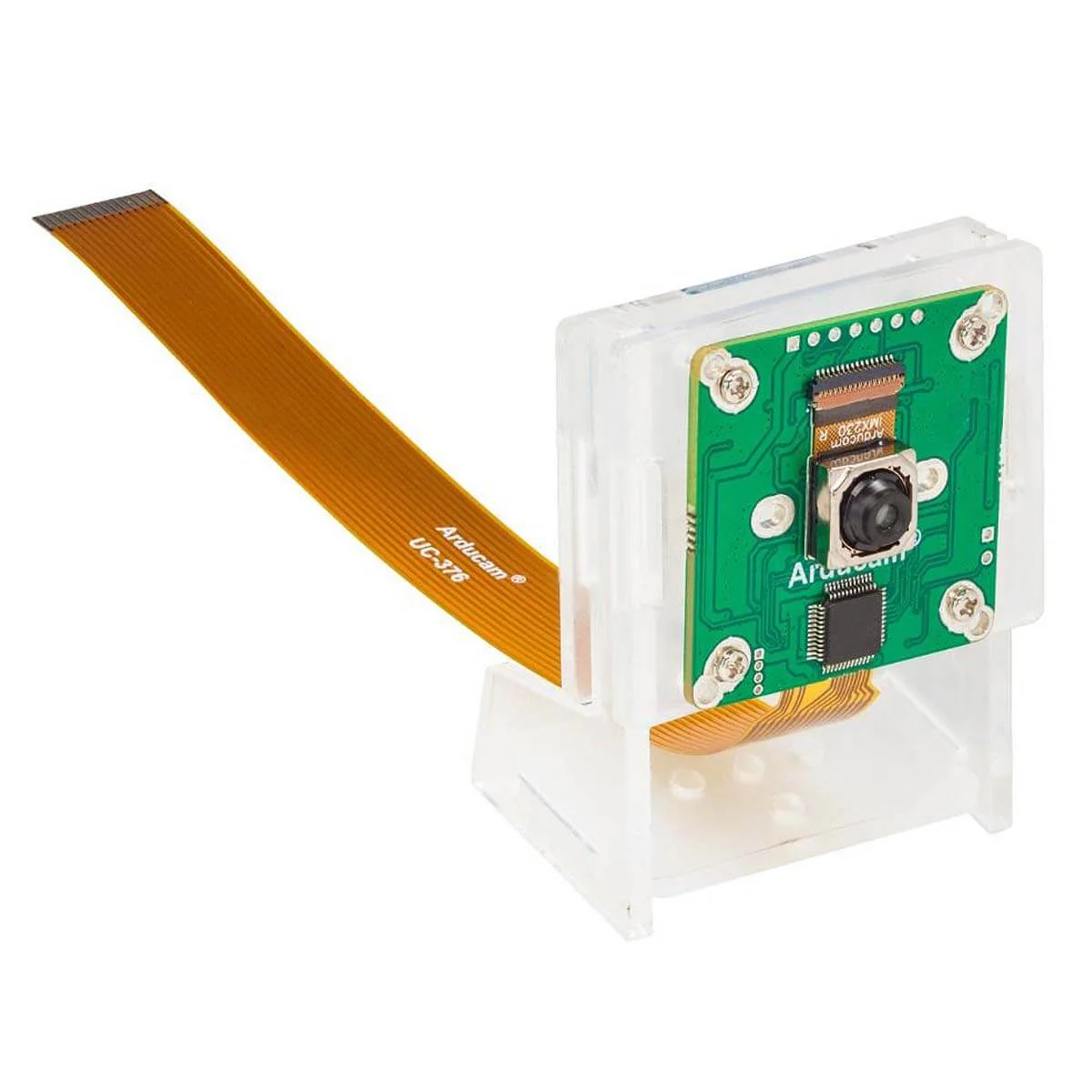

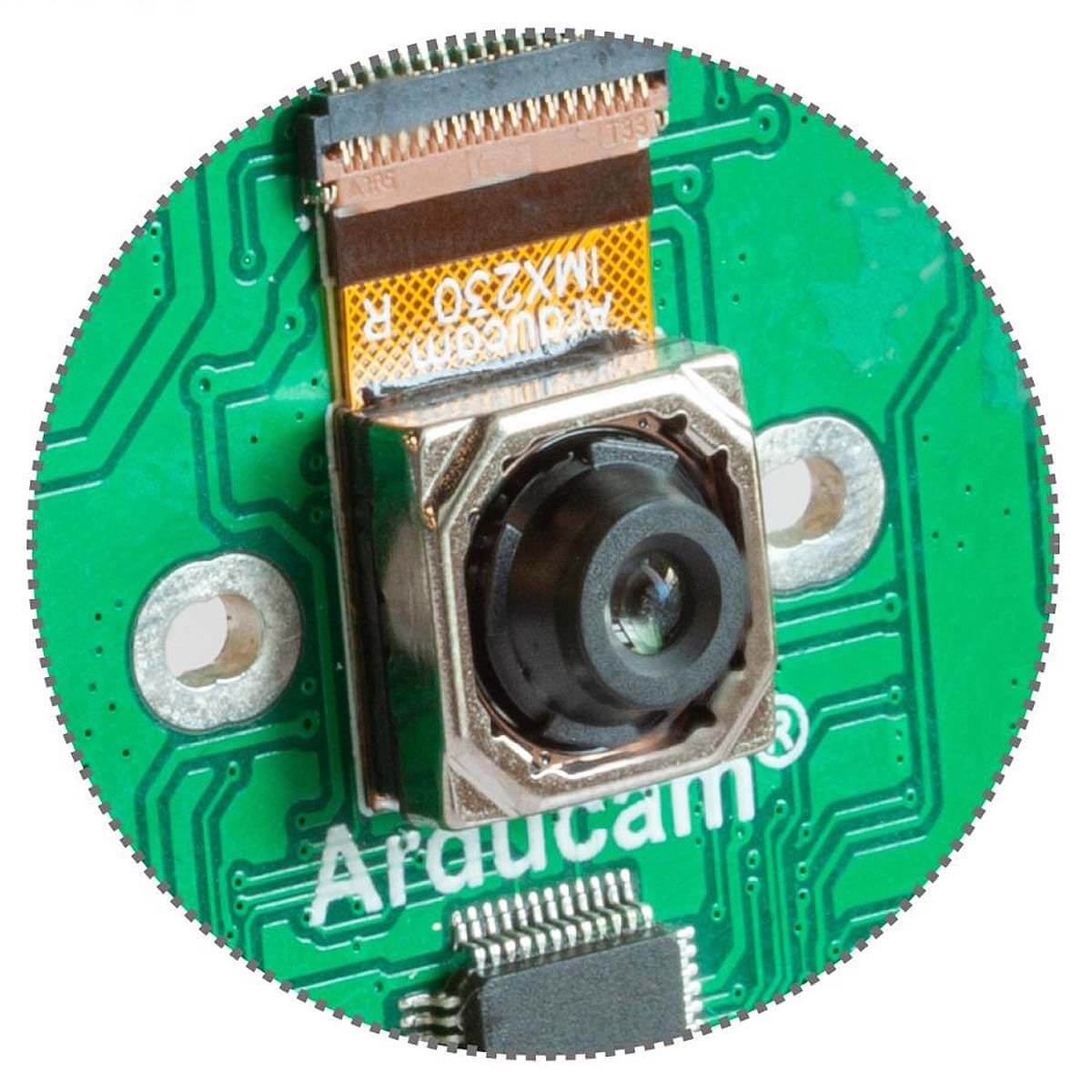

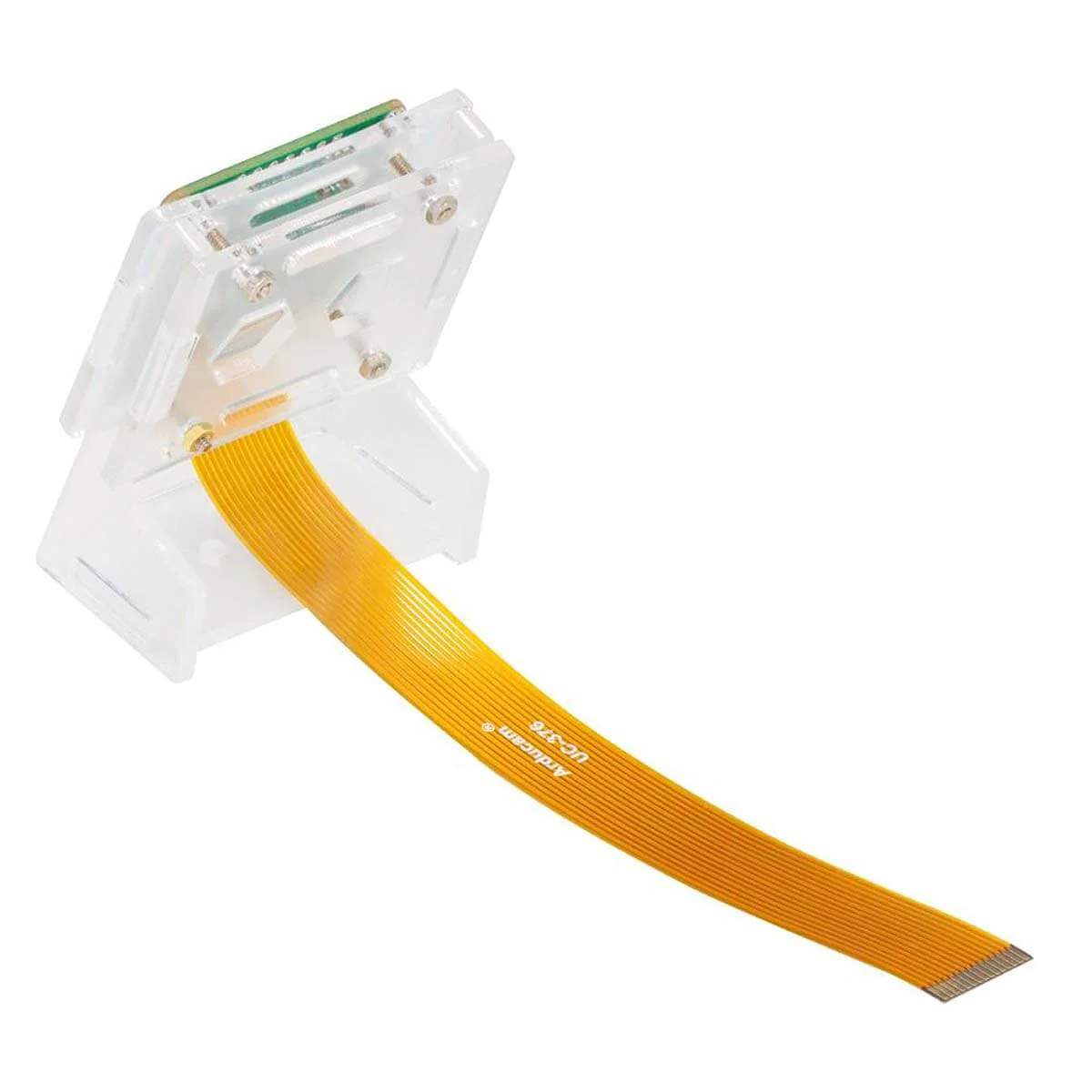

This Pivariety module uses a 21MP IMX230 Exmor RS™ colour sensor, offering up to 5344×4012@9 FPS. The module comes with a 150mm 15-pin FPC cable (1mm pitch), 150mm 15-pin to 22-pin FPC cable (0.5mm pitch) and an acrylic case with fixings.

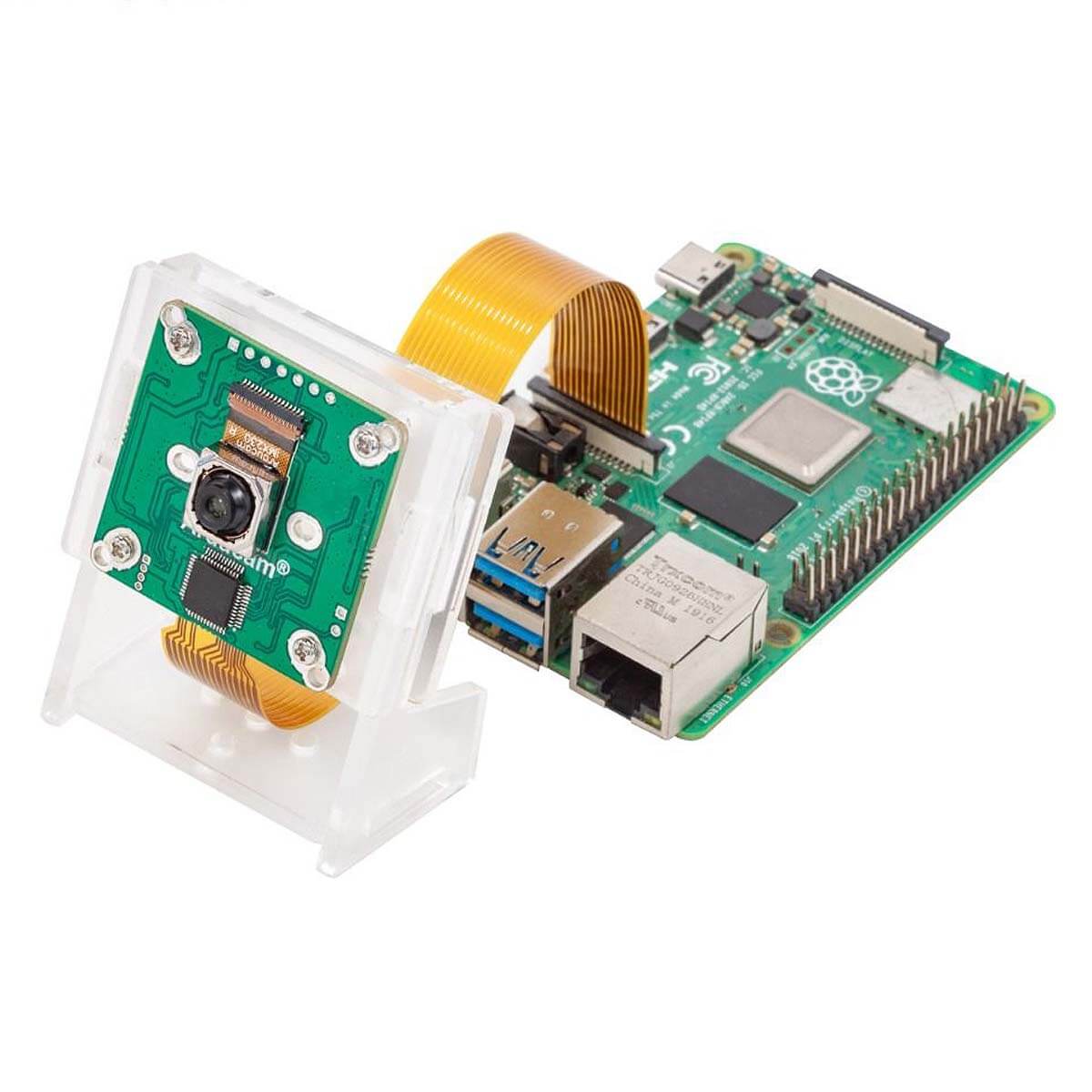

The module comes with two FPC cables, one for your Pi 4/3/2 and another for your Pi Zero.
The package now includes two different FPC cables for use with different boards, including Pi 5 and Zero!
Features
- 21MP Sony IMX230 Exmor RS™ colour sensor, up to 5344×4012@9 fps
- Auto Exposure Control
- Auto White Balance
- Programmable focus control
- Gstreamer support
- Upcoming V4L2 support
- Compatible with all libcamera-based apps maintained by the RPi foundation
Specifications
- Pixel Size: 1.12um x 1.12um
- Optical Size: 1/2.4”
- Active Pixels: 5344H Ă— 4016V
- Lens Spec: Focal length: 4.77mm, F.NO: 1.75±5%, FOV: horizontal 64deg
- IR Sensitivity: Integral IR filter, visible light only
- Focus Type: Motorized focus, programmable focus control
- Frame Rate: 5344Ă—4012@9 fps, 3840Ă—2160@10 fps, 2592Ă—1944@15 fps, 2656Ă—2004@30 fps, 1920Ă—1080@30 fps, 1280Ă—960@120 fps, 1280Ă—720@120 fps, 640Ă—480@120 fps
- Output Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
- Sensor Output Format: RAW10
- ISP Output Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
- Interface Type: 2-Lane MIPI
- Board Size: 38x38mm
Resources
- Quick Start
- Getting started with Arducam IMX230 camera
- How to build the Raspberry Pi Kernel Driver
- 3D drawing
- User Guide
- Acrylic Bracket Assembly Guide
Package Contents
- 1 x Arducam 21MP IMX230 ISP Camera Module
- 1 x 150mm 15pin 1.0mm FPC cable (for Pi 4/3/2)
- 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable (for Pi 5 and Zero)

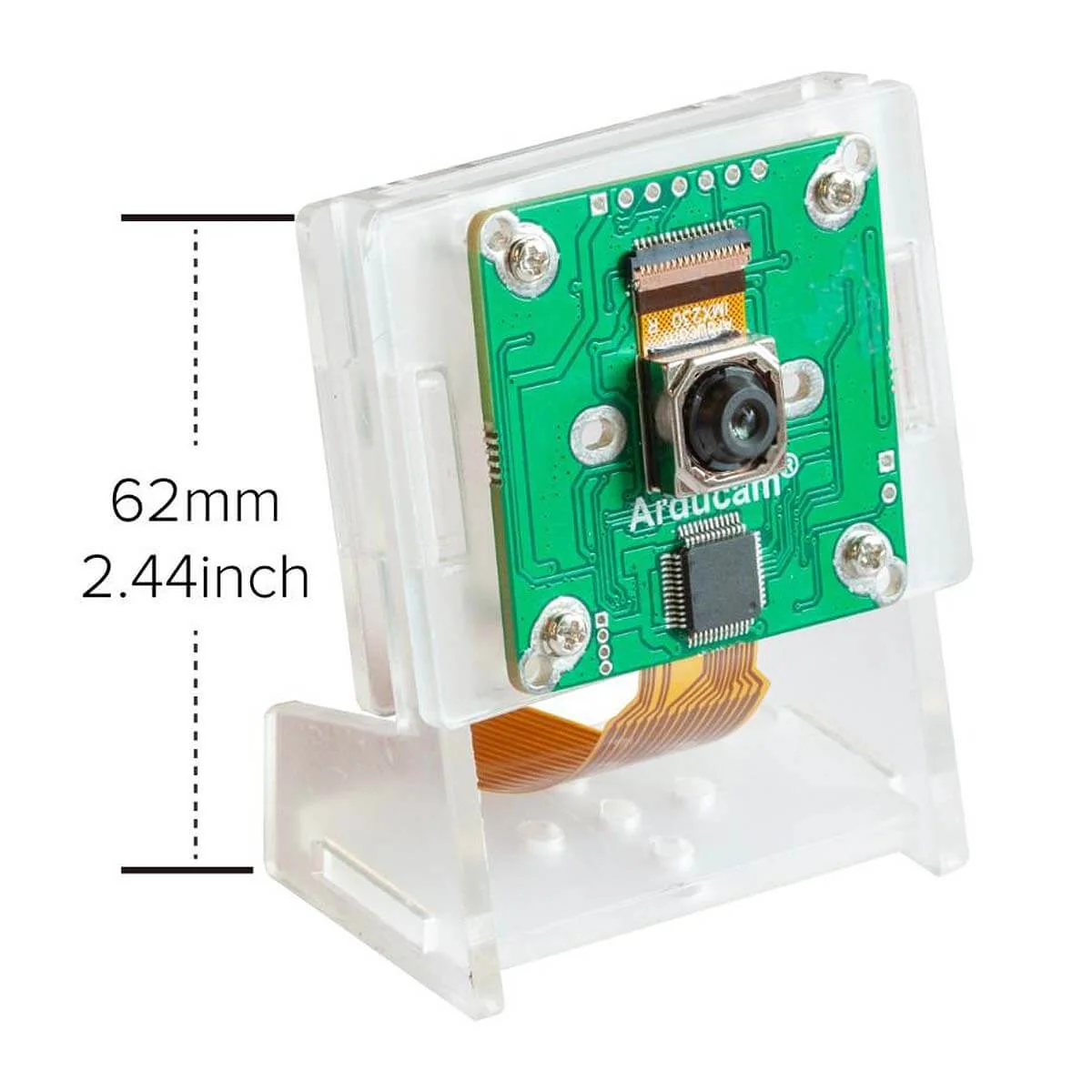

- 1 x Acrylic case kit with assembly accessories
Raspberry Pi not included
