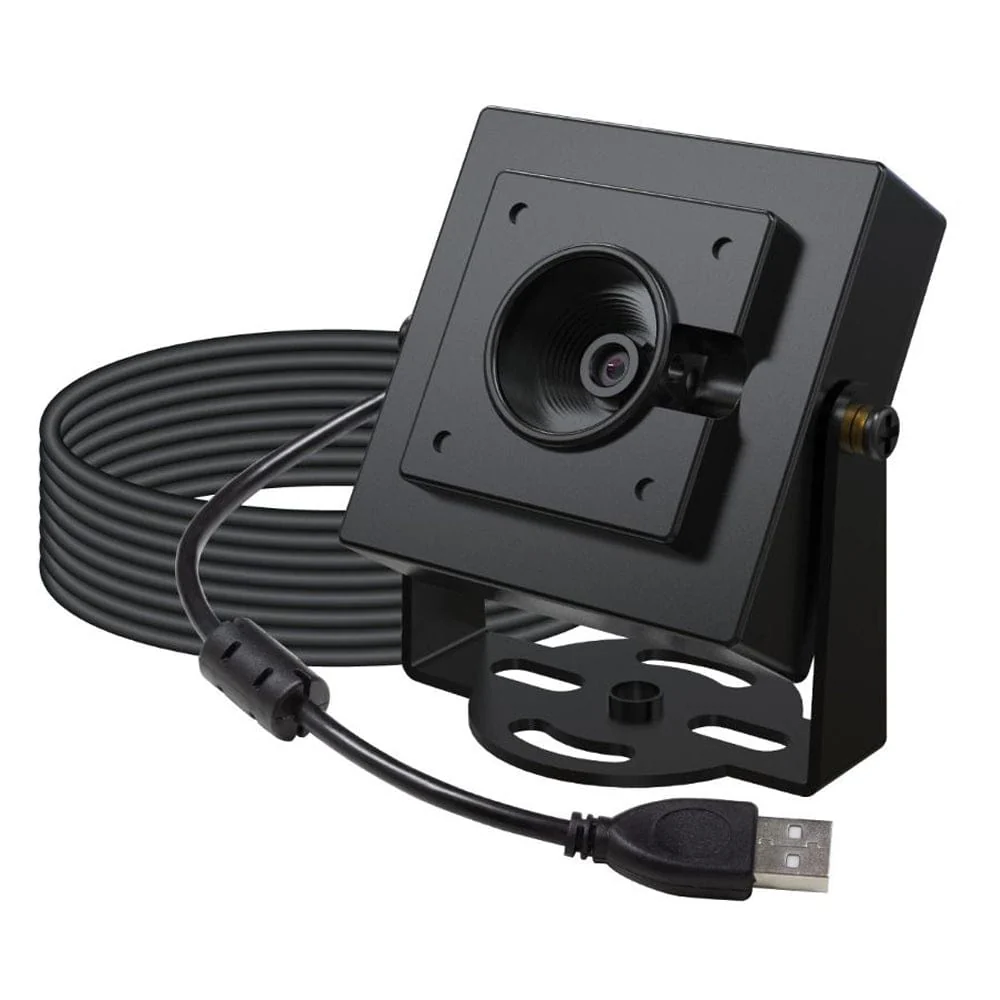

Arducam ezBOX HDR - 4K HDR AutoFocus USB 2.0 UVC Camera
The Arducam ezBOX HDR is an autofocus USB 2.0 UVC camera that excels in delivering exceptional dynamic range with its SONY 4K HDR sensor, featuring 8.3MP resolution. It maximises the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality, and its ability to capture details in both bright and dark areas makes it perfect for industrial imaging, surveillance, and applications requiring high contrast.

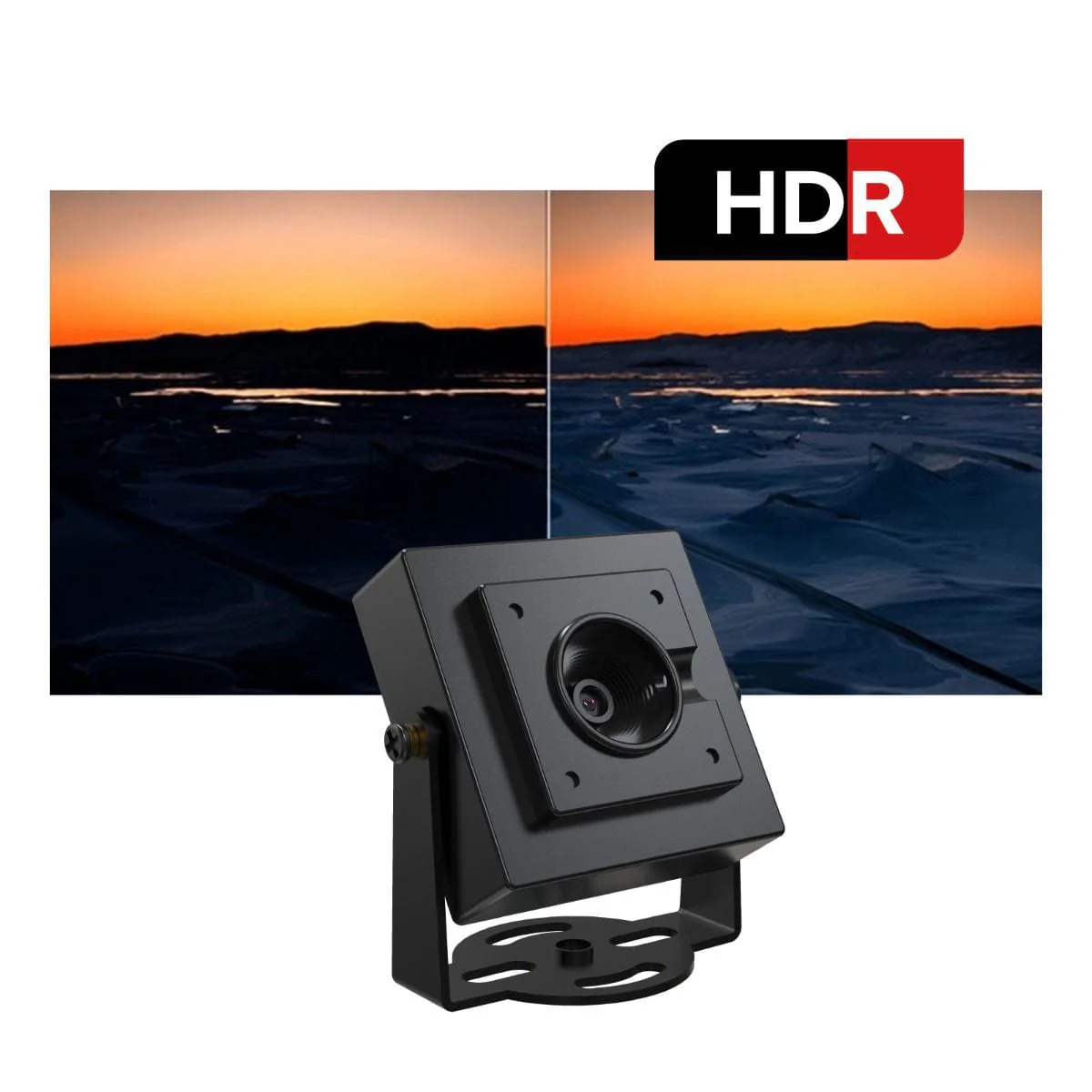

The HDR functionality is supported across all resolution and frame rate combinations, providing consistent performance in diverse imaging scenarios. It offers sharper, more detailed images, making it a reliable choice for applications where precision and clarity are paramount.
As it's a UVC (USB Video Class) camera, it can work on a range of operating systems and hardware driver-free, such as Windows and Linux (including the Raspberry Pi). Comes with a USB JST cable.
Note: HDR note: HDR is disabled by default and requires the Low-light Compensation option to be enabled in the parameters GUI.
Features

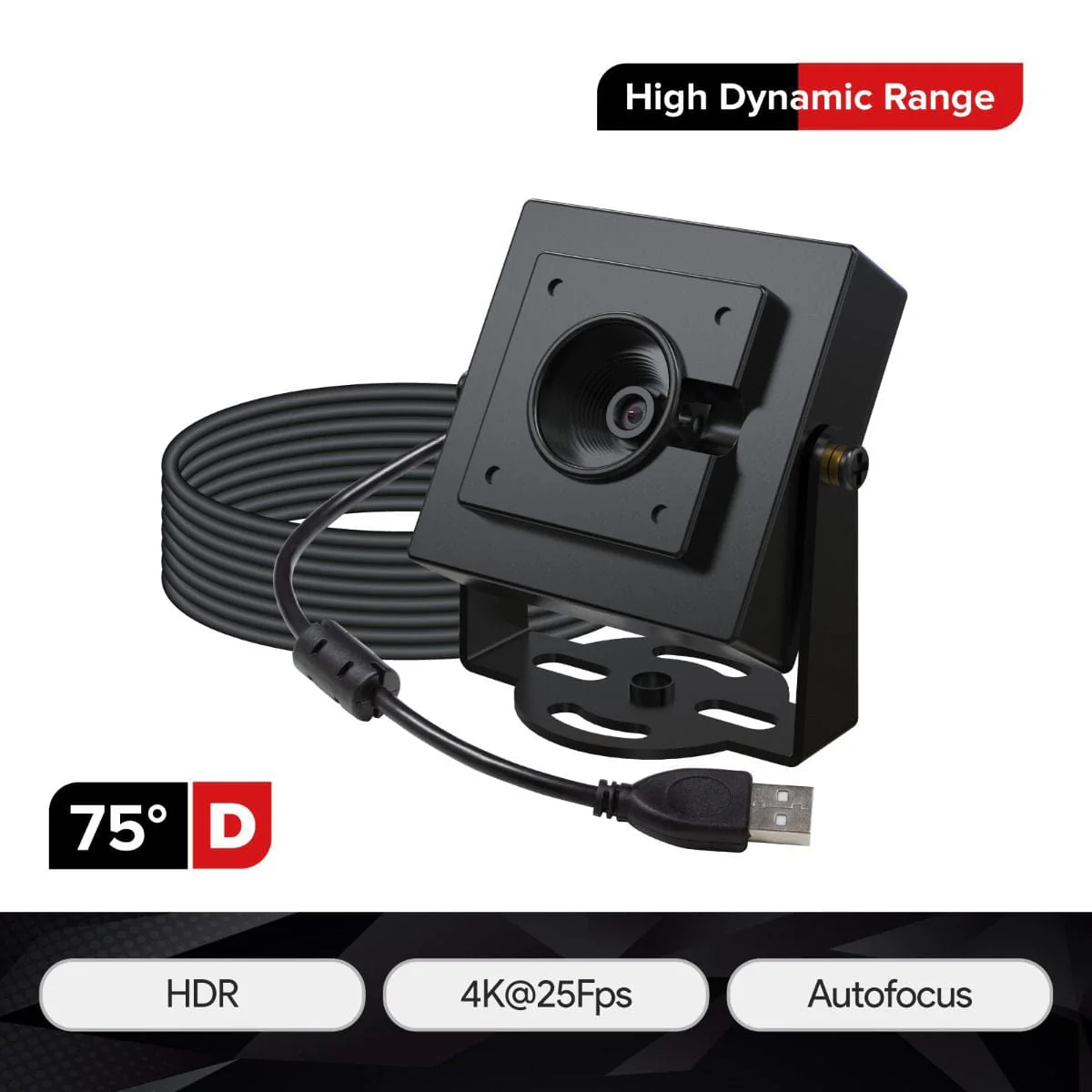

- 4K HDR imaging: Captures high-resolution video with HDR support for improved detail across the image
- Autofocus performance: Automatically adjusts focus to keep subjects sharp with minimal setup
- Full sensor coverage: Uses the full active sensor area to maximise image detail with no pixel wasted
- Ready to use: UVC design with no additional drivers required for straightforward setup
- USB 2.0 connectivity: Connects easily as a USB 2.0 device for simple integration

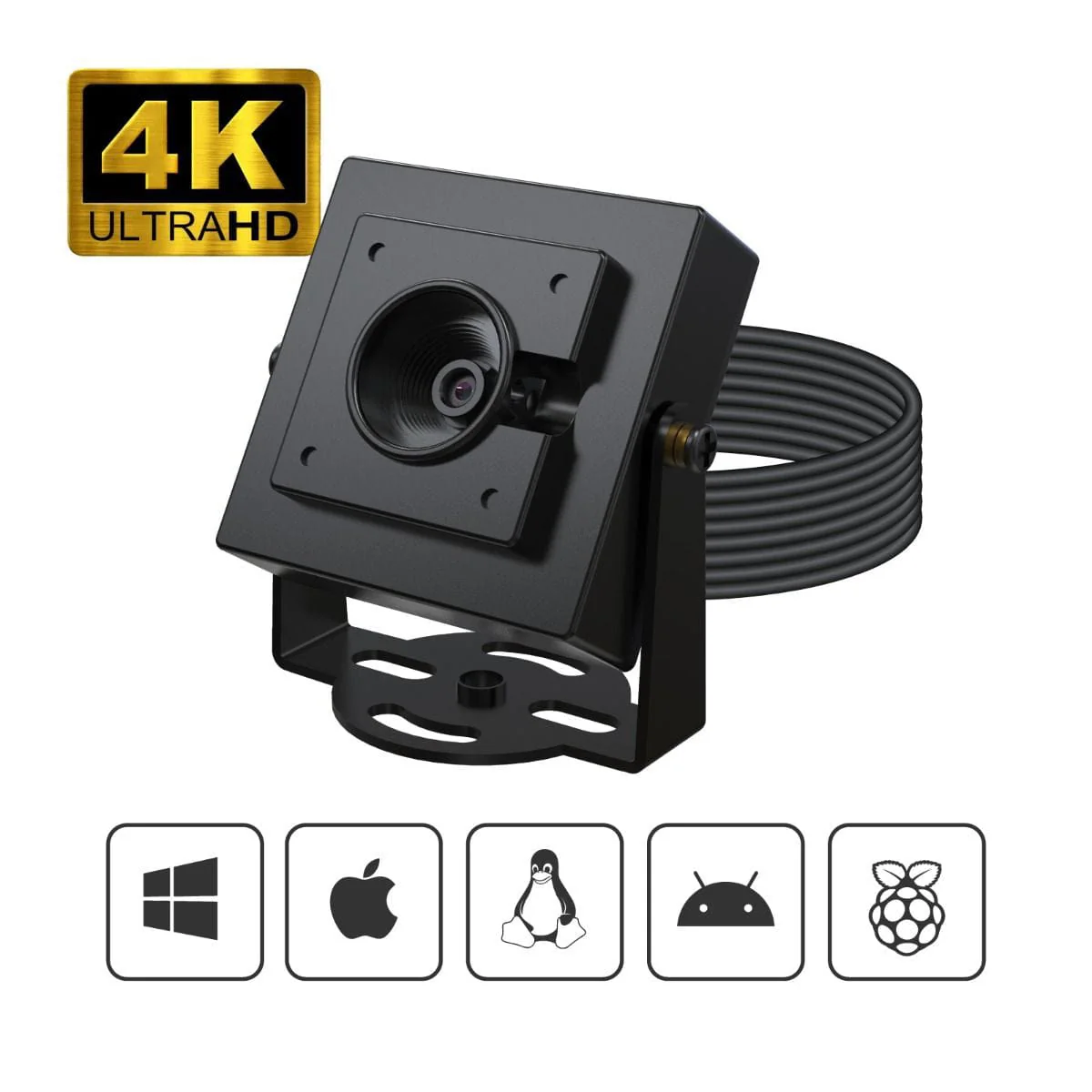

- Wide compatibility: Supports both Windows and Linux systems
- Compact design: Small board format makes it easier to integrate into space-conscious builds
- Visible light filtering: Integral 650nm IR filter for visible light only
- Flexible image control: Supports adjustment of HDR, brightness, contrast, saturation, white balance, gain, focus and exposure
- Bright lens design: F1.8 lens helps support image capture in a range of lighting conditions
Specifications
| Sensor | SONY 4K HDR colour sensor |
| Maximum resolution | 8.3 MP |
| Colour filter type | Colour |
| Shutter type | Rolling shutter |
| Optical size | 1/2.8″ |
| Output format | MJPG |
| Pixel size | 1.68 µm × 1.68 µm |
| Sensor active area | 3840 (H) × 2160 (V) |
| IR sensitivity | Integral 650 nm IR filter, visible light only |
| Frame rates | 3840 × 2160 @ 25 fps, 3264 × 2448 @ 25 fps, 2592 × 1944 @ 30 fps, 1920 × 1080 @ 30 fps, 1280 × 720 @ 30 fps, 640 × 480 @ 30 fps |
| Focus type | Autofocus |

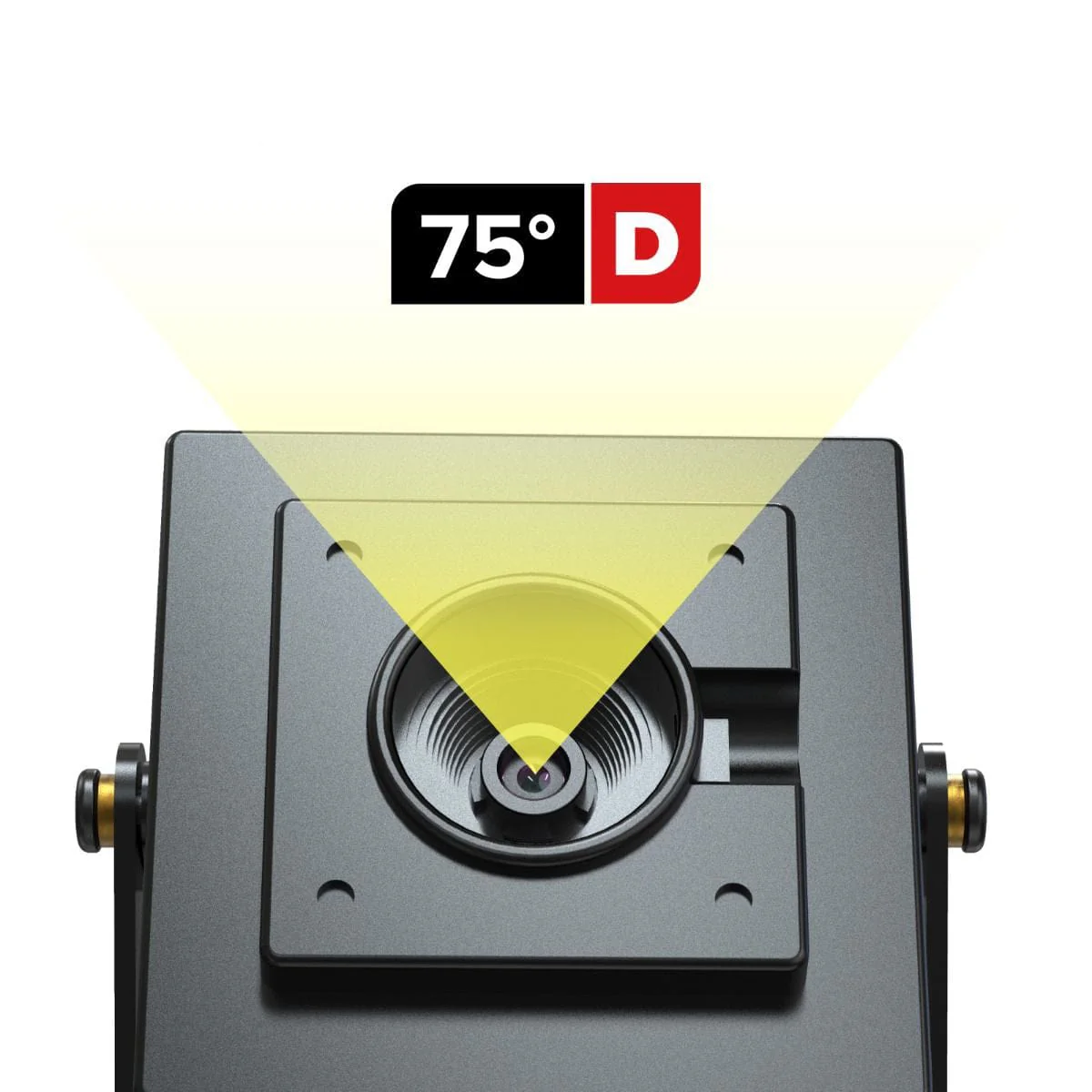

| Field of view | 75° (D) × 61° (H) × 50° (V) |
| Lens mount | Stock lens |
| F-number | F1.8 |
| Effective focal length | 3.95 mm |
| Programmable focus range | 10 cm to ∞ |
| Interface | USB 2.0 device |

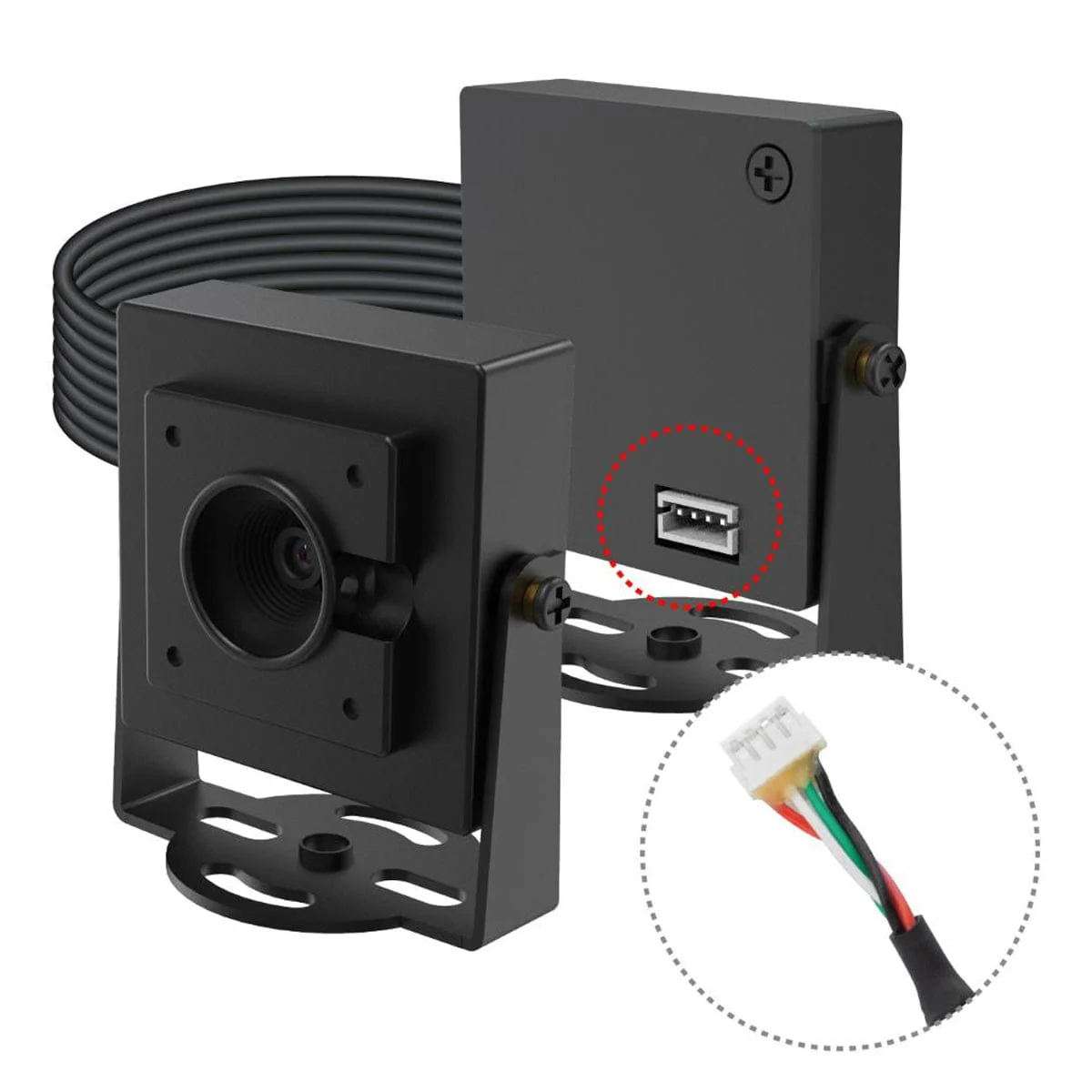

| Connector | B4B-ZR JST |
| UVC compliance | No additional drivers required |
| Operating voltage | 5 V |
| Operating temperature | 0°C to 70°C |
| Power consumption | 1.75 W |

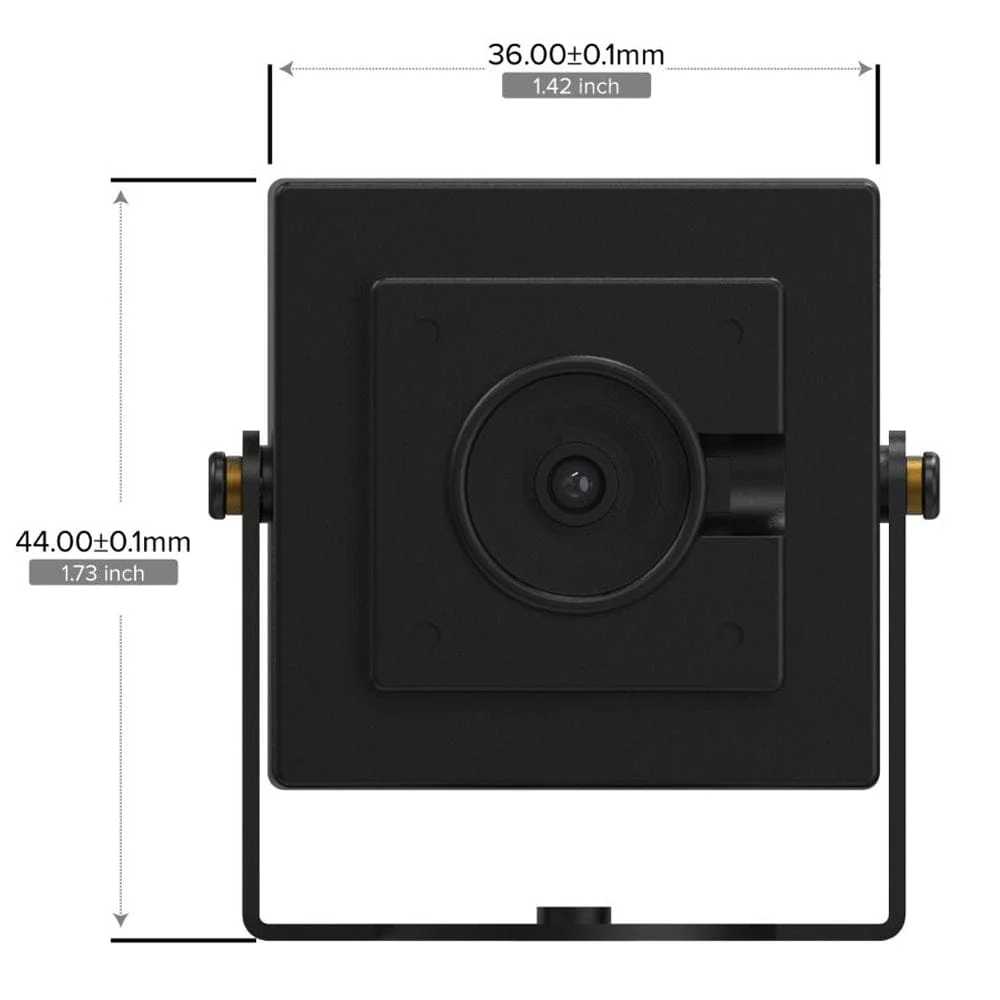

| Camera board size | 32 mm × 32 mm × 1.6 mm |
| Supported operating systems | Windows, Linux |
| Recommended sample application | Amcap for Windows, qv4l2 for Linux |
| UVC controls | HDR, brightness, contrast, saturation, white balance (auto/manual), gain, focus (auto/manual), exposure (manual/auto) |
Resources
- Quick Start Guide
- Datasheet
- 3D Drawing

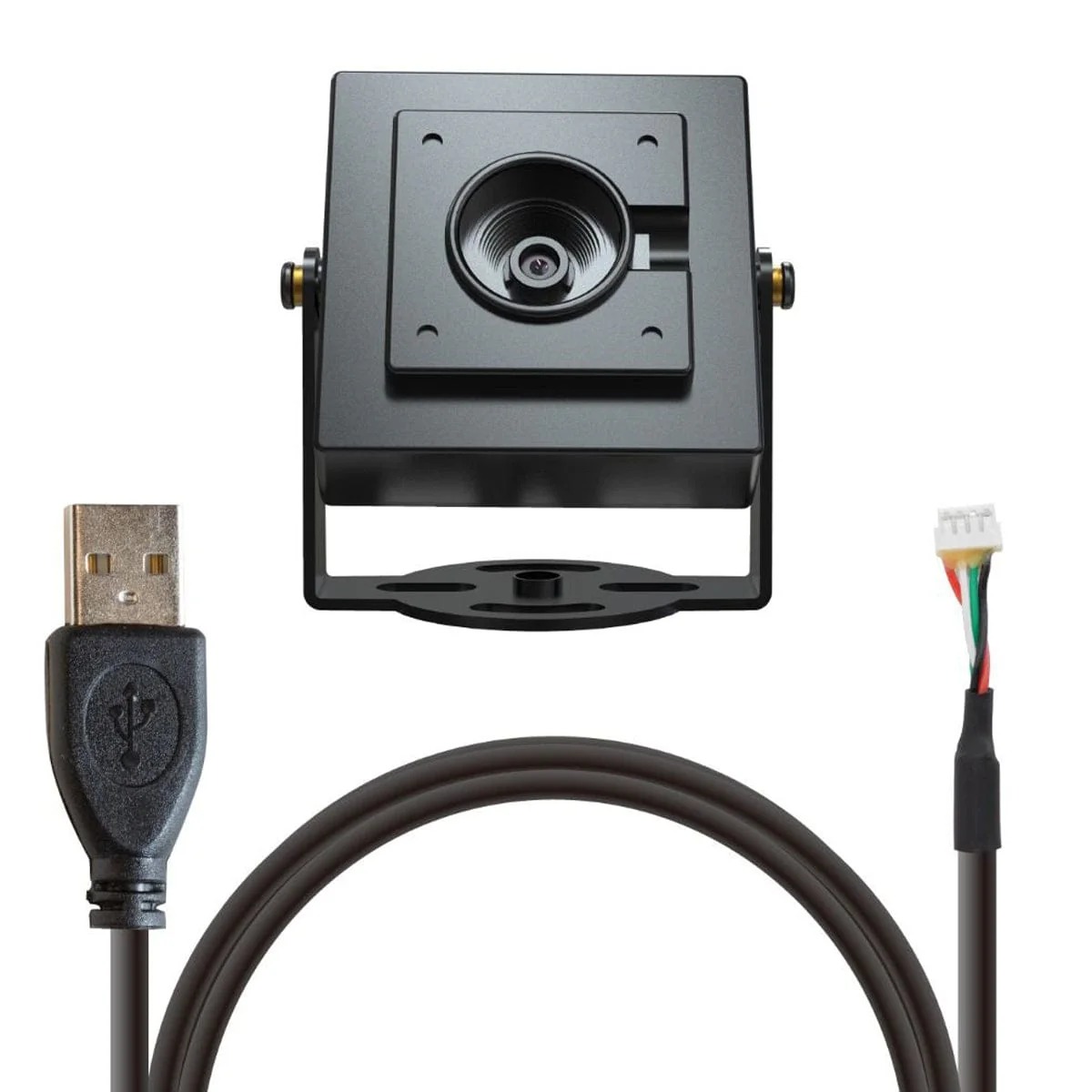

Package Contents
- 1x Arducam ezBOX HDR - 4K HDR USB 2.0 UVC Camera
- 1x 1m USB to B4B-ZR JST Cable
