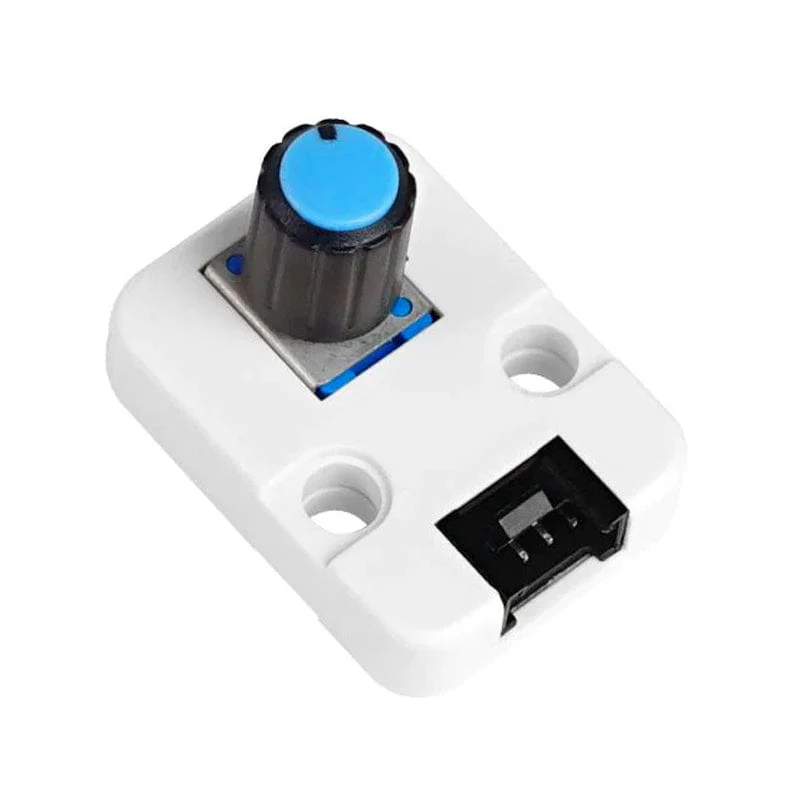

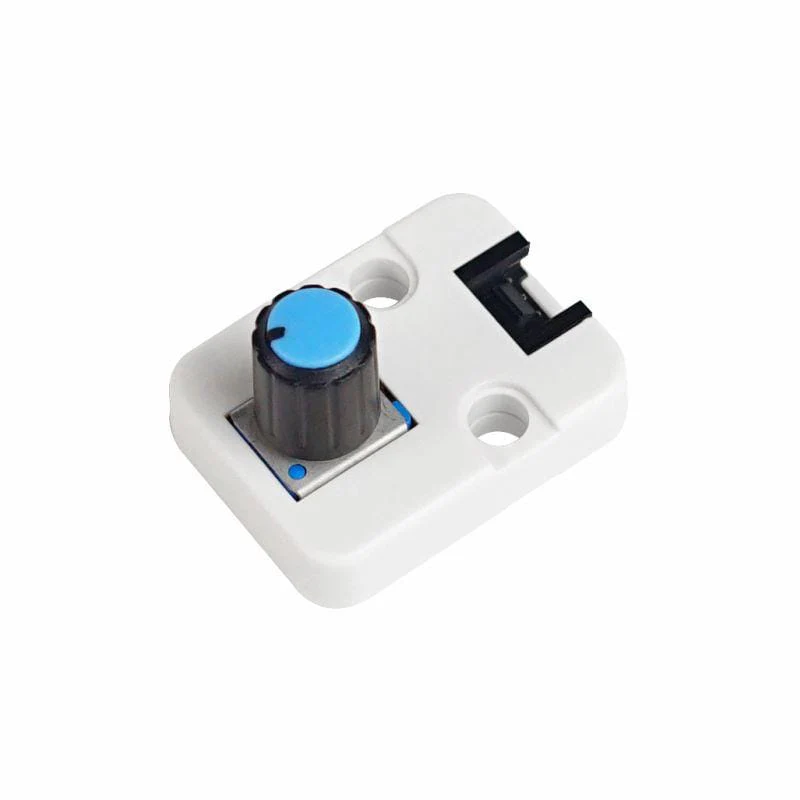

M5Stack Mini Angle Unit Rotary Switch with Potentiometer

The Angle is a rotary switch unit which includes a 10K Ohm potentiometer inside. This unit can be used for continuous signal rotatory control for applications such as volume, brightness, or motor speed.

A potentiometer is a manually adjustable variable resistor with three terminals. Two terminals are connected to a resistive element, and the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage.

The out voltage is captured and converted by AD on ESP32 on portB.

In the M5Stack product system, normally the Grove colour indicates the type of communications.

• Black: Single BUS (AD ,DA ,GPIO)
• Red: I2C
• Blue: Uart
• White: Others (depends)

The Unit's Grove interface is black, specify it is an analog interface that should be connected to the M5Core's GROVE B interface.

Features

• Output voltage range: 0 ~ 2500mV
• GROVE interface, support UIFlow and Arduino
• Two Lego-compatible holes

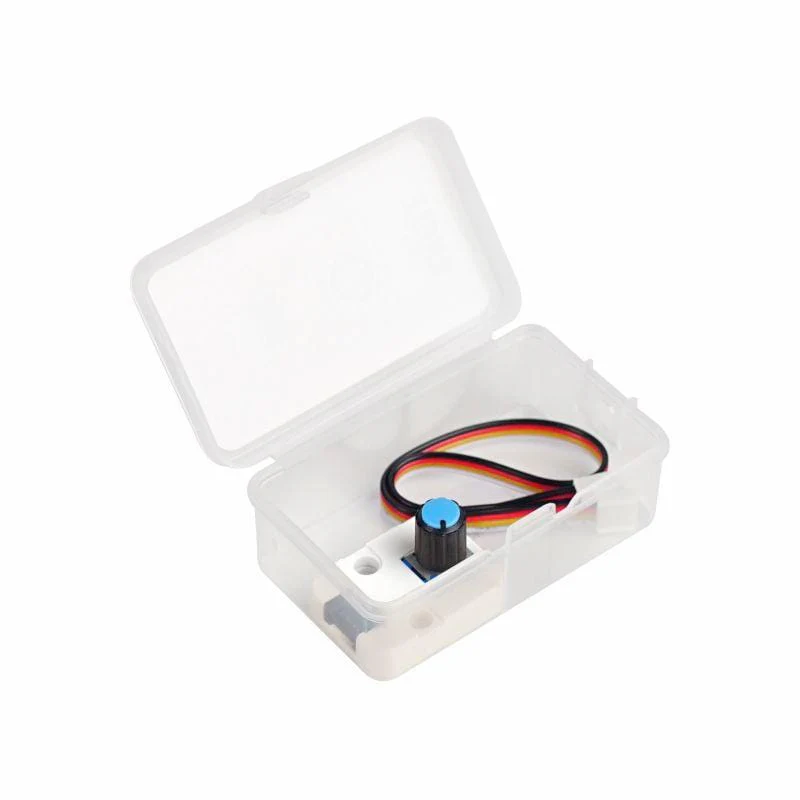

Package Contents

• 1x Angle Unit
• 1x Grove Cable

Specifications

Resources	Parameter
Output voltage	0 ~ 2500mV
Net weight	6g
Gross weight	23g

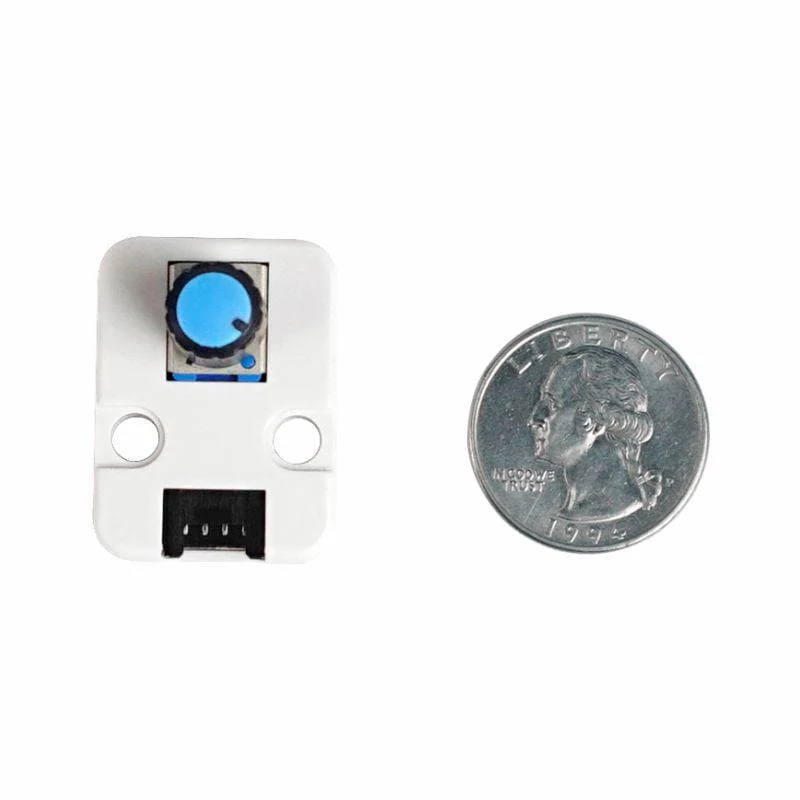

Product Size	32 x 24 x 22mm
Package Size	73 x 46 x 30mm
