Alpha Single-Gang 16mm Right-angle PC Mount - 1M Reverse Audio (RV16AF-41-15R1-C1M-30H4)

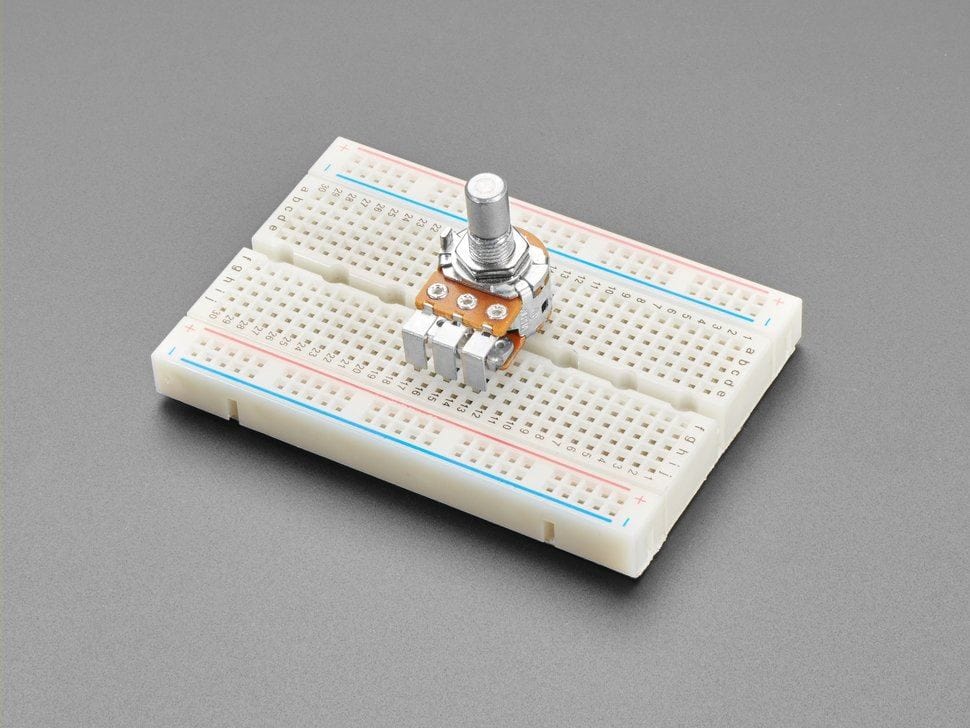

This Alpha 1M Reverse Audio potentiometer is a two-in-one, good in a breadboard or with a panel. It's a unique reverse audio taper 1 Megaohm potentiometer. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard.
Folks love Alpha pots for their reliability and consistency - and we agree! They make great low-cost, high-quality potentiometers

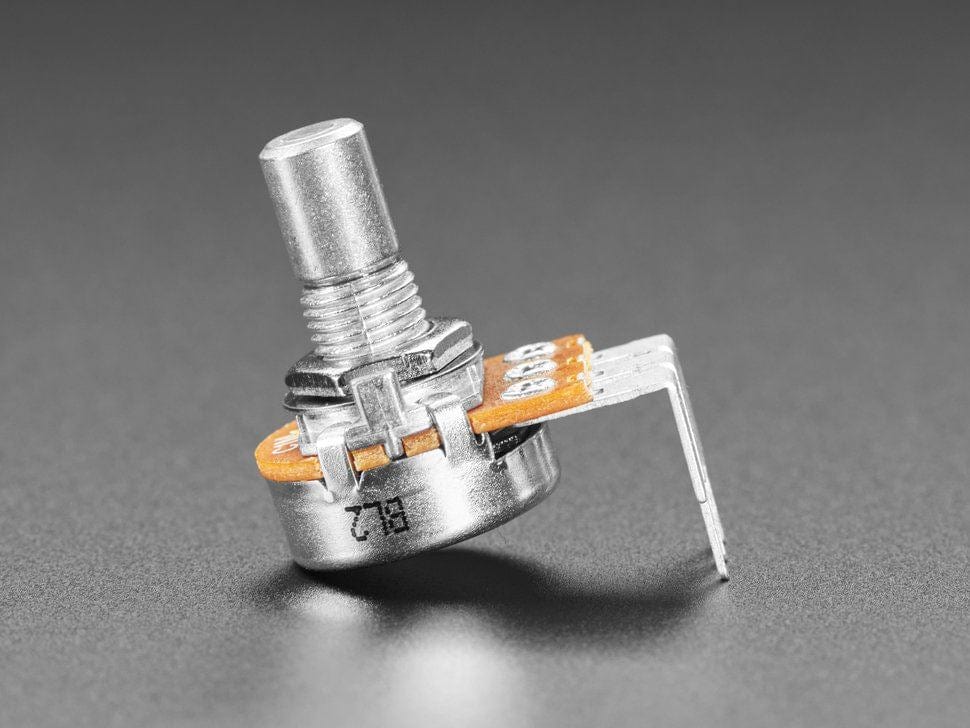

This potentiometer has a round (not T18 or flattened) shaft that is nominally 6mm diameter (we measured 6.3mm with our calipers)
Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut.
Resources
- Datasheet
Original: $2.59
-70%$2.59
$0.78
Description
This Alpha 1M Reverse Audio potentiometer is a two-in-one, good in a breadboard or with a panel. It's a unique reverse audio taper 1 Megaohm potentiometer. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard.
Folks love Alpha pots for their reliability and consistency - and we agree! They make great low-cost, high-quality potentiometers
This potentiometer has a round (not T18 or flattened) shaft that is nominally 6mm diameter (we measured 6.3mm with our calipers)
Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer using the included washer and hex nut.
Resources
- Datasheet
