SMT Breakout PCB for 44-QFN or 44-TQFP - 3 Pack

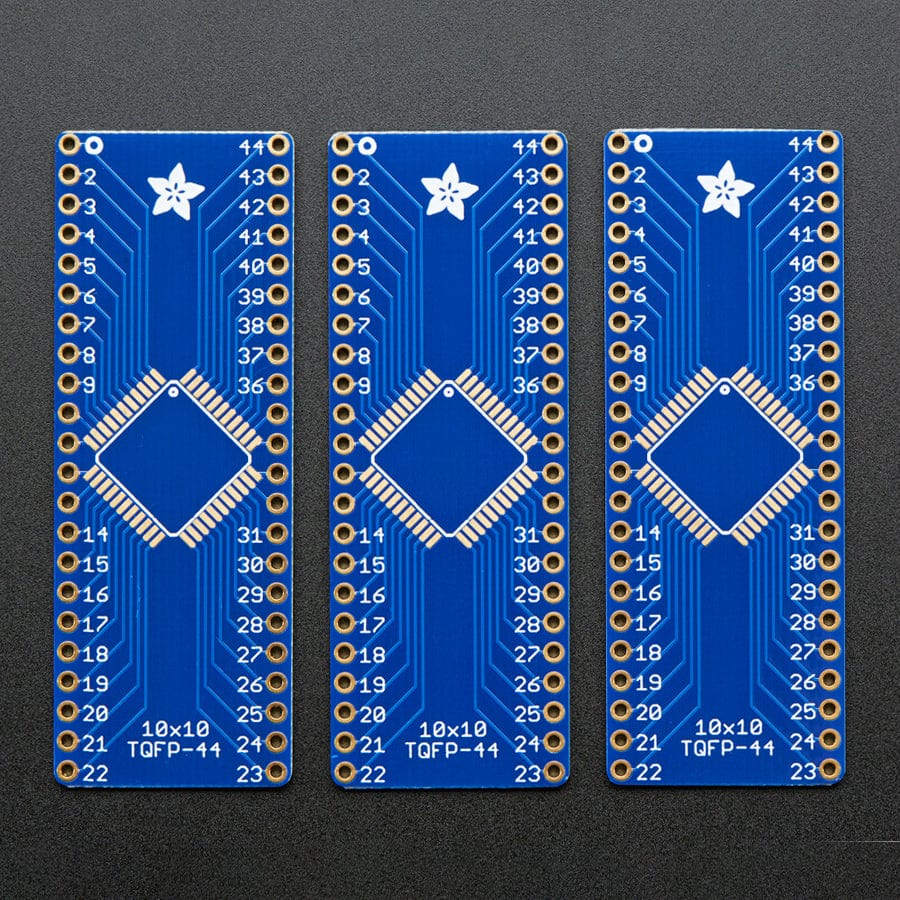

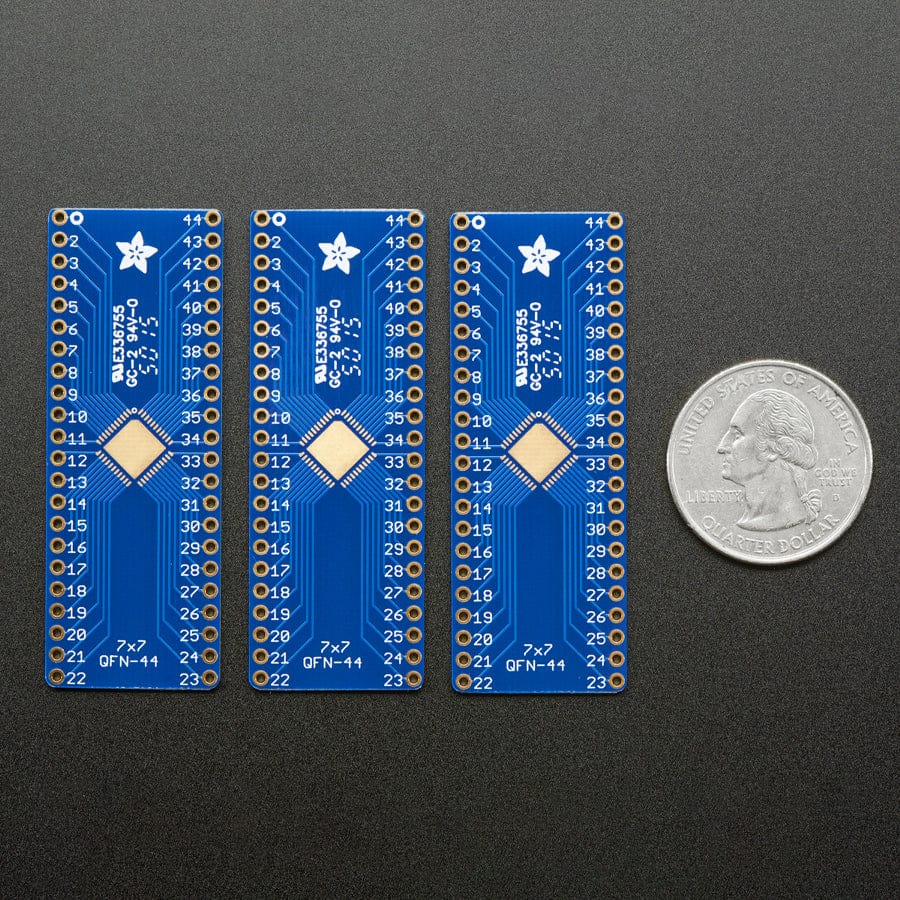

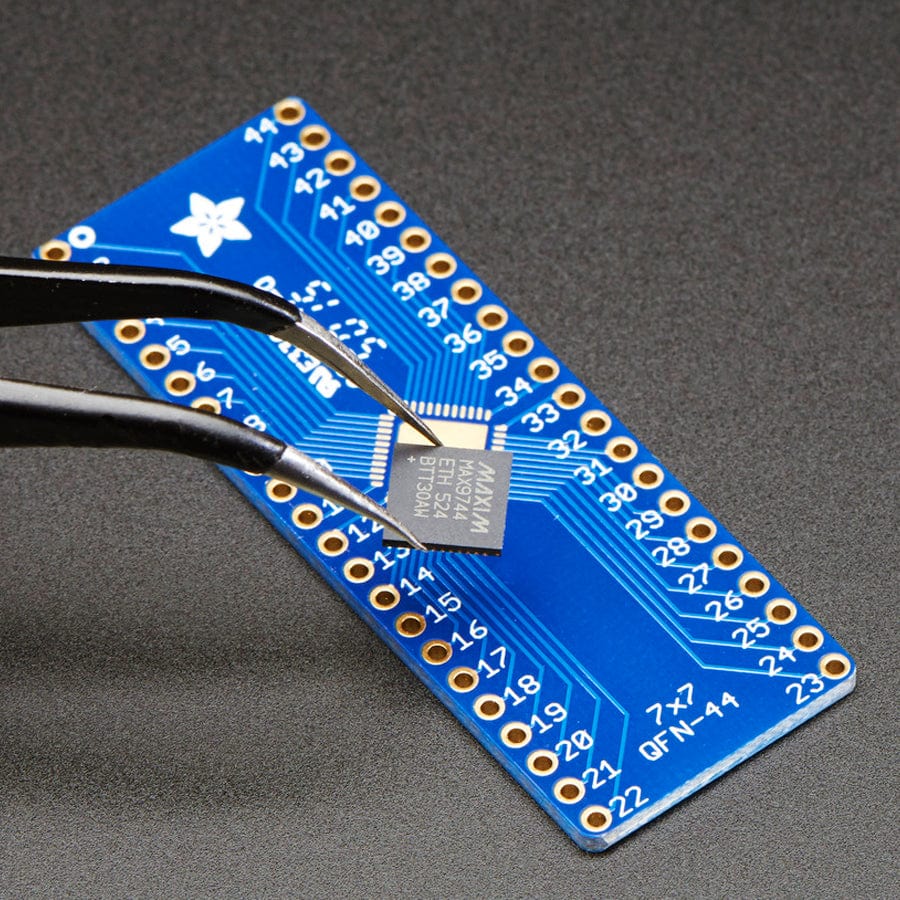

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 44-QFP pin out with traces going to two rows of 0.1" spaced holes; the other has 44-QFN. Solder your chip to either side. and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs; each PCB is identical and can support either a 10mm square, 0.8mm pitch QFP or a 7mm square, 0.5mm pitch QFN chip. Standard thickness PCBs, with 0.7" spacing between the two rows.
Chip is NOT included
Note: Does not include headers, so why don't you pick some up?
Resources
- Product Page
