SMT Breakout PCB for 32-QFN or 32-TQFP - 3 Pack!

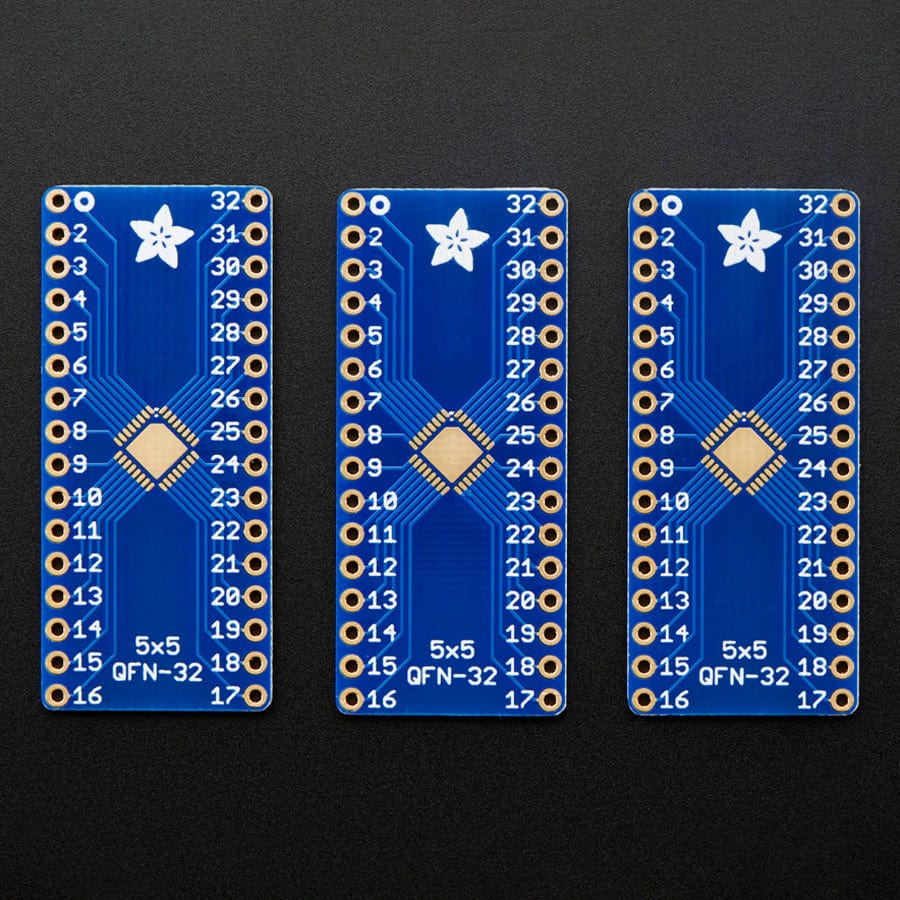

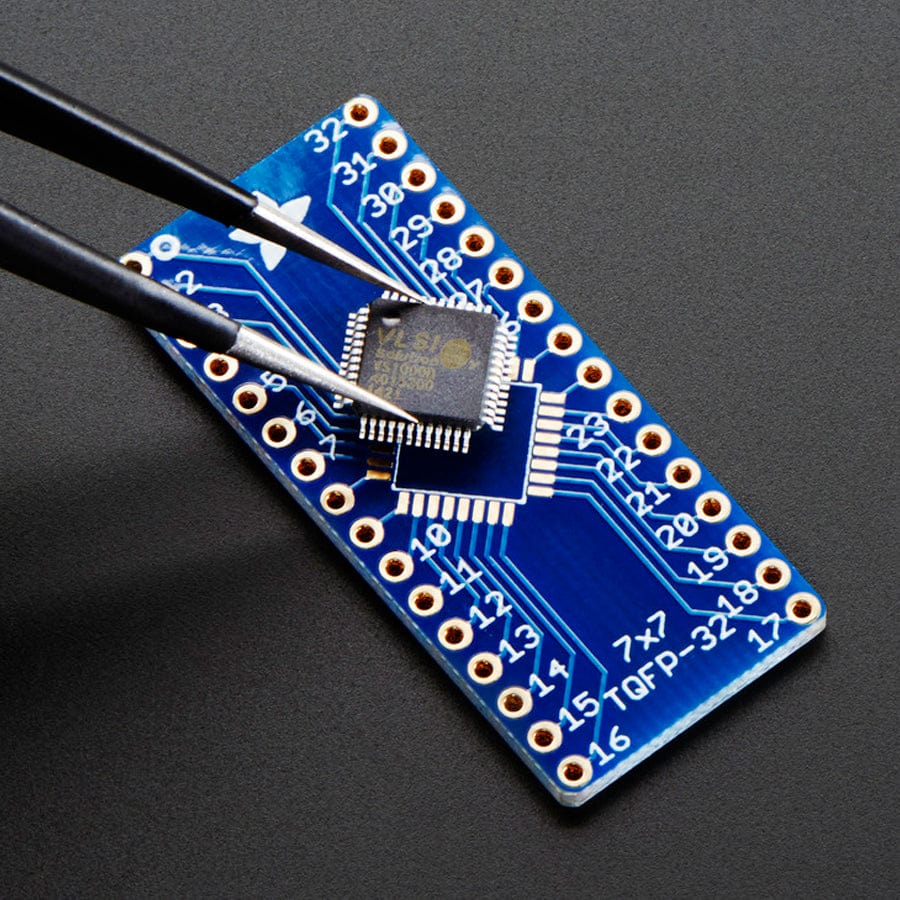

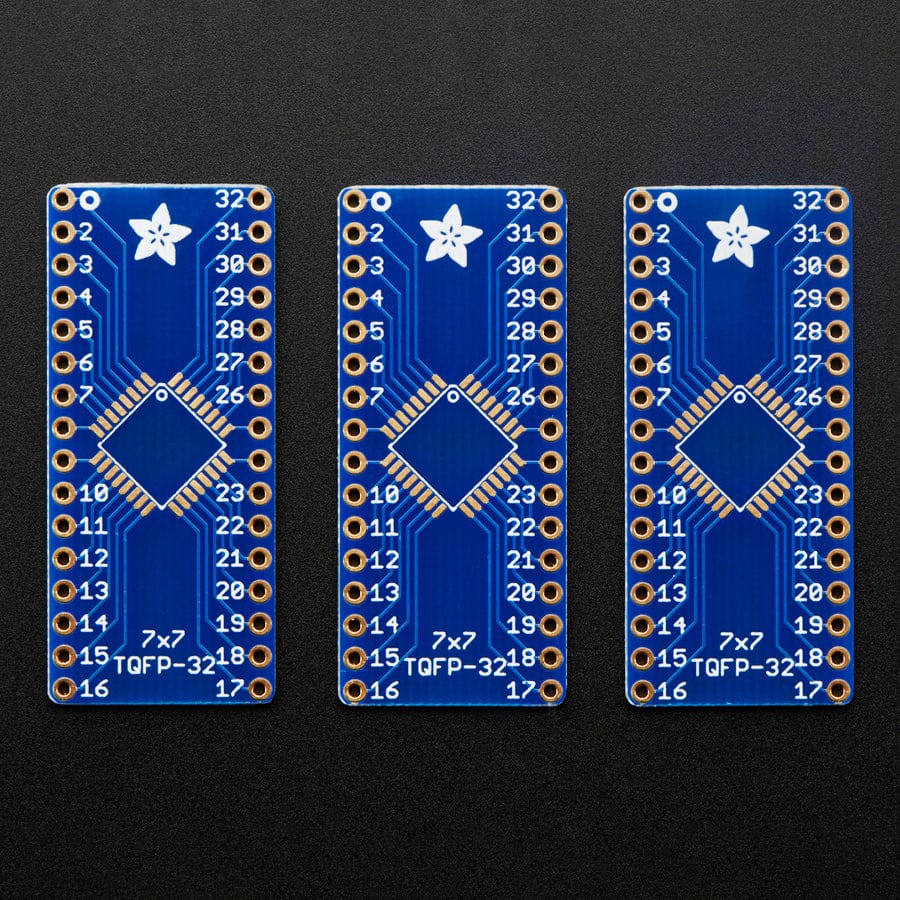

Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 32-QFP pin out with traces going to two rows of 0.1" spaced holes; the other has 32-QFN. Solder your chip to either side. and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs; each PCB is identical and can support either a 7mm square QFP or a 5mm square QFN chip. Standard thickness PCBs, with 0.6" spacing between the two rows.
The chip is NOT included
Note: The board does not include headers, so why don't you pick some up?
Resources
- Product Overview
Description
Beguiled by a fancy new chip that is only available in a QFP or QFN pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 32-QFP pin out with traces going to two rows of 0.1" spaced holes; the other has 32-QFN. Solder your chip to either side. and you're ready to rock on any solderless breadboard.
Each item comes with three PCBs; each PCB is identical and can support either a 7mm square QFP or a 5mm square QFN chip. Standard thickness PCBs, with 0.6" spacing between the two rows.
The chip is NOT included
Note: The board does not include headers, so why don't you pick some up?
