Adafruit OV5640 Camera Breakout - 120 Degree Lens
Hobby-level microcontrollers are finally getting big and powerful enough to start handling camera modules that historically would have required a full computer or FPGA to handle. For example, the RP2040 and ESP32-Sx series of chips have enough pins to communicate with the 8-bit data output, DMA to quickly grab a frame, and the necessary RAM to buffer a raw snapshot. Now, all we need is a nice camera module to make interfacing easy!

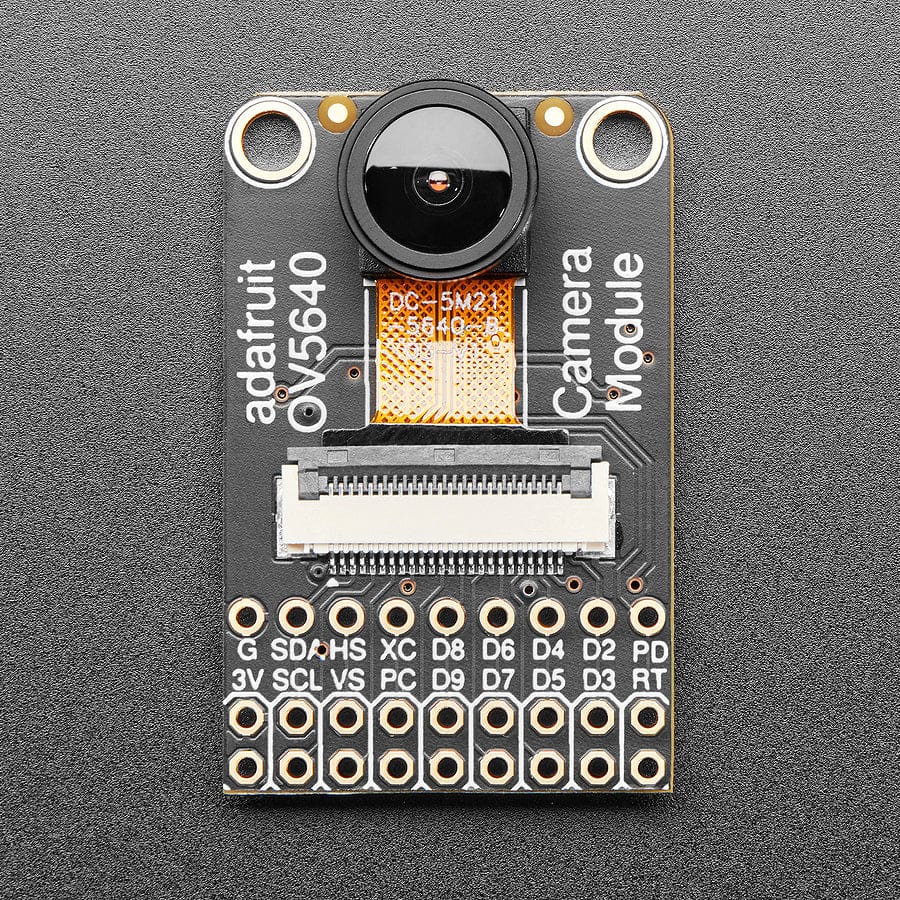

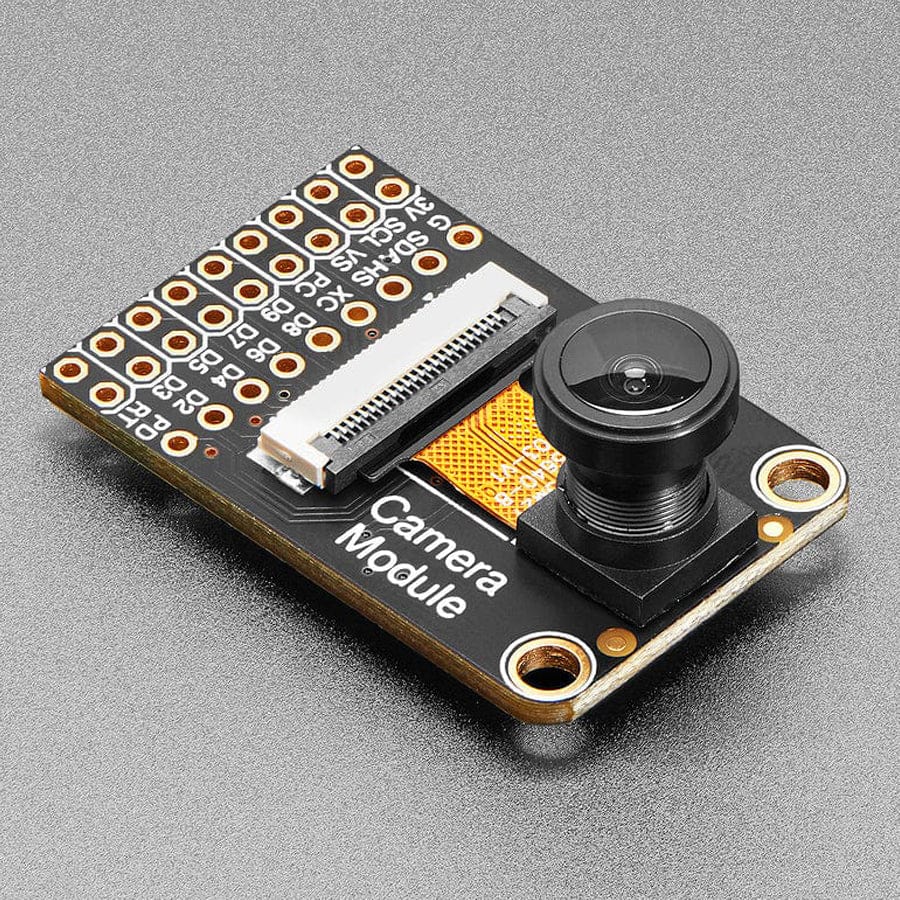

This Adafruit OV5640 Camera Breakout with 120 Degree Lens has a nice quality OV5640 camera with a 5 Megapixel sensor element, 120-degree wide angle lens, and all the support circuitry you need. We looked at existing camera modules and while this breakout board is backwards compatible, we made some improvements:

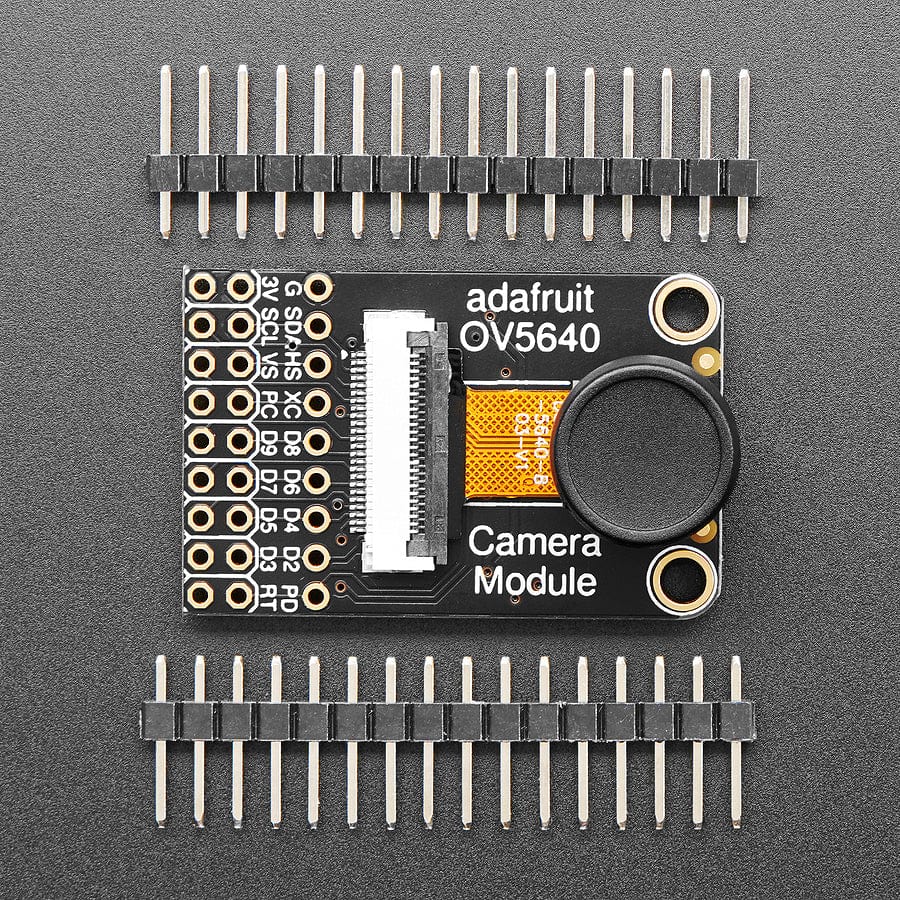

- Standard 2x9 header if you want it, but also a duplicated header strip 0.3" apart so you can plug it into a breadboard or perfboard
- Selectable external or internal 24MHz "XCLK" clock generation - save one gpio pin, or just have a nice stable 24 MHz signal even if your microcontroller can't generate it for you.

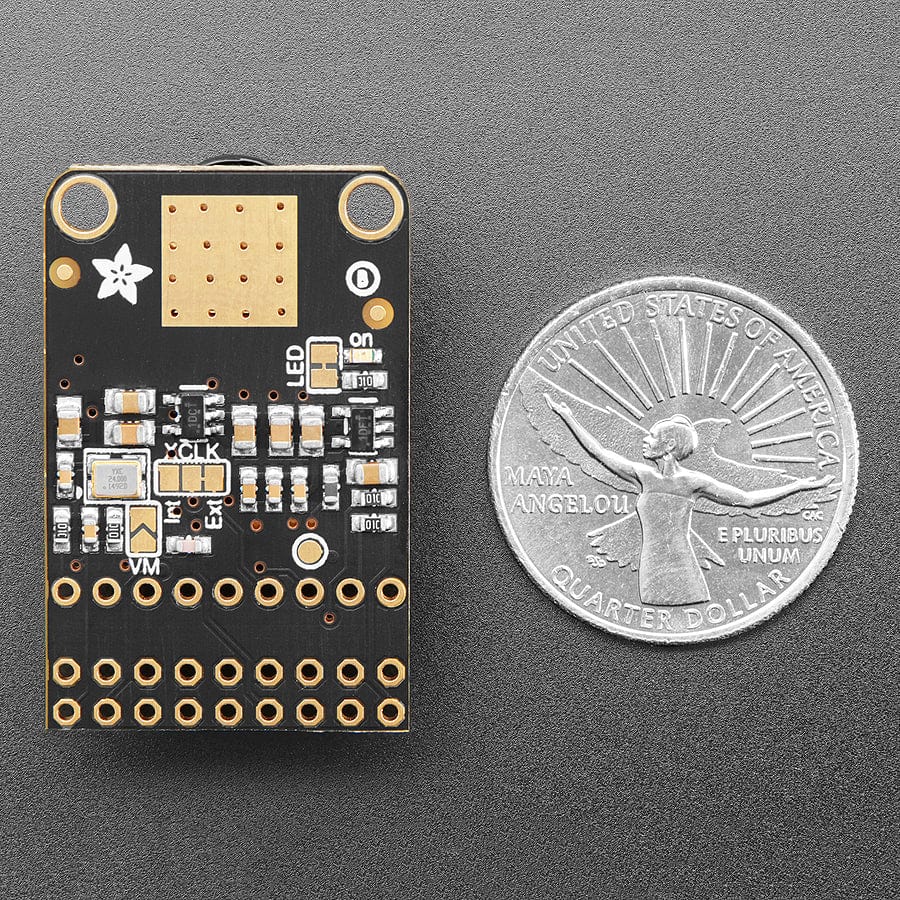

- Heat-sinking camera area with exposed ground pad, with lots of vias for good thermal transfer. Helpful when doing continuous encoding and reducing thermal image drift.
- Optional VMotor 3.3V power jumper on DATA1, for auto-focusing camera modules
- 3.3V power-good LED on the back that can be disabled
Specifications
- Product Dimensions: 35.7mm x 23.0mm x 17.5mm
- Product Weight: 4.6g / 0.2oz
Description
Hobby-level microcontrollers are finally getting big and powerful enough to start handling camera modules that historically would have required a full computer or FPGA to handle. For example, the RP2040 and ESP32-Sx series of chips have enough pins to communicate with the 8-bit data output, DMA to quickly grab a frame, and the necessary RAM to buffer a raw snapshot. Now, all we need is a nice camera module to make interfacing easy!
This Adafruit OV5640 Camera Breakout with 120 Degree Lens has a nice quality OV5640 camera with a 5 Megapixel sensor element, 120-degree wide angle lens, and all the support circuitry you need. We looked at existing camera modules and while this breakout board is backwards compatible, we made some improvements:
- Standard 2x9 header if you want it, but also a duplicated header strip 0.3" apart so you can plug it into a breadboard or perfboard
- Selectable external or internal 24MHz "XCLK" clock generation - save one gpio pin, or just have a nice stable 24 MHz signal even if your microcontroller can't generate it for you.
- Heat-sinking camera area with exposed ground pad, with lots of vias for good thermal transfer. Helpful when doing continuous encoding and reducing thermal image drift.
- Optional VMotor 3.3V power jumper on DATA1, for auto-focusing camera modules
- 3.3V power-good LED on the back that can be disabled
Specifications
- Product Dimensions: 35.7mm x 23.0mm x 17.5mm
- Product Weight: 4.6g / 0.2oz
