Adafruit NeoPixel Breakout with JST SH Connectors

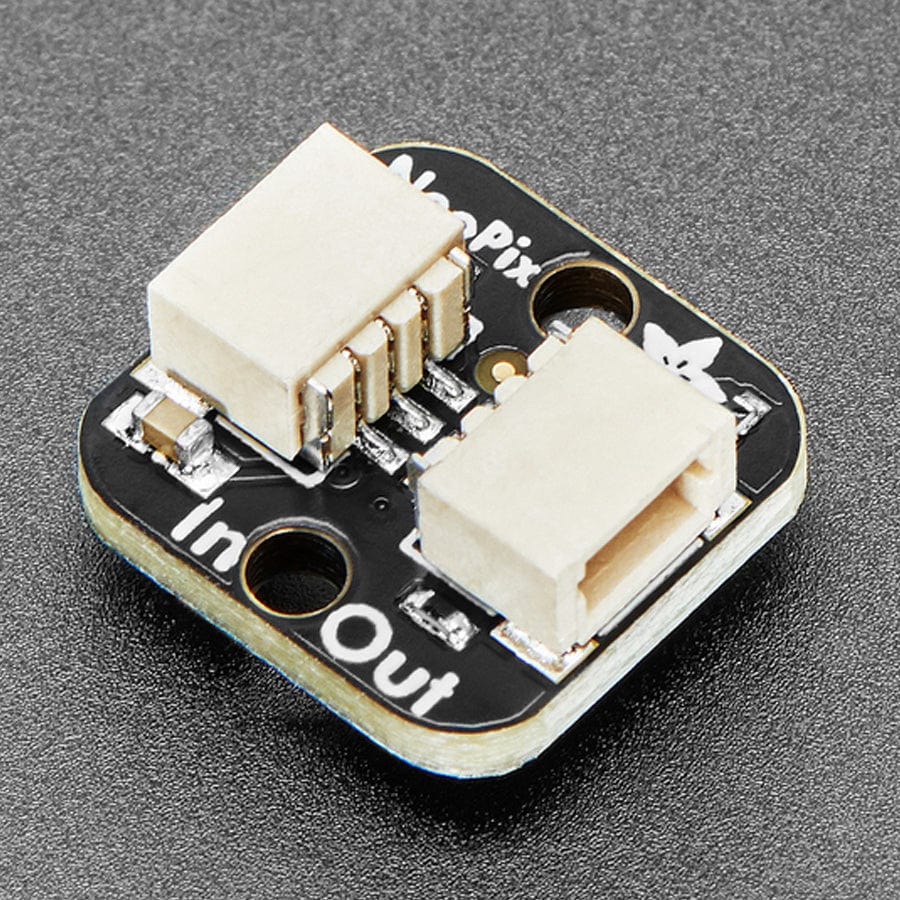

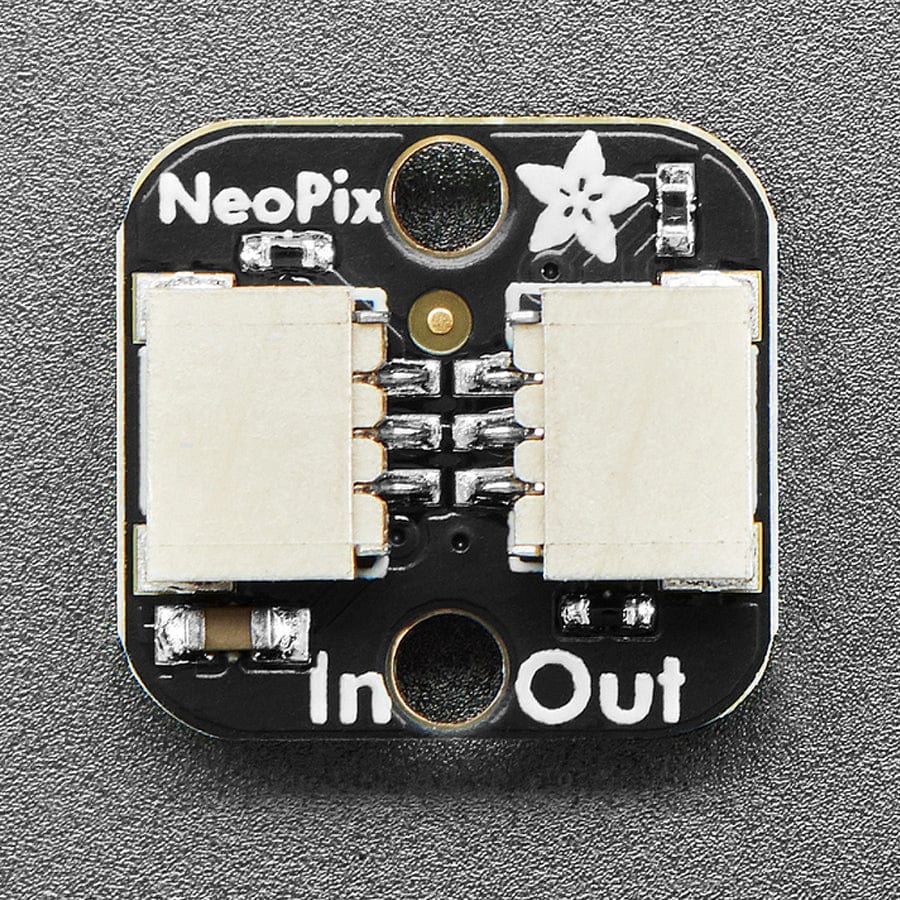

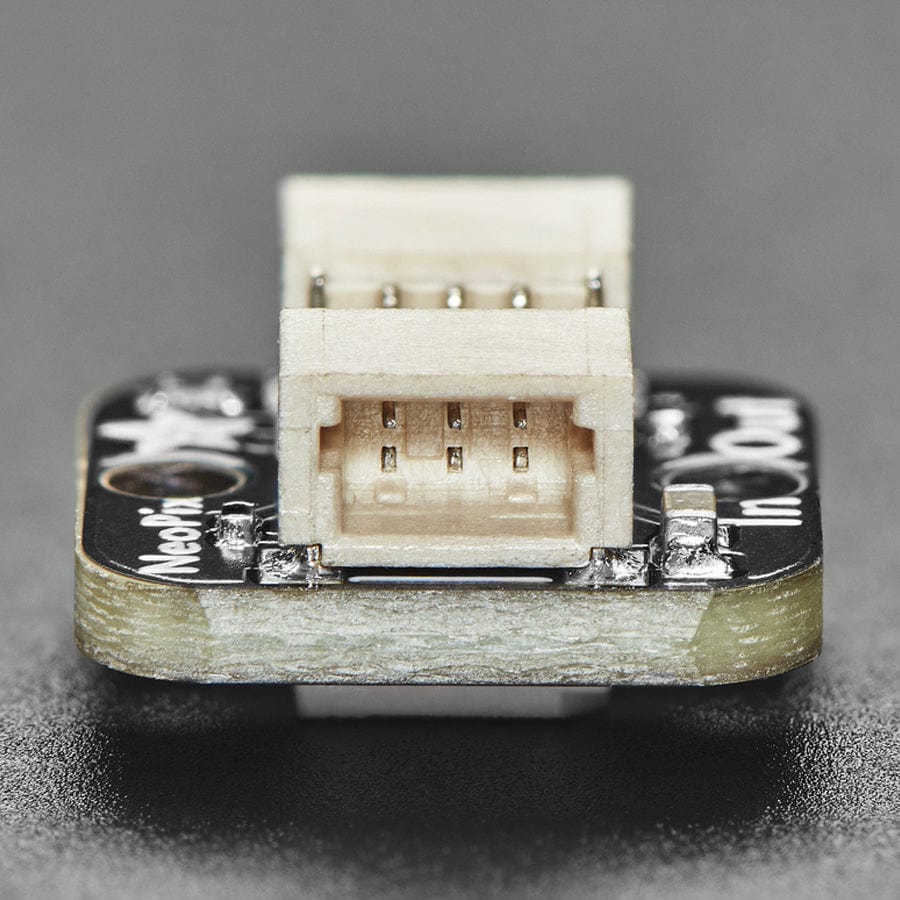

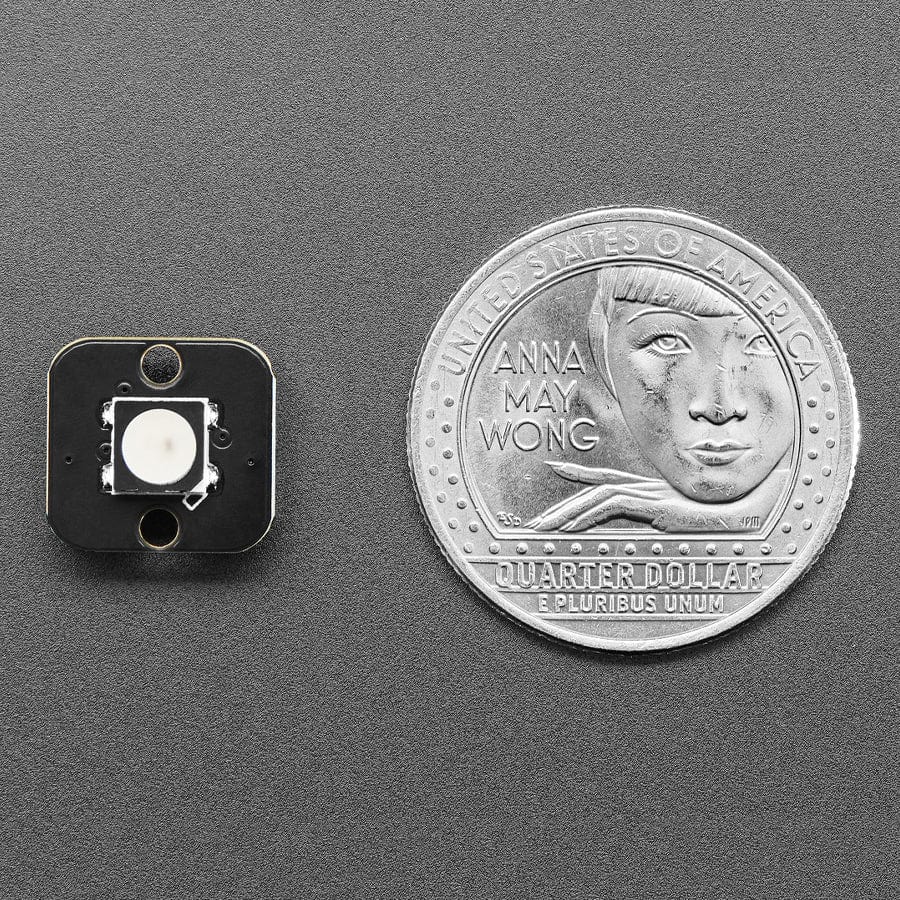

This little breakout makes it easy to add a single NeoPixel to a project, with mounting holes and a pluggable connector. The PCB is less than 0.5"x0.5" and comes with two 3-pin JST SH 1mm pitch connectors for input and output. On the opposite side, a 5050 (5mm square) classic RGB NeoPixel can be powered and controlled with 3.3V or 5V power.
Note: these connectors are not STEMMA QT!
The two mounting holes are M2 size and have clearance for the screw head, or could be used for sewing onto a fabric backing or attaching to a small model. Of course, this design will never be as affordable as a pre-made strand with dozens of LEDs, but there's probably some time it would be useful - especially since it can be easily swapped out.
Comes as a single NeoPixel, NO cables included
Specifications
- Dimensions: 12.3mm x 11.3mm x 6.2mm
- Weight: 0.7g
