LED Charlieplexed Matrix - 9x16 LEDs - Yellow

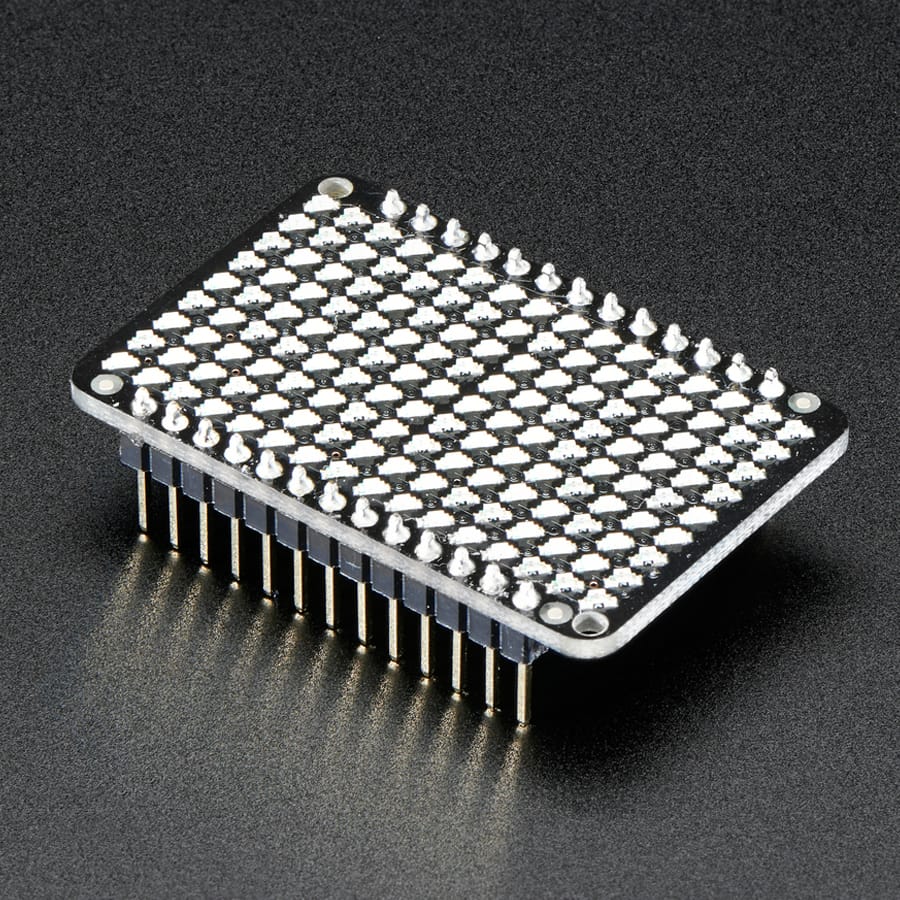

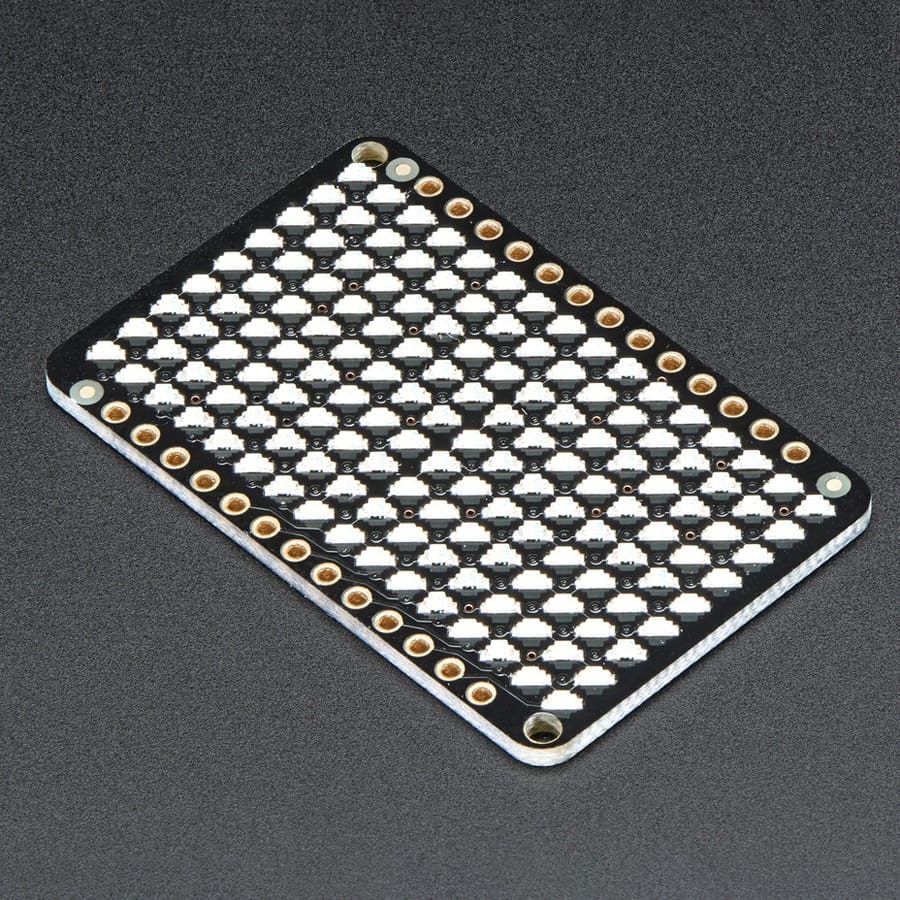

The Adafruit 9×16 Charlieplexed LED Matrix is a compact grid of LEDs designed to be used with the IS31FL3731 Charlieplexed PWM LED Matrix Driver.

It features 144 LEDs arranged in a 9×16 layout using a charlieplexed configuration, allowing many LEDs to be controlled efficiently when paired with the correct driver board. This matrix is intended specifically for use with the Adafruit IS31FL3731 driver, which manages the multiplexing and PWM control needed to run the display.

The board itself does not include any resistors or driver circuitry — it is simply the LED array — so it cannot be used on its own. When combined with the matching driver, it can be used for creating animations, indicators, or small custom displays.

This is our yellow version. We have the red version available too!

Features

• 144 LEDs arranged in 9×16 grid layout
• Charlieplexed configuration for efficient LED control
• Compatible with Adafruit IS31FL3731 PWM LED Matrix Driver
• Supports animations and custom display applications
• Compact design for space-constrained projects
• Requires separate driver board (not standalone)
• No onboard resistors or driver circuitry included

Specifications

• Product Dimensions: 43.3mm x 27.8mm x 2.4mm
• Product Weight: 3.8g

Revision History

• As of November 2022 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.

Resources

• Product Datasheets

Package Contents

• 1x LED Charlieplexed Matrix - 9x16 LEDs - Yellow

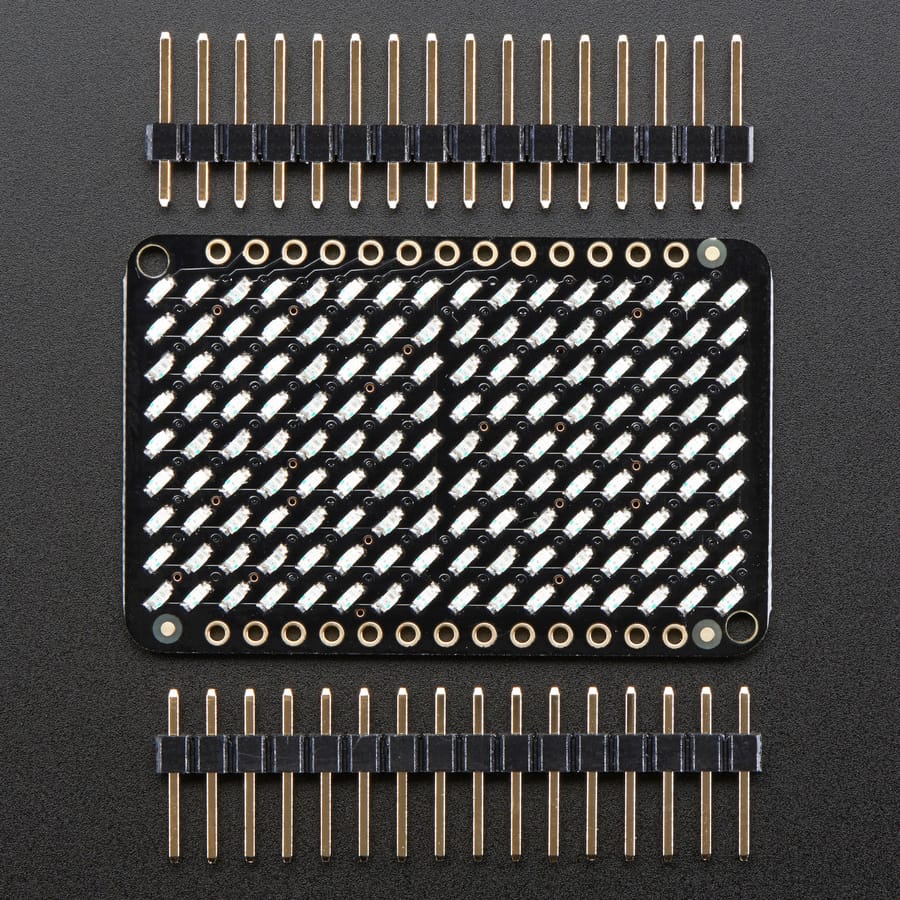

• 2x Header Strips
