LED Charlieplexed Matrix - 9x16 LEDs - Cool White [Discontinued]

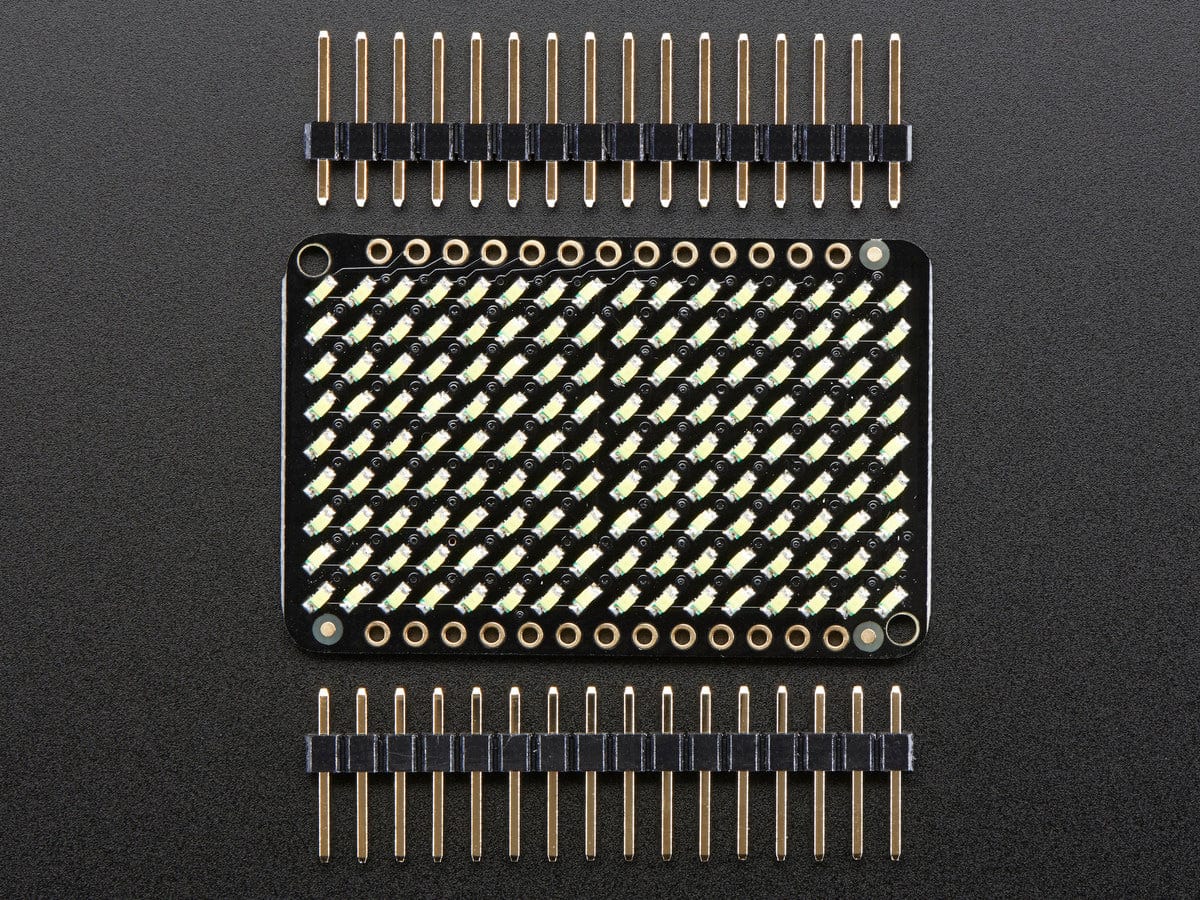

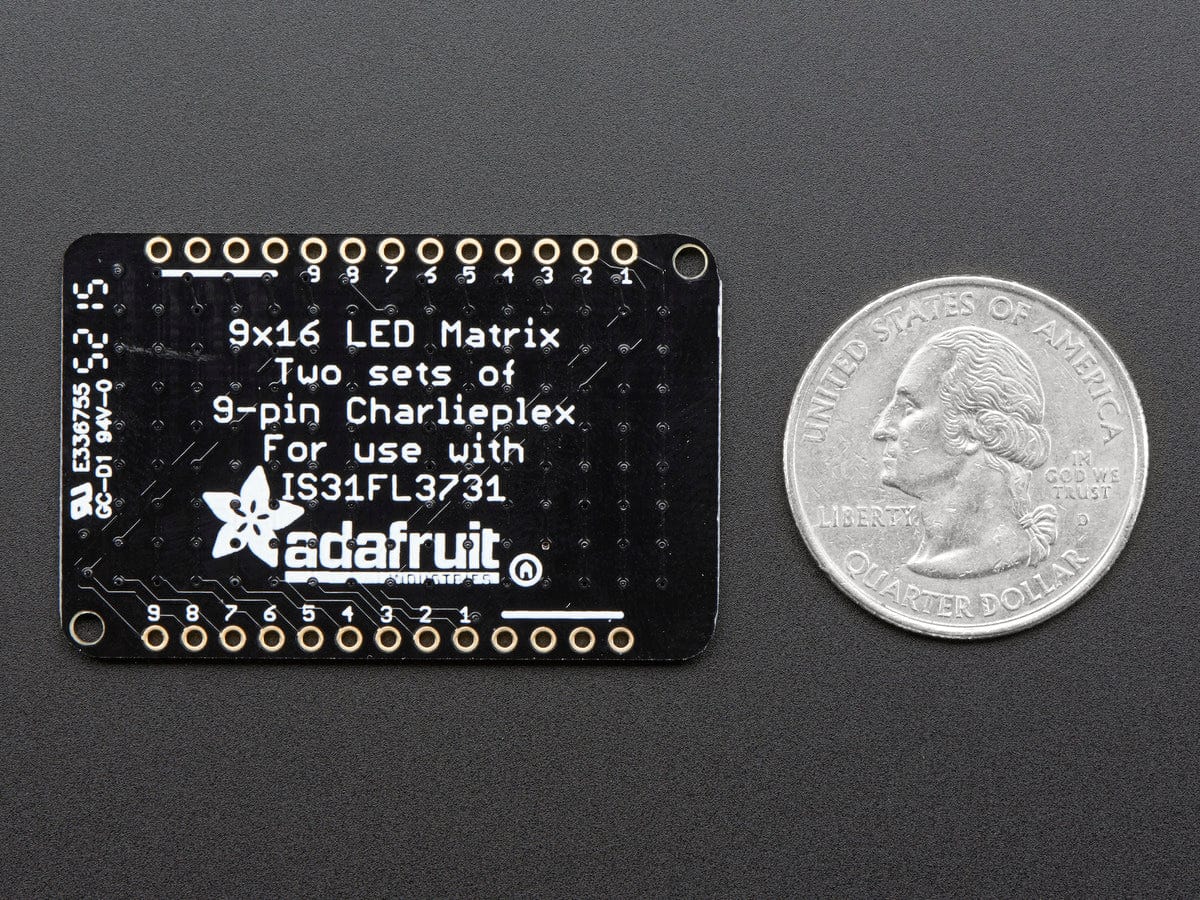

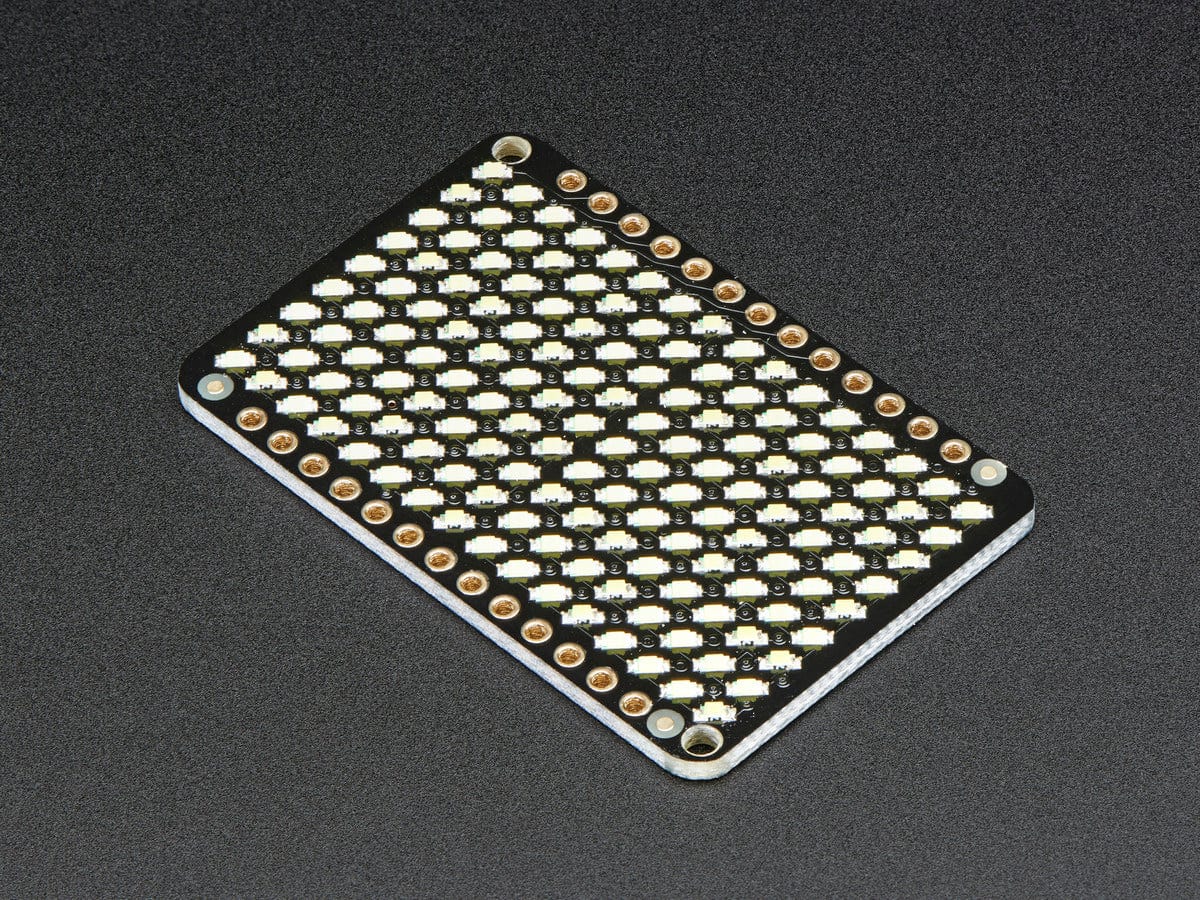

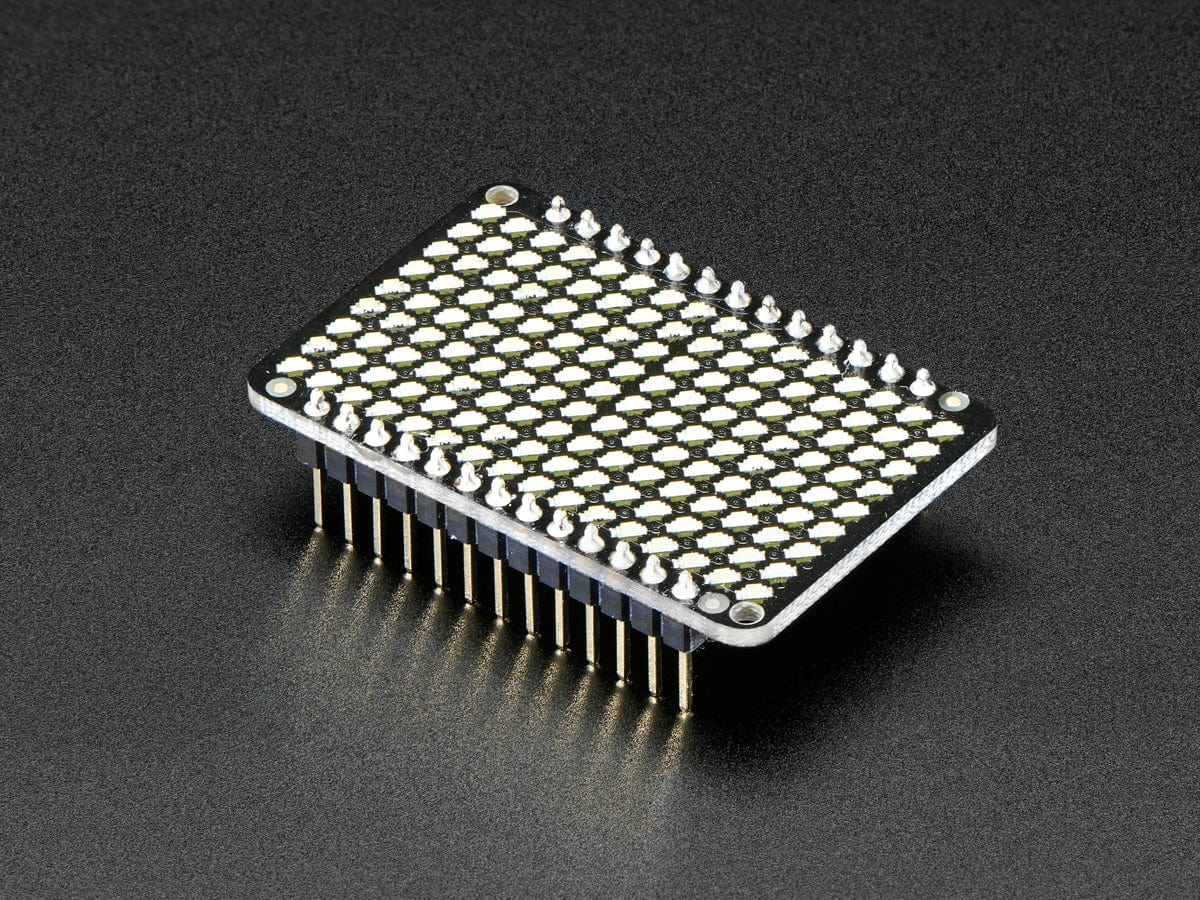

These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731. You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement
This is the Cool White version. Check out our other colors!
Check out our detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!
Technical Details
- 43.3mm x 27.8mm x 2.4mm / 1.7" x 1.1" x 0.09"
- Weight: 3.8g
- Datasheet, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial
Original: $10.21
-70%$10.21
$3.06
Description
These are 9x16 Charlieplexed LEDs designed to match with the Adafruit 16x9 Charlieplexed PWM LED Matrix Driver - IS31FL3731. You don't get any resistors or driver chips with this grid, its just a mess of LEDs in a charlieplexed arrangement
This is the Cool White version. Check out our other colors!
Check out our detailed tutorial for Arduino & CircuitPython support, pinouts, assembly, wiring, and more!
Technical Details
- 43.3mm x 27.8mm x 2.4mm / 1.7" x 1.1" x 0.09"
- Weight: 3.8g
- Datasheet, schematic, EagleCAD PCB files, and Fritzing available in the product tutorial
