Adafruit 6-pin AVR ISP Breadboard Adapter Mini Kit
Programming AVR?
Always Googling the pinout?
Well, now no longer!

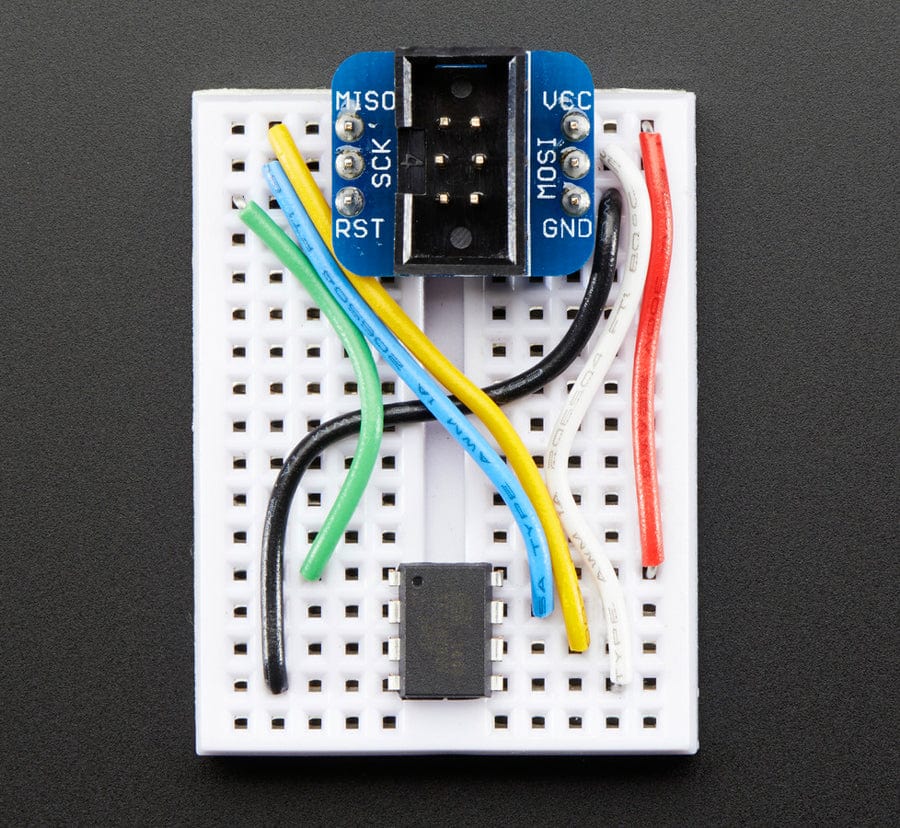

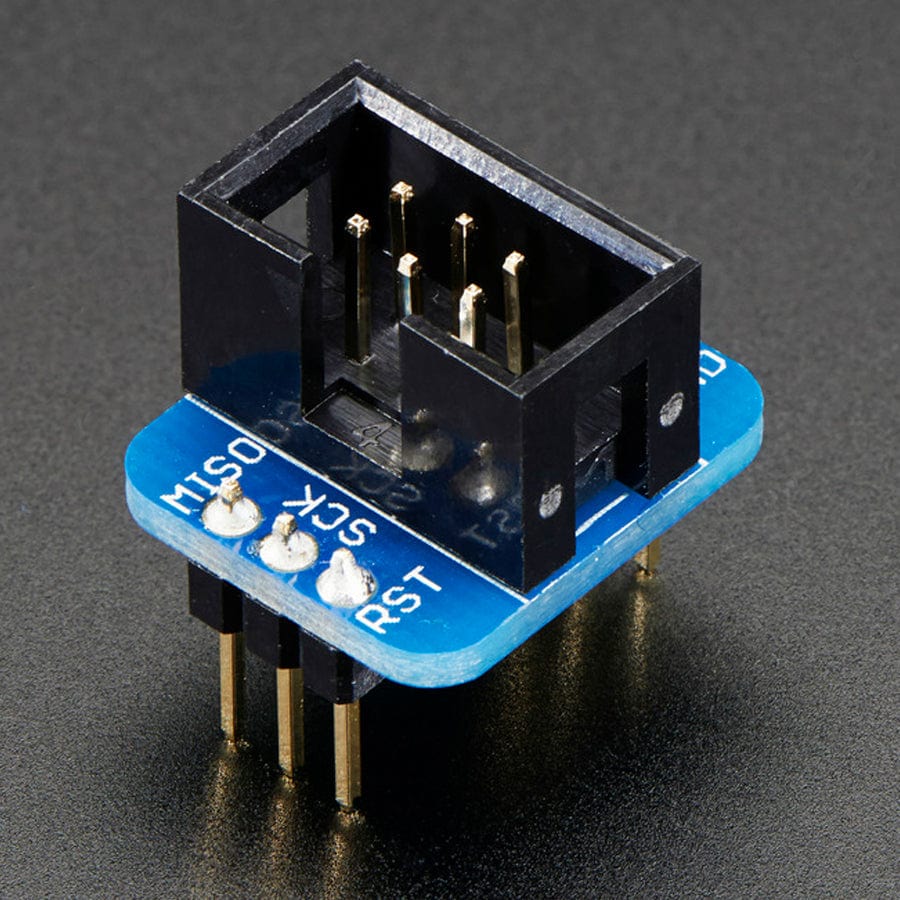

It's rare to find a mini kit so elegant, it deserves its own Haiku. A simple breakout, 2 x 3 box header in the centre, two 1 x 3's on the side. Plugs into any breadboard for neat wiring (in both nifty and clean senses of the word).

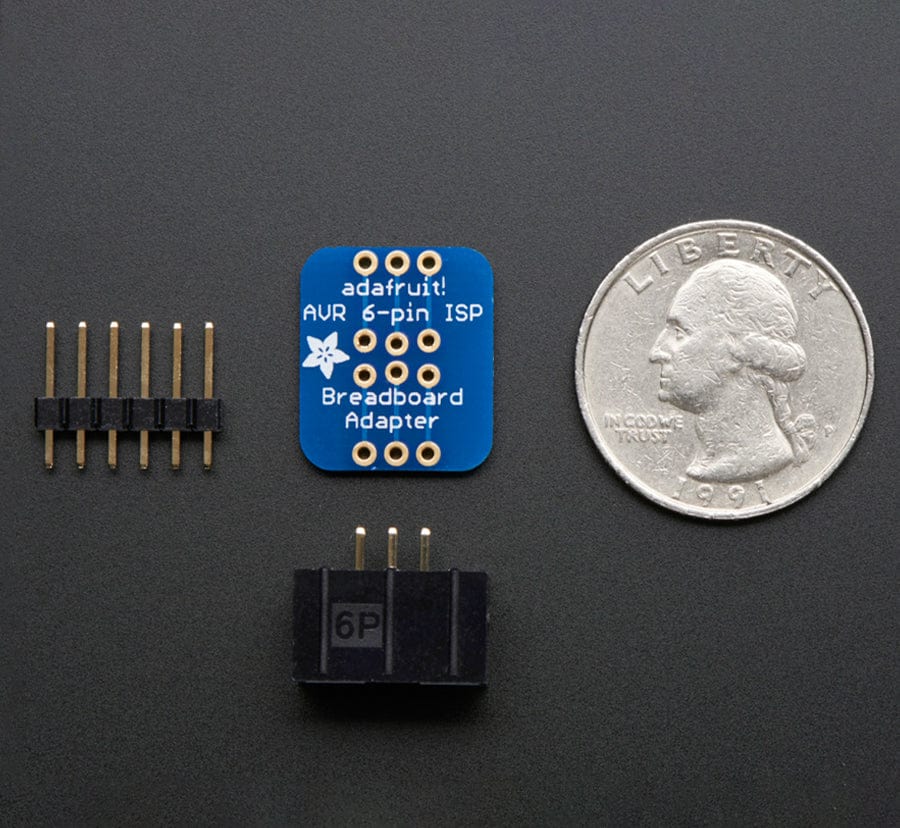

Comes with a quality mini PCB, a 2 x 3 box header and a small stick of 0.1" header. Requires some light soldering to use: plug the 2 x 3 in on the top and solder all six pins, then break the header in half and put each half into a breadboard to hold them steady. Place the breakout on top and solder the side pins. Will last you years and years.
Note: Breadboard, cables and chip are NOT included
Specifications
- Dimensions: 17.77mm x 15.14mm
Resources
- Fritzing object in Adafruit Fritzing Library
- EagleCAD PCB files in GitHub
