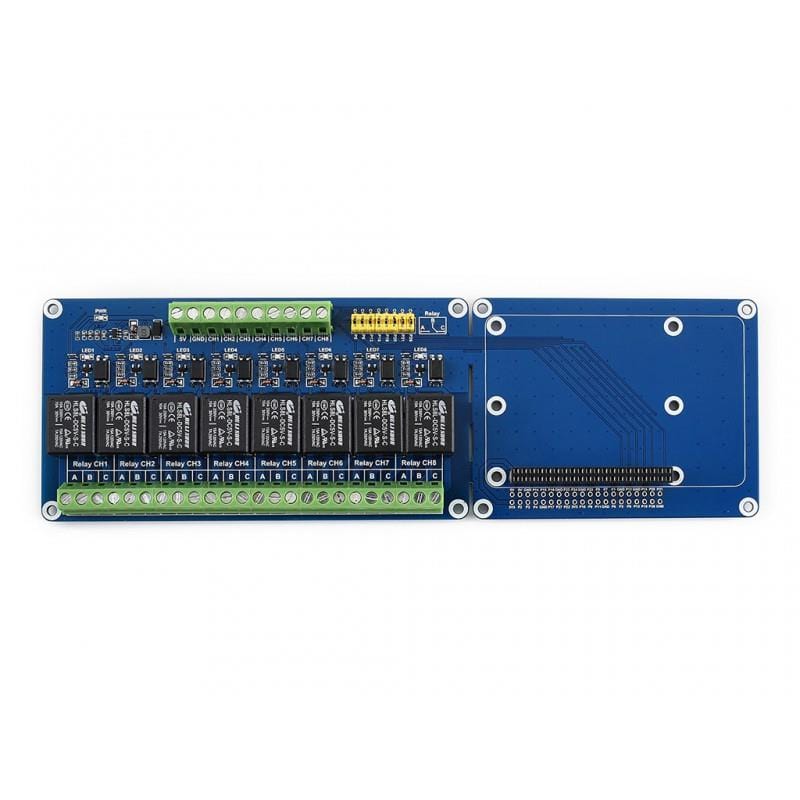

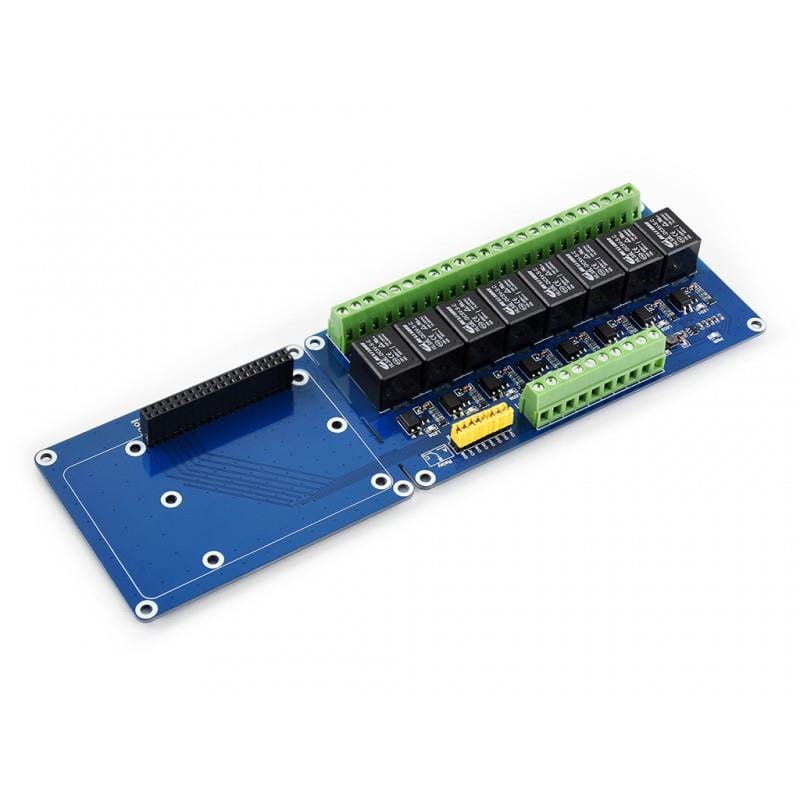

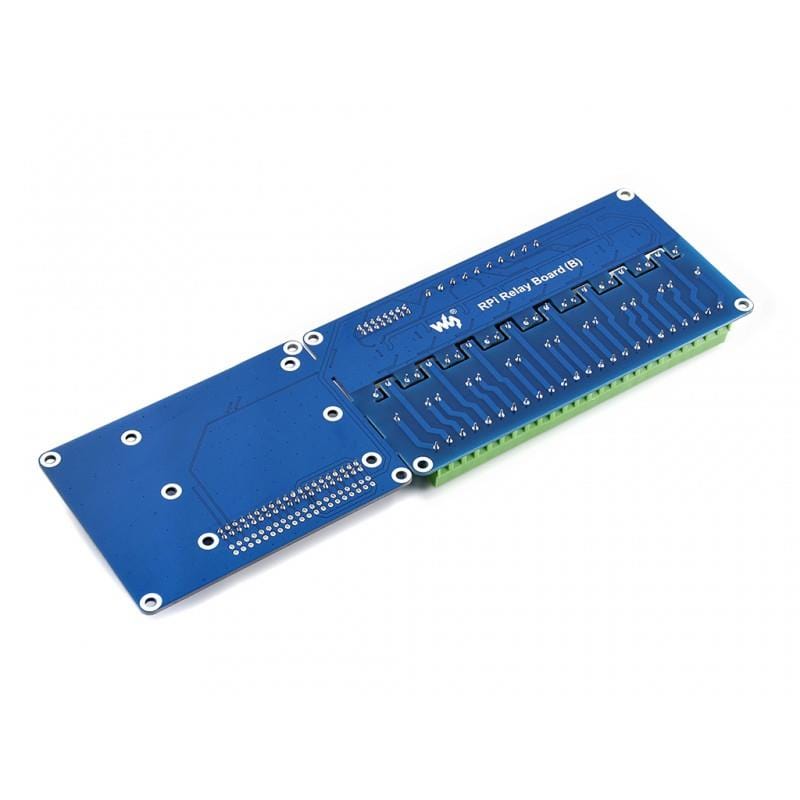

8-Channel Relay Expansion Board for Raspberry Pi

The 8-Channel Relay Board is an expansion board with relays which has been designed specifically for the Raspberry Pi. It gives your Pi the ability to control lots of high-voltage components (such as home appliances) to create a full home automation system.

The relays are rated at 5A 250V AC or 5A 30V DC (Max) and feature photo-coupling isolation to reduce interference. Onboard LEDs indicate each relay's status for visual indication and debugging support.

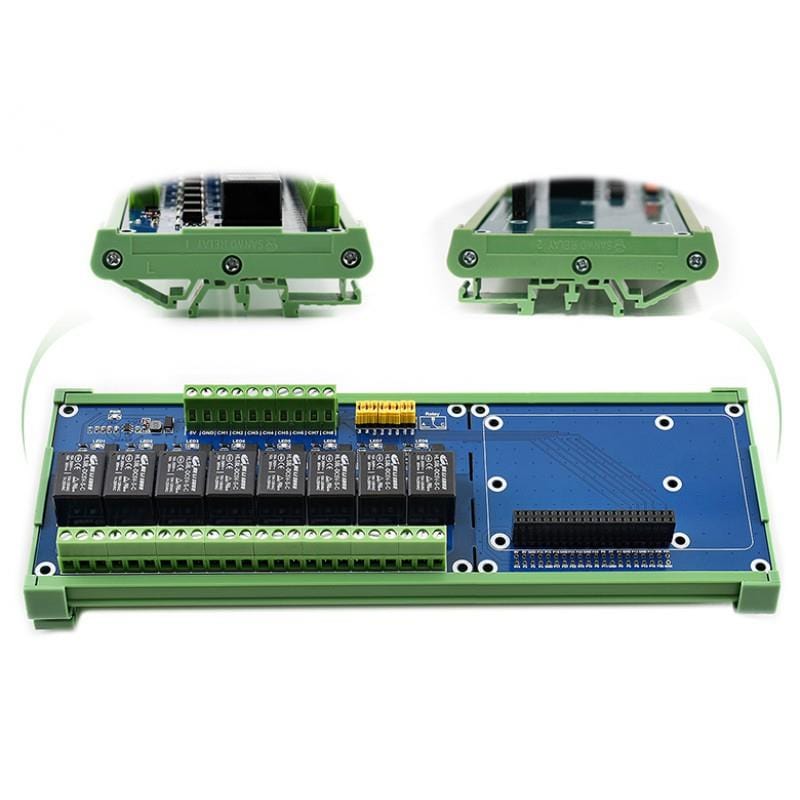

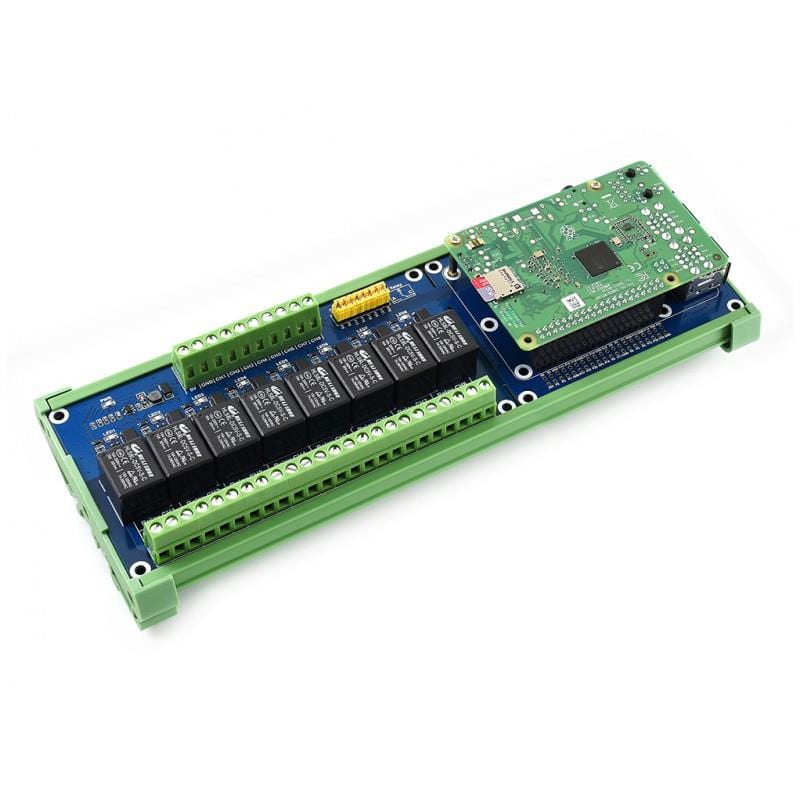

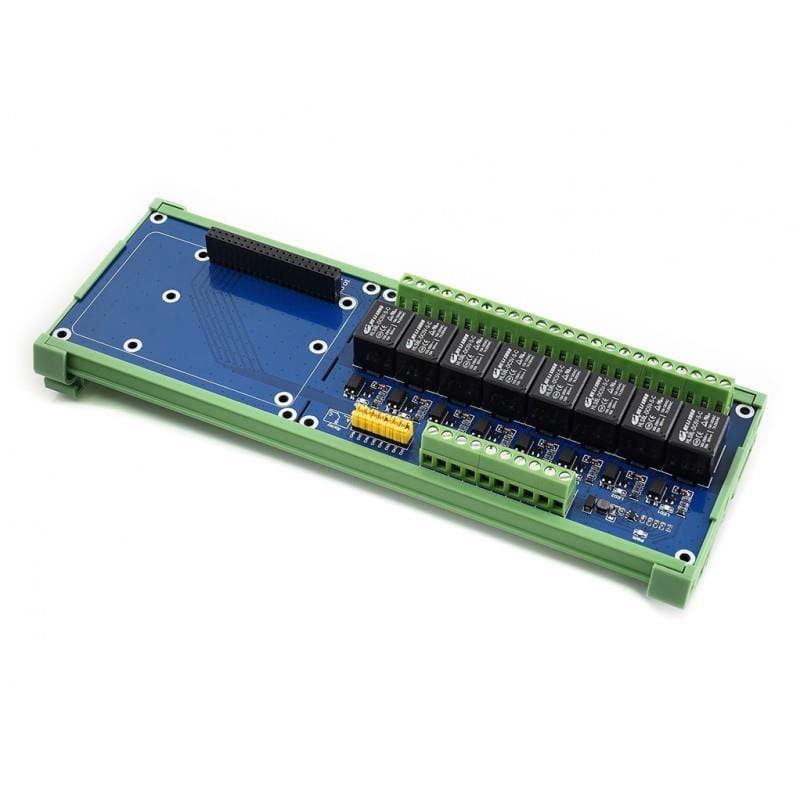

The board comes in a frame ready to fit into DIN rails if desired.

Features

• Standard Raspberry Pi 40-pin GPIO extension header
• High-quality relays - loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit
• Standard rail mount bottom case
• Onboard LEDs for indicating relays status
• Relay control pin selection jumper - allows the user to control the relays by custom pins other than the default pins
• Reserved control interface allows the board to work with controllers like PLC
• Comes with development resources and guide

Resources

• Product Wiki and guide

Tech Specs

• Power supply voltage: 5V
• Trigger signal: 3.3V/5V
• Relay channels: 8
• Contact form: SPDT-NO,NC
• Closed current: 6mA (per channel)
• Connector: screw terminal block
• Dimension: 232 × 72 (mm)
• Mounting hole size: 3.0mm
