M5Stack 4-Relay Unit
This unit is an integrated 4-way relay module which can be controlled by I2C protocol. The maximum voltage of each relay is AC-250V/DC-28V, the rated current is 10A and the current can hold up to 16A. Each relay can be controlled independently and each relay has a status (LED) indictor as well to show the state of the relay at any given time.
Features
- 4-way relay
- AC-250V/DC-28V/10A
- LED status indication
- I2C communication (0x26)
Package Contents

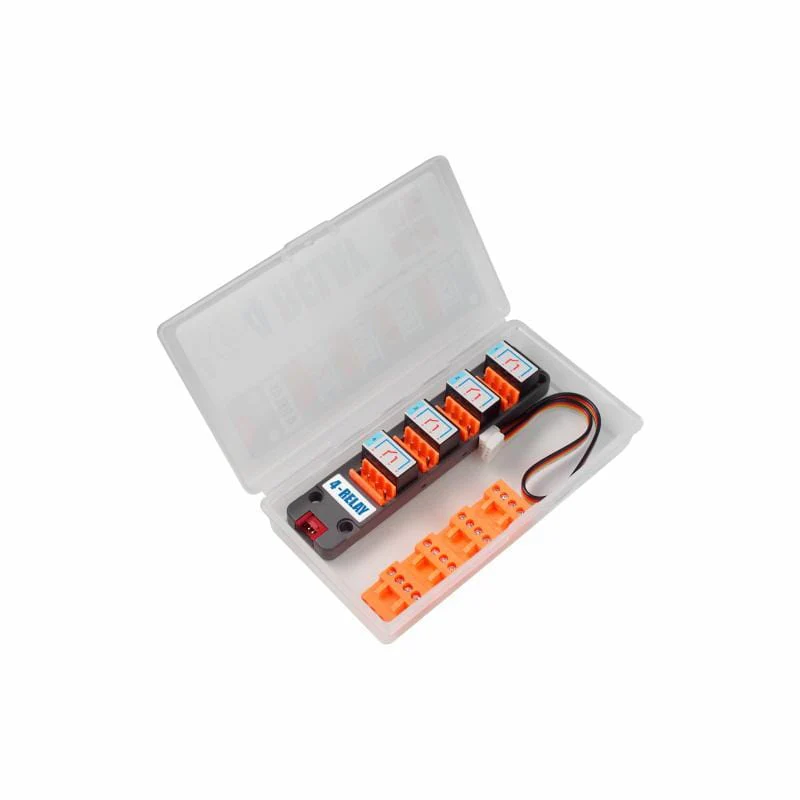

- 1x 4-Relay Unit
- 1x Grove Cable(20cm)
- 4x VH-3.96-4P Plug terminal
Specifications
| Resources | Parameter |
|---|---|
| Maximum input voltage | AC-250V/DC-28V |
| Rated current | 10A |
| Maximum instantaneous currenta | 16A |
| Communication | I2C(0x26) |
| Net Weight | 40g |
| Gross Weight | 84g |
| Product Size | 112*23*18mm |
| Package Size | 125*65*22mm |
Resources
$5.11
Original: $17.02
-70%M5Stack 4-Relay Unit—
$17.02
$5.11
Description
This unit is an integrated 4-way relay module which can be controlled by I2C protocol. The maximum voltage of each relay is AC-250V/DC-28V, the rated current is 10A and the current can hold up to 16A. Each relay can be controlled independently and each relay has a status (LED) indictor as well to show the state of the relay at any given time.
Features
- 4-way relay
- AC-250V/DC-28V/10A
- LED status indication
- I2C communication (0x26)
Package Contents
- 1x 4-Relay Unit
- 1x Grove Cable(20cm)
- 4x VH-3.96-4P Plug terminal
Specifications
| Resources | Parameter |
|---|---|
| Maximum input voltage | AC-250V/DC-28V |
| Rated current | 10A |
| Maximum instantaneous currenta | 16A |
| Communication | I2C(0x26) |
| Net Weight | 40g |
| Gross Weight | 84g |
| Product Size | 112*23*18mm |
| Package Size | 125*65*22mm |
