4-Channel Motor Control Shield for Arduino [Discontinued]

Build an awesome 4-wheel drive robot with your Arduino Uno using this 4-channel motor controller shield from Waveshare!

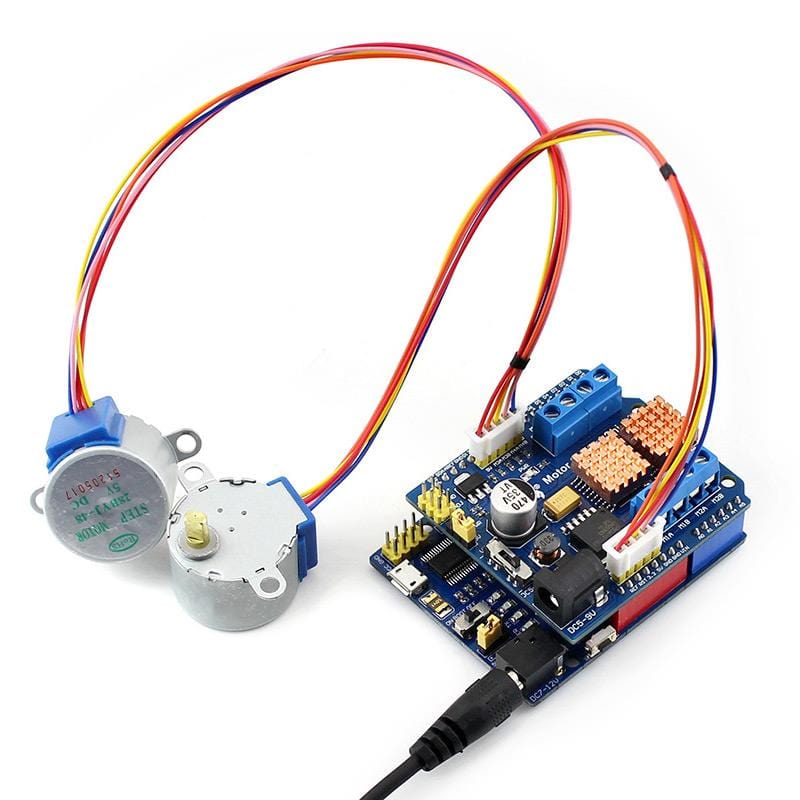

The shield is capable of driving 4 DC motors or 2 stepper motors at one time thanks to the dual L293D motor drivers pre-installed on the board.

The motor power supply is configurable via the onboard jumper selector - either choose 5V to run 4x 5V DC motors, or select the adjustable power supply option to choose between 1.25V-6.45V (via external 9V power supply).

Also onboard is a power selector switch and power LED, linear 5V regulator, terminal blocks for motors and handy stepper motor pinouts.

A full user wiki is available to show you how to use the shield. Note: Board will get warm during use.

Features

• Configurable motor power supply via onboard jumper
  • 5V motor power supply: drives four 5V DC motors at one time
  • Adjustable motor power supply: drives two 1.25V-6.45V DC motors at one time (9V external power supply required)
• Onboard dual H-bridge driver L293D x 2
  • Each L293D can drive 2 DC motors or 1 stepping motor at one time
  • 600mA output current (peak 1.2A) per single bridge
  • ESD protection

Package Contents

• 1x Motor Control Shield
• 2x Copper heat sinks

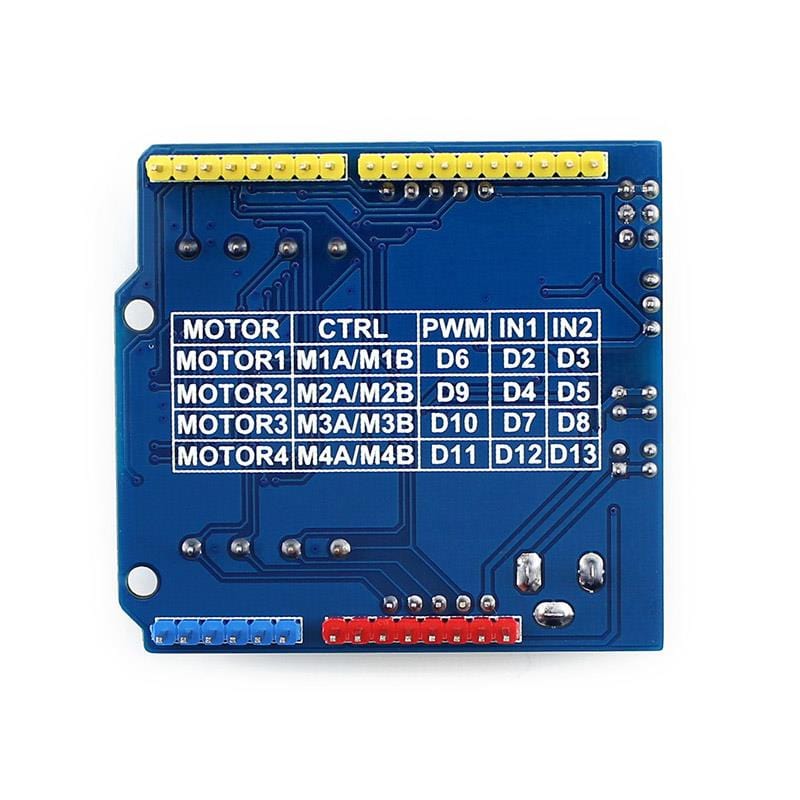

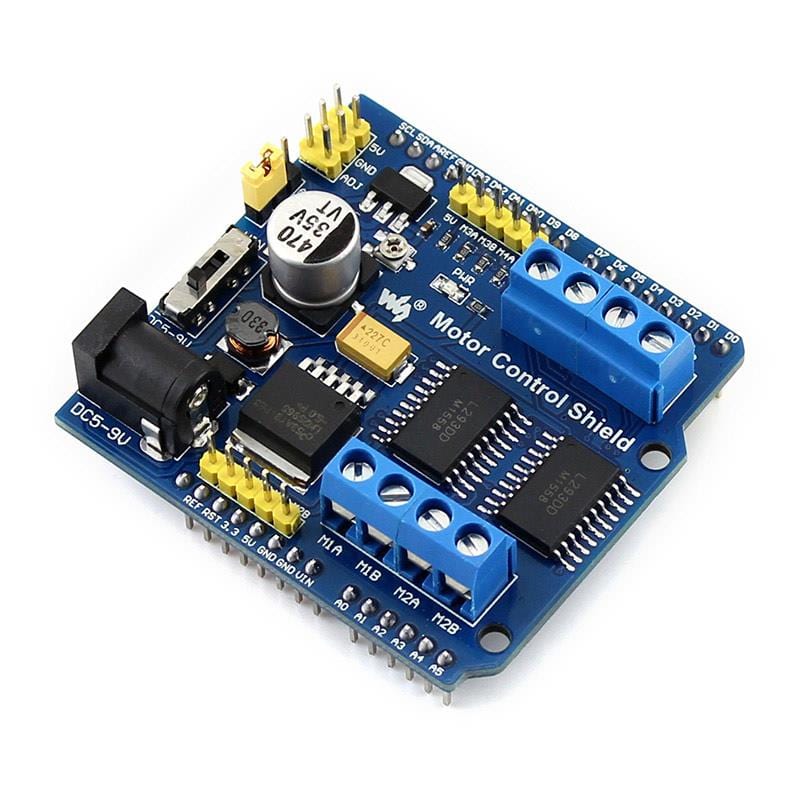

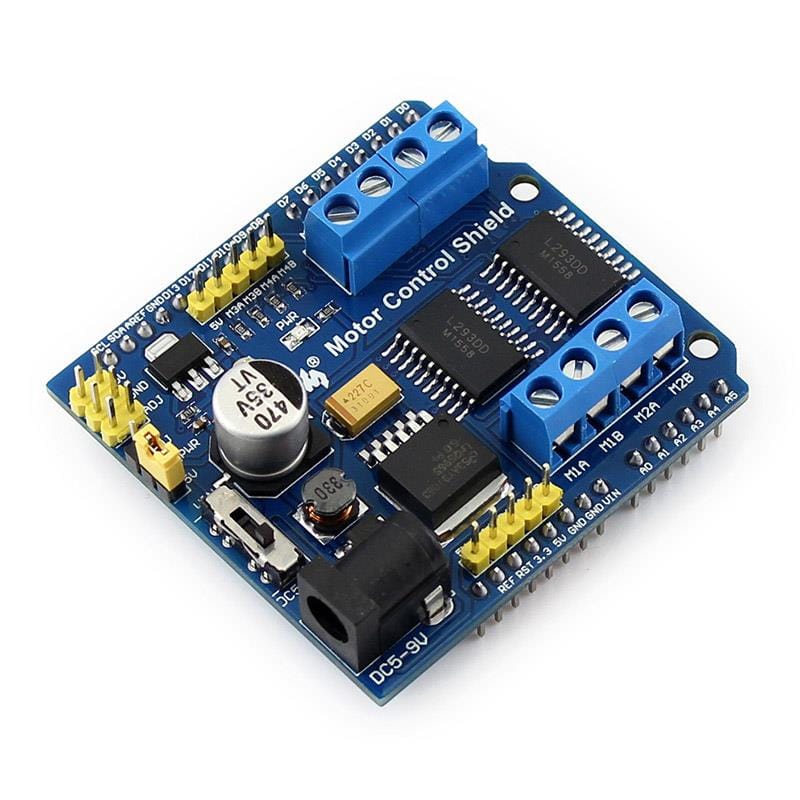

What's onboard?

1) External power supply jack
2) Power input/output pin header
3) Stepping motor interface
4) DC motor interface
5) M_PWR configuration : connects M_PWR (motor power) to 5V or ADJ
6) Power selection switch
7) Power indicator
8) AMS1117-ADJ : onboard linear regulator with adjustable output
9) Adjustable potentiometer: for adjusting the output voltage of ADJ (adjustable motor power)
10) L293D: dual H-bridge driver
11) LM2596-5.0: onboard linear switching regulator with 5V output

Resources

• Product Wiki
