3.7" ePaper HAT (G) for Raspberry Pi - Red/Yellow/Black/White

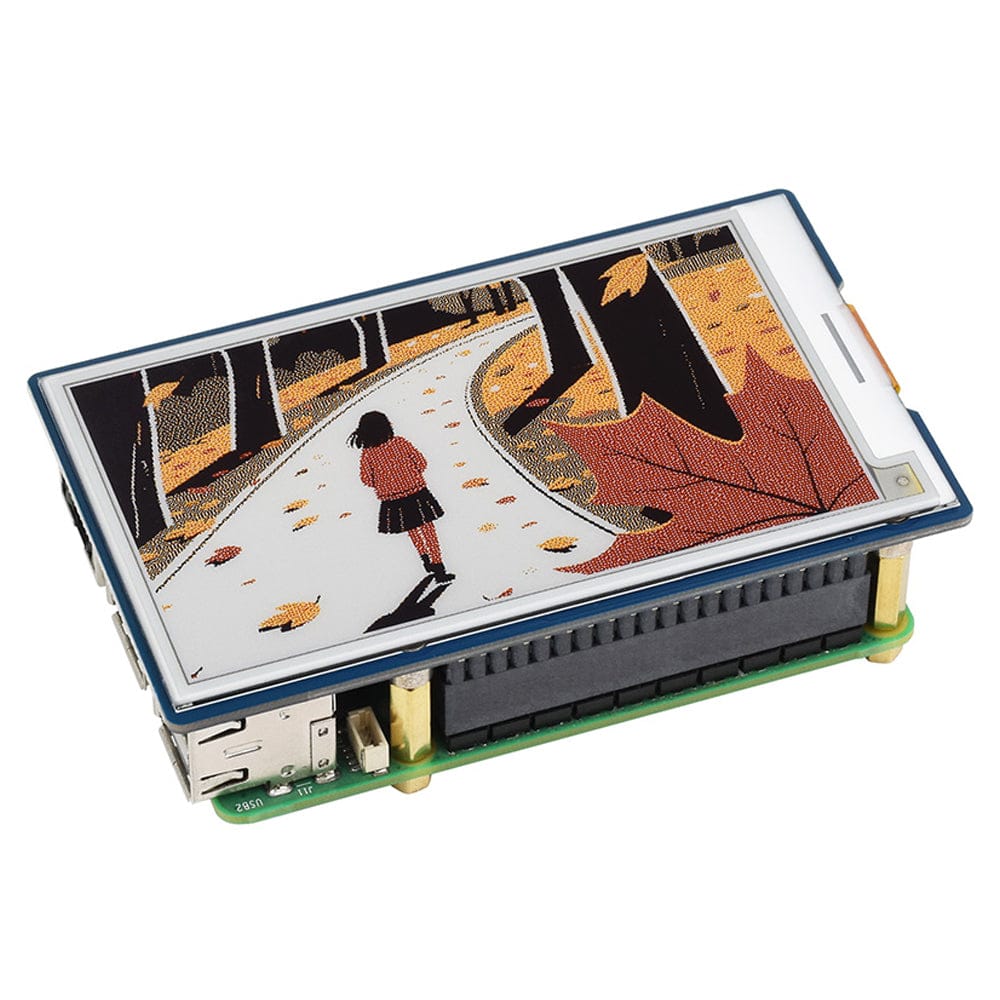

This 3.7" ePaper HAT makes the most of the Raspberry Pi footprint to bring you as much ePaper real-estate for your project as possible, and can display red, yellow, black and white!

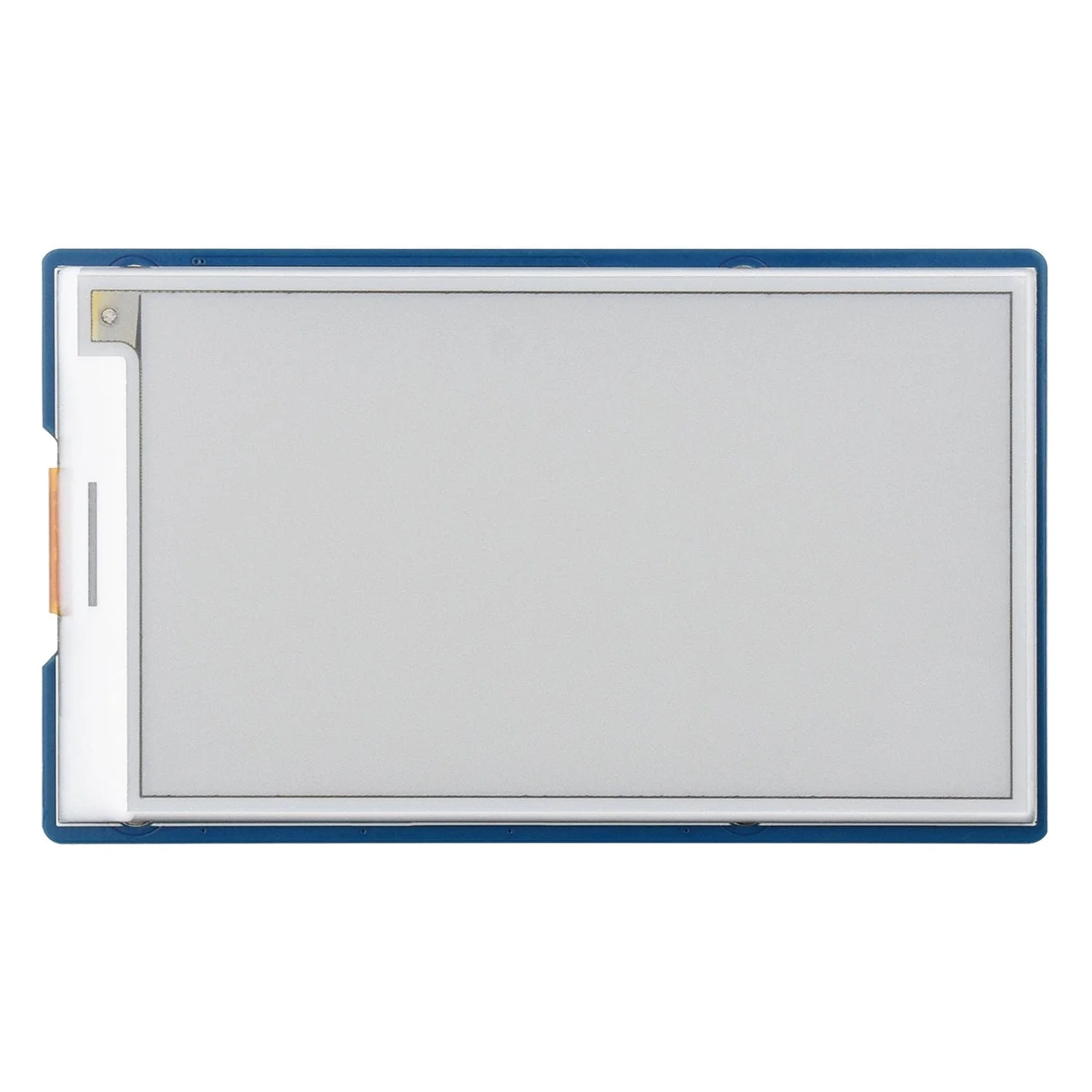

The HAT features a 3.7" ePaper display with the panel measuring ~93mm x 53mm, sitting on a full-size PCB with a 40-pin GPIO connector on the rear. The display offers 170° viewing angles, a 416x240 resolution, and can show four colours - red, yellow, black and white.
Refresh time is around 20 seconds for a full refresh, and 12 seconds for a 'fast refresh'. As with all ePaper displays, it uses very little power - <0.01uA (almost nothing) when in standby, and around <30mW when refreshing.

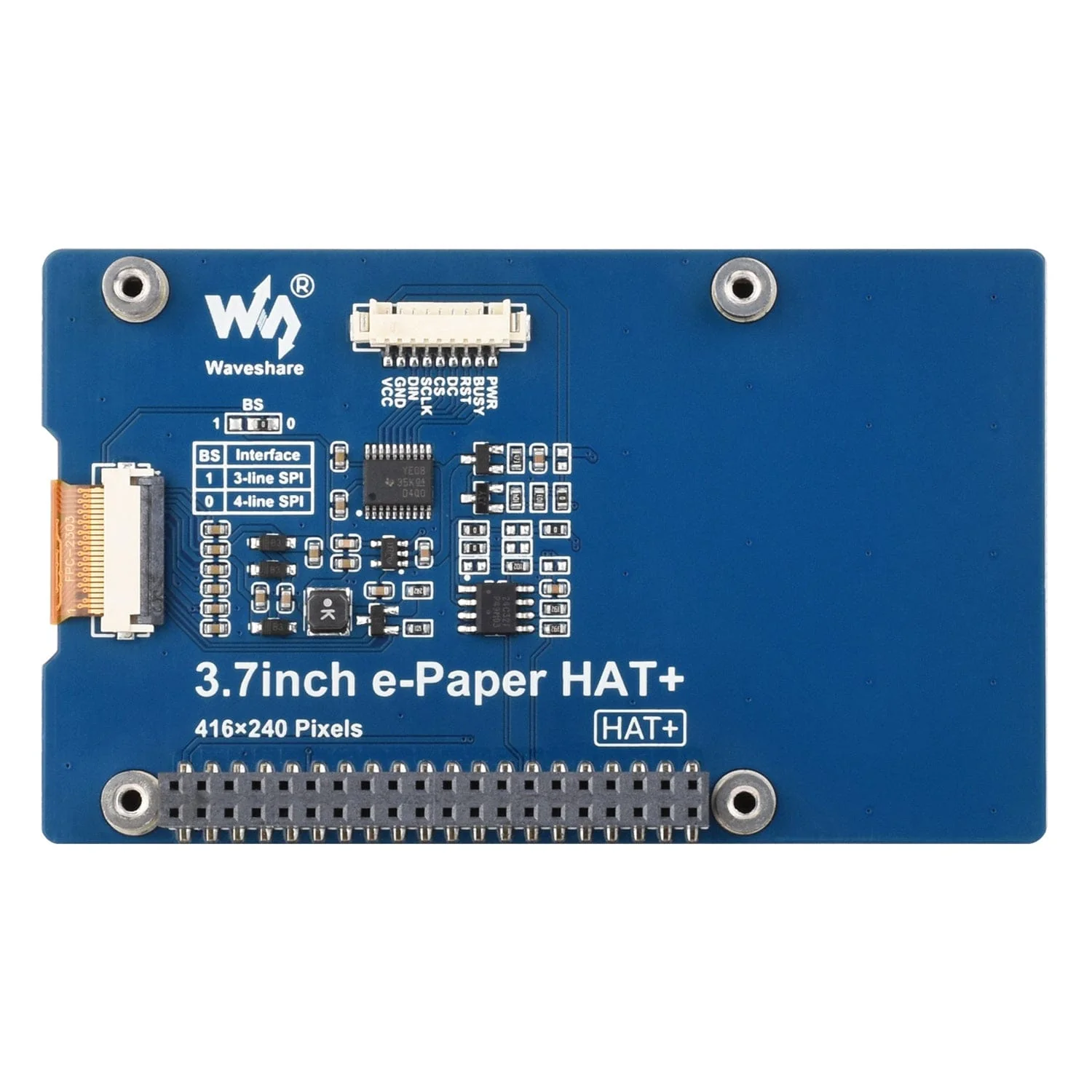

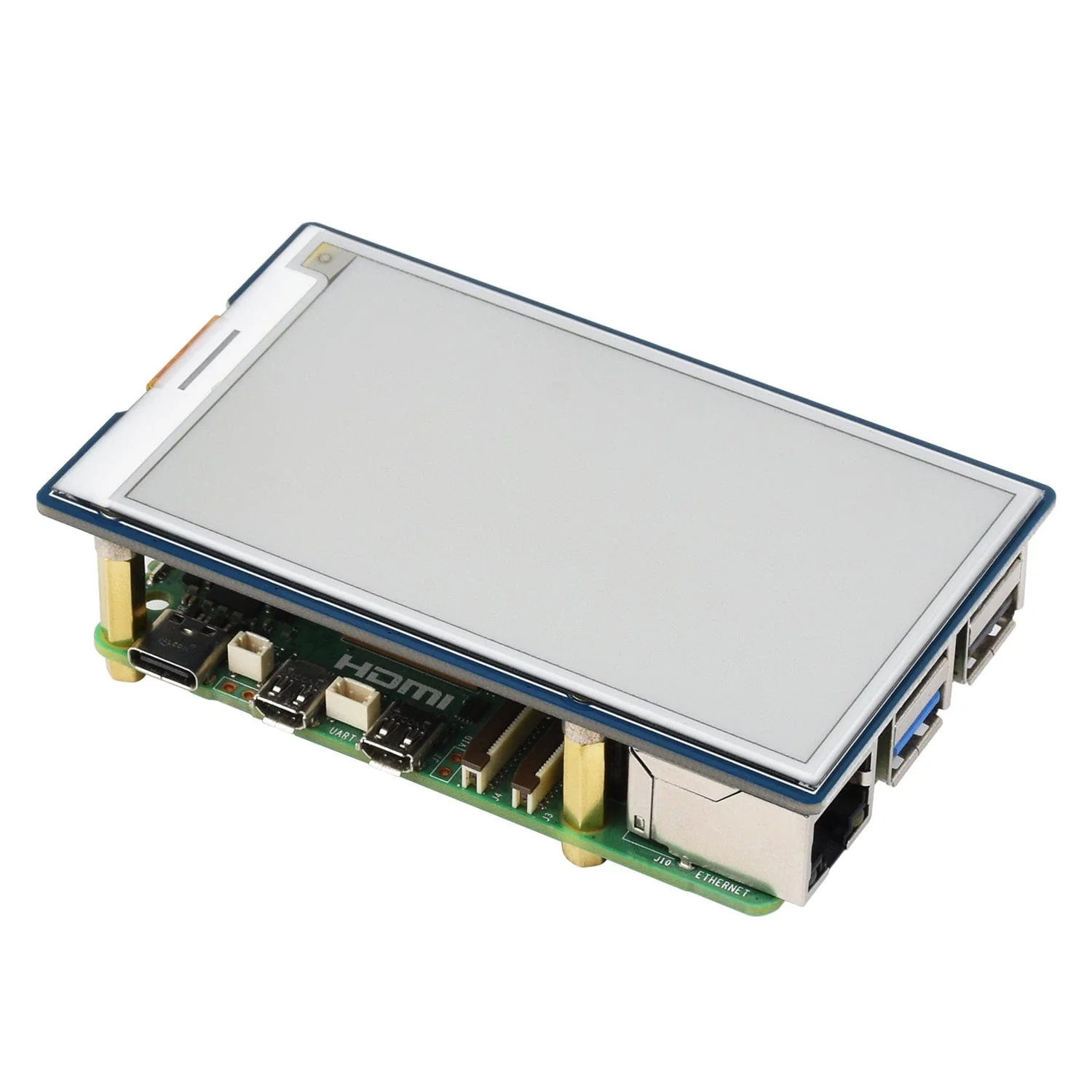

The display is controlled via SPI from the GPIO pins, however you can also use this with 3.3V or 5V dev boards and microcontrollers via the MX1.25 9-pin connector, and a cable assembly is included to help you do this. Waveshare also include standoffs to secure the HAT to your Raspberry Pi.
The online wiki provides sample/demo code in both C and Python for the Raspberry Pi, as well as Arduino/ESP/STM32 examples for other dev boards. Spare raw ePaper panels are available.
Raspberry Pi not included
Features
- 3.7" ePaper HAT for Raspberry Pi

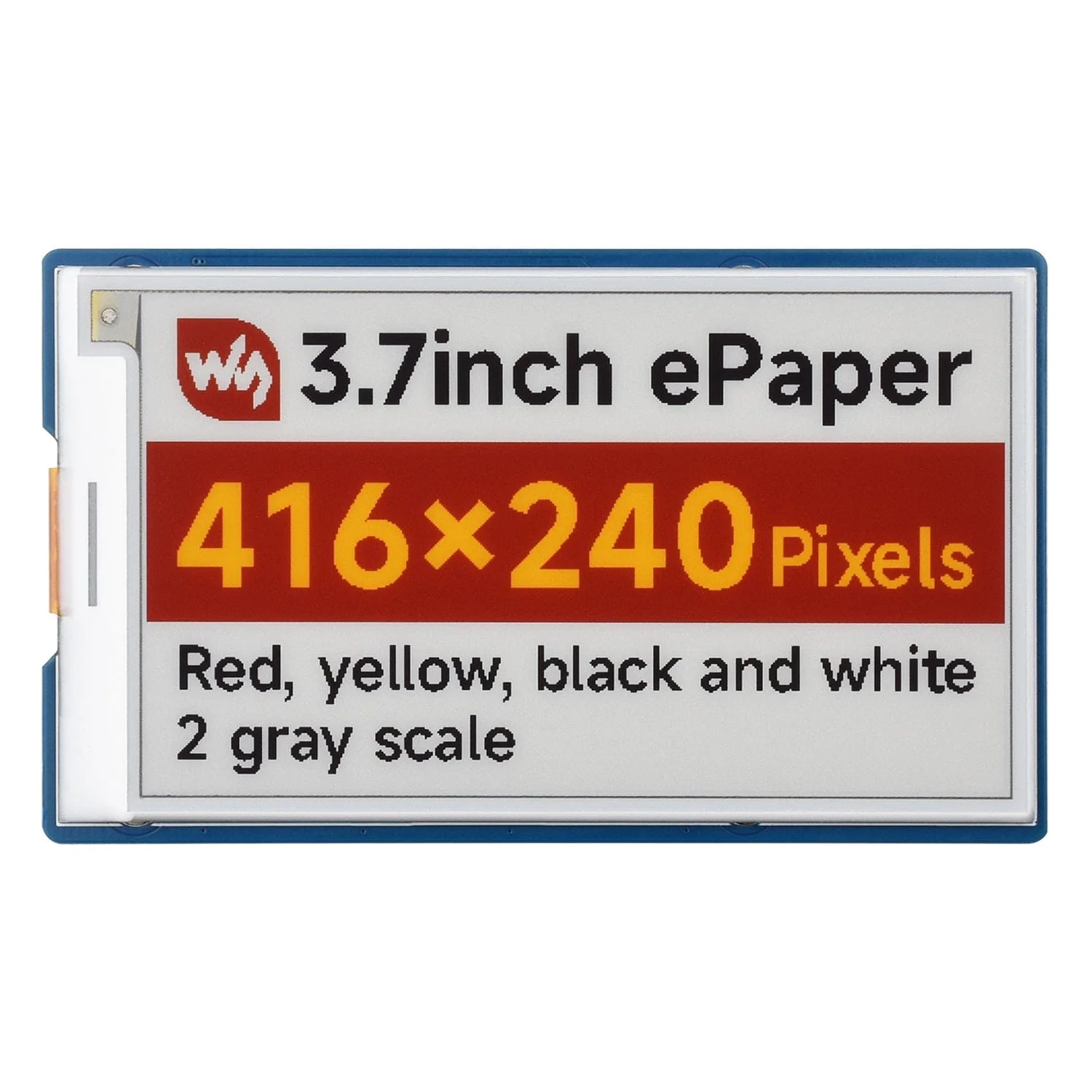

- Four colour: Red, yellow, black and white
- Panel size: ~93mm x 53mm
- 40-pin GPIO connector
- 416x240 resolution
- 170° viewing angle
- Refresh
- Full refresh time: around 20 seconds
- Fast refresh time: 12 seconds
- Power
- Standby current: <0.01uA (almost nothing)
- Refresh power: around <30mW
- SPI control via GPIO pins

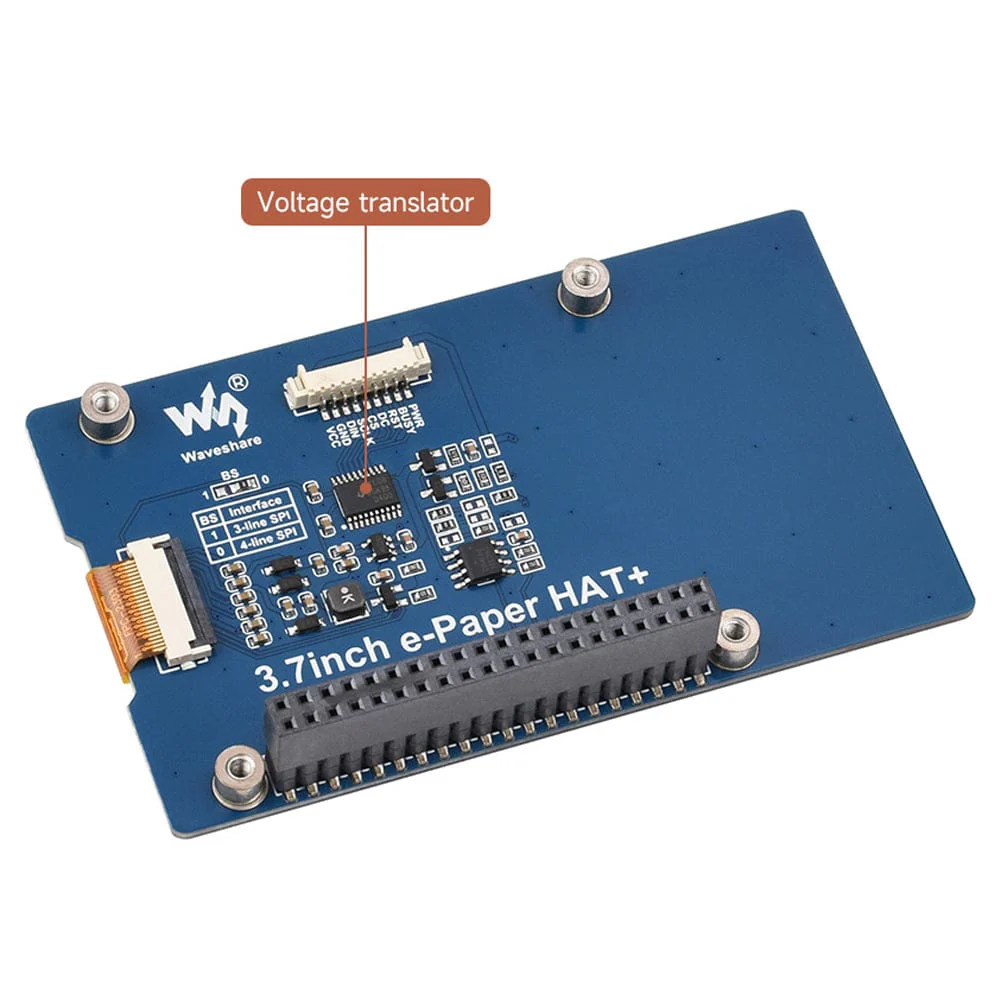

- Compatible with 3.3V or 5V dev boards (using MX1.25 9-pin connector)
Specifications
| Operating voltage | Raw display: 3.3V |
| Operating voltage | with driver board: 3.3V/5V |
| Display colour | Red/Yellow/Black/White |
| Interface | 3-wire SPI, 4-wire SPI |
| Grey scale | 2 |
| Outline dimensions | Raw display: 92.99 × 53.00 × 1.00 (mm) |

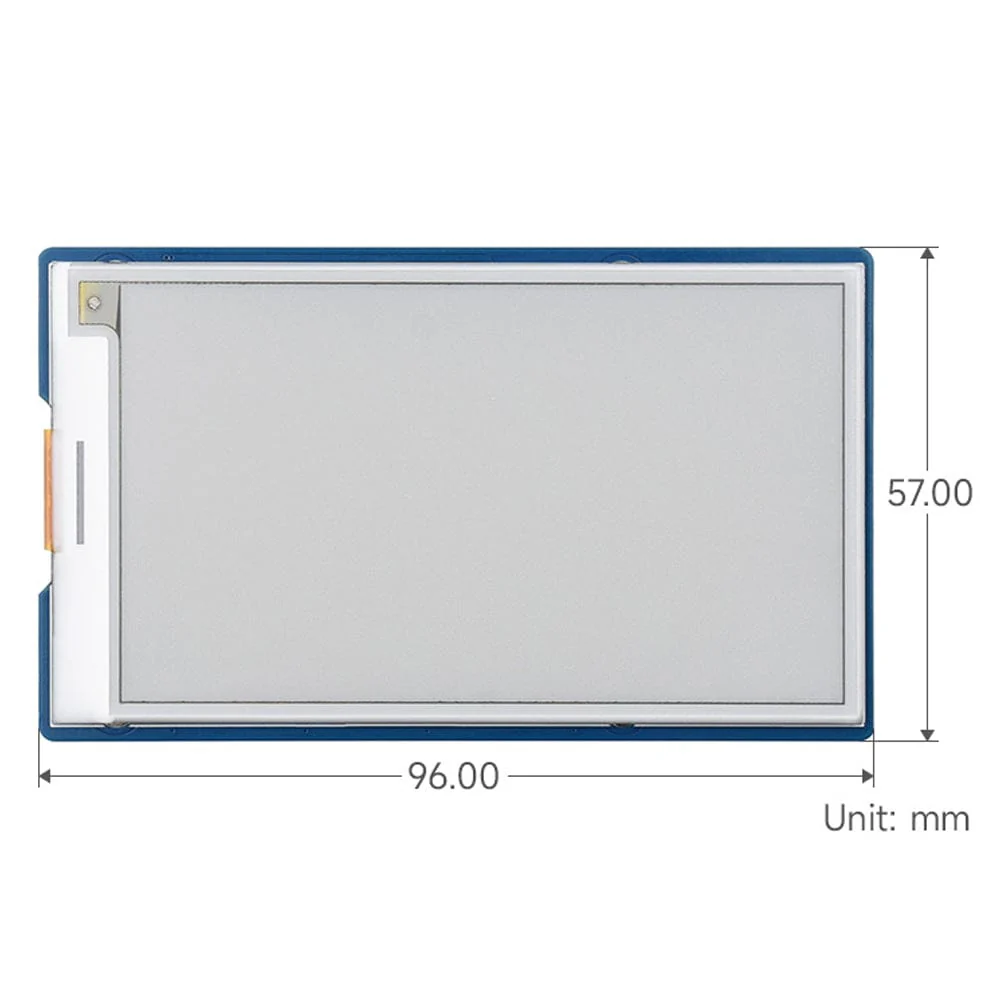

| Outline dimensions | with driver board: 96.00 × 57.00 (mm) |
| Fast refresh time | 12s |
| Full refresh time | 20s |
| Display size | 81.54 × 47.04 (mm) |
| Refresh power | <30mW |
| Dot pitch | 0.196 × 0.196 (mm) |
| Standby current | <0.01uA (almost none) |
| Resolution | 416 × 240 pixels |
| Viewing angle | >170° |
Resources
Demo code, schematics, datasheets and more are available over on the product wiki:
- Product Wiki
Pinout
| VCC | Power (3.3V / 5V input) |
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output pin |
| PWR | Power on/off control |

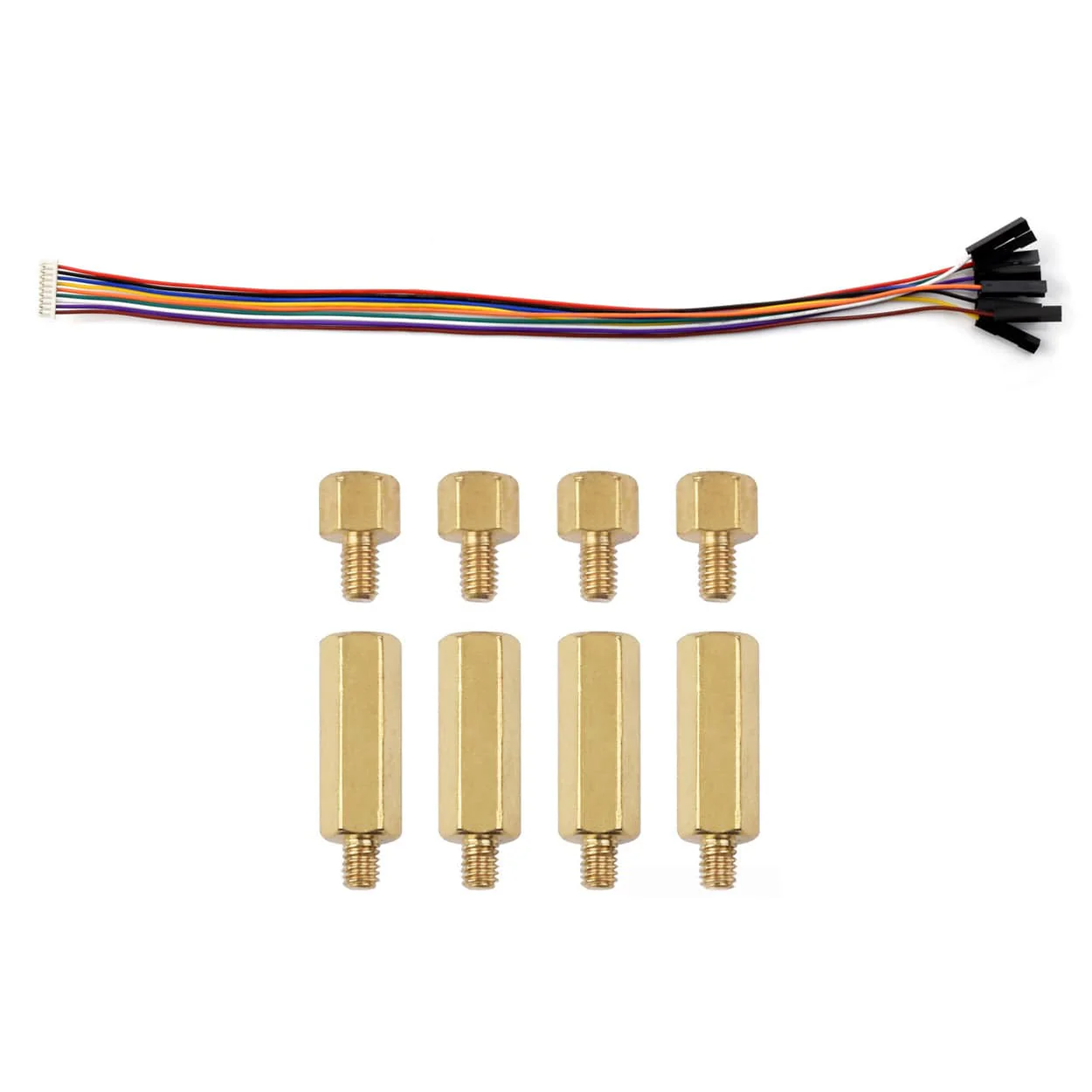

Package Contents
- 1x 3.7" ePaper HAT (G) for Raspberry Pi
- 1x MX1.25 9-pin cable assembly
- 1x Fixings and standoffs pack
Raspberry Pi not included
