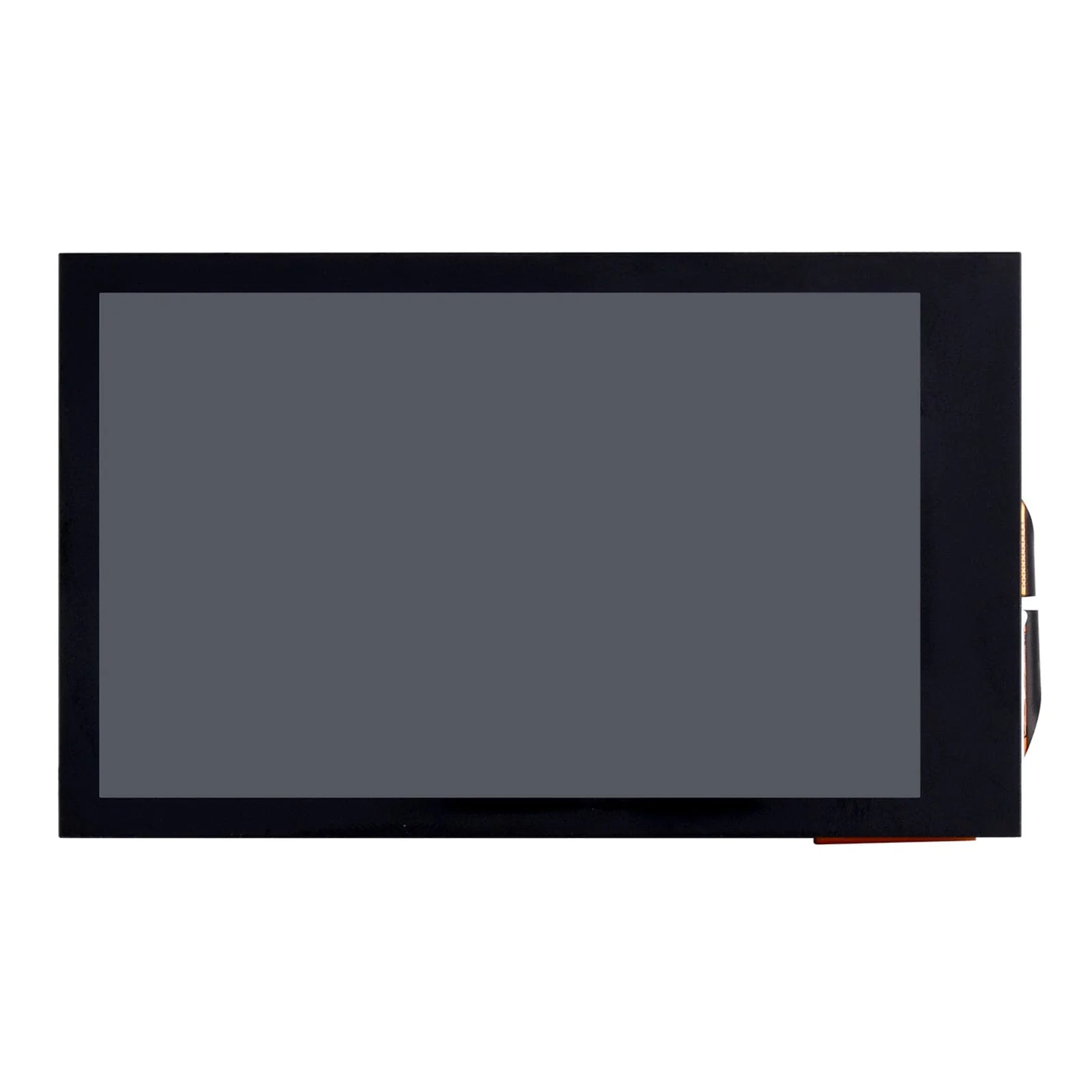

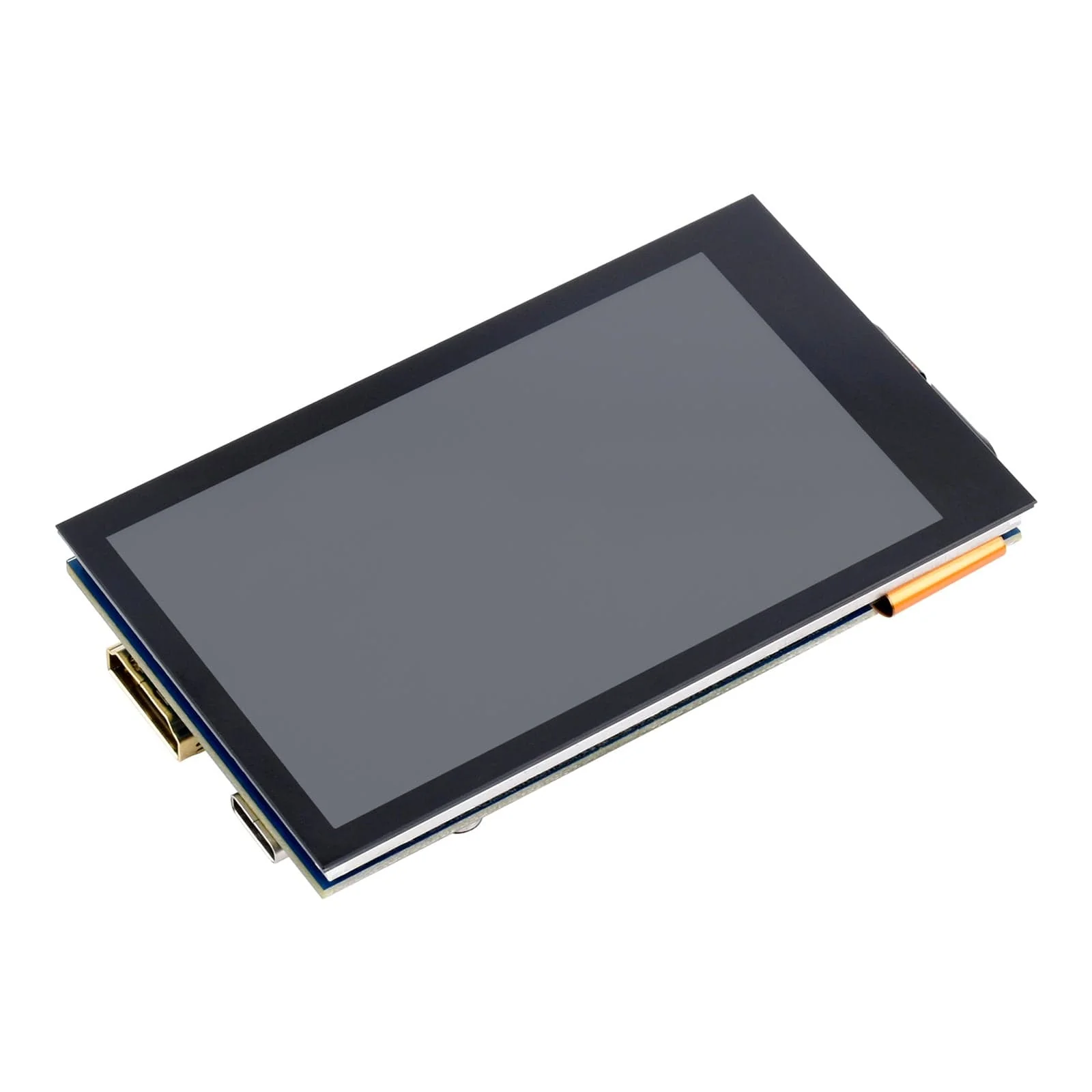

3.5" IPS Capacitive Touch LCD Display (480x800)

WAVEThis mini 3.5" IPS display from Waveshare packs a good list of features despite it being so compact, and thanks to the HDMI port, it's compatible with the Raspberry Pi (all versions) and most other HDMI-compatible development boards - including your Windows PC!

The display offers 170° viewing angles and a 480x800 resolution, with 5-point capacitive touch. Power and provide touch data via the USB-C port, use the buttons on the side of the display to adjust the brightness or turn off the backlight completely.

The display comes complete with a flat HDMI cable, USB-C cable and Micro-HDMI adapter.

Features

• 3.5" IPS screen
• 480x800 hardware resolution
• 5-point capacitive touch
• HDMI input
• 170° viewing angles
• Supports Raspberry Pi OS / Ubuntu and Kali (when used with Raspberry Pi)
• Supports Windows 11 / 10 / 8.1 / 8 / 7
• Backlight control (adjustable brightness inc. on/off)
• Online wiki including setup instructions

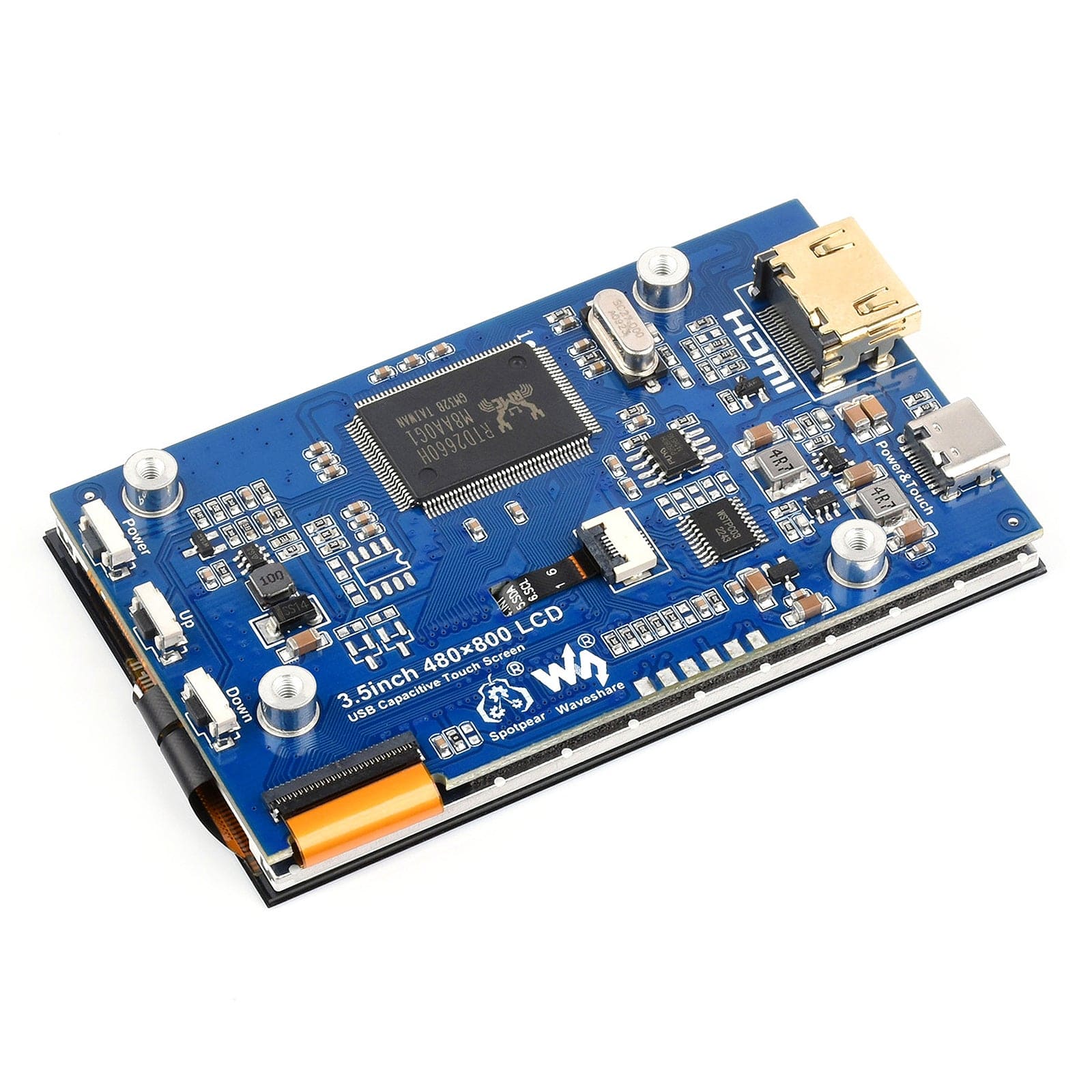

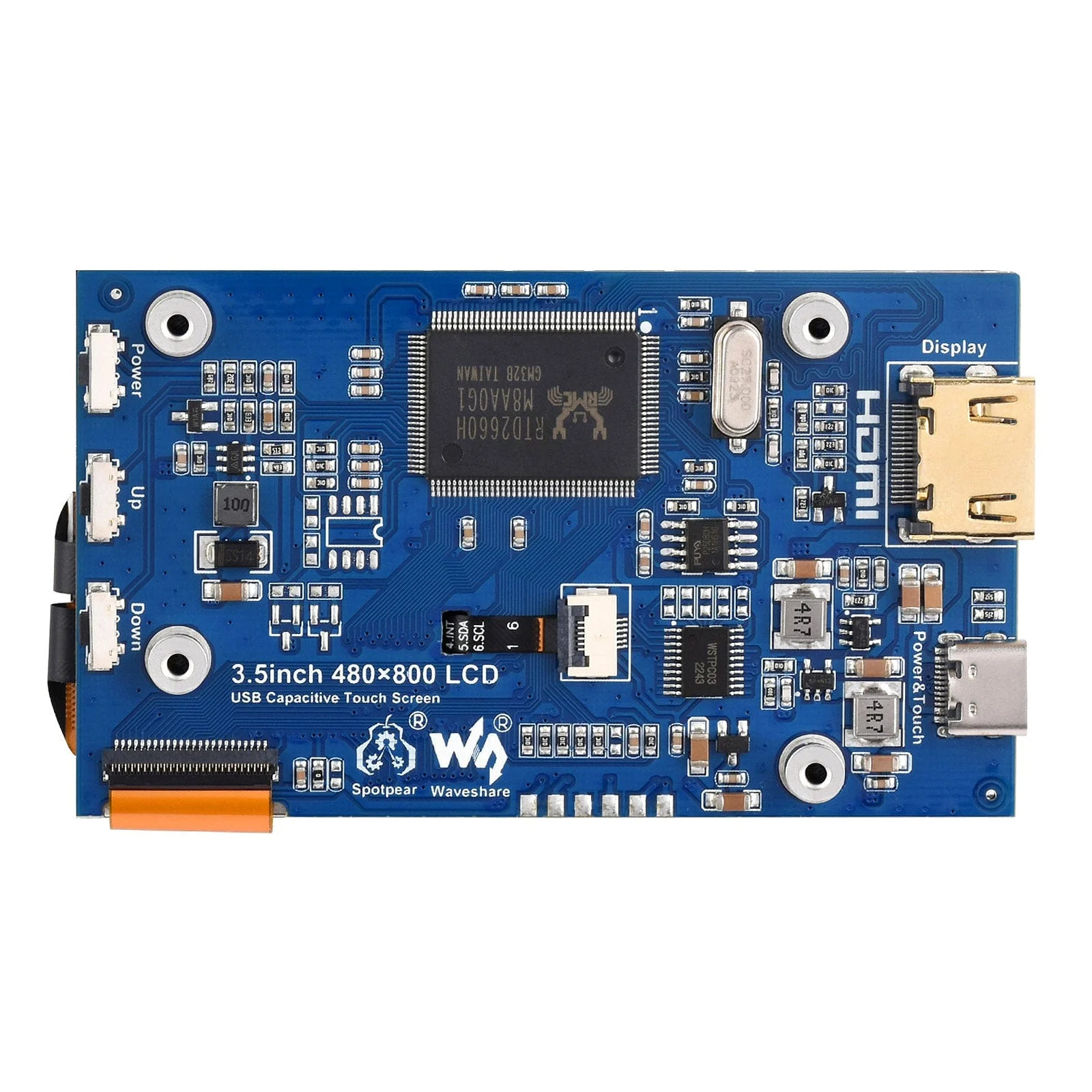

What's on Board

Specifications

Item	Description	Unit
Model	3.5" 480 × 800 LCD	/
Size	3.5	Inch
Viewing Angle	170	Deg
Resolution	480 × 800	Pixels

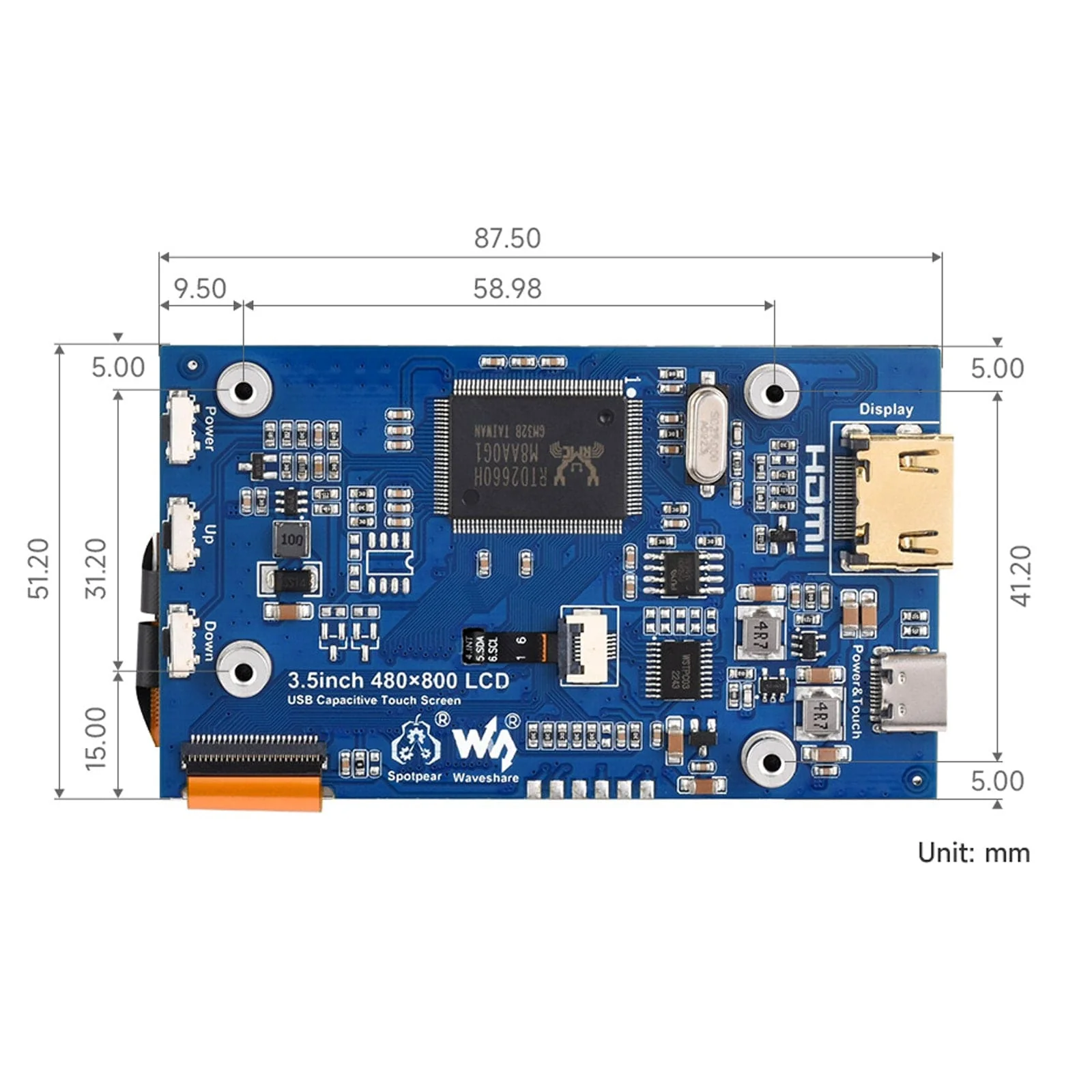

Outline Dimensions	88.87 (H) × 52.56 (V) × 7.15 (D)	mm
Display Area	75.80 (H) × 45.36 (V)	mm
Pixel Pitch	0.18 (V) × 0.18 (H)	mm
Colour Gamut	0.7	NTSC
Maximum Brightness	300	cd/m²
Contrast	41.66736111	/
Backlight Adjustment	Button Dimming	/
Refresh Rate	60	Hz
Display Port	Standard HDMI Port	/
Touch Port	5V USB Touch	/
Power Consumption	2	Watt
Weight	55	g

Resources

• Product Wiki

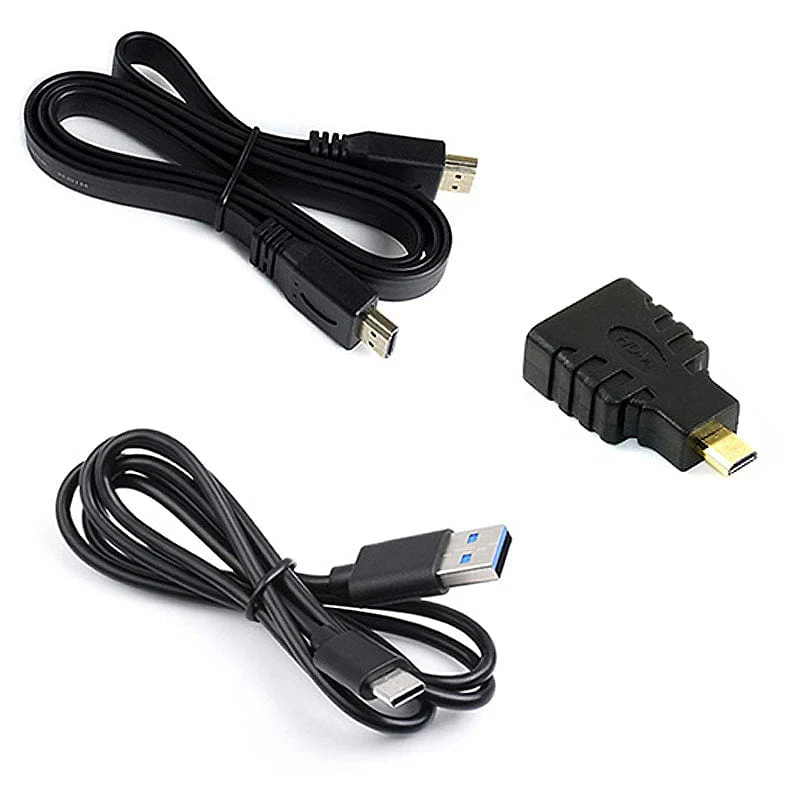

Package Contents

• 1x 3.5" 480x800 LCD
• 1x HDMI flat cable ~1m
• 1x USB-C cable ~1m
• 1x HDMI to Micro HDMI adapter
