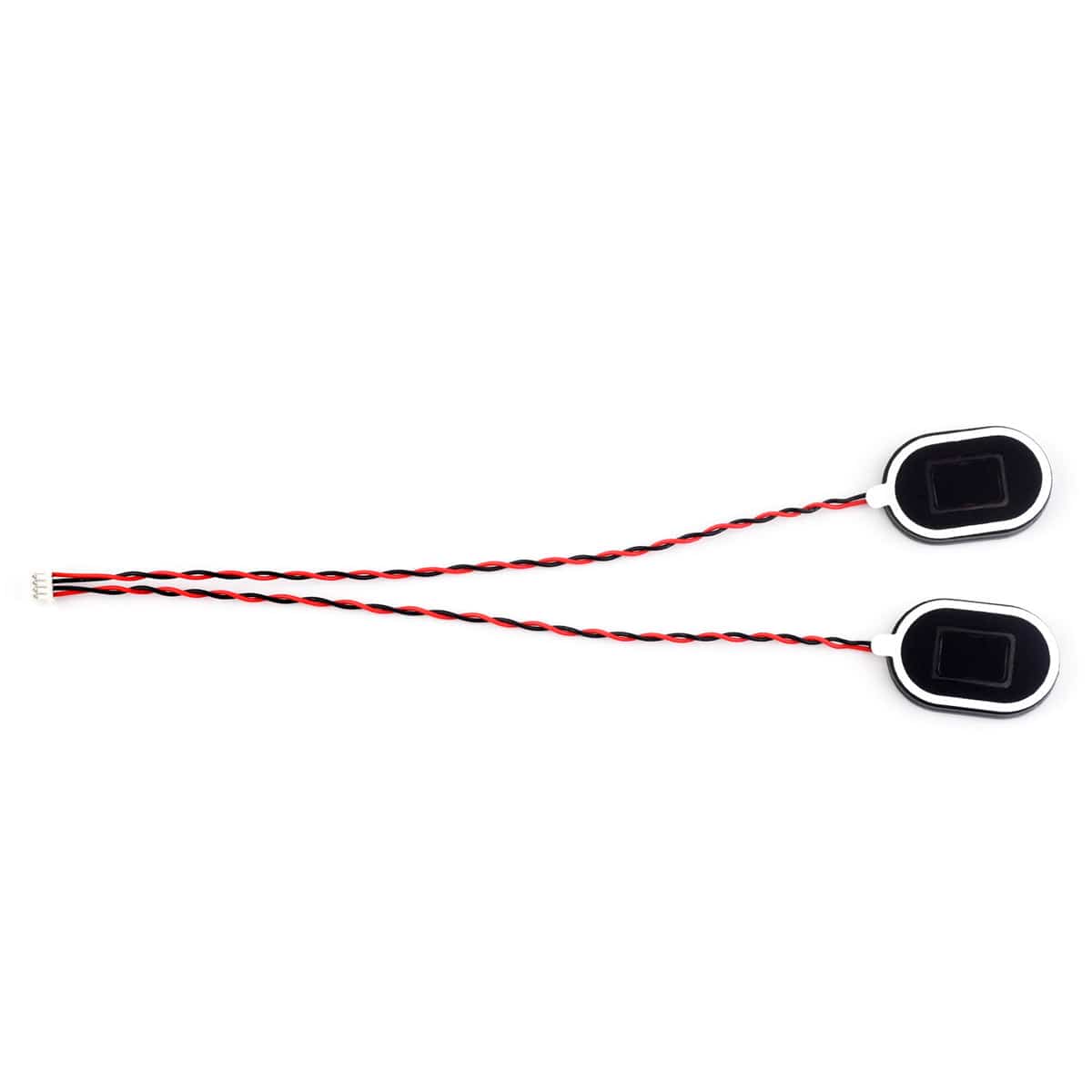

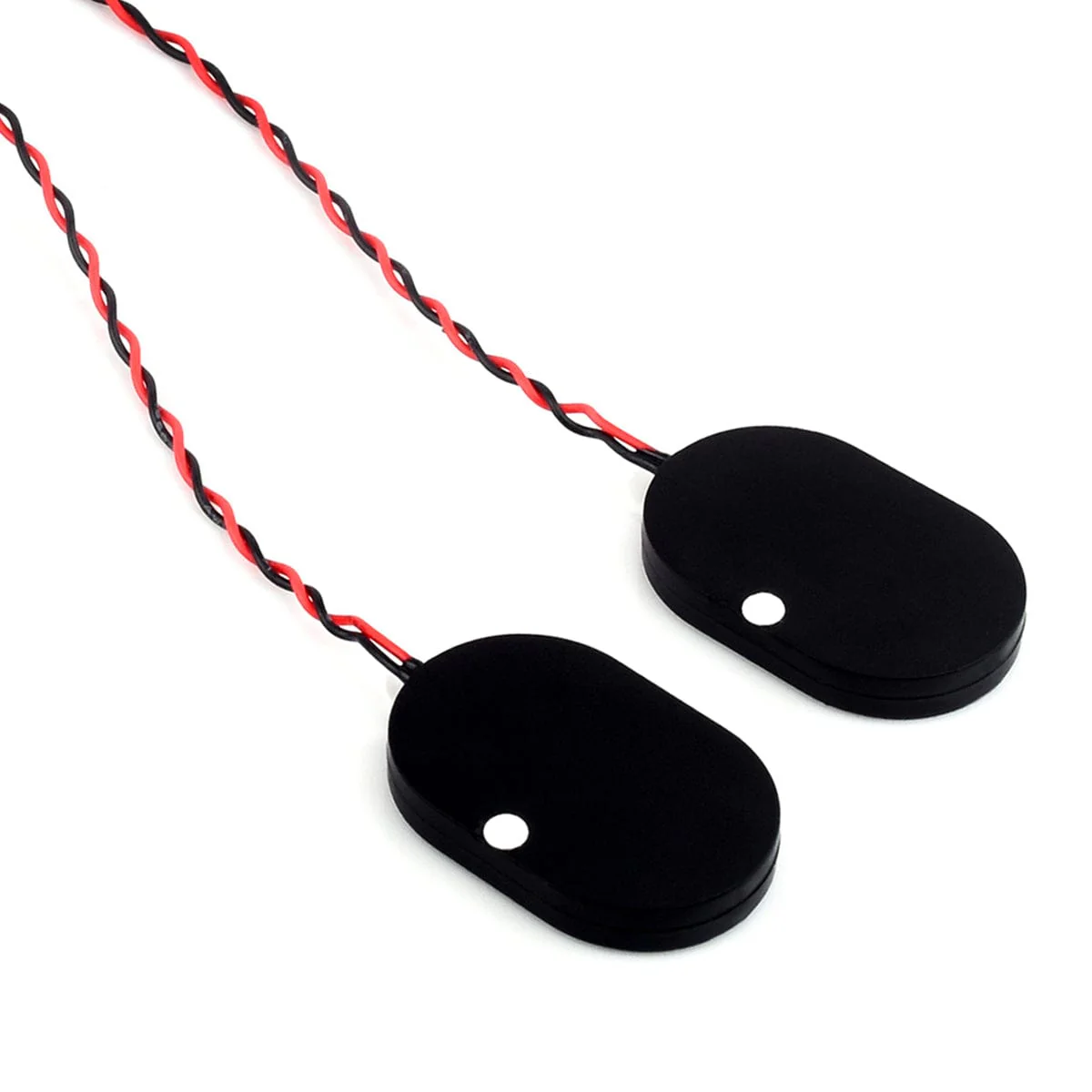

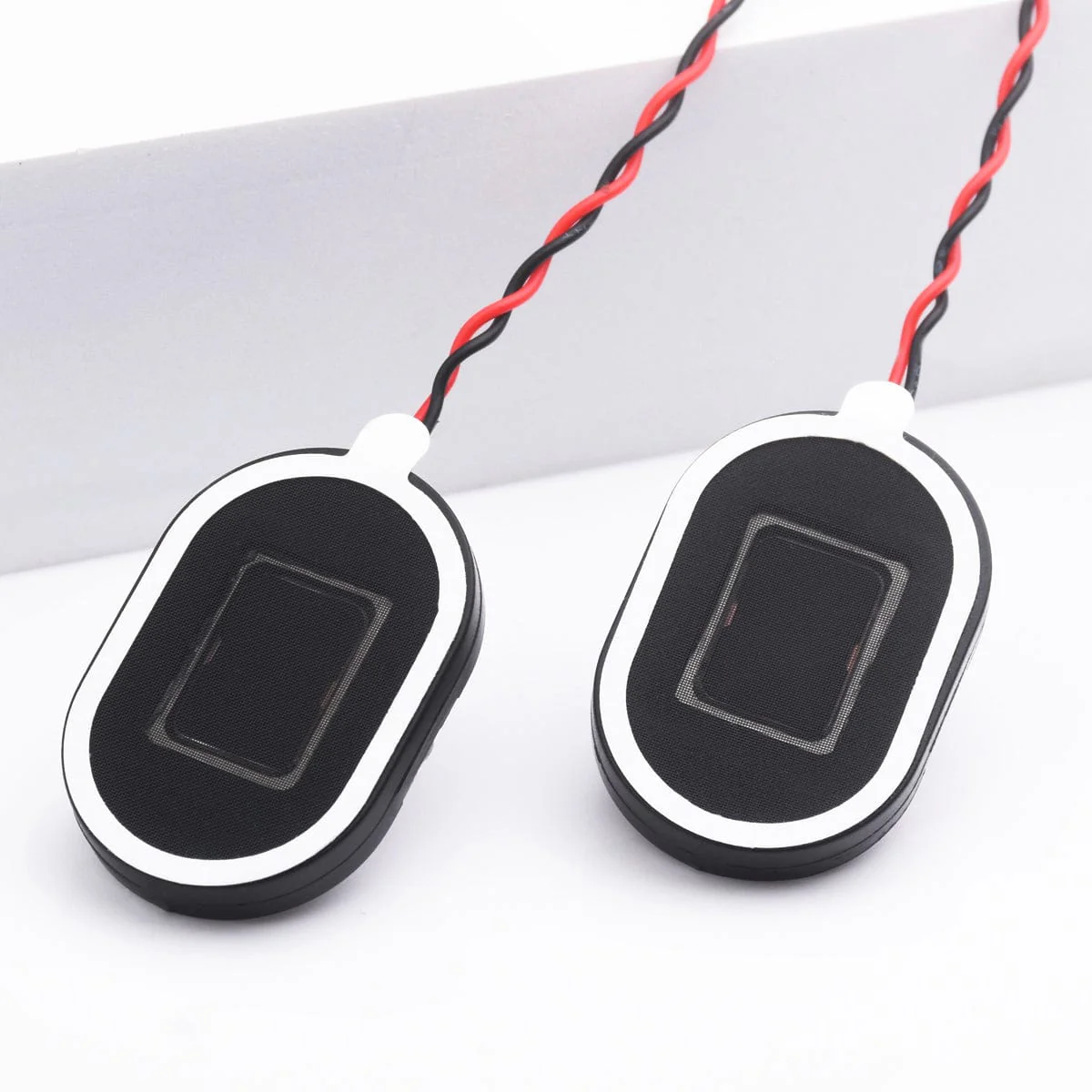

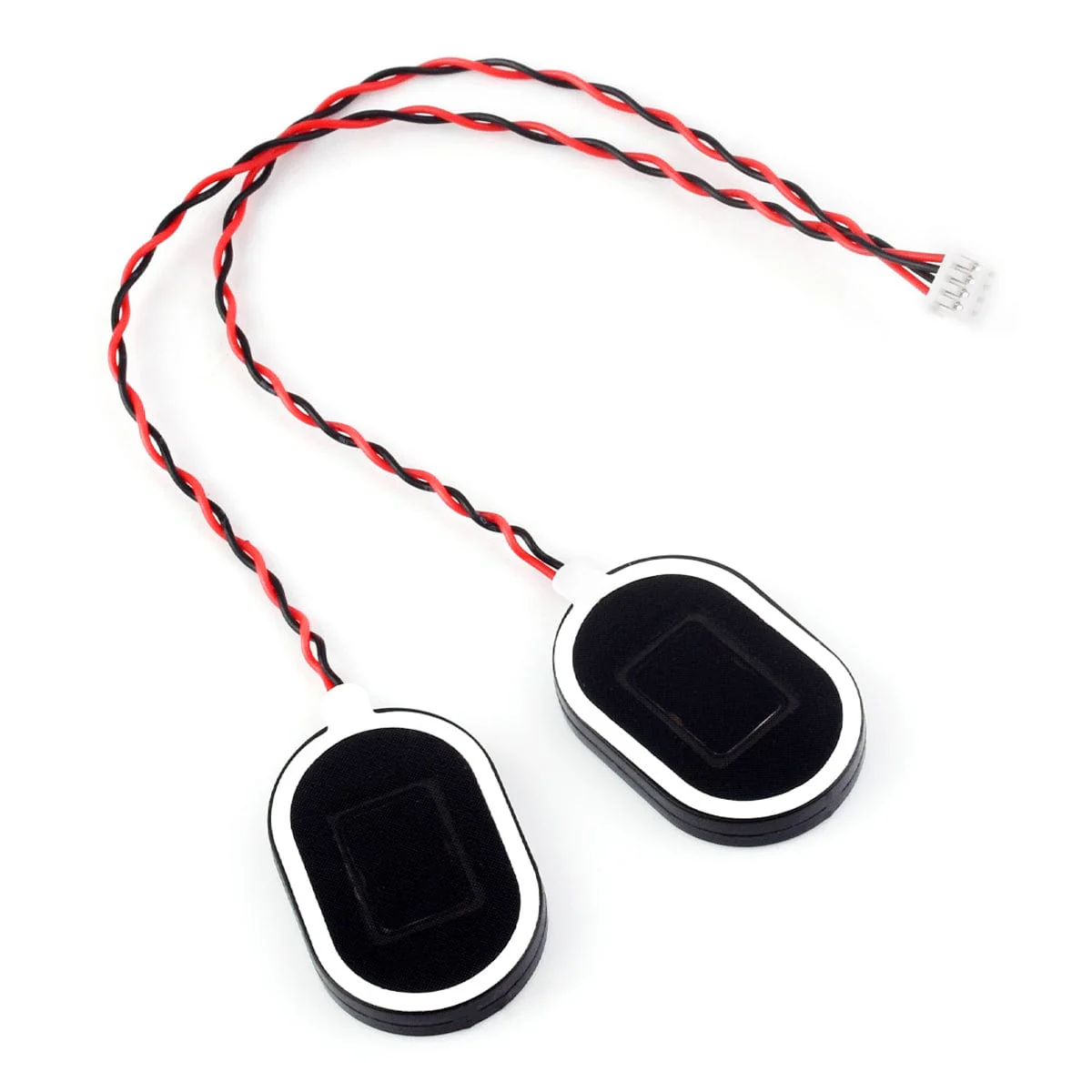

20x30mm Cavity Speakers with PH1.25 Connector (8Ω 2W)

This speaker set has an impedance of 8 ohms and a power rating of 2 watts, which provides clear and great-sounding audio. It is easy to connect with different development boards that have a PH1.25 4-pin speaker connector, making it perfect for DIY electronics, educational projects, and small audio systems.

Note: Please make sure your board has a speaker connector on it that will fit a 4-pin PH1.25 cable before purchasing (See further down the page for an example).

Specifications

Frequency Band	0 ~ 20KHz
Impedance	8 ± 15%Ω
Power	2W
Operating Temperature	-20 ~ 55℃
Wire Specifications	4-pin PH1.25 connector, approx. 150mm cable length

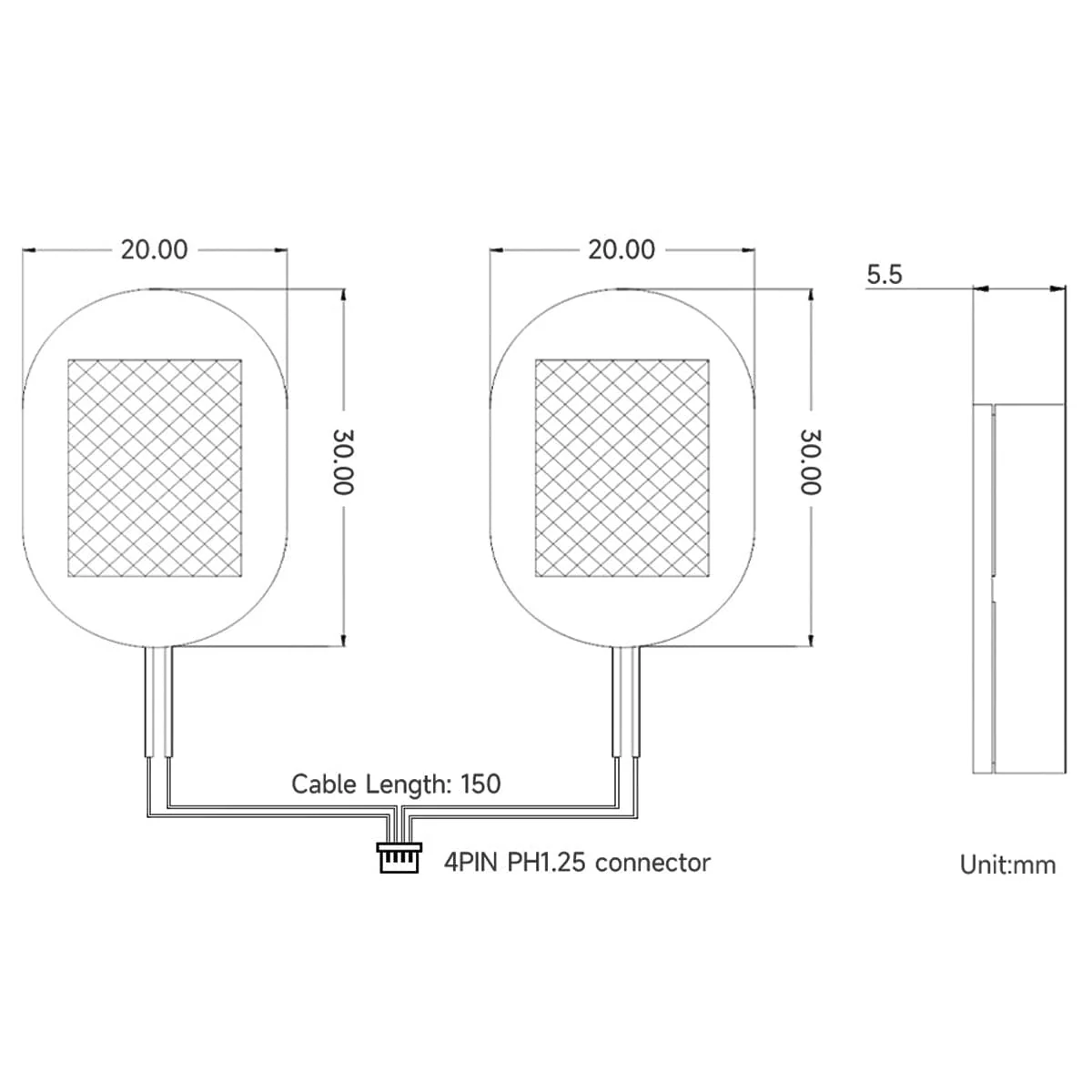

Size	20 x 30 x 5.5mm

Connection Example - HDMI Display

Package Contents

• 1x 8Ω 2W Speaker set
