12mm Domed Push Button (6 Pack) [Discontinued]

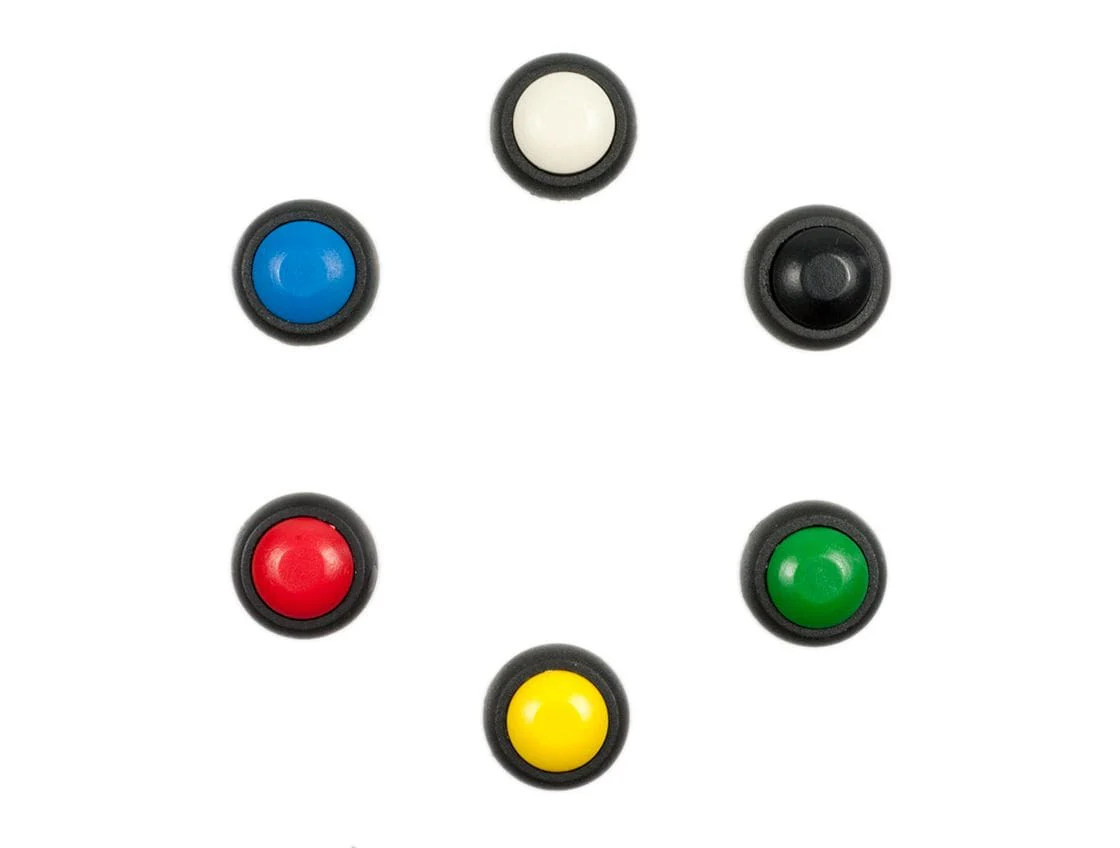

This is a pack of 6 beautifully colourful momentary push buttons! The buttons are 12mm domed, which makes them great for spaceship control panels. Each pack contains a set of six different colours, including red, yellow, green, blue, black and white, which makes them perfect for distinguishing different functions from one another.
The switches are momentary, normally open. This means that the two switch contacts are not connected normally. When you push the button they will temporarily connect until the button is released.
Features
- 6 Pack - 6 Colours - Yellow, Red, Blue, Black, White & Green
- 12mm Diameter Dome Buttons
- Long life, 200,000+ cycles
Specifications
- Diameter: 12mm
- Degree of protection: IP67
- Dielectric withstanding voltage: 2000VAC for 1min
- Contact resistance: 5M?(maximum)
- Life: 200,000 cycles+
- Soldering requirement: 260°C for 5 sec
- Operating temperature: -25°C - +65°C
- Product number: Seeed 110990055
