10 Segment Light Bar Graph LED Display - Yellow

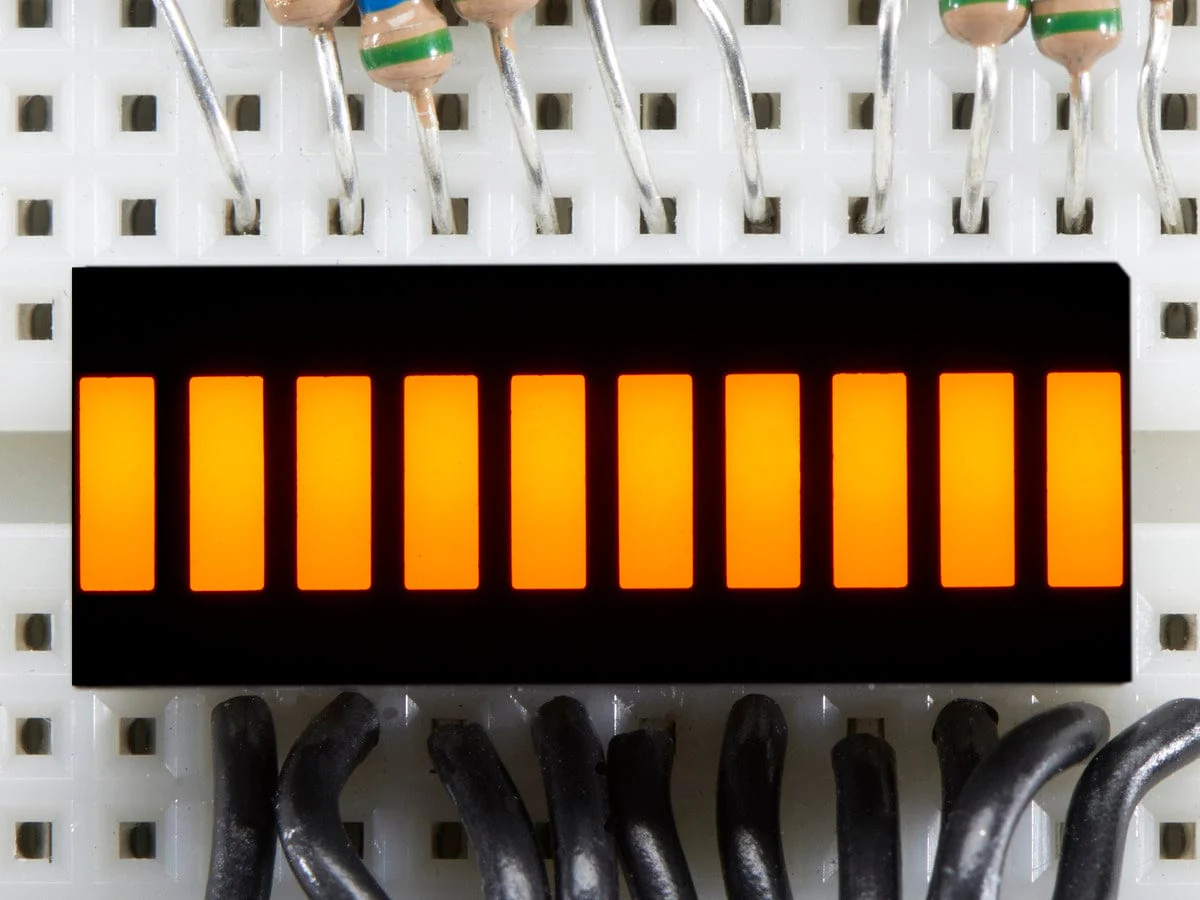

Make a small linear display with a glowing bright yellow color using this elegant LED bargraph. The color on this bargraph is similar to our amber display but just a bit brighter and with a bit more yellow mixed in.

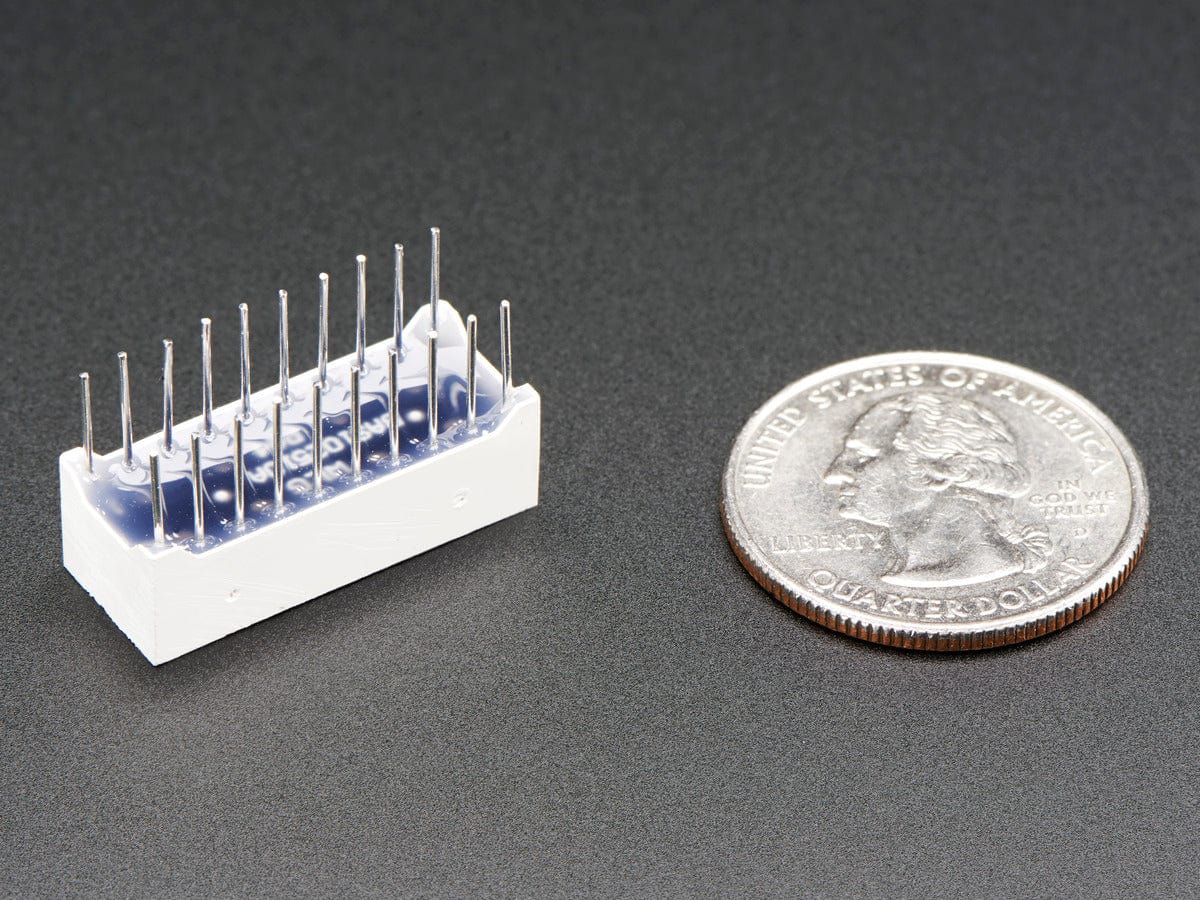

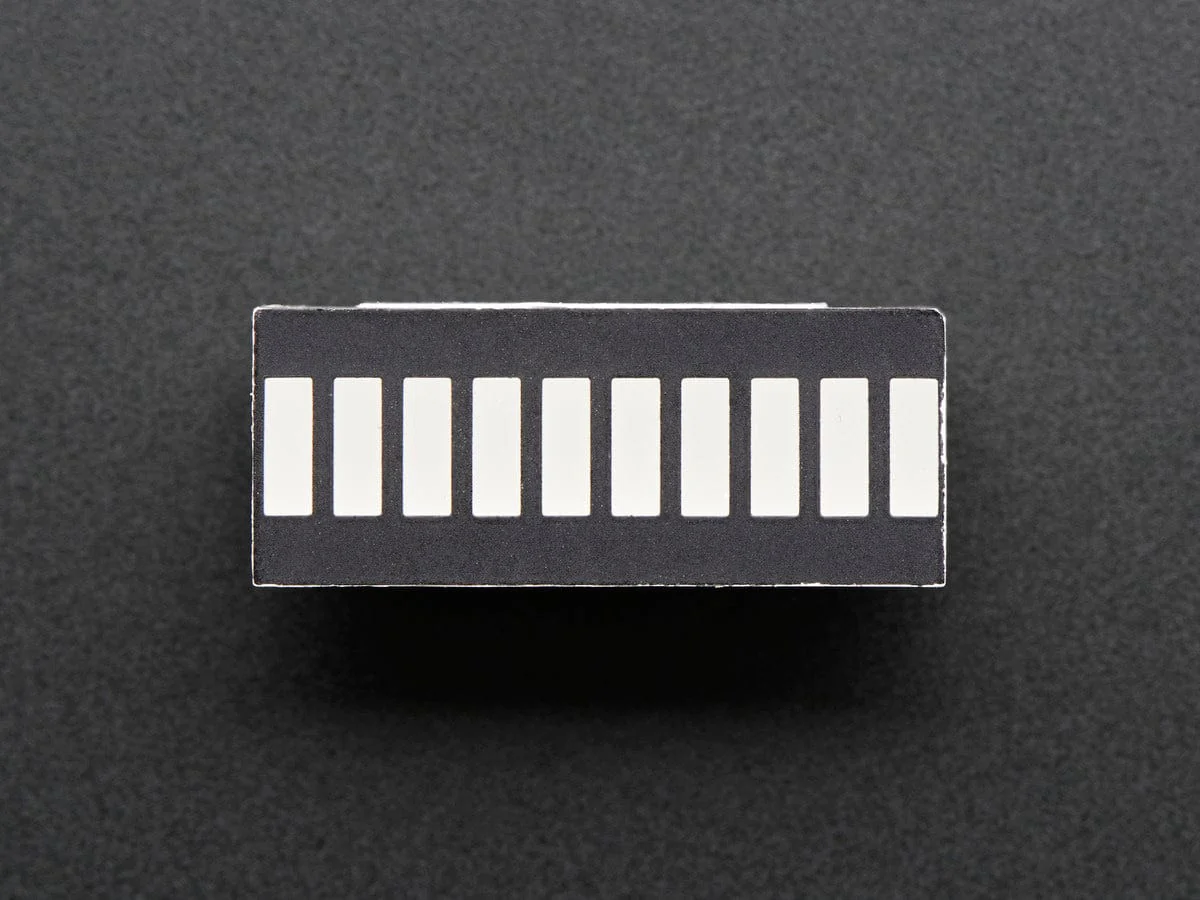

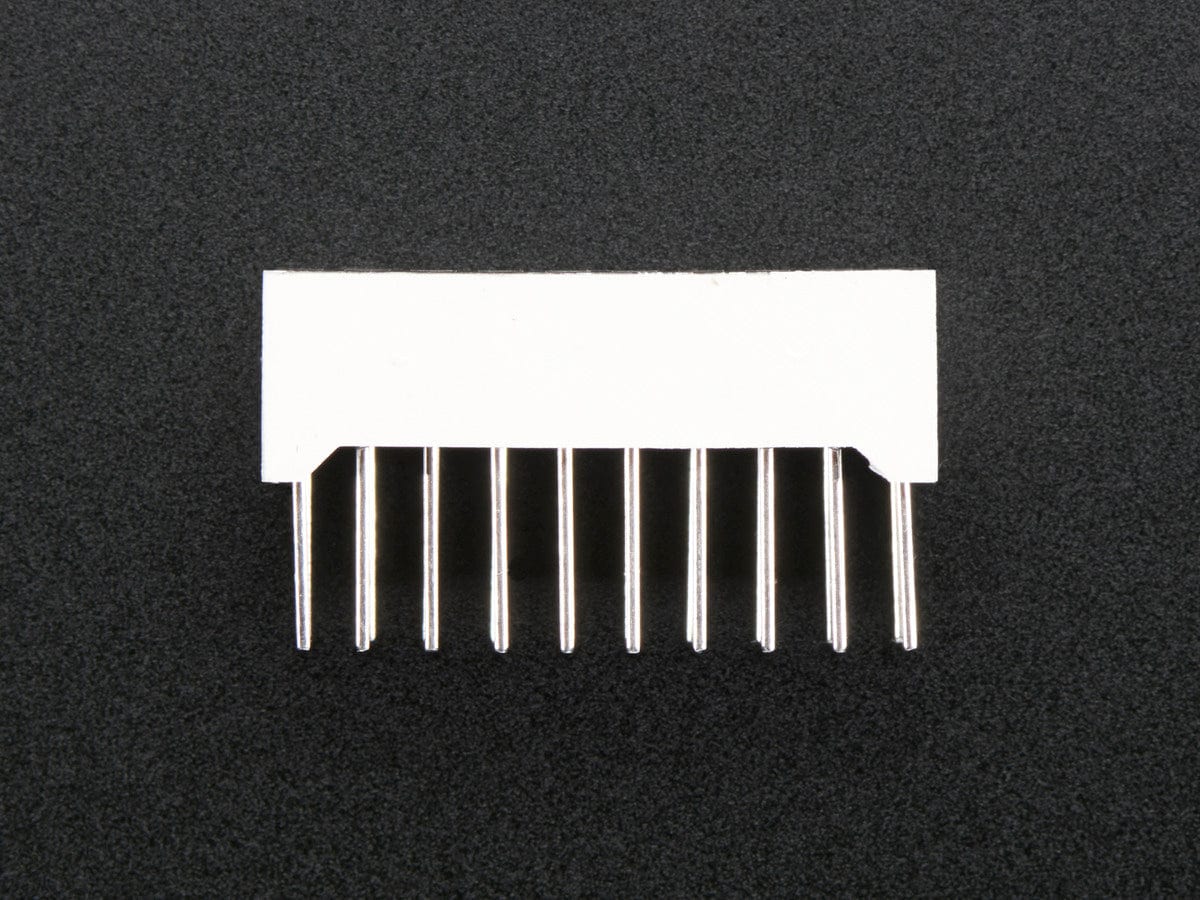

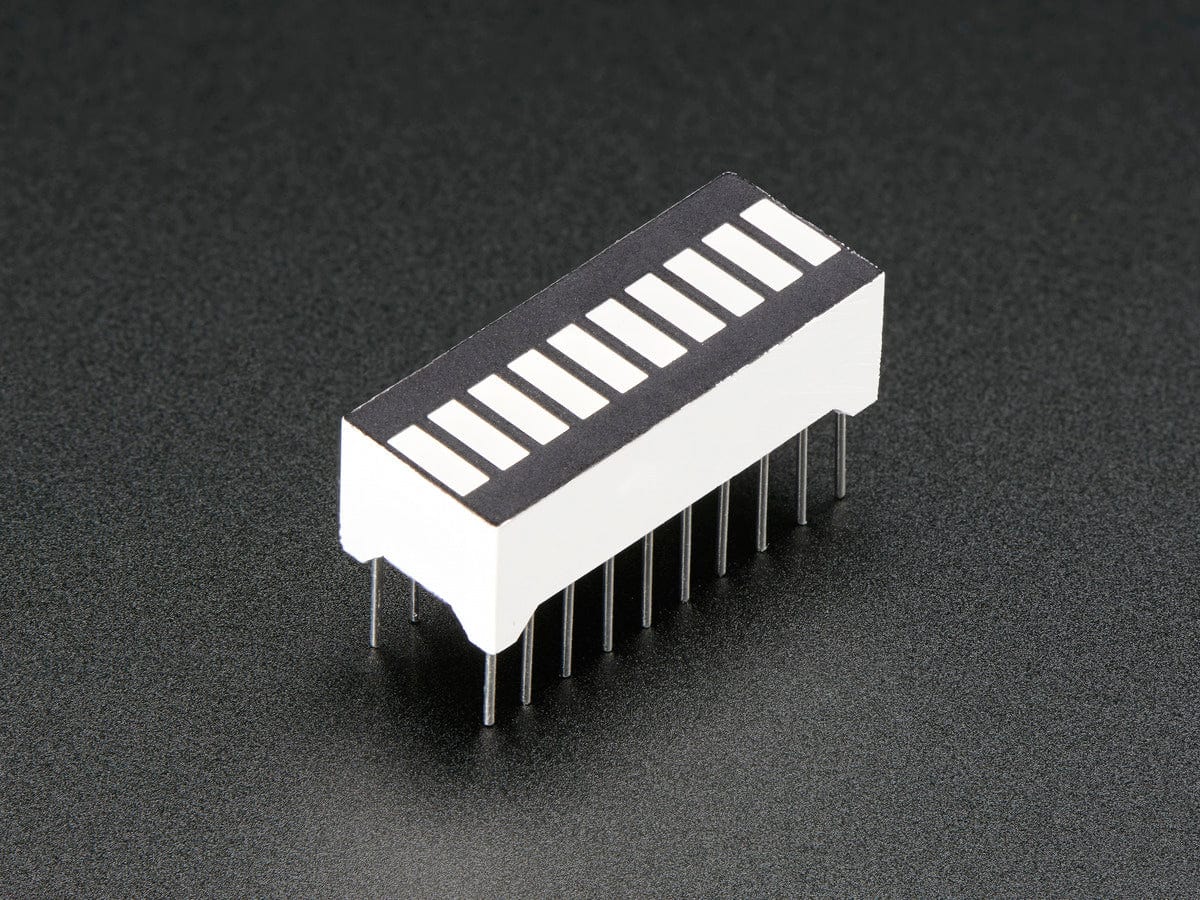

Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins,10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.
There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.
Technical Details
Datasheet
Dimensions:
- 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
- Height with Pins: 14.5mm / 0.6"
- Weight: 2.5g
Original: $2.31
-70%$2.31
$0.69
