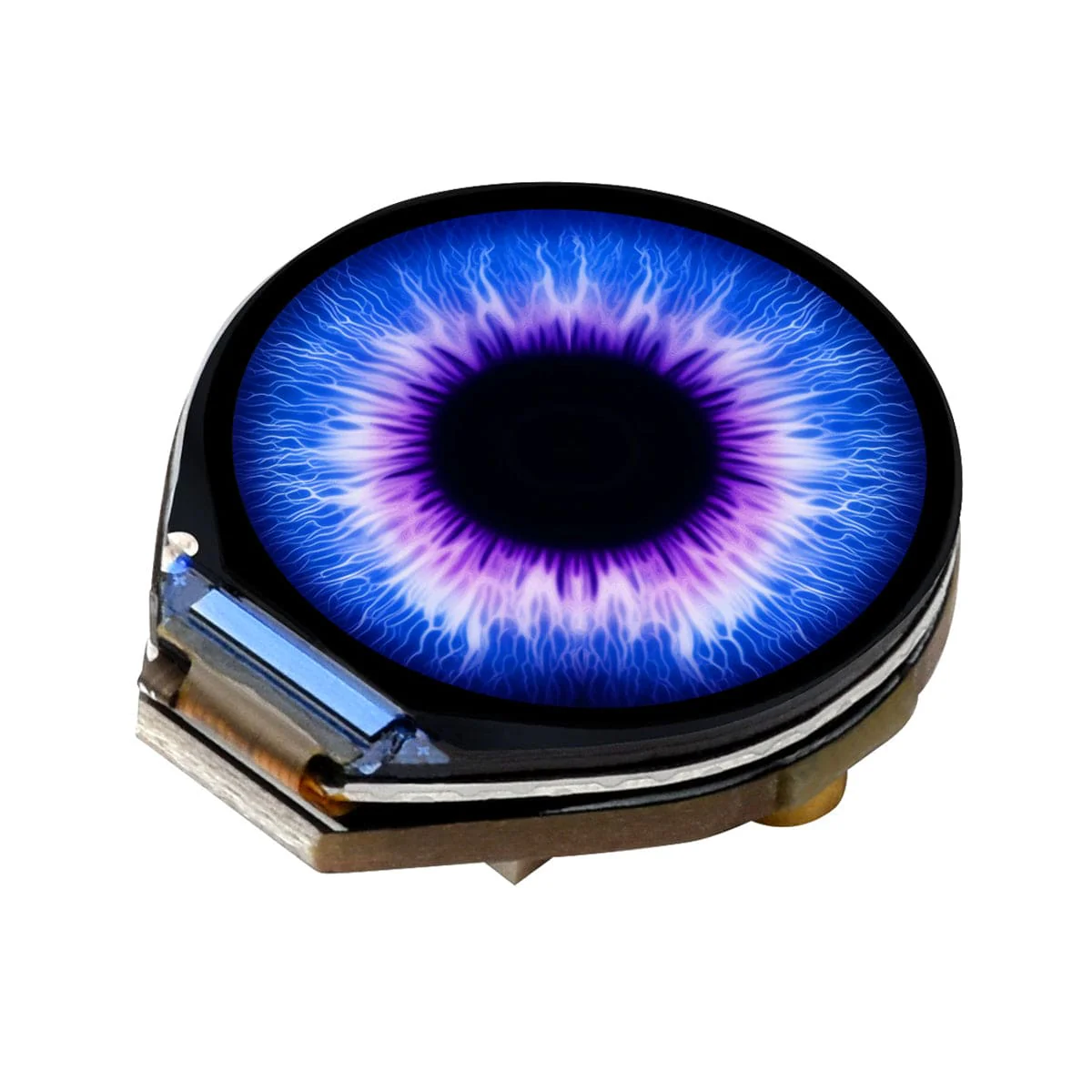

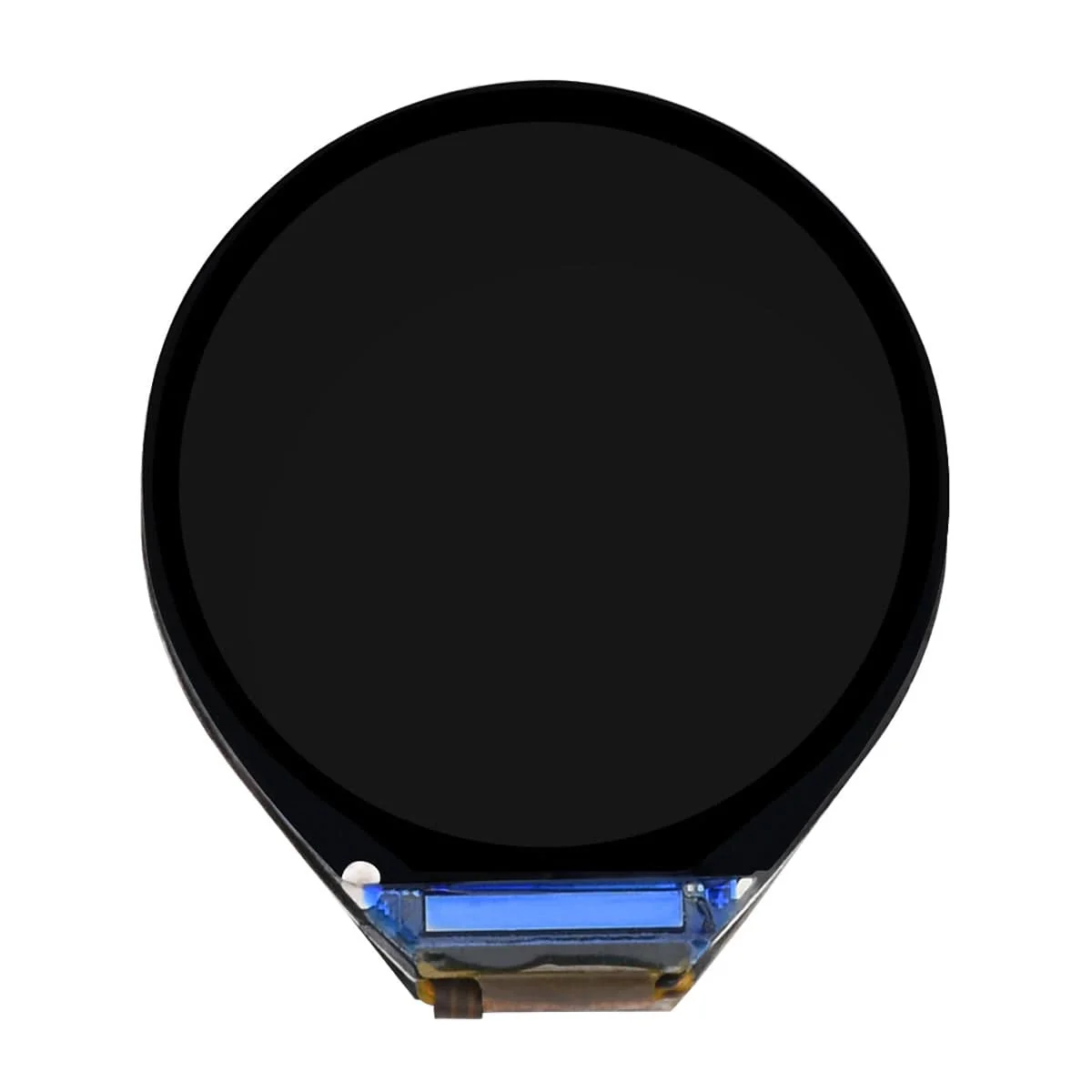

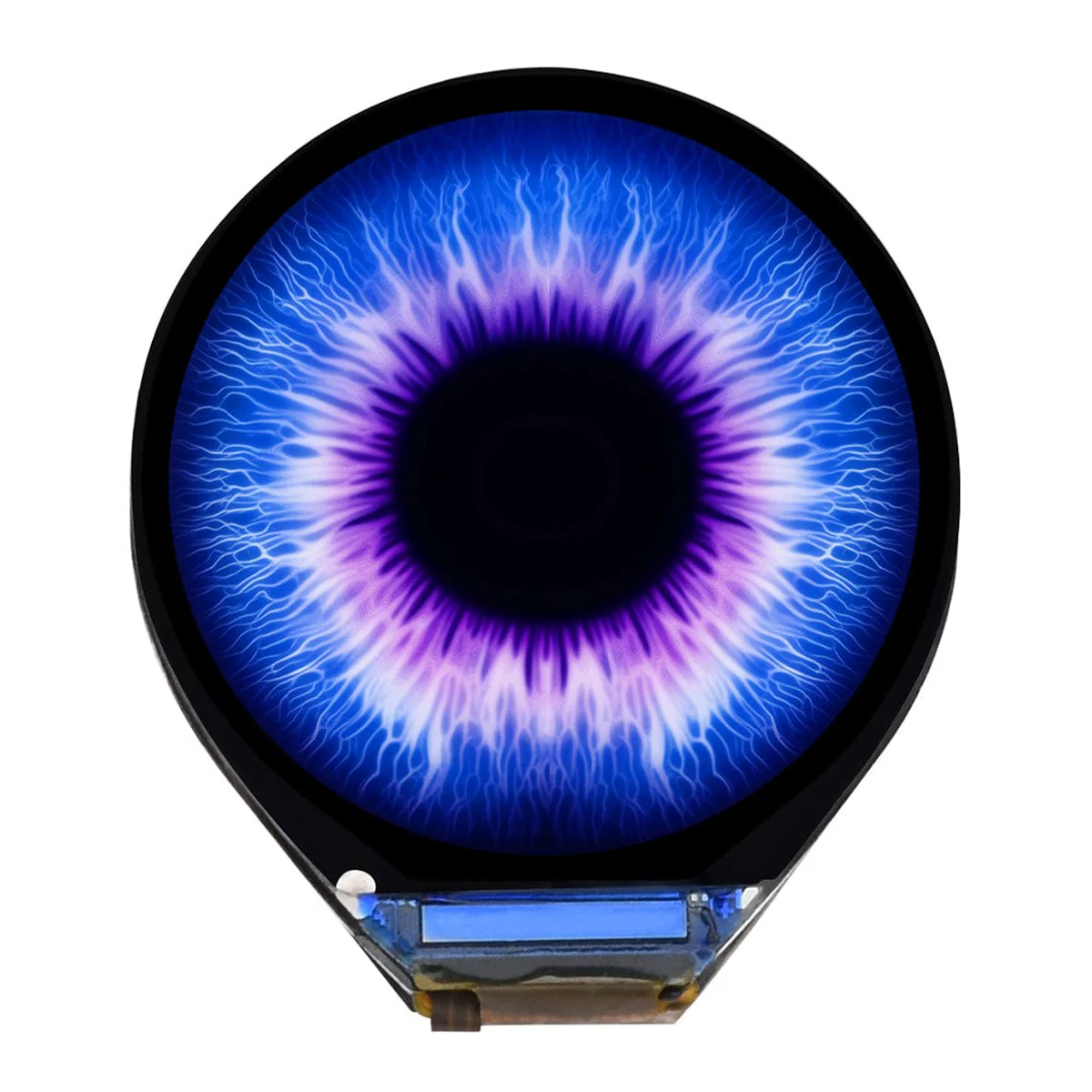

0.71" Round IPS LCD Display (160 x 160)

This 0.71" display gives you clear and vibrant visuals with help from a 160 x 160-pixel resolution and 65K colours. The IPS panel gives the screen brilliant colour accuracy and consistency and looks great from most angles.

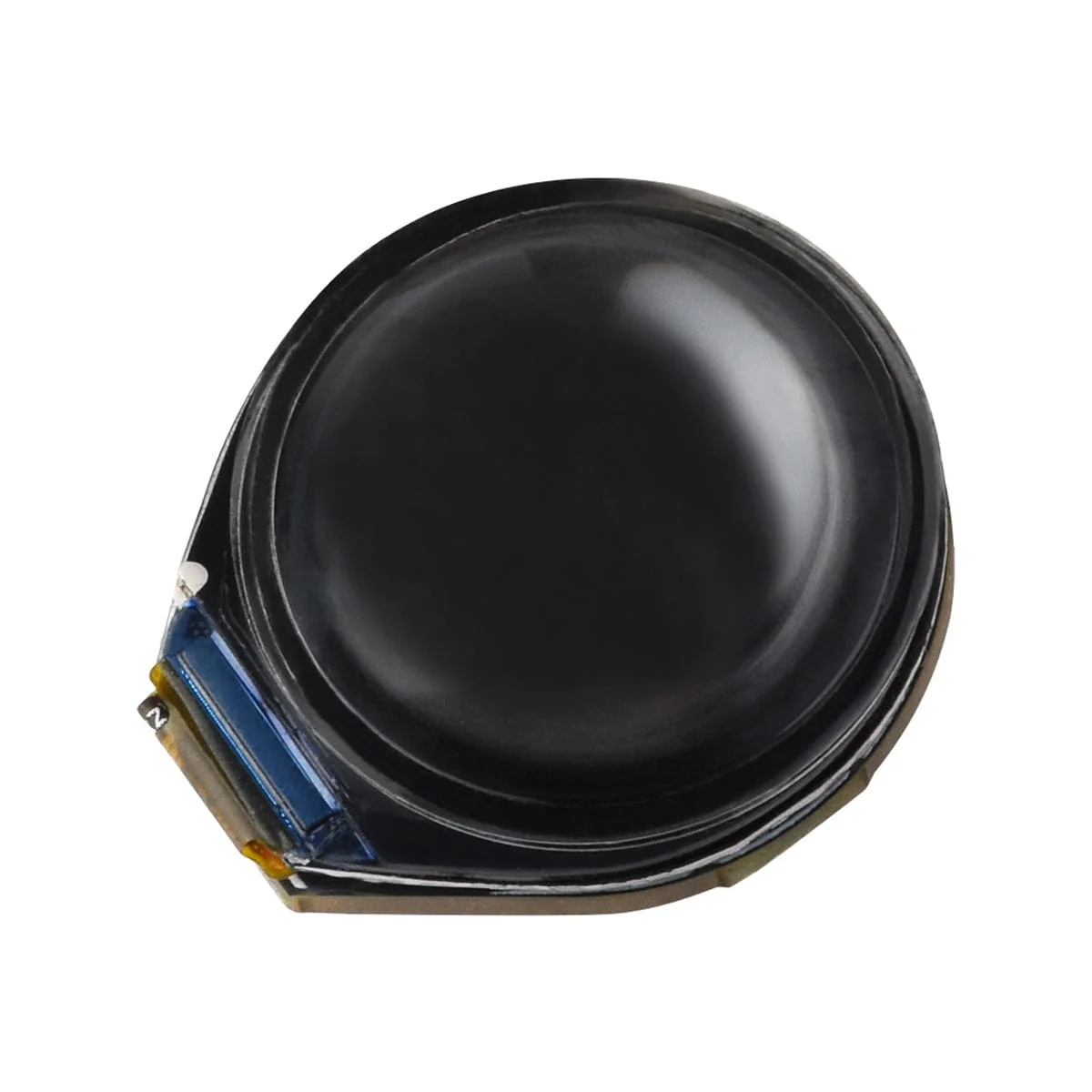

It connects using a 4-wire SPI setup, which keeps things simple and works with boards like Raspberry Pi Pico, ESP32 (e.g. ESP32-C3 Zero), and Arduino (e.g. Nano ESP32). A convex lens comes included, to make images on the display really pop out when you add them to projects like electronic eyes or wearable devices!

Features

• 0.71" round LCD, IPS panel, wide viewing angle
• 160 x 160 resolution, 65K colours, clear and colourful displaying effect
• SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

Specifications

Operating Voltage	3.3V / 5V
Communication Interface	4-wire SPI
Display Panel	IPS
Driver	GC9D01
Resolution	160 x 160 pixels
Display Size	18 x 18 (mm)
Pixel Pitch	37.5 x 112.5 (μm)

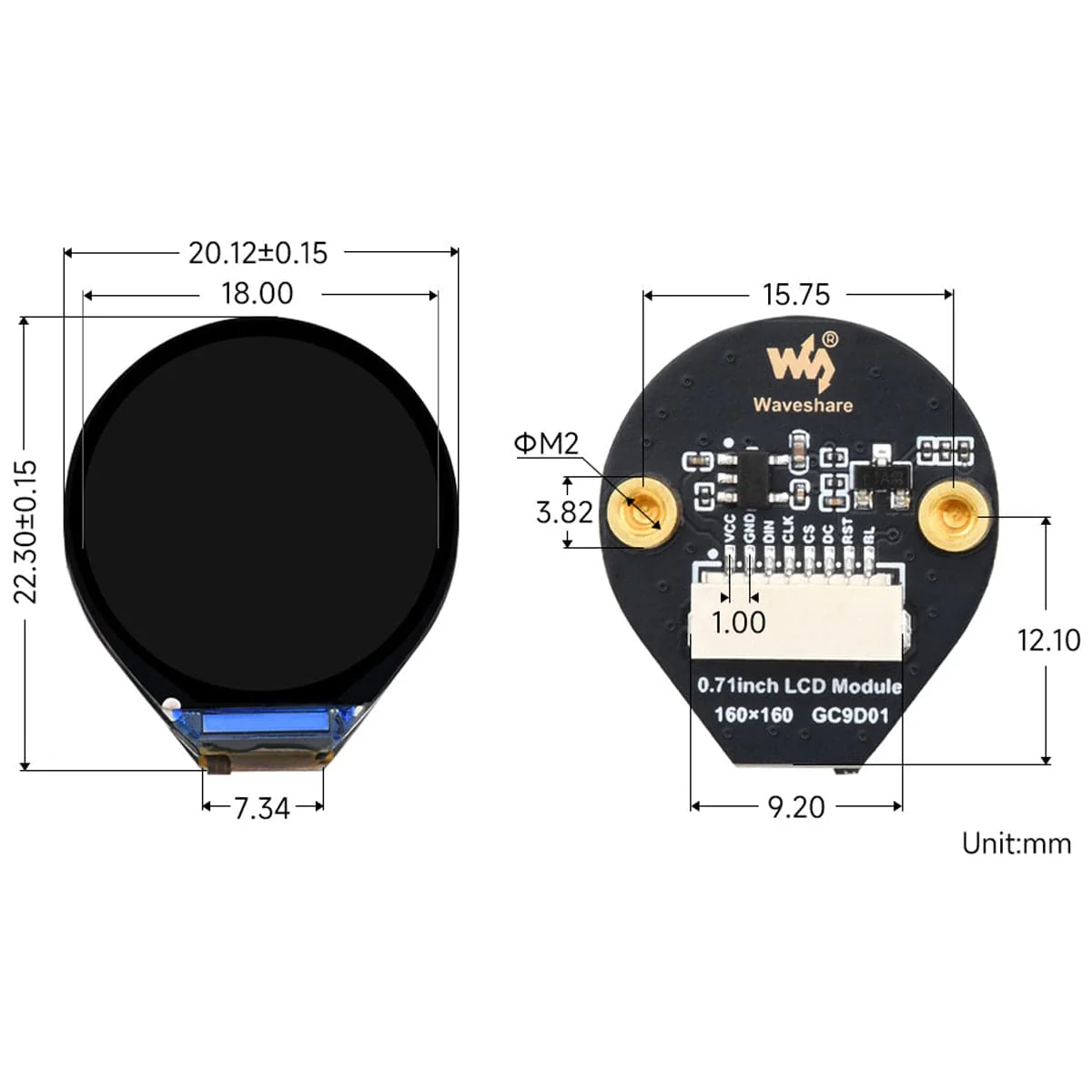

Dimensions	20.12 x 22.3 (mm)

Resources

• Product Wiki
• Schematic

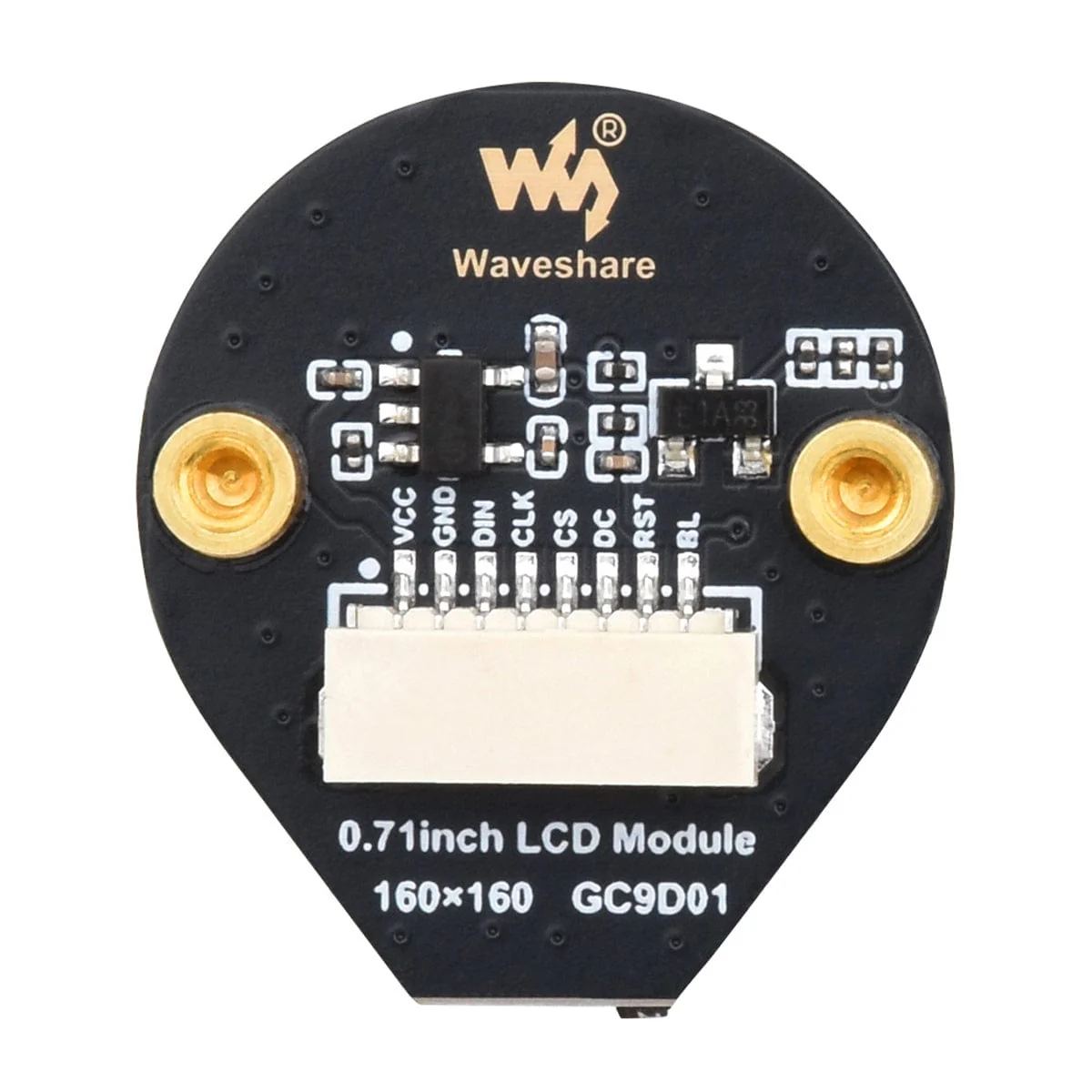

Pinout

Package Contents

• 1x 0.71" LCD Module

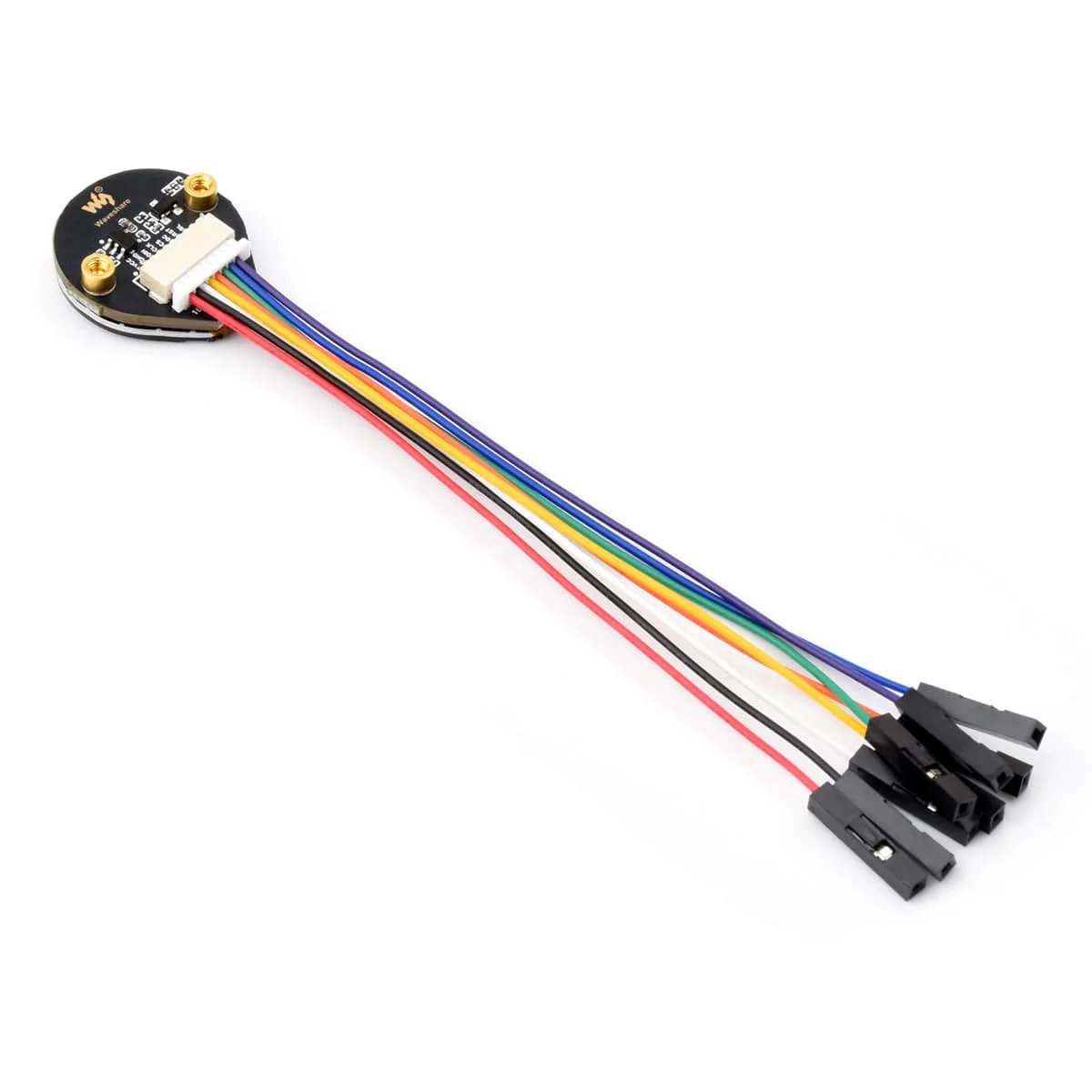

• 1x SH1.0 8-pin Cable

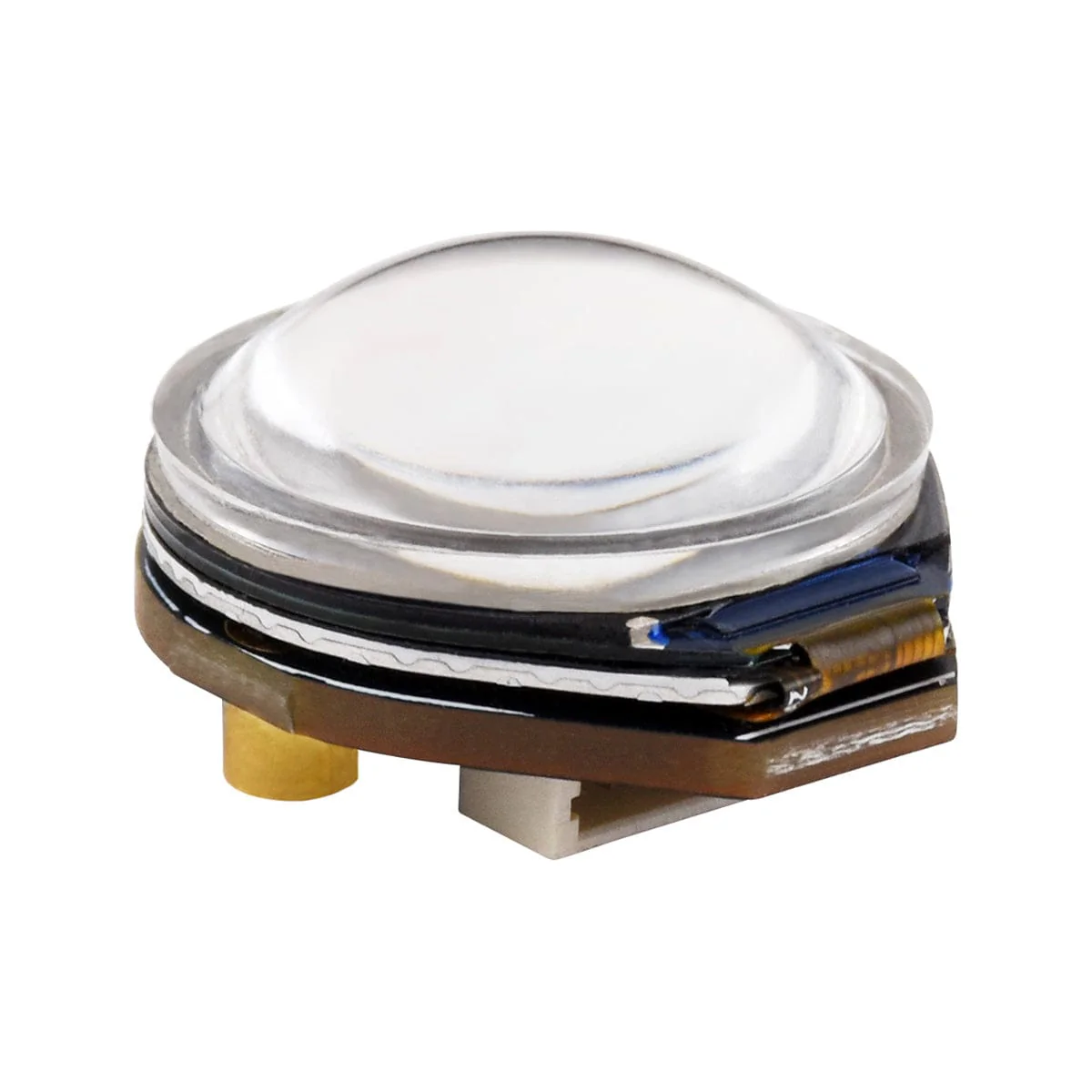

• 1x Convex Lens
